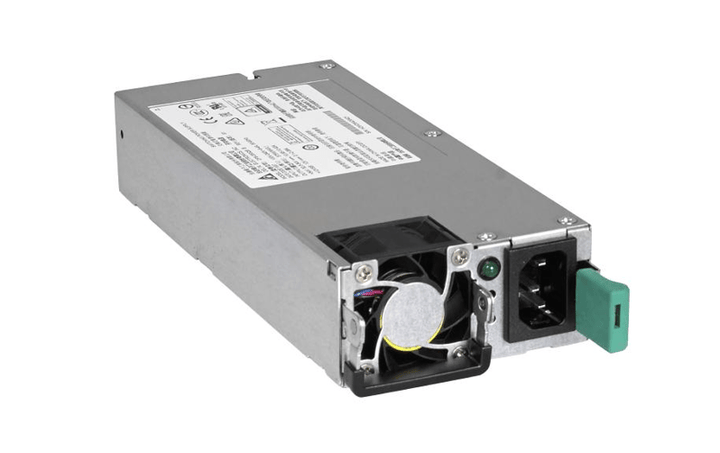

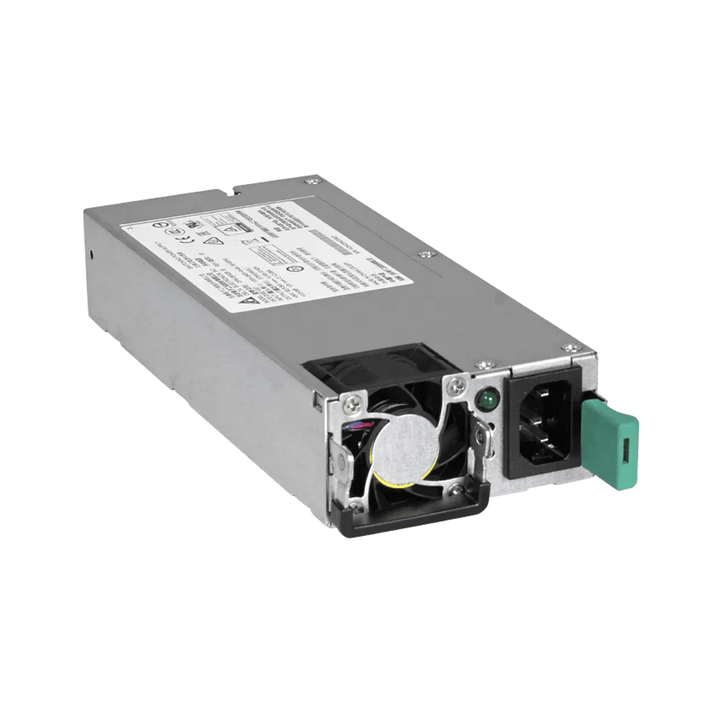

NETGEAR APS550W 550W Modular Power Supply Unit for M4300-28G-PoE+ / M4300-52G-PoE+ (PA Models)
PRODUCT DESCRIPTION
NETGEAR APS550W 550W Modular Power Supply Unit for M4300 PoE+ PA Models (APS550W-100NES) - 2 Years Local Warranty
Power for M4300 PoE+ PA Models
The APS550W is the 550W modular power supply that ships in the NETGEAR M4300-28G-PoE+ (GSM4328PA) and M4300-52G-PoE+ (GSM4352PA). Use it as a replacement, as a shelf spare, or as the second supply in the switch.
More PoE with a Second PSU
According to the M4300 datasheet, a GSM4328PA delivers a 480W PoE budget with one PSU and 720W with two PSUs in EPS mode; a GSM4352PA delivers 480W with one PSU and 1,010W with two PSUs in EPS mode.
Hot-Swap Replacement
NETGEAR states that in models with more than one PSU the power supplies are hot-pluggable, so a unit can be replaced without powering down the switch.
Not sure which PSU your switch needs? Email sales@sourceit.com.sg with your switch model and SKU and we will confirm it for you.
NETGEAR APS550W Datasheet — Technical Specifications
General
| Product Name | NETGEAR APS550W 550W Modular Power Supply Unit |
| Part Number | APS550W-100NES |
| Local Warranty (Singapore) | 2 years, supplied by SourceIT with a GST invoice |
Electrical
| AC input | 100–240VAC, 9–4A, 50–60 Hz |
| DC output | +54V, 10.95A or +12 VSB 2.08A |
| Output power (per netgear.com) | Up to 575W at 110/220V AC |
| AC connector (per netgear.com) | C14 |
| LED | AC OK (green) - PSU is receiving power |
Installation
| Form factor | Modular, slide-in PSU |
| Hot-swap | Supported in models with more than one PSU |
Compatibility & Software Support
Package Contents & M4300 Power Supply Ordering Information
In the Box
Power supply unit, power cord (varies by region) and installation guide.
NETGEAR M4300 Power Supply Units
| PSU | Used in (M4300) |
| APS150W | M4300-28G / M4300-52G (GSM4328S / GSM4352S) |
| APS250W | M4300 10G models: 8X8F (XSM4316S), 12X12F (XSM4324S), 24X (XSM4324CS), 24XF (XSM4324FS), 24X24F (XSM4348S), 48X (XSM4348CS), 48XF (XSM4348FS) |
| APS550W (this listing) | M4300-28G-PoE+ / M4300-52G-PoE+ PA models (GSM4328PA / GSM4352PA) |
| APS600W | M4300-16X PB model (XSM4316PB) |
| APS1000W | M4300-28G-PoE+ / M4300-52G-PoE+ PB models (GSM4328PB / GSM4352PB) |
Datasheet & Downloads
| Installation guide | NETGEAR Power Supply Unit Installation Guide (PDF) |
| M4300 datasheet | M4300 Series Datasheet (PDF) |
| NETGEAR product page | APS550W on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting APS550W-100NES.
Frequently Asked Questions — NETGEAR APS550W
Which M4300 switches use the APS550W?
The PA models: M4300-28G-PoE+ GSM4328PA and M4300-52G-PoE+ GSM4352PA, which ship with one APS550W.
What does a second APS550W add?
Per the M4300 datasheet, the PoE budget rises from 480W to 720W (GSM4328PA) or 1,010W (GSM4352PA) with two PSUs in EPS mode.
Can I combine it with an APS1000W?
No. NETGEAR states the APS550W and APS1000W cannot be mixed in the same switch.
Is a power cord included?
Yes, a power cord (varies by region) and an installation guide are included.
What warranty do I get?
2 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
