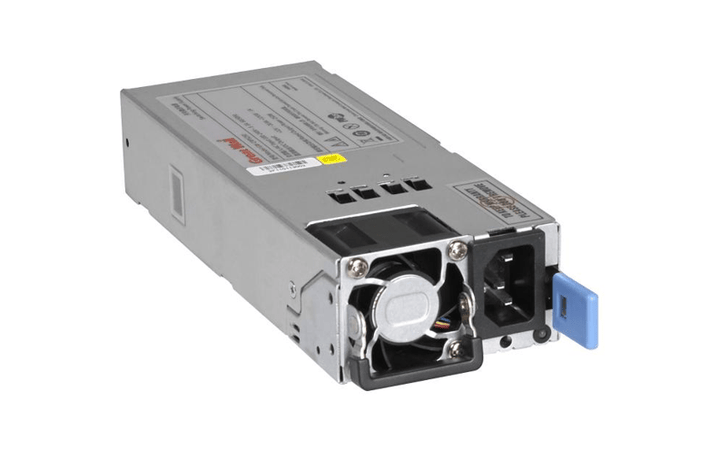

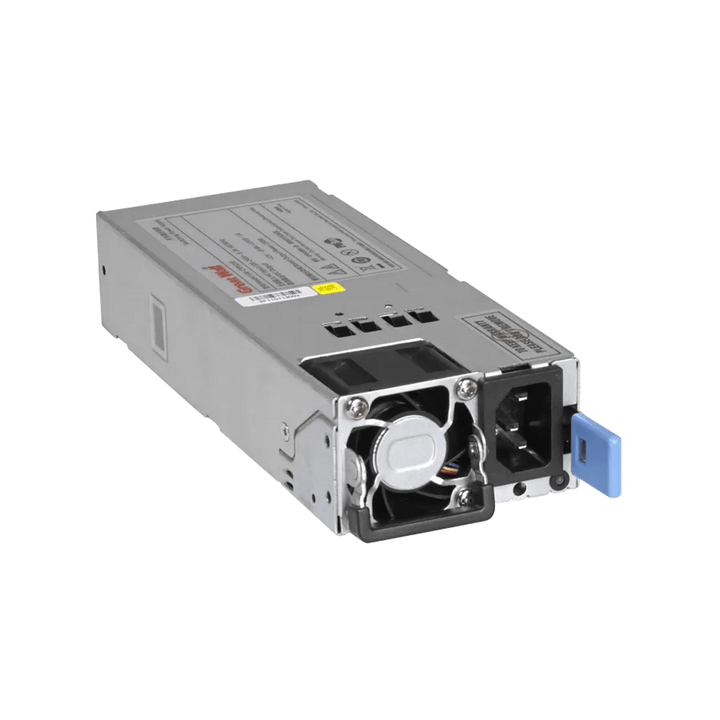

NETGEAR APS250W 250W Modular Power Supply Unit for M4300 10G Switches
PRODUCT DESCRIPTION
NETGEAR APS250W 250W Modular Power Supply Unit for M4300 10G Switches (APS250W-100NES) - 2 Years Local Warranty
Power for M4300 10G Switches
The APS250W is the 250W modular power supply used in the NETGEAR M4300 10G switches. The M4300 datasheet lists it as the PSU shipped with the M4300-8X8F, 12X12F, 24X, 24XF, 24X24F, 48X and 48XF.
Redundancy or a Ready Spare
NETGEAR's M4300 datasheet states that full-width models accept an optional second PSU for redundancy. For every APS250W-based model, a spare unit on the shelf means a failed supply can be swapped quickly.
Hot-Swap Replacement
NETGEAR states that in models with more than one PSU the power supplies are hot-pluggable, so a unit can be replaced without powering down the switch.
Not sure which PSU your switch needs? Email sales@sourceit.com.sg with your switch model and SKU and we will confirm it for you.
NETGEAR APS250W Datasheet — Technical Specifications
General
| Product Name | NETGEAR APS250W 250W Modular Power Supply Unit |
| Part Number | APS250W-100NES |
| Local Warranty (Singapore) | 2 years, supplied by SourceIT with a GST invoice |
Electrical
| AC input | 100–240VAC, 3.5–2A, 50–60 Hz |
| DC output | +12V, 20A or +12 VSB 1A |
| Output power (per netgear.com) | Up to 250W at 110/220V AC |
| AC connector (per netgear.com) | C14 |
| LED | AC OK (green) - PSU is receiving power |
Installation
| Form factor | Modular, slide-in PSU |
| Hot-swap | Supported in models with more than one PSU |
Compatibility & Software Support
Compatible NETGEAR switches
NETGEAR's product page and installation guide list the M4300-8X8F (XSM4316S), M4300-12X12F (XSM4324S) and M4300-24X24F (XSM4348S). The M4300 datasheet also shows the M4300-24X (XSM4324CS), M4300-24XF (XSM4324FS), M4300-48X (XSM4348CS) and M4300-48XF (XSM4348FS) shipping with one APS250W.
Other M4300 models
The M4300 1G and PoE models use different supplies - see the ordering table below.
Package Contents & M4300 Power Supply Ordering Information
In the Box
Power supply unit, power cord (varies by region) and installation guide.
NETGEAR M4300 Power Supply Units
| PSU | Used in (M4300) |
| APS150W | M4300-28G / M4300-52G (GSM4328S / GSM4352S) |
| APS250W (this listing) | M4300 10G models: 8X8F (XSM4316S), 12X12F (XSM4324S), 24X (XSM4324CS), 24XF (XSM4324FS), 24X24F (XSM4348S), 48X (XSM4348CS), 48XF (XSM4348FS) |
| APS550W | M4300-28G-PoE+ / M4300-52G-PoE+ PA models (GSM4328PA / GSM4352PA) |
| APS600W | M4300-16X PB model (XSM4316PB) |
| APS1000W | M4300-28G-PoE+ / M4300-52G-PoE+ PB models (GSM4328PB / GSM4352PB) |
Datasheet & Downloads
| Installation guide | NETGEAR Power Supply Unit Installation Guide (PDF) |
| M4300 datasheet | M4300 Series Datasheet (PDF) |
| NETGEAR product page | APS250W on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting APS250W-100NES.
Frequently Asked Questions — NETGEAR APS250W
Which M4300 switches use the APS250W?
The 10G models: M4300-8X8F, 12X12F, 24X, 24XF, 24X24F, 48X and 48XF each ship with one APS250W, per the M4300 datasheet.
Can I add a second APS250W for redundancy?
NETGEAR's M4300 datasheet states that full-width models accept an optional second PSU for redundancy.
Is it hot-swappable?
Yes, in models with more than one PSU the units are hot-pluggable.
Is a power cord included?
Yes, a power cord (varies by region) and an installation guide are included.
What warranty do I get?
2 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
