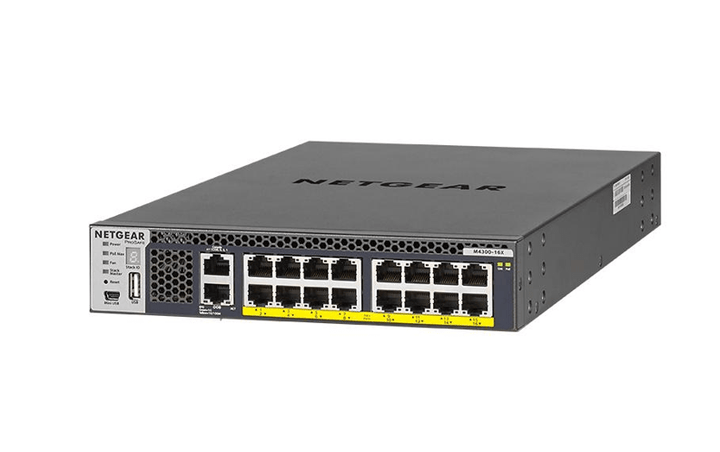

NETGEAR XSM4316PA M4300-16X Half-Width 16-Port Multi-Gig 10GBASE-T PoE+ Stackable L3 Managed Switch, 299W PSU
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4300-16X Half-Width 16-Port 10GBASE-T PoE+ Stackable L3 Managed Switch, 299W PSU (XSM4316PA-100AJS) - Limited Lifetime Local Warranty
16 Multi-Gig 10G PoE+ Ports
Every one of the 16 RJ45 ports runs at 100M, 1G, 2.5G, 5G or 10G and delivers PoE+, making the M4300-16X a fit for Wi-Fi access points, PTZ cameras and AV endpoints that need both multi-gig bandwidth and power. The included APS299W PSU provides a 199W PoE budget on a 320 Gbps switching fabric.
Half-Width for Redundant Top-of-Rack
At half-width 1U, two M4300-16X switches can be installed side by side in a single rack space for redundant top-of-rack, with a 1G out-of-band management port for dedicated management access.
Stacking with Non-Stop Forwarding
Up to eight M4300 switches can be aggregated into a single virtual chassis, and 10G models stack seamlessly with 1G models. There are no dedicated stacking ports: any 10G port (copper or fibre, RJ45, SFP+ or DAC) can be used. Non-Stop Forwarding (NSF) gives hitless failover from the management unit to the redundant management unit, and the stack is seen by the rest of the network as a single bridge or router.
Zero-Touch Pro AV Multicast
NETGEAR IGMP Plus provides automatic Layer 2 multicast out of the box: IGMP Snooping, IGMP Fast Leave and IGMP Querier are already enabled, giving zero-touch AV-over-IP with pre-configured L2 multicast (SDVoE-ready).
Layer 3 Routing with No Licence
The entire M4300 feature set, including L2 switching with IGMP Plus and L3 routing (static, RIP, OSPF, VRRP, PIM-SSM and policy-based routing) plus PTPv2, is available without a licence. Manage it through the industry-standard CLI, the NETGEAR web GUI or SNMP, with sFlow and RSPAN for visibility.
Need help choosing? Email sales@sourceit.com.sg with your PoE device list, per-port power draw and link speeds and we will size it for you.
NETGEAR XSM4316PA M4300-16X Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4300-16X Stackable Half-Width 16-Port Multi-Gig 10GBASE-T PoE+ Managed Switch (APS299W PSU) |
| Part Number | XSM4316PA-100AJS |
| Series | NETGEAR M4300 Series Fully Managed Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| 10G copper ports | 16 x 100M / 1G / 2.5G / 5G / 10GBASE-T, PoE+ |
| Out-of-band management | 1 x 1G Ethernet |
| Console | RJ45 RS232; Mini-USB (front) |
| USB | USB port for storage |
Performance
| Switching fabric | 320 Gbps |
| MAC address table | 16K |
| ARP/NDP | 888 |
| Routing table | Static: 64 IPv4 / 64 IPv6; RIP: 512; OSPF: 512 |
| VLANs | 4K |
| Packet buffer | 16Mb |
| Stacking | Up to 8 switches, NSF hitless failover; any 10G port can be a stacking port |
PoE
| PoE standard | PoE+ |
| PoE ports | 16 |
| PoE budget (APS299W, included) | 199W |
| PoE budget (with APS600W) | 500W |
Power & Environmental
| Power supply | 1 x APS299W modular PSU included |
| PSU bays | 1 modular bay |
| Cooling | Fixed fans, front-to-back airflow |
Physical
| Form factor | Half-width 1U; two units fit side by side in 1U |
Compatibility & Software Support
Power supply
The M4300-16X accepts the NETGEAR APS299W (199W PoE budget) or APS600W (500W PoE budget). To raise the PoE budget, fit an APS600W in place of the APS299W.
Multi-gig devices
All 16 ports negotiate 100M, 1G, 2.5G, 5G or 10G, so access points and other devices with 2.5G or 5G uplinks connect at their full rate.
Stacking
Stacks with other M4300 models (up to 8 switches), including mixing 1G and 10G models. Any 10G port, copper or fibre, can be configured for stacking.
Software features
Full Layer 2 and Layer 3 feature set with no licence: static routing, RIP, OSPF, VRRP, PIM-SSM, policy-based routing, PTPv2 and NETGEAR IGMP Plus automatic multicast. Managed via industry-standard CLI, web GUI and SNMP, with sFlow and RSPAN.
Package Contents & M4300 Ordering Information
In the Box
M4300 switch, power cord, console cable (RJ45 to DB9), USB console cable (mini-B to type A), half-width rack-mount kit (long and short brackets with screws, for mounting one switch or two side by side in 1U), rubber footpads for tabletop installation and quick installation guide.
NETGEAR M4300 Models
| Model | Ports | Part No. |
| GSM4328S M4300-28G | 24 x 1G, 2 x 10GBASE-T, 2 x SFP+ | GSM4328S-100AJS |
| GSM4328PA M4300-28G-PoE+ (550W PSU) | 24 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4328PA-100AJS |
| GSM4328PB M4300-28G-PoE+ (1000W PSU) | 24 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4328PB-100AJS |
| GSM4352S M4300-52G | 48 x 1G, 2 x 10GBASE-T, 2 x SFP+ | GSM4352S-100AJS |
| GSM4352PA M4300-52G-PoE+ (550W PSU) | 48 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4352PA-100AJS |
| GSM4352PB M4300-52G-PoE+ (1000W PSU) | 48 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4352PB-100AJS |
| XSM4316S M4300-8X8F | 8 x 10GBASE-T, 8 x SFP+ | XSM4316S-100AJS |
| XSM4316PA M4300-16X (PoE+, PA) (this listing) | 16 x 10GBASE-T PoE+ | XSM4316PA-100AJS |
| XSM4316PB M4300-16X (PoE+, PB) | 16 x 10GBASE-T PoE+ | XSM4316PB-100AJS |
| XSM4324S M4300-12X12F | 12 x 10GBASE-T, 12 x SFP+ | XSM4324S-100AJS |
| XSM4324CS M4300-24X | 24 x 10GBASE-T (4 shared SFP+) | XSM4324CS-100AJS |
| XSM4324FS M4300-24XF | 24 x SFP+ (2 shared 10GBASE-T) | XSM4324FS-100AJS |
| XSM4348S M4300-24X24F | 24 x 10GBASE-T, 24 x SFP+ | XSM4348S-100AJS |
| XSM4348CS M4300-48X | 48 x 10GBASE-T (4 shared SFP+) | XSM4348CS-100AJS |
| XSM4348FS M4300-48XF | 48 x SFP+ (2 shared 10GBASE-T) | XSM4348FS-100AJS |
Datasheet & Downloads
| NETGEAR datasheet | M4300 Series Datasheet (PDF) |
| Installation guide | M4300 Series Installation Guide (PDF) |
| User manual | M4300 / M4300-96X User Manual (PDF) |
| NETGEAR product page | M4300 Series on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XSM4316PA-100AJS.
Frequently Asked Questions — NETGEAR XSM4316PA M4300-16X
What is the difference between XSM4316PA and XSM4316PB?
Same 16-port M4300-16X switch. The PA ships with an APS299W PSU (199W PoE budget); the PB ships with an APS600W PSU (500W PoE budget).
Does it support 2.5G and 5G?
Yes. All 16 ports support 100M, 1G, 2.5G, 5G and 10G.
Can I upgrade the PoE budget later?
Yes. Replacing the APS299W with an APS600W raises the PoE budget to 500W.
Do I need a licence for Layer 3 routing?
No. Static, RIP, OSPF, VRRP, PIM-SSM and policy-based routing are included without a licence.
Can it stack with other M4300 switches?
Yes. Up to 8 M4300 switches, 1G and 10G models mixed, can form one stack using any 10G port.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
