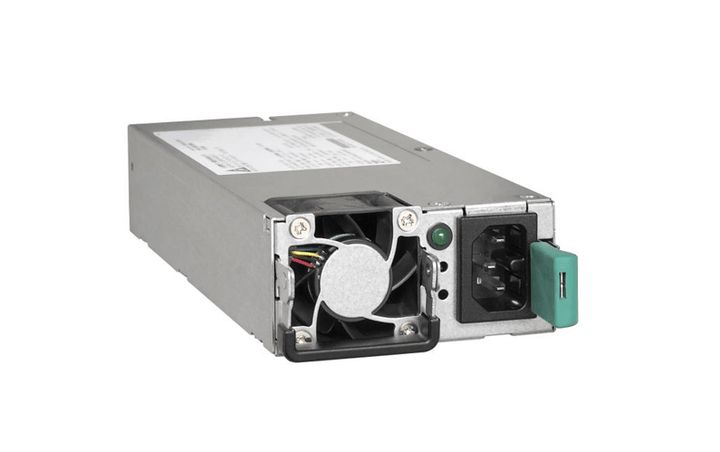

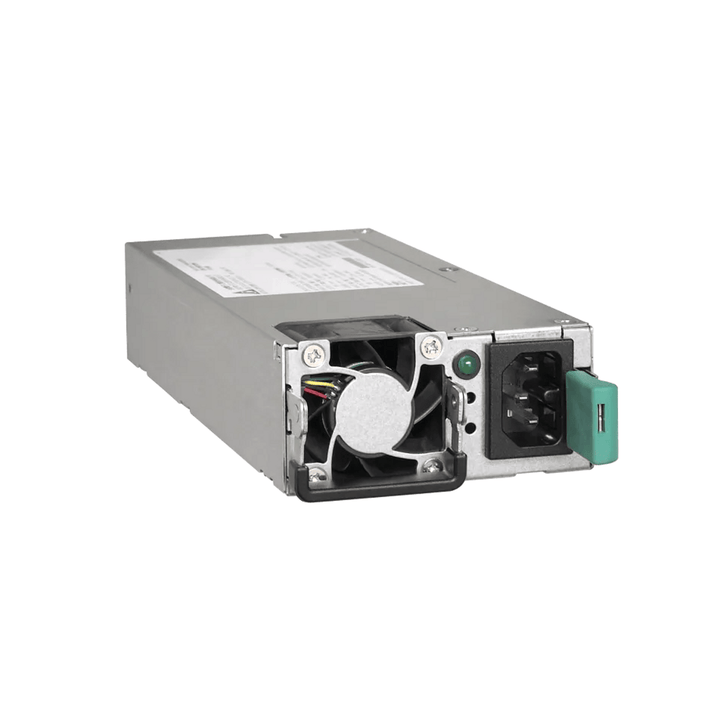

NETGEAR APS1000W 1000W Modular Power Supply Unit for M4300-28G/52G-PoE+, M6100 and RPS4000v2
PRODUCT DESCRIPTION
NETGEAR APS1000W 1000W Modular Power Supply Unit (APS1000W-100NES) - 2 Years Local Warranty
Power for M4300 PoE+ PB Models
The APS1000W is the 1000W modular power supply used in the NETGEAR M4300-28G-PoE+ (GSM4328PB) and M4300-52G-PoE+ (GSM4352PB). Add one as a second power supply for redundancy or keep one as a spare.
Also for M6100 and RPS4000v2
NETGEAR also uses the APS1000W as an additional power module for M6100 chassis switches and the RPS4000v2 external RPS/EPS unit.
Hot-Swap Replacement
In multi-PSU models the APS1000W supports hot-swap replacement: release the orange latch, slide the old unit out, insert the replacement and reconnect the power cord.
Not sure which PSU your switch needs? Email sales@sourceit.com.sg with your switch model and SKU and we will confirm it for you.
NETGEAR APS1000W Datasheet — Technical Specifications
General
| Product Name | NETGEAR APS1000W 1000W Modular Power Supply Unit |
| Part Number | APS1000W-100NES |
| Local Warranty (Singapore) | 2 years, supplied by SourceIT with a GST invoice |
Electrical
| AC input | 100–127VAC, 9.9A, 50–60 Hz or 200–240VAC, 7.8A, 50–60 Hz |
| DC output (100–127VAC) | 56V, 12.12A or +12 VSB 1.8A |
| DC output (200–240VAC) | 56V, 17.35A or +12 VSB 2.4A |
| Output power (per netgear.com) | Up to 640W at 110V AC; up to 910W at 220V AC |
| AC connector | C15 |
| LED | AC OK (green) |
Installation
| Form factor | Modular, slide-in PSU with release latch |
| Hot-swap | Supported in multi-PSU models |
Compatibility & Software Support
Compatible NETGEAR products
M4300-28G-PoE+ (GSM4328PB), M4300-52G-PoE+ (GSM4352PB), M6100 chassis switches (M6100-3S) and RPS4000v2 external RPS/EPS.
Mixing power supplies
NETGEAR states that the APS550W and APS1000W cannot be mixed and matched in an M4300 PoE+ switch. PA models (GSM4328PA / GSM4352PA) use the APS550W.
Package Contents & M4300 Power Supply Ordering Information
In the Box
Power supply unit, power cord (varies by region) and installation guide.
NETGEAR M4300 Power Supply Units
| PSU | Used in (M4300) |
| APS150W | M4300-28G / M4300-52G (GSM4328S / GSM4352S) |
| APS250W | M4300 10G models (8X8F, 12X12F, 24X, 24XF, 24X24F, 48X, 48XF) |
| APS550W | M4300-28G-PoE+ / M4300-52G-PoE+ PA models (GSM4328PA / GSM4352PA) |
| APS600W | M4300-16X PB model (XSM4316PB) |
| APS1000W (this listing) | M4300-28G-PoE+ / M4300-52G-PoE+ PB models (GSM4328PB / GSM4352PB) |
Datasheet & Downloads
| Installation guide | NETGEAR Power Supply Unit Installation Guide (PDF) |
| M4300 datasheet | M4300 Series Datasheet (PDF) |
| M6100 datasheet | M6100 Series Datasheet (PDF) |
| NETGEAR product page | APS1000W on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting APS1000W-100NES.
Frequently Asked Questions — NETGEAR APS1000W
Which M4300 switches use the APS1000W?
The PB models: M4300-28G-PoE+ GSM4328PB and M4300-52G-PoE+ GSM4352PB.
Can I use it in a GSM4328PA or GSM4352PA?
NETGEAR states the APS550W and APS1000W cannot be mixed in an M4300 PoE+ switch; PA models use the APS550W.
Is it hot-swappable?
Yes, in multi-PSU models the unit can be replaced by hot-swap.
Is a power cord included?
Yes, a power cord (varies by region) is included.
What warranty do I get?
2 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
