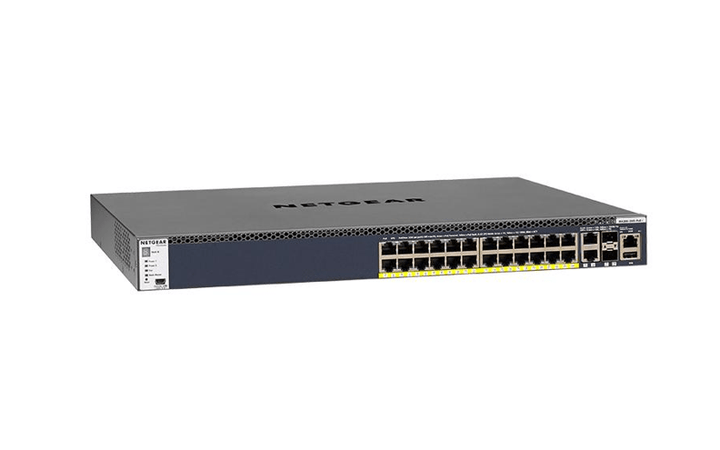

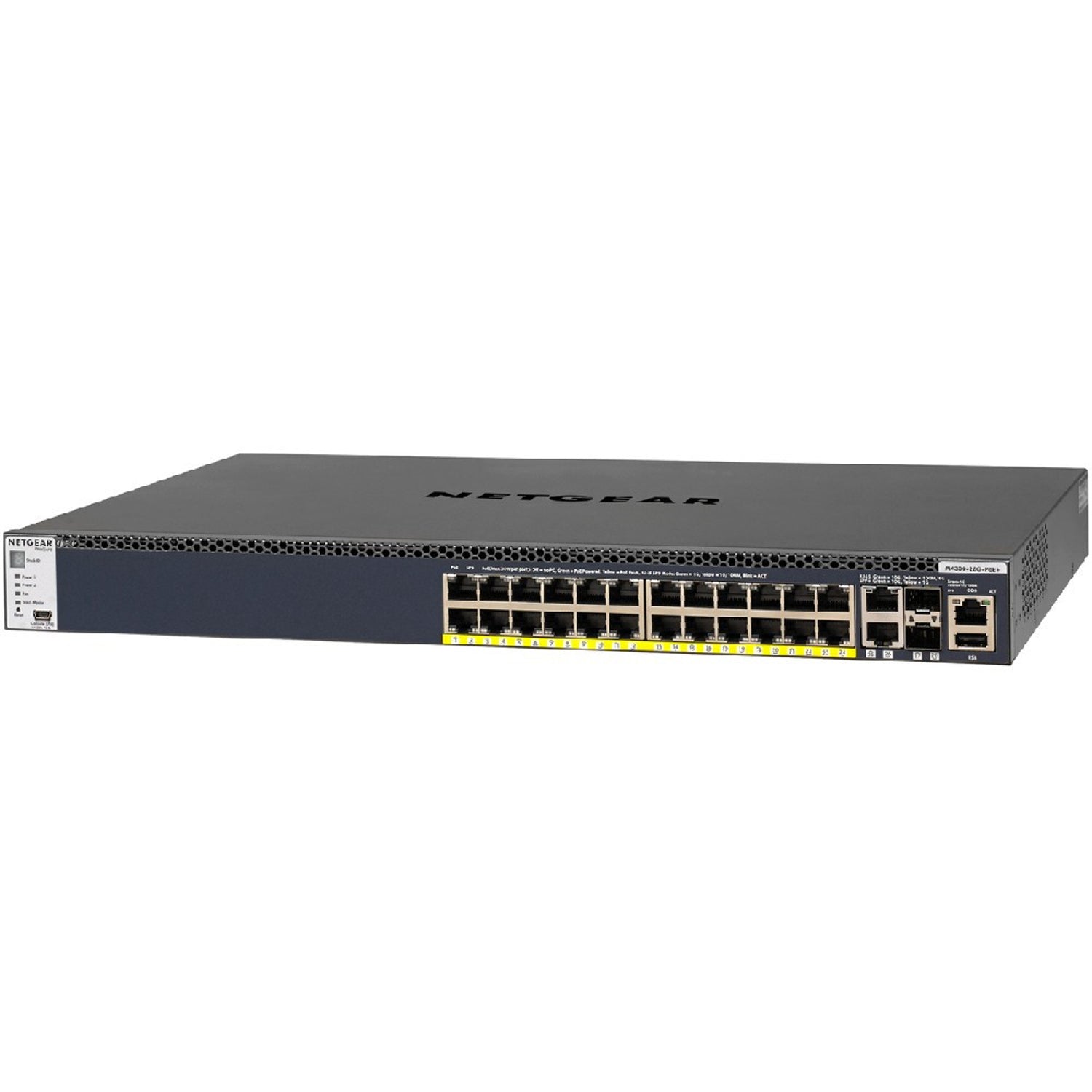

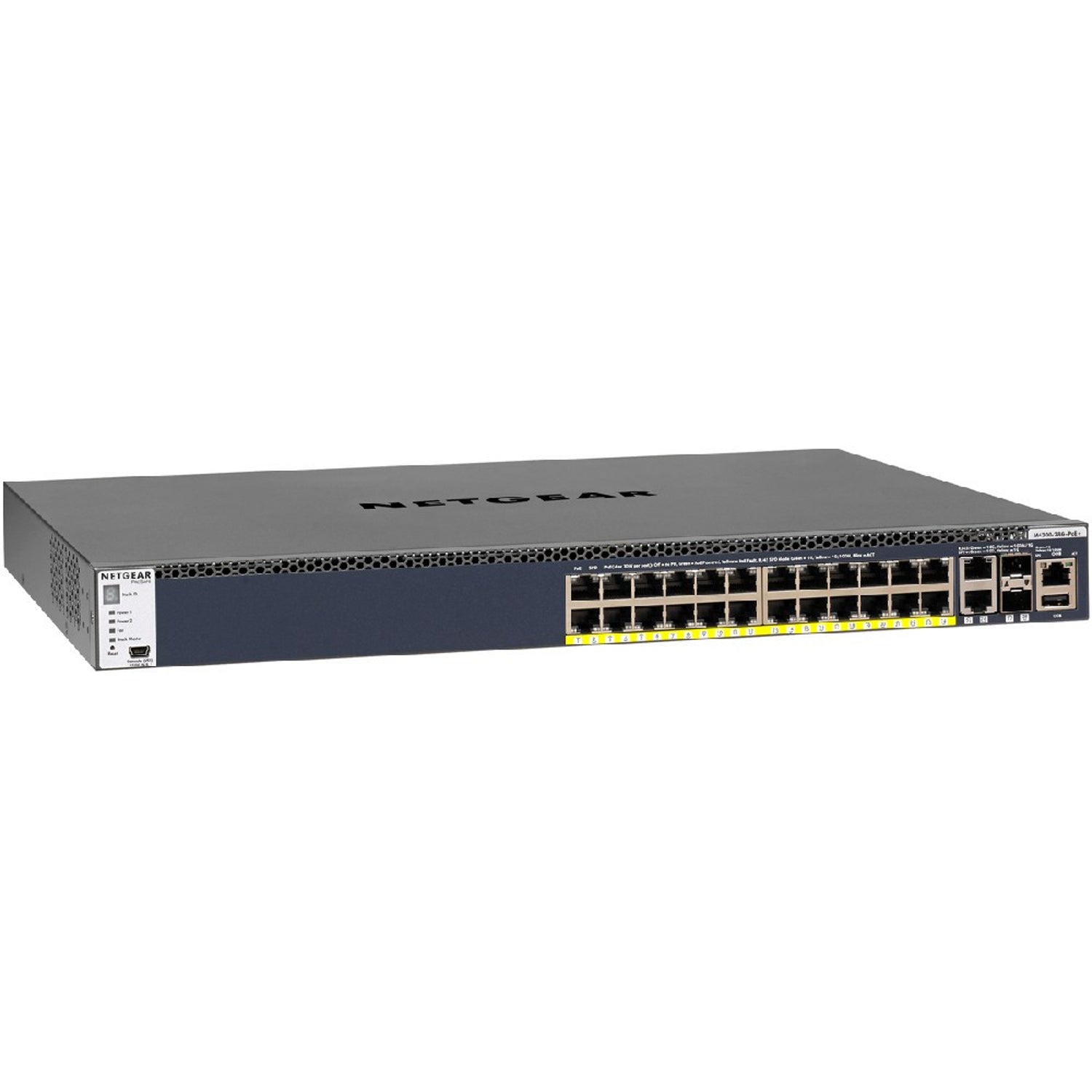

NETGEAR GSM4328PB M4300-28G-PoE+ 24-Port Gigabit PoE+ Stackable L3 Managed Switch, 2x10GBASE-T, 2x SFP+, 1000W PSU
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4300-28G-PoE+ 24-Port Gigabit PoE+ Stackable L3 Managed Switch, 1000W PSU (GSM4328PB-100AJS) - Limited Lifetime Local Warranty
Full 720W PoE+ from a Single PSU
The M4300-28G-PoE+ (PB) ships with the APS1000W. On 220V mains, as in Singapore, one PSU delivers a 720W PoE budget, enough for full 30W PoE+ on all 24 ports, and a second APS1000W keeps 720W in redundant RPS mode. Ideal for dense deployments of PoE+ cameras, access points and AV endpoints.
Four Independent 10G Uplinks
2 x 10GBASE-T and 2 x SFP+ ports, all independent, on a 128Gbps non-blocking fabric, for fibre or copper uplinks, fast server links, or stacking.
Stack up to 8 Switches with Nonstop Forwarding
Up to eight M4300 switches can be stacked into one managed virtual chassis, mixing 1G and 10G models. On the 1G models up to four 10G ports per switch can be used for stacking, in spine-and-leaf or dual-ring topologies. Nonstop Forwarding (NSF) with hitless management failover keeps traffic flowing if a stack member fails.
Layer 3 Routing Included - No Licence Required
The entire M4300 feature set is available without a licence: static routing, RIP, OSPF, VRRP, PIM and policy-based routing (PBR) for IPv4 and IPv6 where supported, plus 4K VLANs and a 16Mb packet buffer. Manage it through the web GUI, the industry-standard CLI, or NETGEAR's NMS300 single-pane-of-glass platform with mass configuration, and keep a dual firmware image and configuration file for safer updates.
Need help choosing? Email sales@sourceit.com.sg with your PoE device list, uplink type and whether you need redundant power and we will size it for you.
NETGEAR M4300-28G-PoE+ Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4300-28G-PoE+ 24x1G PoE+ Stackable Managed Switch with 2x 10GBASE-T and 2x SFP+ (1000W PSU) |
| Part Number | GSM4328PB-100AJS |
| Series | NETGEAR M4300 Series Fully Managed Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces

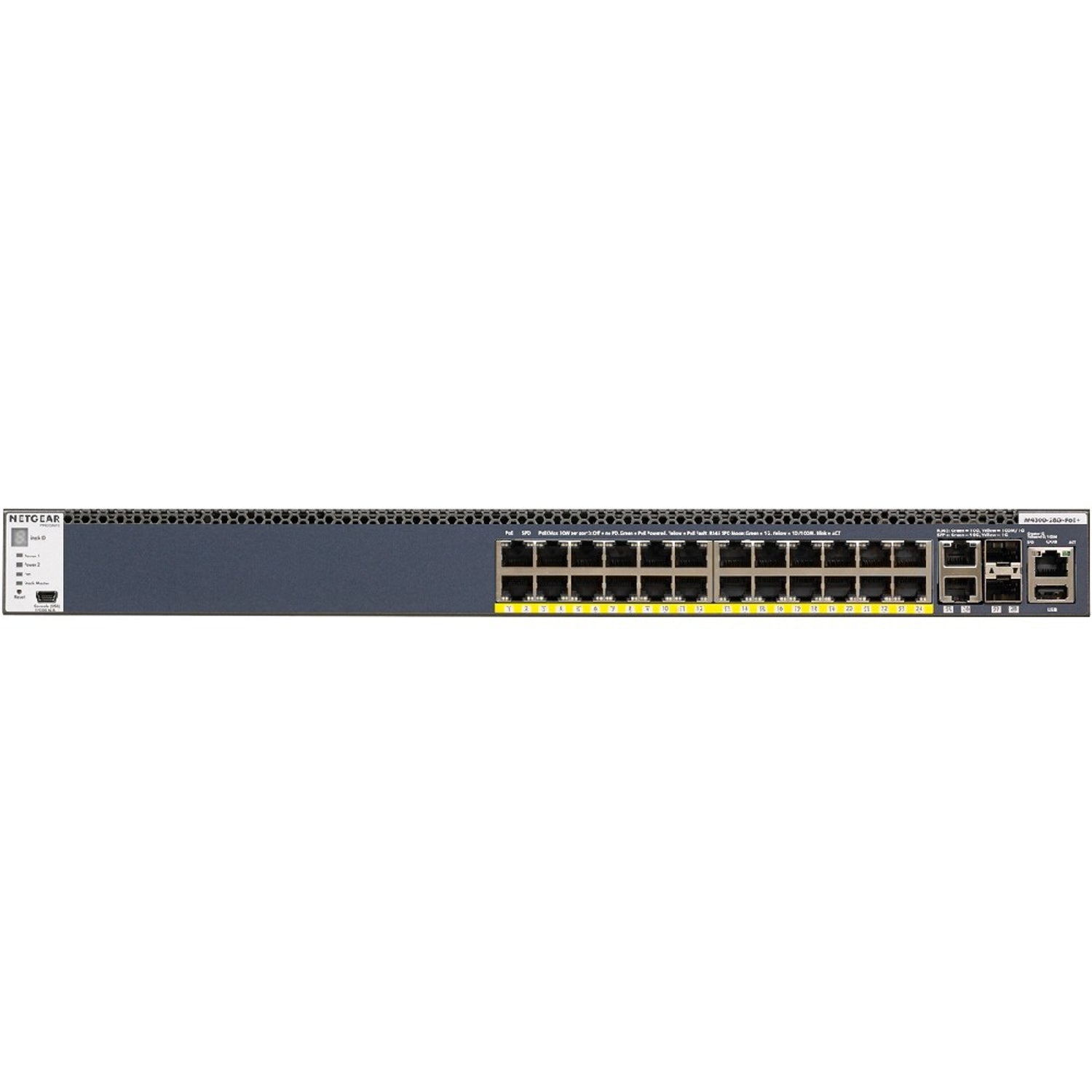

| 1G Copper Ports | 24 x 10/100/1000BASE-T RJ45 PoE+ (IEEE 802.3at) |
| 10G Copper Ports | 2 x 10GBASE-T RJ45 (100M/1G/10G), independent |
| 10G Fibre Ports | 2 x SFP+ (1G/10G), independent |
| Out-of-band Management | 1 x 1G Ethernet service port (front) |
| Console | RJ45 RS232 (rear) and Mini-USB (front) |
| Storage | USB port (front) |
Performance
| Switching Fabric | 128Gbps non-blocking |
| Throughput | Line-rate on all ports |
| Latency (10G) | <2.76 µs 10G RJ45; <1.83 µs 10G SFP+ |
| MAC Address Table | 16K |
| VLANs | 4K |
| Packet Buffer | 16Mb |
| CPU / Memory | 800 MHz CPU, 1GB RAM, 256MB flash |
| Stacking | Up to 8 M4300 switches; up to four 10G ports per switch; NSF with hitless failover |
PoE
| PoE Standard | IEEE 802.3at PoE+ on all 24 1G ports |
| PoE Budget, 220V | 720W with 1 PSU; 720W with 2 PSUs in RPS mode |
| PoE Budget, 110V | 630W with 1 PSU; 630W with 2 PSUs in RPS mode; 720W with 2 PSUs in EPS mode |
Power & Environmental

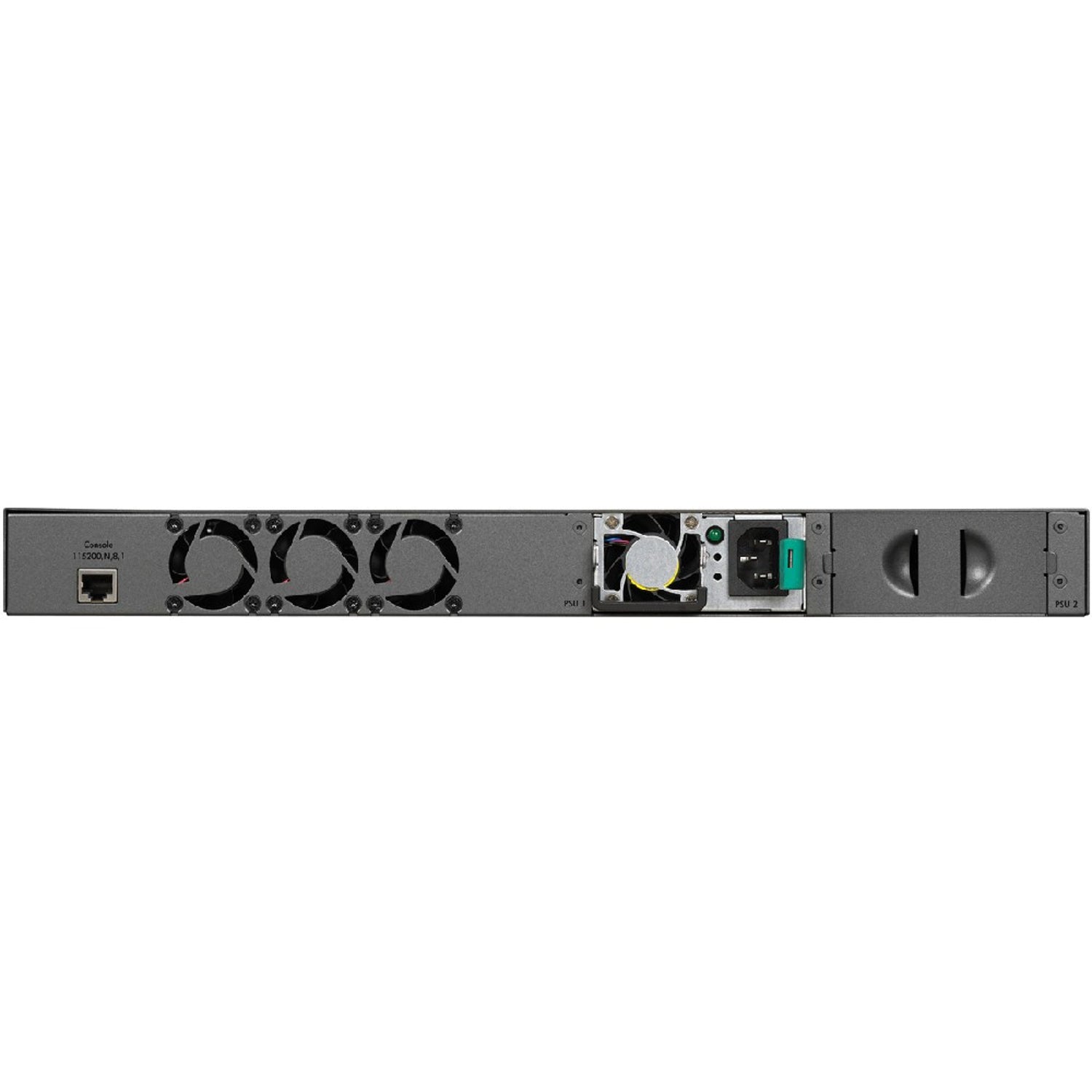

| Power Supply | Modular, 2 bays; 1 x APS1000W included (second bay blank) |
| PSU Modes | Second APS1000W for redundant (RPS) or shared power (EPS) |
| Acoustics | 39.8dB @ 25°C (77°F) |
| Cooling | Fixed fans, front-to-back airflow |
Physical
| Form Factor | 1U full width, rack mountable |
| Total Ports | 28 (24 x 1G PoE+ + 2 x 10GBASE-T + 2 x SFP+) |
Compatibility & Software Support
Power Supplies
Two modular power supply bays. One APS1000W is installed; the second bay ships with a blank cover. Add a second NETGEAR APS1000W (APS1000W-100NES) for 1+1 redundant power with the full 720W PoE budget at 220V. The APS1000W is the PSU NETGEAR specifies for the PB versions of the M4300-28G-PoE+ and M4300-52G-PoE+.
Stacking with Other M4300 Models
Stacks with other M4300 switches (1G and 10G models can be mixed) up to 8 units, using the 10G ports. Stacked switches are managed as one unit with Nonstop Forwarding.
Management & Software
Web GUI, CLI and NETGEAR NMS300 management. Full L2/L3 feature set including IGMP Plus, static routing, RIP, OSPF, VRRP, PIM and PBR is included without a licence. Firmware and the user manual are available from NETGEAR support.
Uplink Transceivers
The two SFP+ ports accept 1G or 10G SFP/SFP+ modules (sold separately). Ask us to confirm a module before ordering.
Package Contents & M4300 Ordering Information
In the Box
M4300-28G-PoE+ switch (GSM4328PB) with one APS1000W modular power supply installed and a blank cover on the second PSU bay, plus a 1U rack-mount kit.
NETGEAR M4300 Models
| Model | Ports | Part No. |
| GSM4328S M4300-28G | 24 x 1G, 2 x 10GBASE-T, 2 x SFP+ | GSM4328S-100AJS |
| GSM4328PA M4300-28G-PoE+ (550W PSU) | 24 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4328PA-100AJS |
| GSM4328PB M4300-28G-PoE+ (1000W PSU) (this listing) | 24 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4328PB-100AJS |
| GSM4352S M4300-52G | 48 x 1G, 2 x 10GBASE-T, 2 x SFP+ | GSM4352S-100AJS |
| GSM4352PA M4300-52G-PoE+ (550W PSU) | 48 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4352PA-100AJS |
| GSM4352PB M4300-52G-PoE+ (1000W PSU) | 48 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4352PB-100AJS |
| XSM4316S M4300-8X8F | 8 x 10GBASE-T, 8 x SFP+ | XSM4316S-100AJS |
| XSM4316PA M4300-16X (PoE+, PA) | 16 x 10GBASE-T PoE+ | XSM4316PA-100AJS |
| XSM4316PB M4300-16X (PoE+, PB) | 16 x 10GBASE-T PoE+ | XSM4316PB-100AJS |
| XSM4324S M4300-12X12F | 12 x 10GBASE-T, 12 x SFP+ | XSM4324S-100AJS |
| XSM4324CS M4300-24X | 24 x 10GBASE-T (4 shared SFP+) | XSM4324CS-100AJS |
| XSM4324FS M4300-24XF | 24 x SFP+ (2 shared 10GBASE-T) | XSM4324FS-100AJS |
| XSM4348S M4300-24X24F | 24 x 10GBASE-T, 24 x SFP+ | XSM4348S-100AJS |
| XSM4348CS M4300-48X | 48 x 10GBASE-T (4 shared SFP+) | XSM4348CS-100AJS |
| XSM4348FS M4300-48XF | 48 x SFP+ (2 shared 10GBASE-T) | XSM4348FS-100AJS |
Datasheet & Downloads
| NETGEAR datasheet | M4300 Series Datasheet (PDF) |
| Installation guide | M4300 Series Installation Guide (PDF) |
| User manual | M4300 / M4300-96X User Manual (PDF) |
| NETGEAR product page | M4300-28G-PoE+ (1000W PSU) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GSM4328PB-100AJS.
Frequently Asked Questions — NETGEAR M4300-28G-PoE+
What is the PoE budget?
On 220V: 720W with one APS1000W, and 720W with two PSUs in RPS mode. On 110V: 630W with one PSU, 720W with two PSUs in EPS mode.
What is the difference between PA and PB?
The PB ships with a 1000W PSU (720W PoE with one PSU at 220V); the PA ships with a 550W PSU (480W PoE). Ports and features are identical.
Do I need a licence for Layer 3 routing?
No. Static, RIP, OSPF, VRRP, PIM and policy-based routing are all included without a licence.
Can I stack it with other M4300 switches?
Yes, up to 8 M4300 switches, including 10G models, using up to four 10G ports per 1G switch, with Nonstop Forwarding.
Is it suitable for Pro AV?
Yes. NETGEAR IGMP Plus provides scalable multicast at Layer 2 without PIM complexity, and the M4300 series supports PTPv2 transparent clock.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
