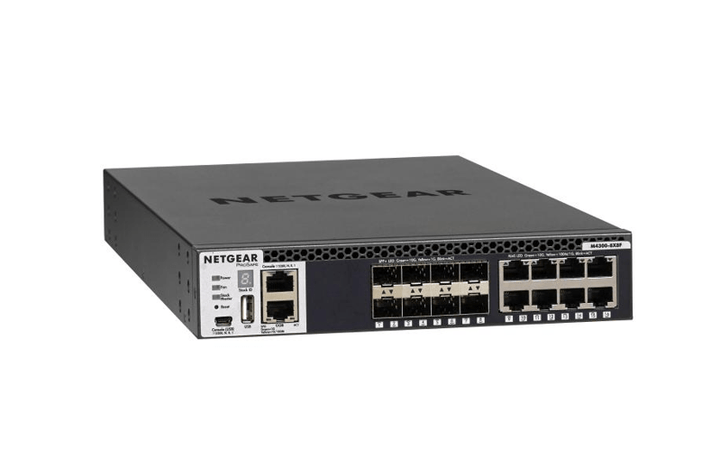

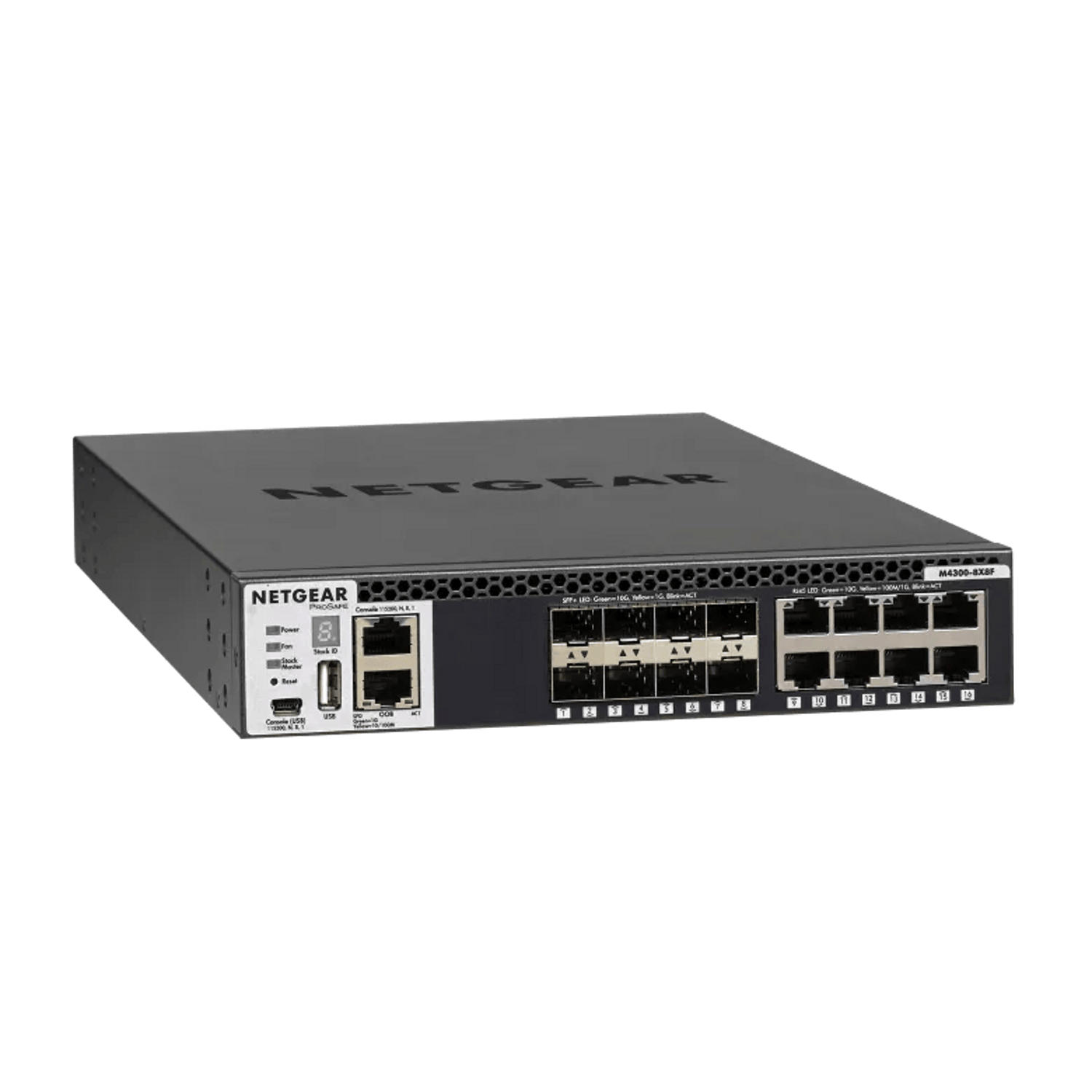

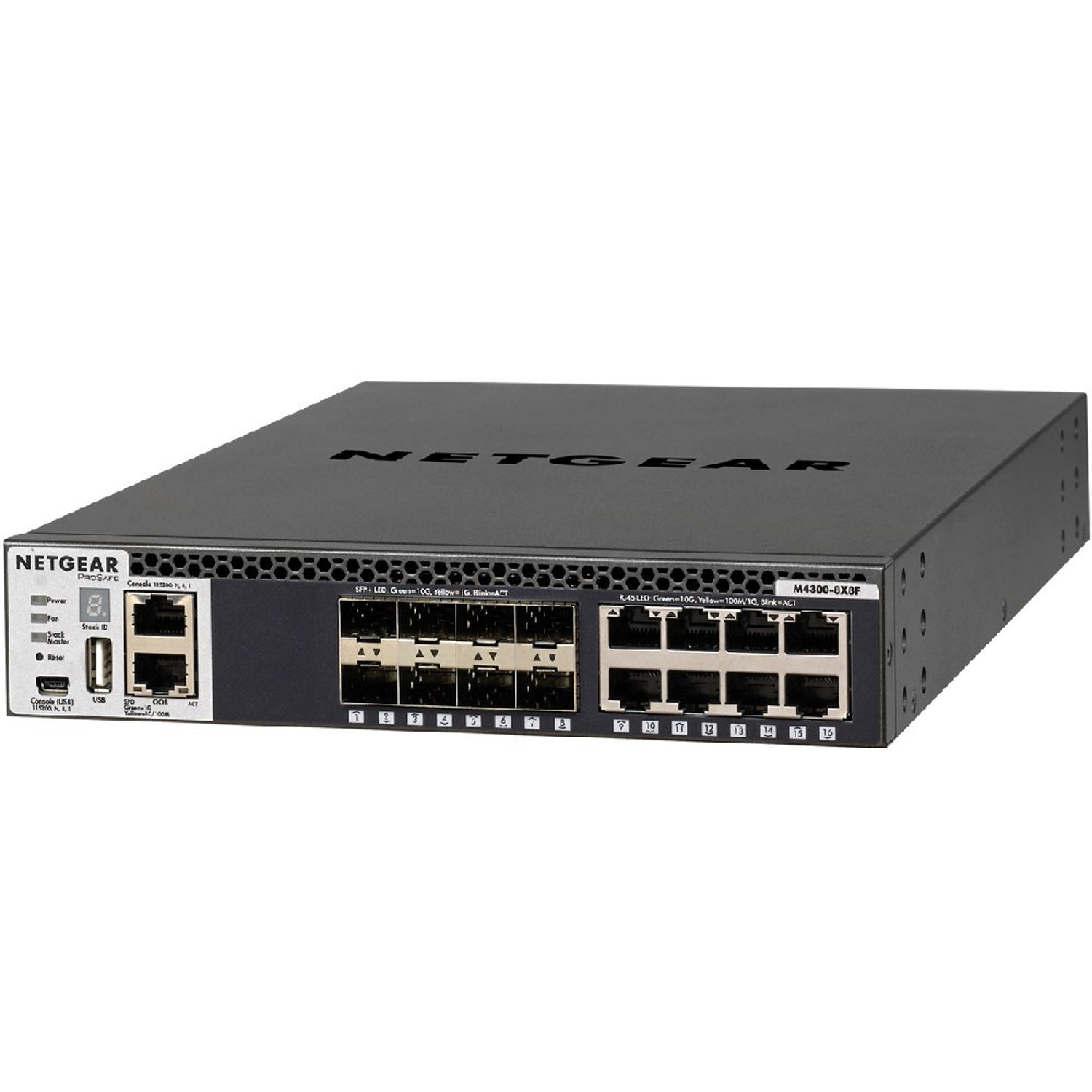

NETGEAR XSM4316S M4300-8X8F Half-Width 16-Port 10G Stackable L3 Managed Switch, 8x 10GBASE-T, 8x SFP+
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4300-8X8F Half-Width 16-Port 10G Stackable L3 Managed Switch, 8x 10GBASE-T, 8x SFP+ (XSM4316S-100AJS) - Limited Lifetime Local Warranty

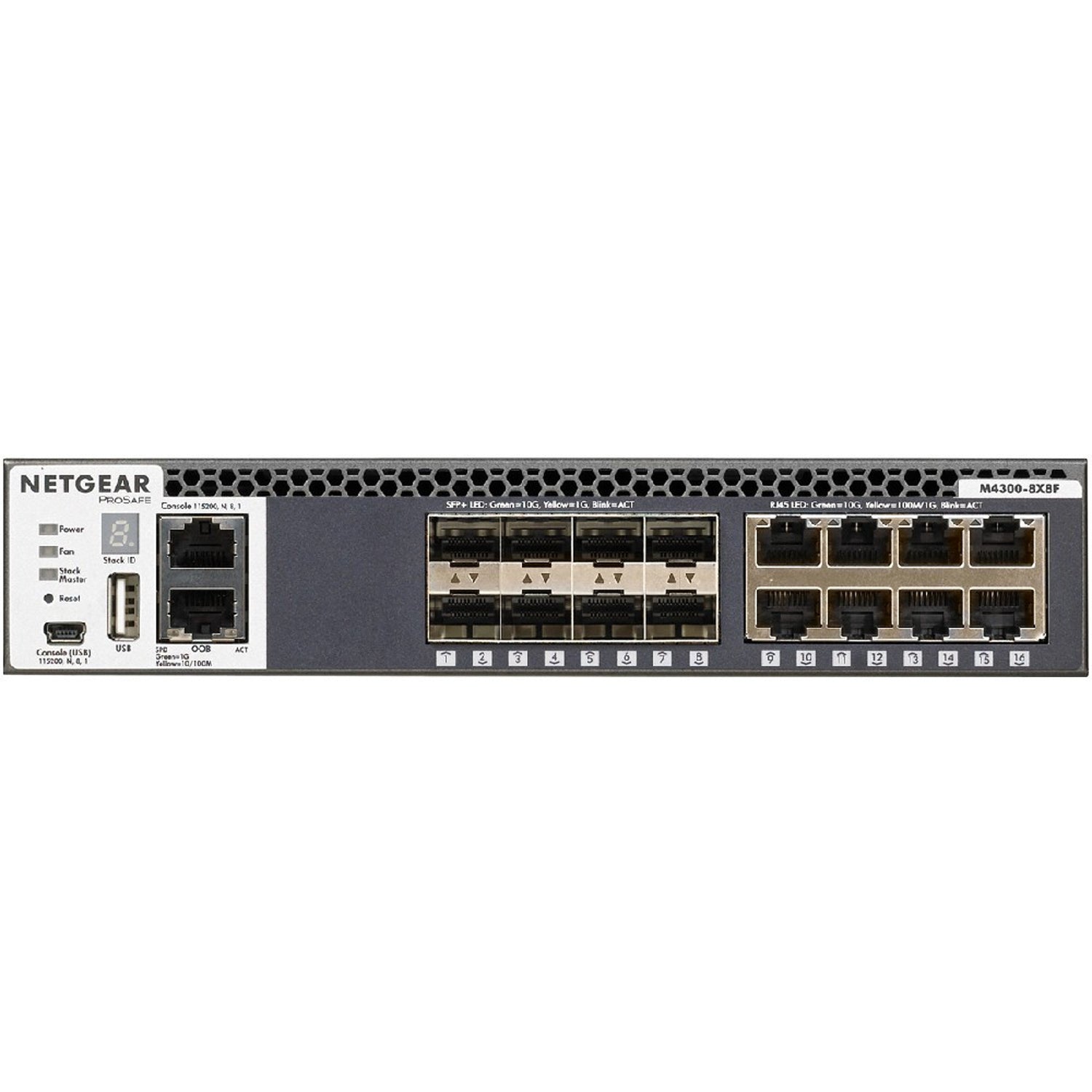

Eight Copper and Eight Fibre 10G Ports
The M4300-8X8F provides 8 x 10GBASE-T RJ45 ports (100M / 1G / 10G) and 8 x SFP+ ports (1G / 10G), all independent, on a 320 Gbps switching fabric with latency under 2.43µs (10G RJ45) and under 0.89µs (10G SFP+).
Half-Width for Redundant Top-of-Rack
At half-width 1U, two M4300-8X8F switches can be installed side by side in a single rack space for redundant top-of-rack. A front 1G out-of-band management port and front console ports keep access simple.
Stacking with Non-Stop Forwarding
Up to eight M4300 switches can be aggregated into a single virtual chassis, and 10G models stack seamlessly with 1G models. There are no dedicated stacking ports: any 10G port (copper or fibre, RJ45, SFP+ or DAC) can be used. Non-Stop Forwarding (NSF) gives hitless failover from the management unit to the redundant management unit, and the stack is seen by the rest of the network as a single bridge or router.
Zero-Touch Pro AV Multicast
NETGEAR IGMP Plus provides automatic Layer 2 multicast out of the box: IGMP Snooping, IGMP Fast Leave and IGMP Querier are already enabled, giving zero-touch AV-over-IP with pre-configured L2 multicast (SDVoE-ready).
Layer 3 Routing with No Licence
The entire M4300 feature set, including L2 switching with IGMP Plus and L3 routing (static, RIP, OSPF, VRRP, PIM-SSM and policy-based routing) plus PTPv2, is available without a licence. Manage it through the industry-standard CLI, the NETGEAR web GUI or SNMP, with sFlow and RSPAN for visibility.
Need help choosing? Email sales@sourceit.com.sg with your server, storage or AV endpoint counts and cabling types and we will size it for you.
NETGEAR XSM4316S M4300-8X8F Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4300-8X8F Stackable Half-Width 16-Port 10G Managed Switch with 8x 10GBASE-T and 8x SFP+ |
| Part Number | XSM4316S-100AJS |
| Series | NETGEAR M4300 Series Fully Managed Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| 10G copper ports | 8 x 10GBASE-T (100M / 1G / 10G), independent |
| 10G fibre ports | 8 x SFP+ (1G / 10G), independent |
| Out-of-band management | 1 x 1G Ethernet (front) |
| Console | RJ45 RS232 (front); Mini-USB (front) |
| USB | USB port (front) for storage |
Performance
| Switching fabric | 320 Gbps |
| Latency | <2.43µs (10G RJ45); <0.89µs (10G SFP+) |
| MAC address table | 16K |
| ARP/NDP | 888 |
| Routing table | Static: 64 IPv4 / 64 IPv6; RIP: 512; OSPF: 512 |
| VLANs | 4K |
| Packet buffer | 16Mb |
| Stacking | Up to 8 switches, NSF hitless failover; any 10G port can be a stacking port |
Power & Environmental

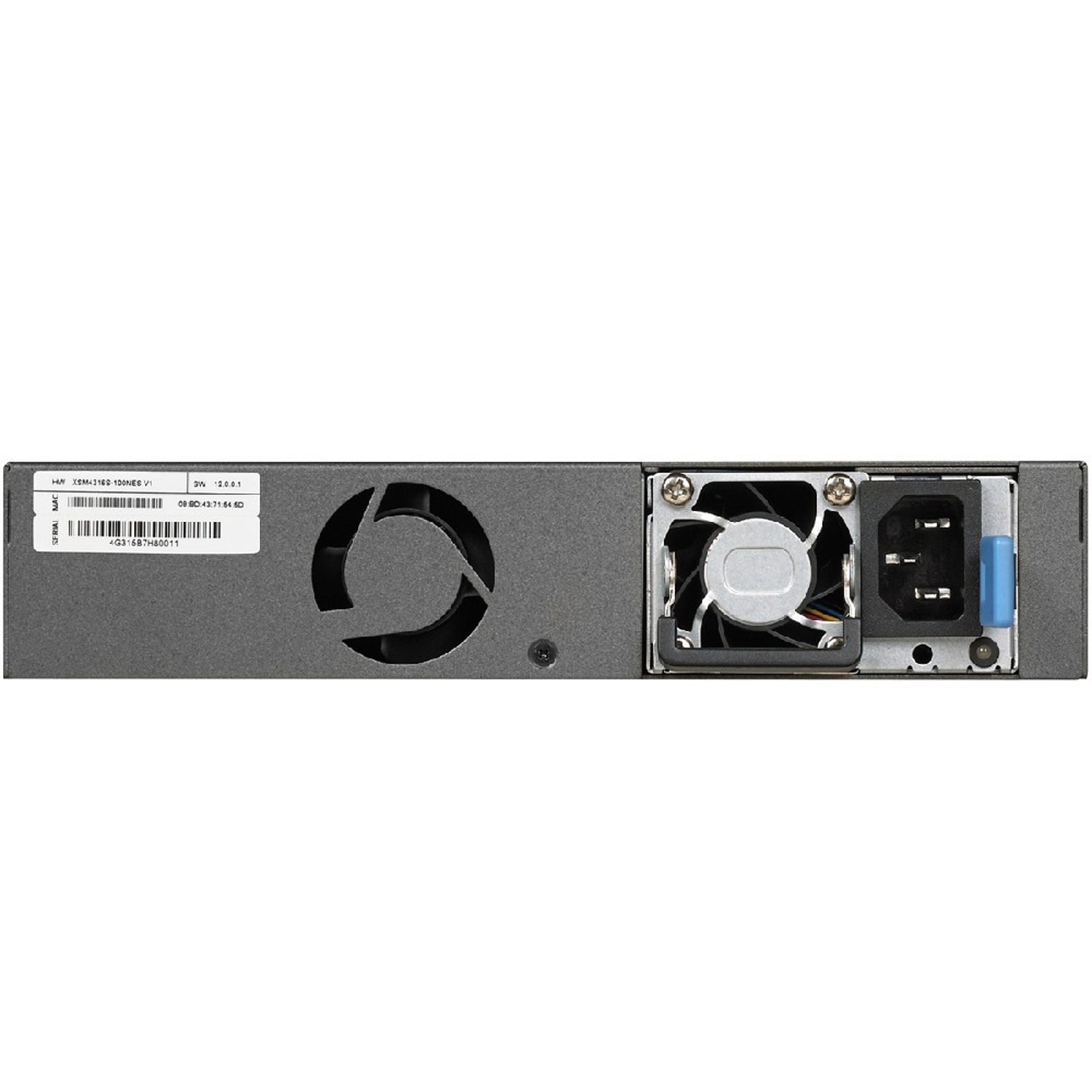

| Power supply | 1 x APS250W modular PSU included |
| PSU bays | 1 modular bay |
| Cooling | Fixed fans, front-to-back airflow |
| Acoustic noise | 36.9 dB @ 25°C |
Physical
| Form factor | Half-width 1U; two units fit side by side in 1U |
Compatibility & Software Support
Power supply
The M4300-8X8F uses the NETGEAR APS250W modular PSU. A spare APS250W is available.
Transceivers & cabling
The 8 SFP+ ports accept 1G and 10G SFP/SFP+ optics and DAC cables; the 8 10GBASE-T ports run at 100M, 1G or 10G over copper.
Stacking
Stacks with other M4300 models (up to 8 switches), including mixing 1G and 10G models. Any 10G port, copper or fibre, can be configured for stacking.
Software features
Full Layer 2 and Layer 3 feature set with no licence: static routing, RIP, OSPF, VRRP, PIM-SSM, policy-based routing, PTPv2 and NETGEAR IGMP Plus automatic multicast. Managed via industry-standard CLI, web GUI and SNMP, with sFlow and RSPAN.
Package Contents & M4300 Ordering Information
In the Box
M4300 switch, power cord, console cable (RJ45 to DB9), USB console cable (mini-B to type A), half-width rack-mount kit (long and short brackets with screws, for mounting one switch or two side by side in 1U), rubber footpads for tabletop installation and quick installation guide.
NETGEAR M4300 Models
| Model | Ports | Part No. |
| GSM4328S M4300-28G | 24 x 1G, 2 x 10GBASE-T, 2 x SFP+ | GSM4328S-100AJS |
| GSM4328PA M4300-28G-PoE+ (550W PSU) | 24 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4328PA-100AJS |
| GSM4328PB M4300-28G-PoE+ (1000W PSU) | 24 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4328PB-100AJS |
| GSM4352S M4300-52G | 48 x 1G, 2 x 10GBASE-T, 2 x SFP+ | GSM4352S-100AJS |
| GSM4352PA M4300-52G-PoE+ (550W PSU) | 48 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4352PA-100AJS |
| GSM4352PB M4300-52G-PoE+ (1000W PSU) | 48 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4352PB-100AJS |
| XSM4316S M4300-8X8F (this listing) | 8 x 10GBASE-T, 8 x SFP+ | XSM4316S-100AJS |
| XSM4316PA M4300-16X (PoE+, PA) | 16 x 10GBASE-T PoE+ | XSM4316PA-100AJS |
| XSM4316PB M4300-16X (PoE+, PB) | 16 x 10GBASE-T PoE+ | XSM4316PB-100AJS |
| XSM4324S M4300-12X12F | 12 x 10GBASE-T, 12 x SFP+ | XSM4324S-100AJS |
| XSM4324CS M4300-24X | 24 x 10GBASE-T (4 shared SFP+) | XSM4324CS-100AJS |
| XSM4324FS M4300-24XF | 24 x SFP+ (2 shared 10GBASE-T) | XSM4324FS-100AJS |
| XSM4348S M4300-24X24F | 24 x 10GBASE-T, 24 x SFP+ | XSM4348S-100AJS |
| XSM4348CS M4300-48X | 48 x 10GBASE-T (4 shared SFP+) | XSM4348CS-100AJS |
| XSM4348FS M4300-48XF | 48 x SFP+ (2 shared 10GBASE-T) | XSM4348FS-100AJS |
Datasheet & Downloads
| NETGEAR datasheet | M4300 Series Datasheet (PDF) |
| Installation guide | M4300 Series Installation Guide (PDF) |
| User manual | M4300 / M4300-96X User Manual (PDF) |
| NETGEAR product page | XSM4316S on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XSM4316S-100AJS.
Frequently Asked Questions — NETGEAR XSM4316S M4300-8X8F
Can I mount two of these in one rack unit?
Yes. The M4300-8X8F is half-width, and two can be installed side by side in a single 1U rack space.
Does it support 1G devices?
Yes. The 10GBASE-T ports run at 100M, 1G or 10G, and the SFP+ ports accept 1G or 10G modules.
Do I need a licence for Layer 3 routing?
No. Static, RIP, OSPF, VRRP, PIM-SSM and policy-based routing are included without a licence.
Can it stack with other M4300 switches?
Yes. Up to 8 M4300 switches, 1G and 10G models mixed, can form one stack using any 10G port, with NSF hitless failover.
Does it support PoE?
No. For 10G PoE+ look at the M4300-16X (XSM4316PA / XSM4316PB).
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
