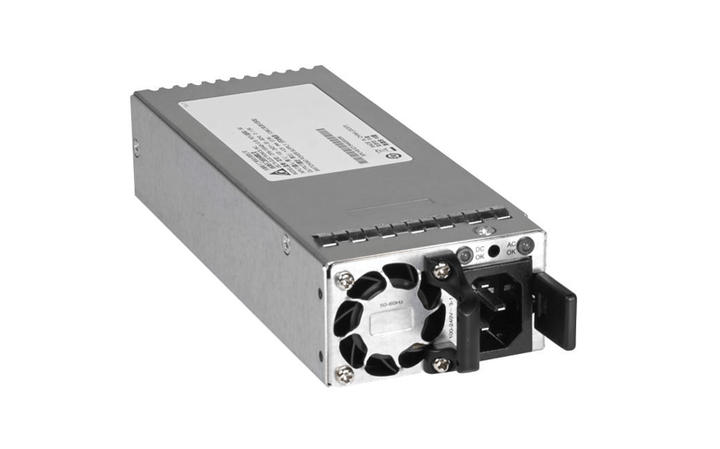

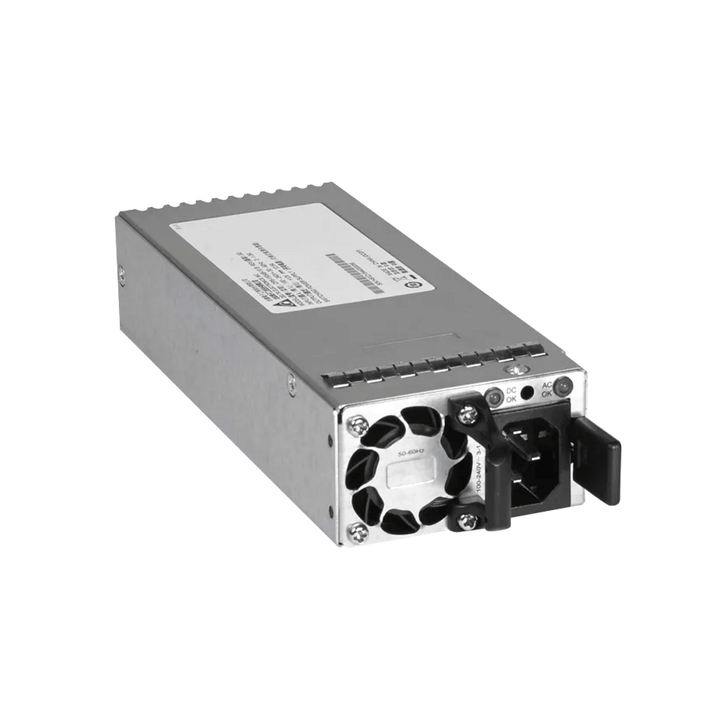

NETGEAR APS150W 150W Modular Power Supply Unit for M4300-28G / M4300-52G
PRODUCT DESCRIPTION
NETGEAR APS150W 150W Modular Power Supply Unit for M4300-28G / M4300-52G (APS150W-100NES) - 2 Years Local Warranty
Power for M4300 1G Non-PoE Models
The APS150W is the 150W modular power supply that ships in the NETGEAR M4300-28G (GSM4328S) and M4300-52G (GSM4352S) non-PoE switches.
Add Redundancy or Replace in Place
NETGEAR positions the APS150W to add power redundancy or to replace the original PSU in place - an inexpensive way to protect access and aggregation switches.
Hot-Swap Replacement
NETGEAR states that in models with more than one PSU the power supplies are hot-pluggable, so a unit can be replaced without powering down the switch.
Not sure which PSU your switch needs? Email sales@sourceit.com.sg with your switch model and SKU and we will confirm it for you.
NETGEAR APS150W Datasheet — Technical Specifications
General
| Product Name | NETGEAR APS150W 150W Modular Power Supply Unit |
| Part Number | APS150W-100NES |
| Local Warranty (Singapore) | 2 years, supplied by SourceIT with a GST invoice |
Electrical
| AC input | 100–127VAC, 3A, 50–60 Hz or 200–240VAC, 1.5A, 50–60 Hz |
| DC output | +12V, 12.5A |
| Output power (per netgear.com) | Up to 150W at 110/220V AC |
| AC connector (per netgear.com) | C14 |
| LEDs | AC OK (green) - PSU is receiving power; DC OK (green) - DC outputs within regulation limits |
Installation
| Form factor | Modular, slide-in PSU |
| Hot-swap | Supported in models with more than one PSU |
Compatibility & Software Support
Package Contents & M4300 Power Supply Ordering Information
In the Box
Power supply unit, power cord (varies by region) and installation guide.
NETGEAR M4300 Power Supply Units
| PSU | Used in (M4300) |
| APS150W (this listing) | M4300-28G / M4300-52G (GSM4328S / GSM4352S) |
| APS250W | M4300 10G models: 8X8F (XSM4316S), 12X12F (XSM4324S), 24X (XSM4324CS), 24XF (XSM4324FS), 24X24F (XSM4348S), 48X (XSM4348CS), 48XF (XSM4348FS) |
| APS550W | M4300-28G-PoE+ / M4300-52G-PoE+ PA models (GSM4328PA / GSM4352PA) |
| APS600W | M4300-16X PB model (XSM4316PB) |
| APS1000W | M4300-28G-PoE+ / M4300-52G-PoE+ PB models (GSM4328PB / GSM4352PB) |
Datasheet & Downloads
| Installation guide | NETGEAR Power Supply Unit Installation Guide (PDF) |
| M4300 datasheet | M4300 Series Datasheet (PDF) |
| NETGEAR product page | APS150W on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting APS150W-100NES.
Frequently Asked Questions — NETGEAR APS150W
Which M4300 switches use the APS150W?
The non-PoE 1G models: M4300-28G GSM4328S and M4300-52G GSM4352S, which ship with one APS150W.
Can it be used in the PoE+ models?
No. The PoE+ models use the APS550W (PA) or APS1000W (PB).
Is it hot-swappable?
Yes, in models with more than one PSU the units are hot-pluggable.
Is a power cord included?
Yes, a power cord (varies by region) and an installation guide are included.
What warranty do I get?
2 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
