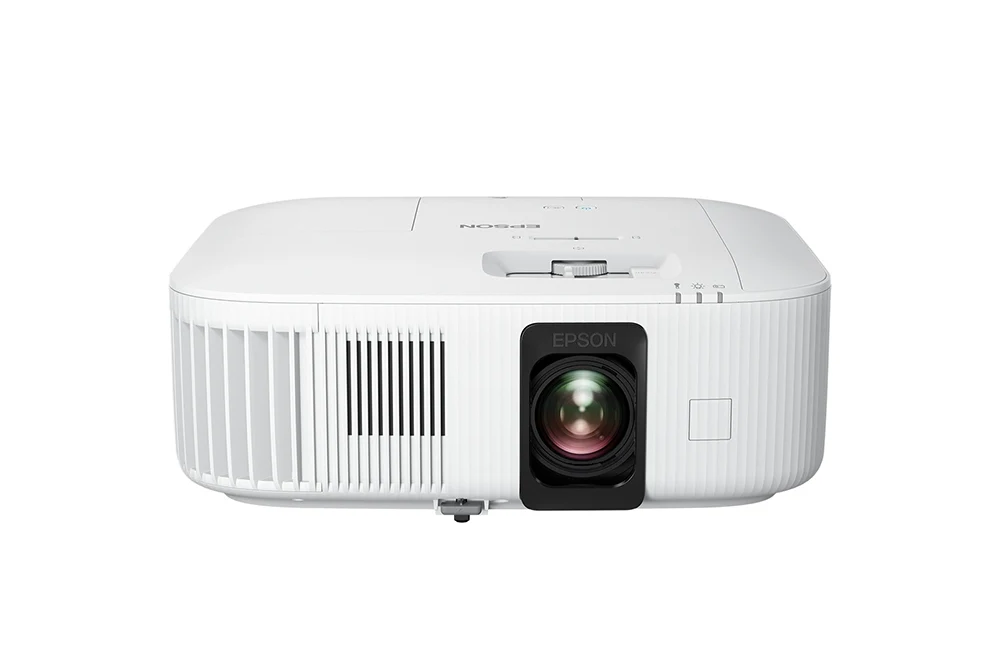

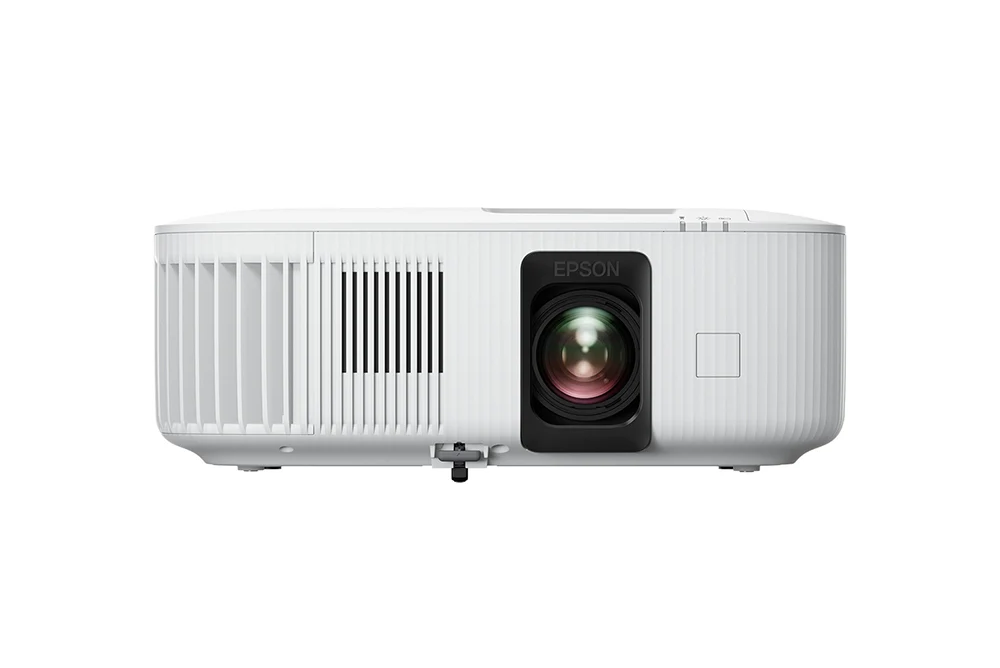

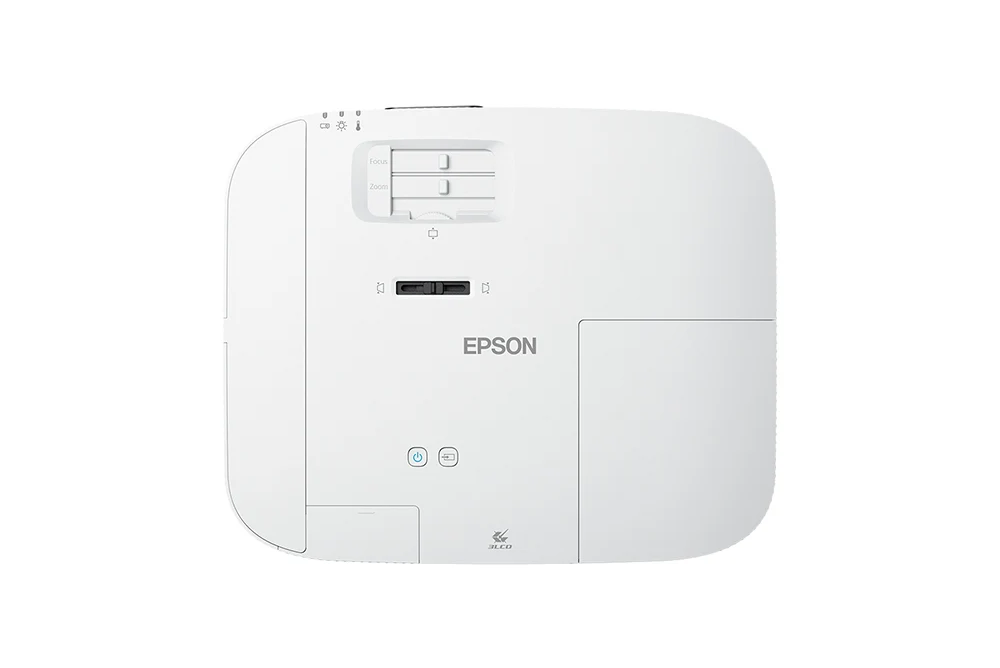

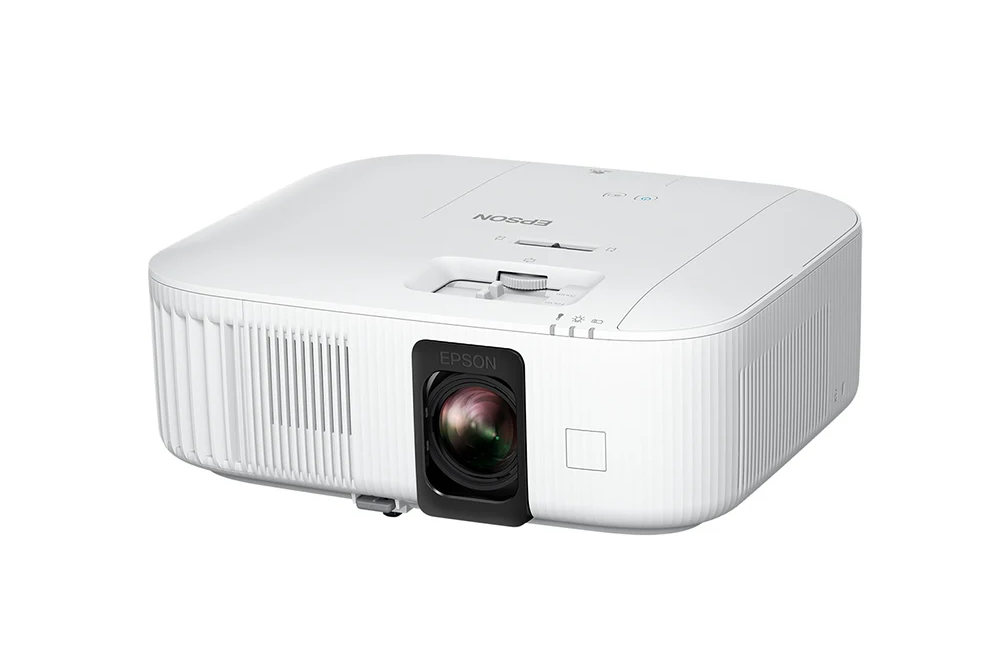

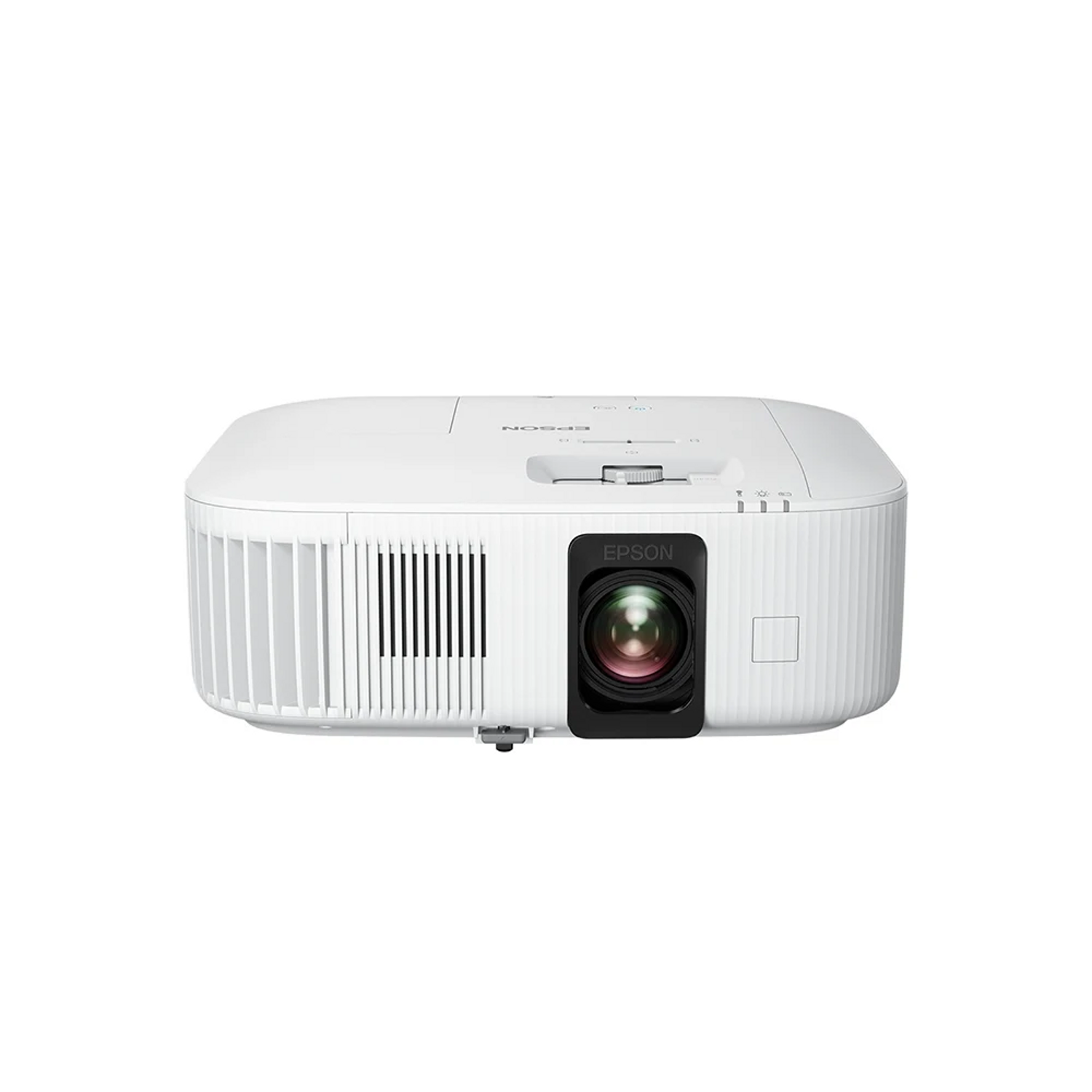

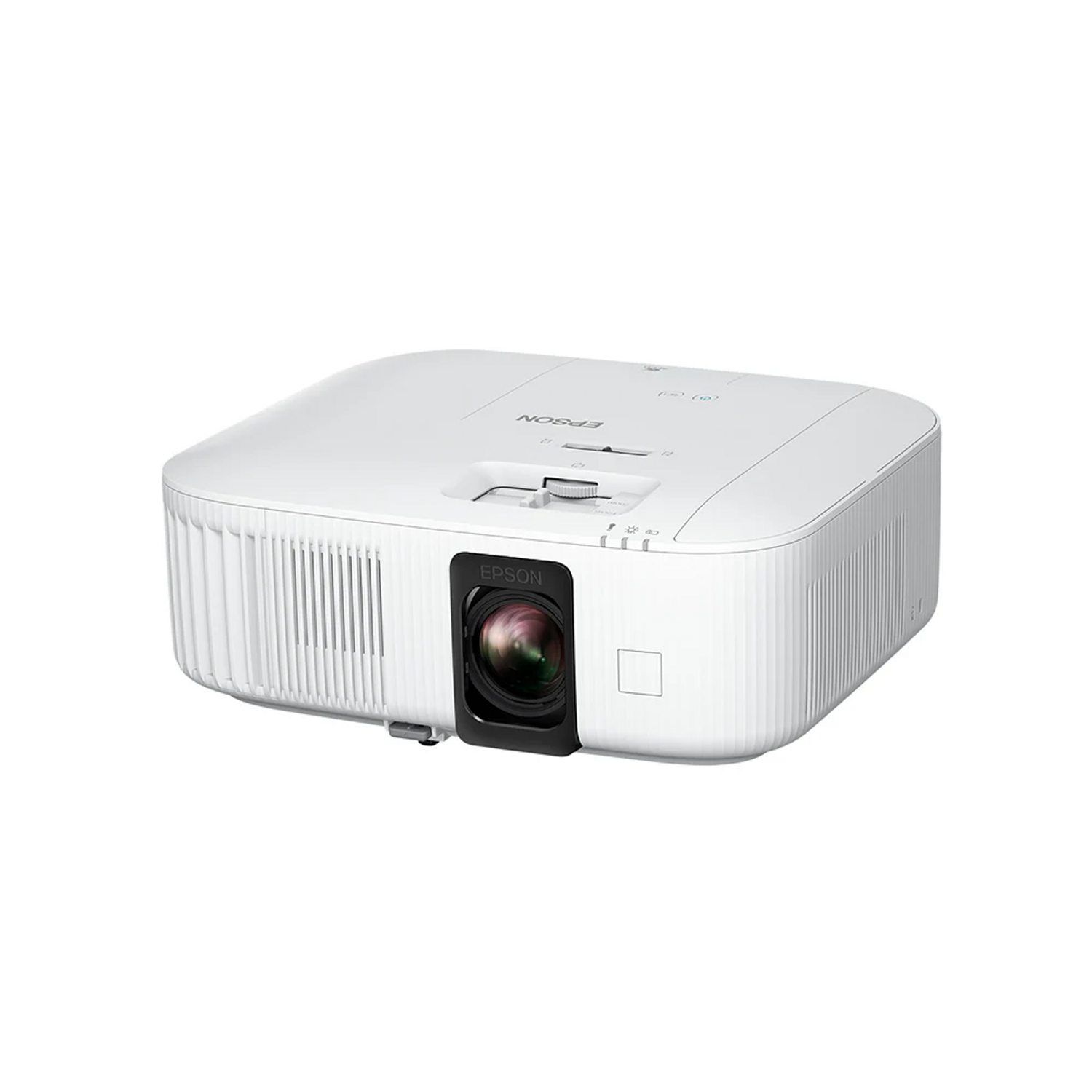

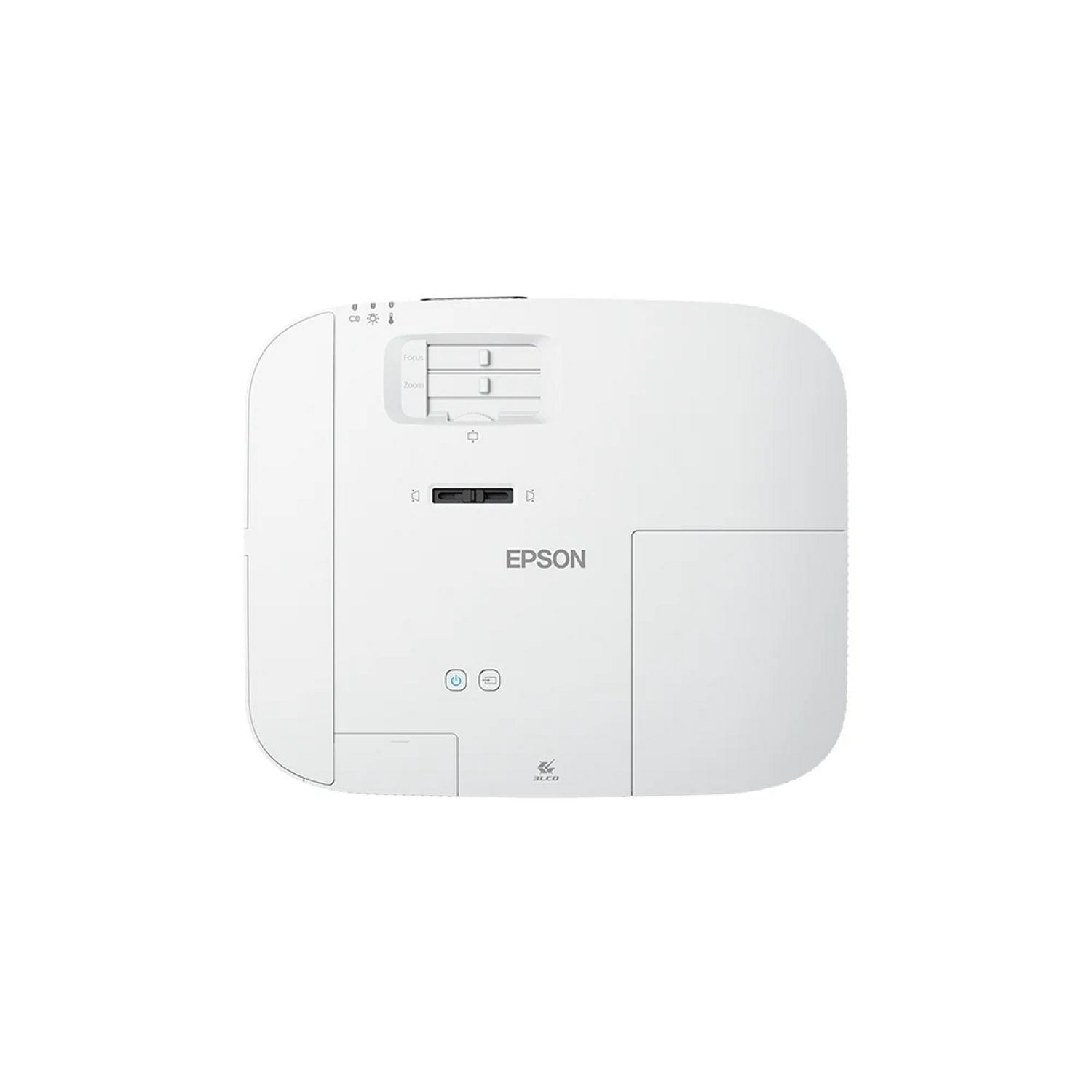

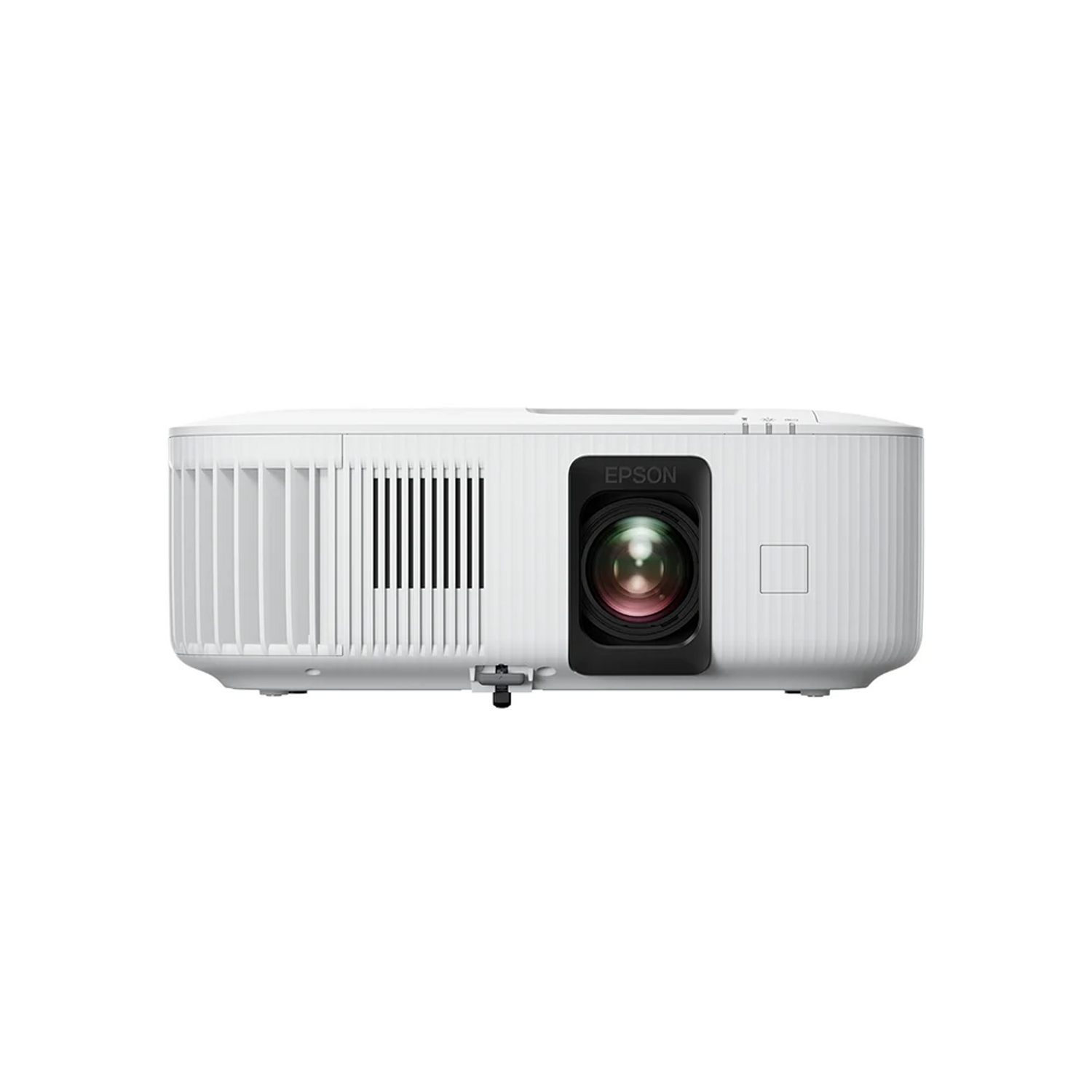

Epson EH-TW6250 4K PRO-UHD 3LCD Smart Gaming Projector
PRODUCT DESCRIPTION
Epson EH-TW6250 4K PRO-UHD 3LCD Smart Gaming Projector (V11HA73052) - 3 Years Singapore Local Warranty
4K PRO-UHD Projection From a 10-Bit 3LCD Engine
The EH-TW6250 is a 4K PRO-UHD projector built on a 0.61-inch wide 3LCD panel with a native 1080p resolution and 10-bit processing. Epson's 4K PRO-UHD approach combines pixel-shifting with its own resolution, colour and image processing rather than relying on panel count alone, and because the three-chip 3LCD engine renders red, green and blue simultaneously there is no colour wheel and no rainbow artefact. For a living room or a dedicated media room in a Singapore condominium or landed home, the result is a large, stable, film-like image that holds up during long viewing sessions.
2,800 Lumens of Matching White and Colour Brightness for Rooms You Cannot Fully Darken
Epson rates the EH-TW6250 at 2,800 lumens white light output and 2,800 lumens colour light output, with a 35,000:1 contrast ratio. Equal white and colour figures are what let a projector hold saturated skin tones and rich scenery in a room with some ambient light, which is the reality of most apartment living rooms in the early evening. Eco mode drops output to 1,900 lumens and fan noise to 28dB for a fully darkened room where a quieter unit matters more than peak brightness. The lamp is rated at 4,500 hours in Normal and 7,500 hours in Eco.
Powered Lens Shift and 1.62x Zoom for Placement Without Building Work
Placement flexibility is where this model earns its place in a home. Powered vertical lens shift of ±96.3% and powered horizontal lens shift of ±47.1% let you move the image on the wall without moving or tilting the projector, so the unit can sit on a rear shelf, a coffee table or a ceiling bracket that is off the screen centre line. A 1.32 to 2.15 throw ratio with 1.62x zoom covers 40” to 500” images, with an 80” screen filled from 2.34 to 3.81 metres. No reinforced ceiling run or joinery change is needed.
Built-In Android Smart Player and Gaming-Focused Image Processing
An integrated Android OS smart media player with Wi-Fi 5 across 802.11a/b/g/n/ac means streaming apps run on the projector itself, with no separate box, power brick or extra HDMI run behind the unit. Video output resolution is supported up to 3840 x 2160 at 60fps 4:4:4. For gaming and fast sport, frame interpolation offers Off, Low, Normal and High settings, while MPEG noise reduction, detail enhancement and image preset modes clean up compressed streaming sources. Start-up is under 15 seconds and cool-down under 5 seconds.
Epson EH-TW6250 Datasheet — Technical Specifications
General
| Product | Epson EH-TW6250 4K PRO-UHD 3LCD Smart Gaming Projector |
| Part Number (SKU) | V11HA73052 |
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| 4K PRO-UHD | Yes |
| Native Panel Resolution | 1080p |
| LCD Panel | 0.61” wide panel (D10, C2 Fine, 10-bit) |
| Light Source | 200W UHE lamp |
| Primary Usage | Home theatre |
| Local Warranty (Singapore) | 3 Years — supplied by SourceIT with GST invoice |
Projection & Optics
| White Light Output (Normal / Eco) | 2,800 lm / 1,900 lm |
| Colour Light Output | 2,800 lm |
| Contrast Ratio | 35,000:1 |
| Lens Type | Optical Zoom (Manual) / Focus (Manual) |
| Focal Length | 18.2 – 29.2 mm |
| Zoom Ratio | 1 – 1.62 |
| F-number | 1.49 – 1.77 |
| Throw Ratio | 1.32 – 2.15 (Wide – Tele) |
| Screen Size (Zoom Wide) | 40” to 500” [1.15 to 14.83 m] |
| Screen Size (Zoom Tele) | 40” to 500” [1.89 to 24 m] |
| Standard Size Reference | 80” screen at 2.34 to 3.81 m |
| Vertical Lens Shift | ±96.3% (H centre, powered) |
| Horizontal Lens Shift | ±47.1% (V centre, powered) |
Light Source
| Type | 200W UHE |
| Lamp Life (Normal / Eco) | 4,500 / 7,500 hours |
Connectivity
| Digital Input | HDMI x 1 |
| Audio Output | Stereo mini x 1 |
| USB Type B | 1 (for firmware update and copying OSD settings) |
| Wireless | Yes (smart media player function only) |
Audio & Features
| Smart Media Player OS | Android OS |
| Wi-Fi Generation | Wi-Fi 5 |
| Wireless Standards | IEEE 802.11a (5 GHz), 802.11b (2.4 GHz), 802.11g (2.4 GHz), 802.11n (2.4 GHz and 5 GHz), 802.11ac (5 GHz) |
| Wireless LAN Security | WPA2/WPA3 PSK (AES) |
| Video Output Resolution | Up to 3840 x 2160 60fps 4:4:4 |
| Frame Interpolation | Off / Low / Normal / High |
| Aspect Mode | Yes (Auto / Normal / Full / Zoom) |
| Image Preset Mode | Yes |
| MPEG Noise Reduction | Yes |
| Detail Enhancement | Yes |
| Start-Up Period | Under 15 seconds (warm-up period 30 seconds) |
| Cool Down Period | Under 5 seconds |
| Direct Power On | Yes |
Physical & Environmental
| Dimensions Excluding Feet (W x H x D) | 333 x 123 x 275 mm |
| Weight | Approx. 4.1 kg |
| Fan Noise (Normal / Eco) | 36dB / 28dB |
| Operating Temperature (0 to 2,286 m) | 5 – 35 °C (41 – 95 °F) |
| Operating Temperature (over 2,286 m) | 5 – 30 °C (41 – 86 °F) |
| Operating Humidity | 20% – 80%, no condensation |
| Operating Altitude | 0 m to 3,048 m (0 ft to 10,000 ft); above 1,500 m use high altitude mode |
Power
| Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz |
| Power Consumption (Lamp On, Normal / Eco) | 301W / 268W |
| Energy Saving | 0.3W |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Placement and mounting
The EH-TW6250 measures 333 x 123 x 275mm excluding feet and weighs approximately 4.1kg, so it sits comfortably on a rear shelf, a low console or a standard ceiling bracket. A 1.32 to 2.15 throw ratio with 1.62x zoom covers 40” to 500”; an 80” image needs 2.34 to 3.81 metres and a 100” image roughly 2.9 to 4.7 metres. Powered vertical lens shift of ±96.3% and horizontal shift of ±47.1% mean the projector does not have to sit on the screen centre line, which usually removes the need for joinery or a new ceiling run.
What it connects to

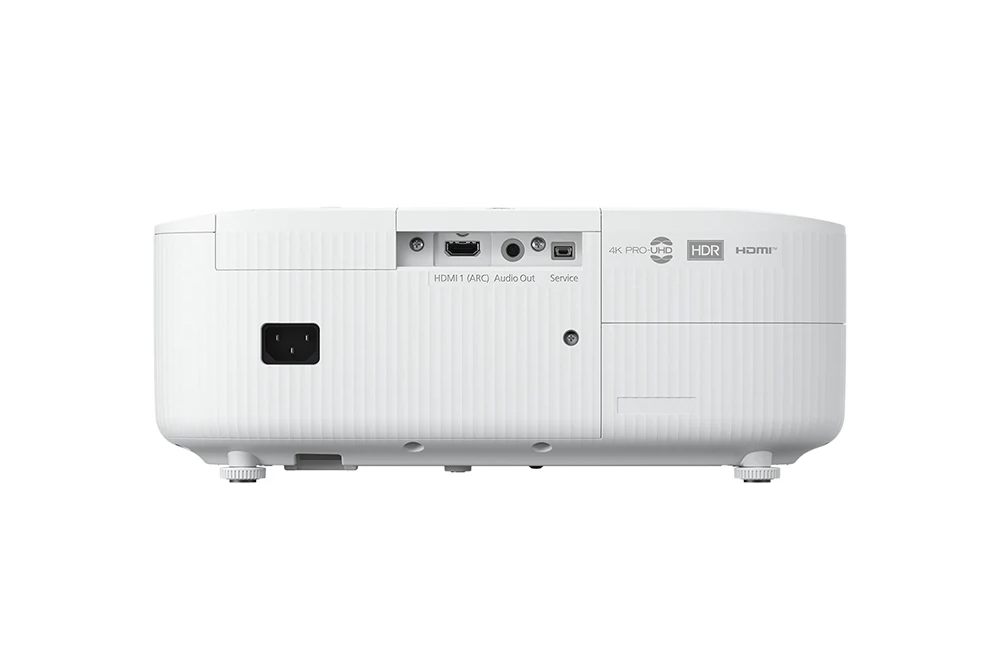

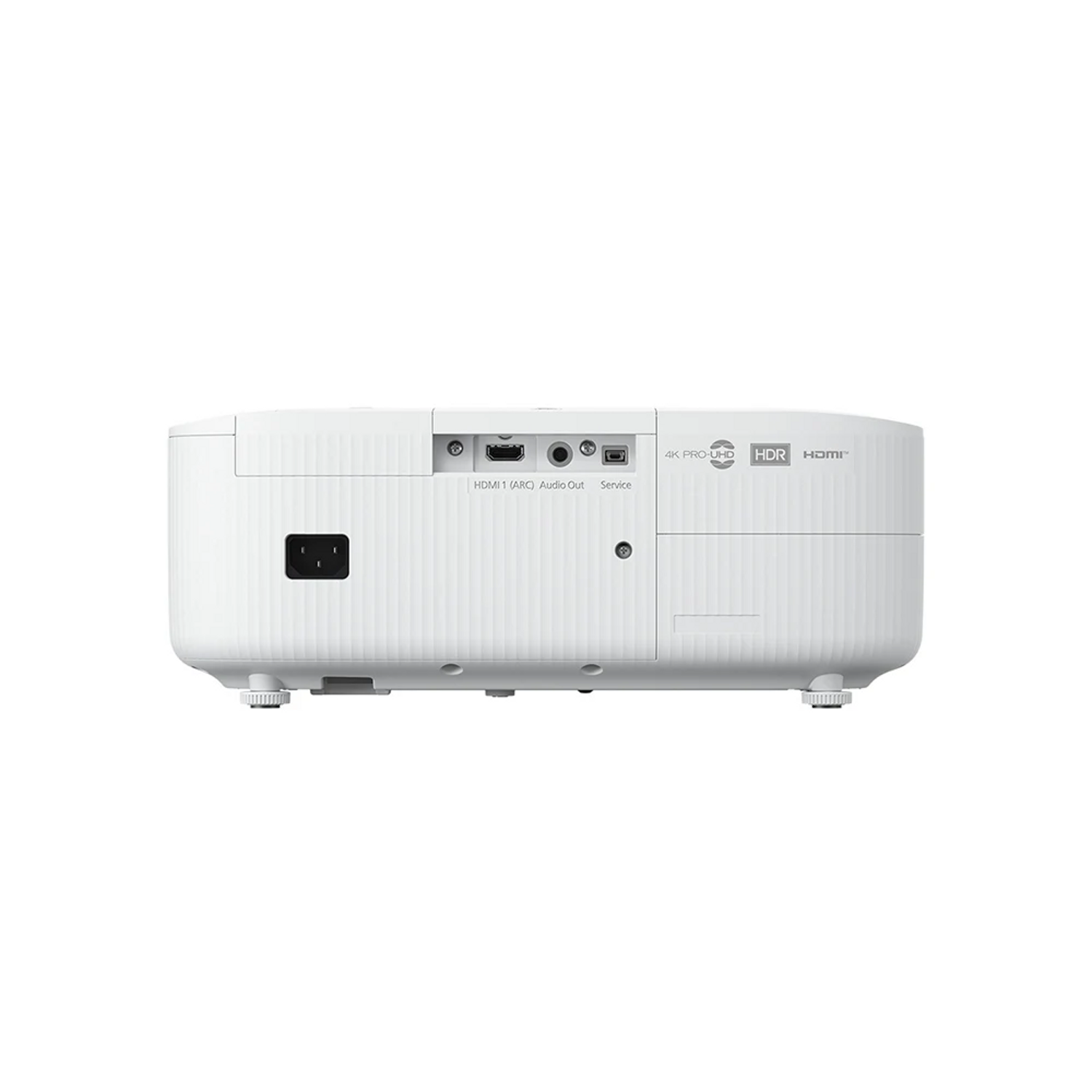

A single HDMI input takes a games console, a set-top box, a Blu-ray player or an AV receiver output. Where you have several sources, feed them through an AV receiver or an HDMI switch and run one cable to the projector. A stereo mini audio output passes sound to a soundbar or amplifier. USB Type B is provided for firmware updates and for copying on-screen display settings between units rather than for playback.
Streaming and network
The built-in Android OS smart media player handles streaming apps directly on the projector over Wi-Fi 5, covering 802.11a/b/g/n/ac with WPA2/WPA3 PSK (AES) security. Video output is supported up to 3840 x 2160 at 60fps 4:4:4. Note that the wireless radio serves the smart media player function, so the projector is not intended to be managed as a networked AV device in the way a corporate model would be. For gaming and sport, frame interpolation and detail enhancement are adjustable from the menu.
Related models
Within the SourceIT Epson home range, the Epson EH-TW750 is the entry point, while the Epson EH-LS300B and Epson EH-LS500B are laser ultra-short-throw models for rooms where the projector must sit directly beneath the screen.
Package Contents & Epson Home Projector Range
In the box
Epson Singapore does not publish a bundled-accessory list for the EH-TW6250 on its product page, so no box contents are claimed here. SourceIT can confirm exactly what ships in the carton against the current Epson Singapore packing list before you order.
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson home projector range
| Model | Part Number |
| EH-TW6250 (this listing) | V11HA73052 |
| EH-TW750 | V11H980052 |
| EH-LS300B | V11HA07152 |
| EH-LS500B | V11H956652 |
| EF-11 | V11HA23052 |
| EF-12 | V11HA14052 |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the EH-TW6250 together with a formal quotation. Tell us your room length and the screen size you are aiming for and we will confirm the throw distance and whether lens shift covers your intended mounting position.
Frequently Asked Questions — Epson EH-TW6250
What does 4K PRO-UHD mean on an Epson projector?
4K PRO-UHD is Epson's term for its combination of pixel-shifting with its own resolution, colour and image processing. On the EH-TW6250 the underlying 3LCD panel is a 0.61-inch 1080p device with 10-bit processing, and the projector accepts and displays content up to 3840 x 2160 at 60fps 4:4:4. It is not the same thing as a native 4K panel, and Epson does not describe it as one.
How far from the screen does it need to be?
The throw ratio is 1.32 to 2.15 with 1.62x zoom. Epson quotes an 80” image at 2.34 to 3.81 metres, and an overall range of 40” to 500” from 1.15 metres at the widest to 24 metres at the longest. A 100” image typically needs around 2.9 to 4.7 metres.
Can it be mounted off-centre from the screen?
Yes, and this is one of its strengths. Powered vertical lens shift of ±96.3% and powered horizontal lens shift of ±47.1% let you reposition the image without tilting the projector, so a rear shelf or an off-centre ceiling position usually works without building work.
Do I need a separate streaming box?
No. An Android OS smart media player is built in, connecting over Wi-Fi 5 across 802.11a/b/g/n/ac. The wireless radio serves the smart media player function, so there is no separate box, power supply or extra HDMI cable to accommodate.
How many HDMI inputs does it have?
Epson Singapore publishes one HDMI input for this model. If you have several sources, run them through an AV receiver or an HDMI switch and take a single cable to the projector. We are happy to confirm the current port configuration against the latest data sheet before you order.
Does it use a lamp or a laser?
The EH-TW6250 uses a 200W UHE lamp, rated at 4,500 hours in Normal mode and 7,500 hours in Eco mode. If you would rather avoid a lamp replacement altogether, the Epson EH-LS300B and Epson EH-LS500B use laser light sources.
Is it quiet enough for a dark room?
Fan noise is 36dB in Normal mode and 28dB in Eco mode. In a fully darkened room Eco mode is the usual choice, dropping brightness to 1,900 lumens and taking fan noise down with it. Cool-down is under 5 seconds, so there is no long wait after switching off.
What warranty and invoicing do I get from SourceIT?
Every EH-TW6250 sold by SourceIT carries a 3-year Singapore local warranty and ships with a GST invoice. Service is handled locally through Epson Singapore's network.
