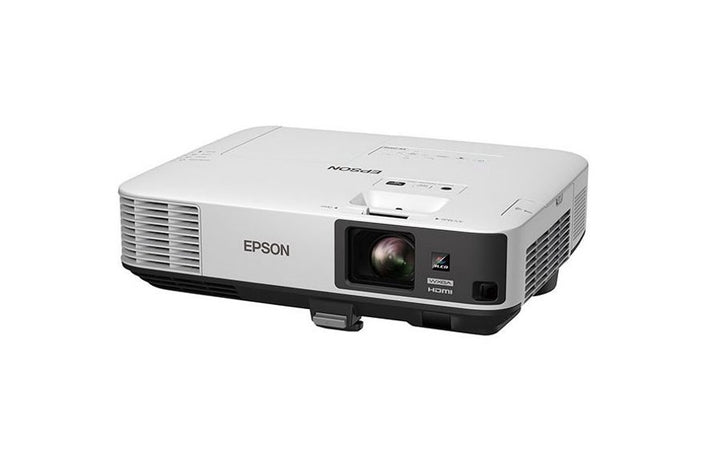

Epson EB-2155W Projector
PRODUCT DESCRIPTION
Epson EB-2155W WXGA 3LCD Projector (V11H818052) - 3 Years Singapore Local Warranty
WXGA 16:10 Widescreen With 5,000 Lumens of Output
The EB-2155W pairs a native WXGA 1280 x 800 panel with 5,000 lumens white light output and 5,000 lumens colour light output, falling to 3,600 lumens in Eco mode. The 16:10 shape gives roughly 30 percent more usable area than a 4:3 XGA panel at the same height, which is the difference between a spreadsheet fitting on screen and being scrolled. For Singapore training rooms and lecture theatres running widescreen decks and video, that combination of shape and brightness keeps the material readable without the lights being dimmed.
15,000:1 Contrast on a 0.59-Inch 3LCD Engine
Contrast is rated at 15,000:1 on a 0.59-inch D8 C2 Fine panel. Because the 3LCD design delivers colour brightness equal to white brightness, a dense chart with several series stays legible rather than collapsing into similar-looking pastels once ambient light is added. That matters where the projector is being used for data rather than decoration: financial tables, engineering drawings, floor plans and dashboards all rely on distinguishable colour, and this is where a 3LCD projector visibly separates from a single-chip alternative at the same lumen rating.
29 to 280 Inches With 1.6x Optical Zoom
Image size runs from 29 to 280 inches, needing 0.85 to 8.45 m at the wide end of the zoom and 1.40 to 13.71 m at the tele end. That spread lets an installer keep the ceiling plate clear of beams, sprinklers and lighting tracks rather than forcing the mount onto the theoretically ideal spot. Vertical and horizontal keystone correction of ±30 degrees, automatic keystone correction and Quick Corner then square the image up, so an off-axis or off-centre position still produces a clean rectangle on the screen.
Fleet-Friendly Installation Across a Room Estate
The EB-2155W shares its chassis, filter, mounting hardware and control behaviour with the rest of the EB-2000 family, so an organisation fitting out a floor of rooms can standardise on one ceiling plate, one spare filter and one control profile while varying resolution and brightness room by room. A wired RJ45 LAN port supports network monitoring and control, RS-232C is available for a control system, and a 16 W monaural speaker covers speech and video without a separate sound system in a mid-sized room.
Epson EB-2155W Datasheet — Technical Specifications
General
| Product | Epson EB-2155W WXGA 3LCD Projector |
| Part Number (SKU) | V11H818052 |
| Projector Type | 3LCD lamp installation projector |
| Native Resolution | WXGA (1280 x 800) |
| Brightness | 5,000 lm white light output; 5,000 lm colour light output (3,600 lm Eco) |
| GTIN | 8715946633720 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Projection System | RGB liquid crystal shutter projection system (3LCD) |
| LCD Panel | 0.59" (D8, C2 Fine) |
| Contrast Ratio | 15,000:1 |
| Screen Size (projection distance) | 29” – 280” (0.85 – 8.45 m wide; 1.40 – 13.71 m tele) |
| Keystone Correction | Vertical / horizontal ±30° / ±30° (zoom: centre) |
| Auto Keystone | Yes |
| Quick Corner | Yes |
Light Source
| Type | Lamp |
| Life (Normal / Eco) | 5,000 / 10,000 hours |
| Start-Up Period | About 8 seconds (warm-up 30 seconds) |
| Cool Down Period | Instant Off |
Connectivity
| Digital Input | HDMI x 2 |
| Analogue Input | D-Sub 15-pin x 2 (1 blue, 1 black); Composite x 1 |
| Output Terminal | D-Sub 15-pin x 1 (black) |
| Audio Input | RCA (white/red) x 1; stereo mini jack x 2 |
| Audio Output | Stereo mini jack x 1 |
| Control I/O | RS-232C D-Sub 9-pin x 1 |
| Network | Wired LAN RJ45 x 1; wireless LAN optional |
| USB | USB Type A x 1 (USB memory, firmware update, copy OSD settings); USB Type B x 1 (USB Display, mouse, keyboard, control, firmware update) |
Audio & Features
| Internal Speaker | 16 W monaural |
| Direct Power On / Off | Yes |
Physical & Environmental
| Dimensions (excluding feet, W x H x D) | 377 x 110 x 291 mm |
| Weight | Approx. 4.3 kg |
| Fan Noise (Normal / Eco) | 39 dB / 29 dB |
| Air Filter | High efficiency filter; 5,000 hours (Normal), 10,000 hours (Eco) |
| Operating Temperature | 5 °C – 40 °C below 2,286 m; 5 °C – 35 °C above 2,286 m with high altitude mode |
| Operating Altitude | 0 – 3,048 m (high altitude mode above 1,500 m) |
Power
| Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and positioning
The EB-2000 series is built for permanent installation as much as for a trolley. The body measures 377 x 110 x 291 mm excluding feet, and Epson publishes ceiling pipe options ELPFP13 (668 – 918 mm) and ELPFP14 (918 – 1,168 mm) for dropping it below a slab. Vertical and horizontal keystone correction of ±30 degrees, automatic keystone correction and Quick Corner between them cover an off-axis mount, so the projector does not have to sit on the screen centre line in a room where services already occupy the ceiling.
What it connects to

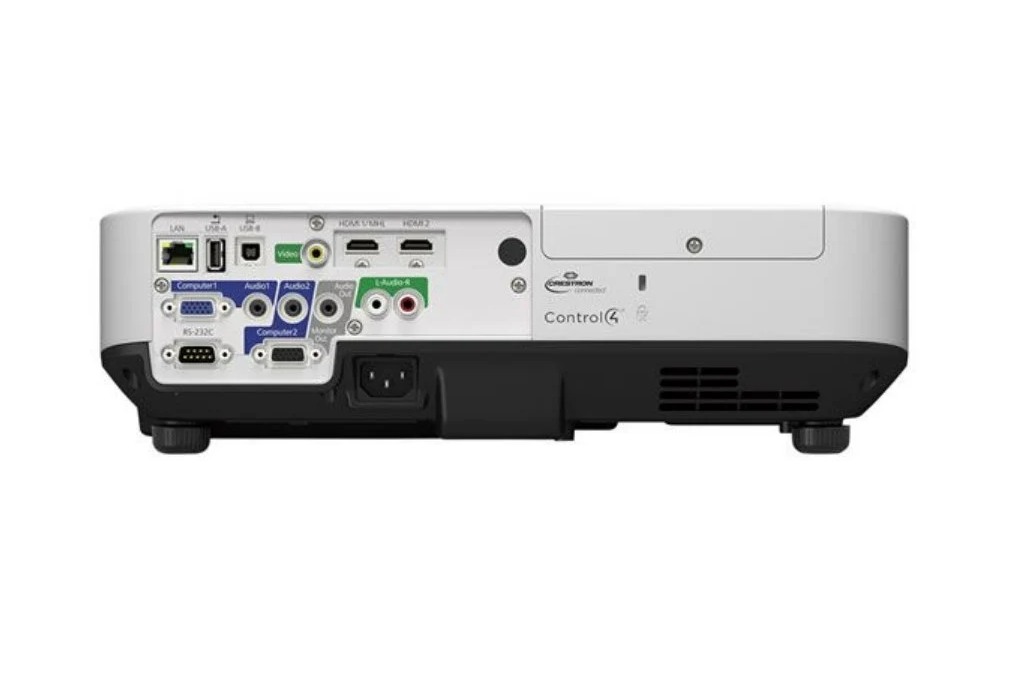

Two HDMI inputs and two D-Sub 15-pin computer inputs cover a fixed room PC and a visiting laptop simultaneously, with a D-Sub monitor-out for a lectern display and composite video for legacy sources. Audio arrives on an RCA pair and two stereo mini jacks, with a stereo mini output to an amplifier. USB Type B supports USB Display over a single cable, and USB Type A reads a memory stick for playback with no computer connected.
Network, control and management
A wired RJ45 LAN port allows network monitoring and control from a facilities desk, and RS-232C is available for a control system. Epson's network projection and message broadcasting tools run over the same connection, which suits a campus or a multi-room office where someone needs to see lamp hours and power state without walking the floor. The air filter is a high-efficiency type on a 5,000-hour cycle in Normal power consumption and 10,000 hours in Eco.
Wireless option
Wireless LAN on the EB-2155W is an optional Epson wireless unit rather than a built-in radio, so budget for it separately where cable-free presenting is required. Wired networking over RJ45 is standard and is usually the better choice for a permanently installed room, because it removes any dependence on wireless coverage at ceiling height.
Package Contents & Epson EB-2000 Series Range
In the box
- Projector main unit
- Remote control with batteries
- Power cable
- User documentation
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EB-2000 Series range
| Model | Resolution & light source |
| Epson EB-2065 | XGA (1024 x 768), 5,500 lm, lamp |
| EB-2155W (this listing) | WXGA (1280 x 800), 5,000 lm, lamp |
| Epson EB-2165W | WXGA (1280 x 800), 5,500 lm, lamp |
| Epson EB-2255U | WUXGA (1920 x 1200), 5,000 lm, lamp |
| Epson EB-2265U | WUXGA (1920 x 1200), 5,500 lm, lamp |
Datasheet & Downloads
Epson Singapore no longer lists a product page for this model. SourceIT can email the current data sheet revision, the user's guide and a formal quotation on request.
Frequently Asked Questions — Epson EB-2155W
What resolution is the EB-2155W?
Native WXGA, 1280 x 800, on a 0.59-inch 3LCD panel, in a 16:10 widescreen shape.
How does it differ from the EB-2165W?
Both are WXGA. The EB-2155W is rated at 5,000 lumens; the EB-2165W is rated at 5,500 lumens and adds an HDBaseT input with wireless and Miracast included as standard.
How long does the lamp last?
Epson rates the lamp at 5,000 hours in Normal mode and 10,000 hours in Eco mode.
Is wireless presenting included?
No. Wireless LAN is an optional Epson unit on this model. Wired RJ45 networking is built in.
What image sizes does it support?
From 29 to 280 inches, needing 0.85 to 8.45 m at the wide end of the zoom and 1.40 to 13.71 m at the tele end.
Can it correct for an off-centre ceiling mount?
Yes, within the published range: vertical and horizontal keystone correction of ±30 degrees, automatic keystone correction and Quick Corner.
Why choose WXGA over XGA or WUXGA?
WXGA 16:10 suits widescreen decks and video and gives more horizontal room than 4:3 XGA. WUXGA (1920 x 1200) on the EB-2255U and EB-2265U adds more detail again, which matters for drawings and dense tables rather than for slides.
What warranty and invoicing applies?
This unit carries local Singapore warranty, and SourceIT issues a GST invoice with every unit sold.
