Epson EB-2255U Projector
PRODUCT DESCRIPTION
Epson EB-2255U WUXGA 3LCD Projector (V11H815052) - 3 Years Singapore Local Warranty
Native WUXGA 1920 x 1200 for Detail-Heavy Material
The EB-2255U has a native WUXGA 1920 x 1200 panel on a 0.76-inch 3LCD chip. Those extra 120 rows over Full HD matter more than they sound: a CAD elevation, a services drawing, a conveyancing plan or a dense financial model can be shown at native scale rather than downsampled, so annotations and dimension text remain readable. For Singapore engineering consultancies, architecture practices and finance teams that present working documents rather than marketing slides, resolution is usually the specification that decides whether a meeting runs smoothly.
5,000 Lumens With Colour Brightness to Match
Epson rates the EB-2255U at 5,000 lumens white light output and 5,000 lumens colour light output, falling to 3,800 lumens in Eco mode, with a 15,000:1 contrast ratio. The 3LCD engine produces colour brightness equal to white brightness, so a drawing with colour-coded services or a chart with six series stays distinguishable once room lighting is added. A meeting room with glazing on one side and downlights overhead does not need to be darkened for the detail to survive, which keeps the room usable for note-taking and discussion.
50 to 300 Inches on a 1.6x Optical Zoom
Image size runs from 50 to 300 inches, needing 1.46 to 8.95 m at the wide end of the zoom and 2.43 to 14.79 m at the tele end. That range gives the installer room to place the ceiling plate around beams, sprinkler heads and lighting tracks instead of fighting them. Vertical and horizontal keystone correction of ±30 degrees, automatic keystone correction and Quick Corner then square the picture up, so a mount that has to sit off the screen centre line still produces a clean rectangle.
Miracast on 2.4 and 5 GHz With Wired Network Control
Miracast is supported on both the 2.4 GHz and 5 GHz bands, which lets a presenter mirror a compatible laptop or device without a cable, while a wired RJ45 LAN port handles monitoring and control from a facilities desk and RS-232C covers control system integration. Two HDMI inputs, two D-Sub computer inputs, composite video and a full audio set keep a room PC, a visiting laptop and legacy equipment connected at once, and a 16 W monaural speaker covers speech without a separate sound system.
Epson EB-2255U Datasheet — Technical Specifications
General
| Product | Epson EB-2255U WUXGA 3LCD Projector |
| Part Number (SKU) | V11H815052 |
| Projector Type | 3LCD lamp installation projector |
| Native Resolution | WUXGA (1920 x 1200) |
| Brightness | 5,000 lm white light output; 5,000 lm colour light output (3,800 lm Eco) |
| GTIN | 8715946633669 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Projection System | RGB liquid crystal shutter projection system (3LCD) |
| LCD Panel | 0.76" (D10, C2 Fine) |
| Contrast Ratio | 15,000:1 |
| Screen Size (projection distance) | 50” – 300” [1.46 – 8.95 m] (zoom: wide); 50” – 300” [2.43 – 14.79 m] (zoom: tele) |
| Keystone Correction | Vertical / horizontal ±30° / ±30° (zoom: centre) |
| Auto Keystone | Yes |
| Quick Corner | Yes |
Light Source
| Type | Lamp |
| Life (Normal / Eco) | 5,000 / 10,000 hours |
| Start-Up Period | About 8 seconds (warm-up 30 seconds) |
| Cool Down Period | Instant Off |
Connectivity
| Digital Input | HDMI x 2 |
| Analogue Input | D-Sub 15-pin x 2 (1 blue, 1 black); Composite x 1 |
| Output Terminal | D-Sub 15-pin x 1 (black) |
| Audio Input | RCA (white/red) x 1; stereo mini jack x 2 |
| Audio Output | Stereo mini jack x 1 |
| Control I/O | RS-232C D-Sub 9-pin x 1 |
| Network | Wired LAN RJ45 x 1; wireless LAN optional |
| Miracast | 2.4 GHz: yes; 5 GHz: yes |
| USB | USB Type A x 1 (USB memory, firmware update, copy OSD settings); USB Type B x 1 (USB Display, mouse, keyboard, control, firmware update) |
| Wireless LAN (optional unit) | IEEE 802.11b 11 Mbps, 802.11g 54 Mbps, 802.11n 130 Mbps; OPEN, WPA2-PSK, WPA/WPA2-PSK, WPA2-EAP, WPA/WPA2-EAP |
Audio & Features
| Internal Speaker | 16 W monaural |
| Direct Power On / Off | Yes |
Physical & Environmental
| Dimensions (excluding feet, W x H x D) | 377 x 110 x 291 mm |
| Weight | Approx. 4.7 kg |
| Fan Noise (Normal / Eco) | 39 dB / 29 dB |
| Air Filter | High efficiency filter; 5,000 hours (Normal power consumption) |
| Operating Temperature | 5 °C – 40 °C below 2,286 m; 5 °C – 35 °C above 2,286 m with high altitude mode |
| Operating Altitude | 0 – 3,048 m (high altitude mode above 1,500 m) |
Power
| Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and positioning
The EB-2000 series is built for permanent installation as much as for a trolley. The body measures 377 x 110 x 291 mm excluding feet, and Epson publishes ceiling pipe options ELPFP13 (668 – 918 mm) and ELPFP14 (918 – 1,168 mm) for dropping it below a slab. Vertical and horizontal keystone correction of ±30 degrees, automatic keystone correction and Quick Corner between them cover an off-axis mount, so the projector does not have to sit on the screen centre line in a room where services already occupy the ceiling.
What it connects to

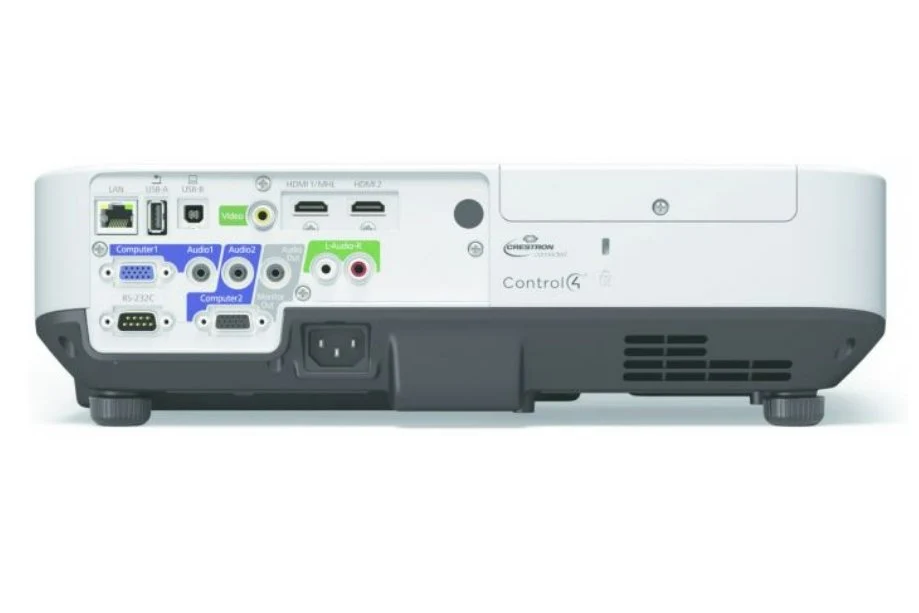

Two HDMI inputs and two D-Sub 15-pin computer inputs let a fixed room PC and a visiting laptop stay connected together, with a D-Sub monitor-out for a lectern display and composite video for legacy equipment. Audio arrives on an RCA pair and two stereo mini jacks, with a stereo mini output to a room amplifier. USB Type B carries USB Display over a single cable and USB Type A reads a memory stick for computer-free playback.
Network, control and management
A wired RJ45 LAN port allows network monitoring and control from a facilities desk, and RS-232C is available for a control system. Epson's network projection and message broadcasting tools run over the same connection, which suits a campus or a multi-room office where someone needs to see lamp hours and power state without walking the floor. The air filter is a high-efficiency type on a 5,000-hour cycle in Normal power consumption and 10,000 hours in Eco.
Wireless and Miracast
Miracast is supported on both 2.4 GHz and 5 GHz. The wireless LAN radio itself is an optional Epson unit on this model rather than built in, so order it alongside the projector where cable-free presenting is part of the requirement. Once fitted it supports IEEE 802.11b/g/n with OPEN, WPA2-PSK, WPA/WPA2-PSK, WPA2-EAP and WPA/WPA2-EAP security for admission to a managed corporate SSID.
Package Contents & Epson EB-2000 Series Range
In the box
- Projector main unit
- Remote control with batteries
- Power cable
- User documentation
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EB-2000 Series range
| Model | Resolution & light source |
| Epson EB-2065 | XGA (1024 x 768), 5,500 lm, lamp |
| Epson EB-2155W | WXGA (1280 x 800), 5,000 lm, lamp |
| Epson EB-2165W | WXGA (1280 x 800), 5,500 lm, lamp |
| EB-2255U (this listing) | WUXGA (1920 x 1200), 5,000 lm, lamp |
| Epson EB-2265U | WUXGA (1920 x 1200), 5,500 lm, lamp |
Datasheet & Downloads
Epson Singapore no longer lists a product page for this model. SourceIT can email the current data sheet revision, the user's guide and a formal quotation on request.
Frequently Asked Questions — Epson EB-2255U
What exactly is WUXGA, and is it the same as Full HD?
WUXGA is 1920 x 1200. It is Full HD's 1920 pixels across with 120 extra rows of height, giving a 16:10 shape. Drawings, spreadsheets and documents benefit from the extra vertical room.
How bright is it?
Epson publishes 5,000 lumens white light output and 5,000 lumens colour light output, dropping to 3,800 lumens in Eco mode, with a 15,000:1 contrast ratio.
How long does the lamp last?
Epson rates the lamp at 5,000 hours in Normal mode and 10,000 hours in Eco mode.
Is wireless built in?
The wireless LAN radio is an optional Epson unit on this model; wired RJ45 networking is standard. Miracast is supported on 2.4 GHz and 5 GHz.
What image sizes does it cover?
From 50 to 300 inches, needing 1.46 to 8.95 m at the wide end of the zoom and 2.43 to 14.79 m at the tele end.
How does it differ from the EB-2265U?
Both are WUXGA 1920 x 1200. The EB-2255U is rated at 5,000 lumens; the EB-2265U is rated at 5,500 lumens and adds an HDBaseT input with wireless and Wi-Di/Miracast included as standard.
Will it fit the same ceiling mount as the rest of the EB-2000 range?
Yes. It shares the 377 x 110 x 291 mm chassis with the other EB-2000 models, and Epson lists the ELPFP13 and ELPFP14 ceiling pipes as options across the family.
What warranty and invoicing applies?
This unit carries local Singapore warranty, and SourceIT issues a GST invoice with every unit sold.
