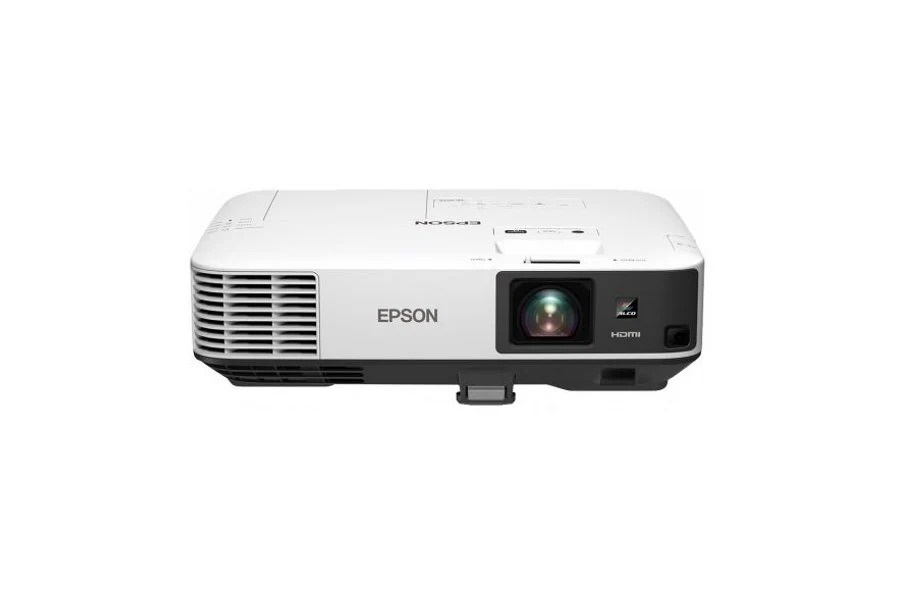

Epson EB-2065 Projector
PRODUCT DESCRIPTION
Epson EB-2065 XGA 3LCD Projector (V11H820052) - 3 Years Singapore Local Warranty
5,500 Lumens for Lecture Theatres and Large Meeting Rooms
Epson rates the EB-2065 at 5,500 lumens white light output and 5,500 lumens colour light output, falling to 3,800 lumens in Eco mode. Because the 3LCD engine produces colour brightness equal to white brightness, a chart series or a corporate palette holds its saturation instead of greying out under ceiling lighting. In a Singapore lecture theatre, a training room or a large conference room with glazing along one wall, that output means the blinds do not have to come down and the audience at the back can still read body text on a slide.
Native XGA 1024 x 768 on a 0.63-Inch 3LCD Panel
The EB-2065 has a native XGA 1024 x 768 panel in a 4:3 shape, matched to the large amount of existing 4:3 teaching material, document camera output and older corporate template stock still in daily use. Contrast is rated at 15,000:1. For organisations standardising a room fleet on one lamp, one filter and one control profile, the XGA member of the EB-2000 family keeps the estate consistent while costing less per room than the WXGA and WUXGA models beside it, and it drives the same 30 to 300 inch image range.
1.6x Optical Zoom Covering 30 to 300 Inches
Image size runs from 30 to 300 inches, needing 0.83 to 8.54 m at the wide end of the zoom and 1.36 to 13.86 m at the tele end. That range gives an installer meaningful freedom over where the ceiling plate lands, which matters when the mount has to avoid a beam, a sprinkler head or an existing lighting track. Vertical and horizontal keystone correction of ±30 degrees, automatic keystone correction and Quick Corner square the picture up when a clean, perfectly square mounting position simply is not available.
Installation-Grade Connectivity and a 16 W Speaker

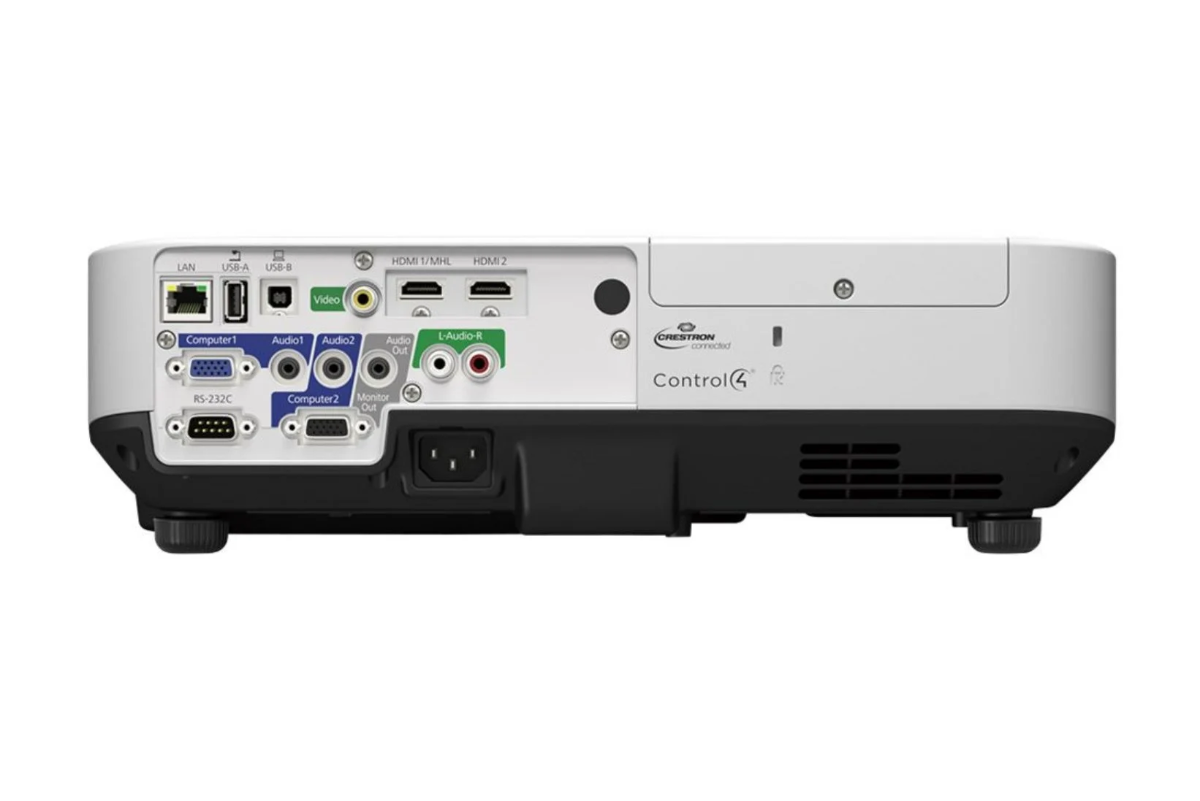

Two HDMI inputs, two D-Sub 15-pin computer inputs, a monitor-out, composite video and a full set of audio in and out cover a room PC, a visiting laptop, a document camera and legacy equipment at the same time. A wired RJ45 LAN port supports network monitoring and control, and RS-232C is there for a control system. The built-in 16 W monaural speaker is genuinely usable for speech and video in a mid-sized room, so a simple installation does not automatically require a separate sound system.
Epson EB-2065 Datasheet — Technical Specifications
General
| Product | Epson EB-2065 XGA 3LCD Projector |
| Part Number (SKU) | V11H820052 |
| Projector Type | 3LCD lamp installation projector |
| Native Resolution | XGA (1024 x 768) |
| Brightness | 5,500 lm white light output; 5,500 lm colour light output (3,800 lm Eco) |
| GTIN | 8715946633843 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Projection System | RGB liquid crystal shutter projection system (3LCD) |
| LCD Panel | 0.63" (D10, 2 Fine) |
| Contrast Ratio | 15,000:1 |
| Screen Size (projection distance) | 30” – 300” (0.83 – 8.54 m wide; 1.36 – 13.86 m tele) |
| Keystone Correction | Vertical / horizontal ±30° / ±30° (zoom: centre) |
| Auto Keystone | Yes |
| Quick Corner | Yes |
Light Source
| Type | Lamp |
| Life (Normal / Eco) | 5,000 / 10,000 hours |
| Start-Up Period | About 8 seconds (warm-up 30 seconds) |
| Cool Down Period | Instant Off |
Connectivity
| Digital Input | HDMI x 2 |
| Analogue Input | D-Sub 15-pin x 2 (1 blue, 1 black); Composite x 1 |
| Output Terminal | D-Sub 15-pin x 1 (black) |
| Audio Input | RCA (white/red) x 1; stereo mini jack x 2 |
| Audio Output | Stereo mini jack x 1 |
| Control I/O | RS-232C D-Sub 9-pin x 1 |
| Network | Wired LAN RJ45 x 1; wireless LAN optional |
| USB | USB Type A x 1 (USB memory, firmware update, copy OSD settings); USB Type B x 1 (USB Display, mouse, keyboard, control, firmware update) |
| Wireless LAN (optional unit) | IEEE 802.11b 11 Mbps, 802.11g 54 Mbps, 802.11n 130 Mbps; OPEN, WPA2-PSK, WPA/WPA2-PSK, WPA2-EAP, WPA/WPA2-EAP |
Audio & Features
| Internal Speaker | 16 W monaural |
| Direct Power On / Off | Yes |
Physical & Environmental
| Dimensions (excluding feet, W x H x D) | 377 x 110 x 291 mm |
| Weight | Approx. 4.4 kg |
| Fan Noise (Normal / Eco) | 39 dB / 29 dB |
| Air Filter | High efficiency filter; 5,000 hours (Normal), 10,000 hours (Eco) |
| Operating Temperature | 5 °C – 40 °C below 2,286 m; 5 °C – 35 °C above 2,286 m with high altitude mode |
| Operating Altitude | 0 – 3,048 m (high altitude mode above 1,500 m) |
Power
| Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and positioning
The EB-2000 series is built for permanent installation as much as for a trolley. The body measures 377 x 110 x 291 mm excluding feet, and Epson publishes ceiling pipe options ELPFP13 (668 – 918 mm) and ELPFP14 (918 – 1,168 mm) for dropping it below a slab. Vertical and horizontal keystone correction of ±30 degrees, automatic keystone correction and Quick Corner between them cover an off-axis mount, so the projector does not have to sit on the screen centre line in a room where services already occupy the ceiling.
What it connects to
Two HDMI inputs and two D-Sub 15-pin computer inputs let a fixed room PC and a visiting laptop stay connected at once, with a D-Sub monitor-out for a lectern confidence display. Composite video covers legacy equipment. Audio arrives on an RCA pair and two stereo mini jacks, with a stereo mini output to an amplifier where the 16 W internal speaker is not enough. USB Type B supports USB Display, and USB Type A reads a memory stick for computer-free playback.
Network, control and management
A wired RJ45 LAN port allows network monitoring and control from a facilities desk, and RS-232C is available for a control system. Epson's network projection and message broadcasting tools run over the same connection, which suits a campus or a multi-room office where someone needs to see lamp hours and power state without walking the floor. The air filter is a high-efficiency type on a 5,000-hour cycle in Normal power consumption and 10,000 hours in Eco.
Wireless option
Wireless LAN on the EB-2065 is an optional Epson wireless unit rather than a built-in radio. Once fitted it supports IEEE 802.11b/g/n with OPEN, WPA2-PSK, WPA/WPA2-PSK, WPA2-EAP and WPA/WPA2-EAP security, including PEAP, PEAP-TLS, EAP-TLS, EAP-Fast and LEAP types, so it can be admitted to a managed corporate SSID. Budget for the wireless unit separately if cable-free presenting is a requirement in the room.
Package Contents & Epson EB-2000 Series Range
In the box
- Projector main unit
- Remote control with batteries
- Power cable
- User documentation
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EB-2000 Series range
| Model | Resolution & light source |
| EB-2065 (this listing) | XGA (1024 x 768), 5,500 lm, lamp |
| Epson EB-2155W | WXGA (1280 x 800), 5,000 lm, lamp |
| Epson EB-2165W | WXGA (1280 x 800), 5,500 lm, lamp |
| Epson EB-2255U | WUXGA (1920 x 1200), 5,000 lm, lamp |
| Epson EB-2265U | WUXGA (1920 x 1200), 5,500 lm, lamp |
Datasheet & Downloads
SourceIT can email the current data sheet revision together with a formal quotation on request.
Frequently Asked Questions — Epson EB-2065
What resolution is the EB-2065?
Native XGA, 1024 x 768, on a 0.63-inch 3LCD panel. It is the XGA member of the EB-2000 family; the EB-2155W and EB-2165W are WXGA and the EB-2255U and EB-2265U are WUXGA.
How bright is it really, and does colour brightness match?
Epson publishes 5,500 lumens white light output and 5,500 lumens colour light output, dropping to 3,800 lumens in Eco. Colour brightness equalling white brightness is a characteristic of the 3LCD engine.
How long does the lamp last?
Epson rates the lamp at 5,000 hours in Normal mode and 10,000 hours in Eco mode. The air filter runs on a 5,000-hour cycle in Normal power consumption and 10,000 hours in Eco.
Does it include wireless presenting?
No. Wireless LAN on this model is an optional Epson wireless unit. Wired networking over RJ45 is built in. Order the wireless unit separately if you need cable-free presenting.
How large an image can it throw and from what distance?
From 30 to 300 inches. The wide end of the zoom needs 0.83 to 8.54 m and the tele end 1.36 to 13.86 m, which gives an installer real latitude over where the ceiling mount lands.
Can it be mounted off the screen centre line?
Within limits, yes. Vertical and horizontal keystone correction of ±30 degrees, automatic keystone correction and Quick Corner geometry adjustment are all provided.
Is the built-in speaker enough for a classroom?
The internal speaker is 16 W monaural, which is usable for speech and for video in a mid-sized room. A stereo mini audio output is provided if you need to drive a separate system.
What warranty and invoicing applies?
This unit carries local Singapore warranty, and SourceIT issues a GST invoice with every unit sold.
