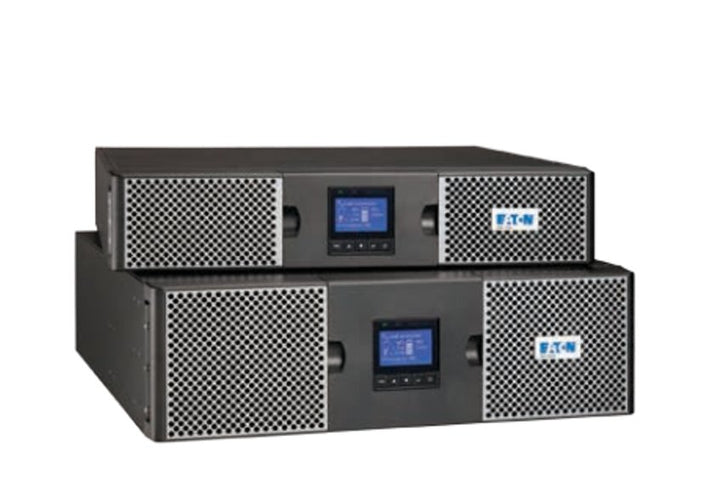

Eaton 9PX3000iRT2U UPS 3000VA Tower Models 230V

Eaton 9PX3000iRT2U UPS 3000VA Tower Models 230V (9103-83800) - 3 Years Local Warranty

Eaton 9PX 3000VA Tower UPS – Reliable Power Protection for Critical Systems

The Eaton 9PX 3000VA Tower UPS 230V is designed to provide reliable and uninterrupted power protection for your critical equipment. Offering 3000VA/2700W of power, this high-performance uninterruptible power supply is ideal for ensuring your servers, networking devices, and office equipment stay powered during electrical disturbances. Whether you're running a small business or need to secure your home office equipment, the Eaton 9PX UPS is a versatile solution that guarantees uptime and protects against power issues like surges, brownouts, and blackouts.

High Energy Efficiency for Lower Operating Costs

The Eaton 9PX 3000VA Tower UPS operates with remarkable energy efficiency, providing up to 98% efficiency in double-conversion mode. This level of energy efficiency not only helps reduce energy consumption but also leads to lower utility bills and a smaller environmental footprint. The high efficiency ensures that your equipment is protected with clean, stable power, without the worry of excessive energy waste. The Eaton 9PX UPS delivers superior protection while keeping your operating costs low, making it an eco-friendly and cost-effective choice.

Advanced Lithium-Ion Technology for Extended Battery Life

One of the standout features of the Eaton 9PX 3000VA Tower UPS is its use of lithium-ion battery technology. Lithium-ion batteries offer significant benefits, including longer lifespan, faster recharging times, and greater energy density. These advanced batteries ensure that your UPS system provides reliable backup power whenever you need it, while also reducing the frequency of battery replacements. The lithium-ion technology not only improves the overall performance of the Eaton 9PX UPS but also enhances the sustainability of your power protection solution.

Intuitive Monitoring and Advanced Management Capabilities

The Eaton 9PX 3000VA Tower UPS is equipped with a comprehensive LCD graphical display that provides real-time information about your UPS status, battery health, input/output voltage, and load levels. This user-friendly display allows you to easily monitor the health of your system at a glance. In addition, the UPS supports the integration of Eaton's Intelligent Power Manager (IPM) software and network management cards via the SmartSlot. This feature enables remote monitoring and management of the UPS system, helping you track performance, receive alerts, and ensure that your system operates efficiently at all times.

Flexible Installation and Scalable Power Protection

The Eaton 9PX 3000VA Tower UPS is designed with flexibility in mind, featuring a compact tower form factor that can fit into tight spaces while still providing powerful protection. Whether you need to install the unit in an office, data center, or home office, the tower configuration offers versatility. Additionally, the UPS allows for scalable power protection with optional external battery packs, ensuring that you have the extended runtime needed during prolonged power outages. With its compact design and flexible expansion options, the Eaton 9PX 3000VA Tower UPS is a reliable and adaptable solution for protecting your critical systems.

Technical Specifications

General
Model: 9PX3000iRT2U
Part Number: 9103-83800
Product Name: Eaton 9PX3000iRT2U UPS 3000VA Rack/Tower Models 230V
Manufacturer: Eaton
Product Type: Online Double-Conversion UPS
UPS Topology: Online Double Conversion (VFI)
Form Factor: Rack/Tower Convertible
Rack Height: 2U
Power Capacity: 3000VA / 3000W
Power Factor: 1.0 (Unity Power Factor)
Input Voltage: 230V AC
Output Voltage: 200V / 208V / 220V / 230V / 240V Configurable
Application: Servers, Storage Systems, Networking Equipment, Virtualization Hosts, Hyperconverged Infrastructure, Edge Computing
Warranty: 3 Years Electronics Warranty, 2 Years Battery Warranty (Region Dependent)

Power Specifications
Rated Capacity: 3000VA / 3000W
UPS Topology: Online Double Conversion
Output Power Factor: 1.0
Output Waveform: Pure Sine Wave
Input Voltage Range: 176V – 276V AC (Without Derating)
Input Nominal Voltage: 200V / 208V / 220V / 230V / 240V
Output Nominal Voltage: 200V / 208V / 220V / 230V / 240V
Input Frequency Range: 40Hz – 70Hz
Output Frequency: 50/60Hz Auto-Sensing
Voltage Regulation: ±1%
Input Power Factor: >0.99
Efficiency (Online Mode): Up to 94%
Efficiency (High-Efficiency Mode): Up to 98%
Internal Automatic Bypass: Supported
Auto Restart: Supported

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Hot-Swappable Batteries: Supported
Advanced Battery Management (ABM): Supported
Battery Monitoring: Supported
Battery Replacement: User Replaceable
Extended Battery Modules (EBM): Supported
Maximum External Battery Modules: Up to 4
Automatic EBM Detection: Supported
Battery Health Monitoring: Supported
Battery Runtime Extension: Supported

Runtime Specifications
Runtime at Full Load: Approximately 3 Minutes
Runtime at Half Load: Approximately 10 Minutes
Extended Runtime Support: Yes, with Optional EBM
Load Segment Runtime Optimization: Supported

Input Specifications
Input Connector: IEC C20
Input Cord Length: 1.8m
Input Phase: Single Phase
Input Protection: Integrated
Input Source Monitoring: Supported

Output Specifications
Total Output Outlets: 10
IEC C13 Outlets: 8
IEC C19 Outlets: 2
Programmable Load Segments: 2
Critical Load Management: Supported
Load Shedding: Supported
Surge Protection: Integrated

Display & User Interface
Display Type: Graphical LCD Display
Display Rotation: Automatic Rack/Tower Orientation
Real-Time Power Monitoring: Supported
Battery Monitoring: Supported
Load Monitoring: Supported
Input/Output Metering: Supported
Energy Consumption Metering: Supported
Event Logging: Supported
Alarm Notifications: Supported
Multi-Language Interface: Supported

Management & Communication
USB HID Port: Supported
RS232 Serial Port: Supported
Network Management Card Slot: 1 Expansion Slot
Gigabit Network Card: Optional
SNMP Monitoring: Supported (Optional Card)
Remote Shutdown: Supported
Remote Monitoring: Supported
Remote Management: Supported
Eaton Intelligent Power Manager (IPM): Supported
Eaton Intelligent Power Protector (IPP): Supported

Virtualization & Cloud Integration
VMware Compatible
Microsoft Hyper-V Compatible
Citrix Xen Compatible
Red Hat Virtualization Compatible
Hyperconverged Infrastructure Ready
Virtual Machine Shutdown Automation
Cloud Orchestration Integration Supported

Protection Features
Online Double Conversion Protection
Voltage Regulation
Frequency Regulation
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Surge Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Internal Automatic Bypass
Critical Load Segmentation

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -15°C to 50°C
Operating Humidity: 0% to 96% Non-Condensing
Maximum Operating Altitude: 3000m
Noise Level: Less Than 40 dB at 1 Meter
BTU Rating: Approximately 614 BTU/hr

Design & Construction
Color: Black / Silver
Form Factor: Rack/Tower Convertible
Rack Size: 2U
Rack Mount Kit: Included
Tower Stand Kit: Included
Construction: Enterprise-Grade Steel Chassis
19-Inch Rack Compatible: Yes

Physical Specifications
Dimensions (W × H × D): 440 × 86.5 × 605 mm
Weight: 28 kg
Rack Height: 2U
Installation Type: Rack or Tower

Package Contents
Eaton 9PX3000iRT2U UPS
Input Power Cable
2 × IEC Output Power Cables
USB Communication Cable
RS232 Serial Cable
Rack Mount Brackets
Rack Mount Rail Kit
Tower Support Stands
Cable Locking System
Quick Start Guide
Safety Documentation

Features
3000VA / 3000W Unity Power Factor Output
Online Double Conversion Topology
Pure Sine Wave Output
Up to 98% Efficiency in High-Efficiency Mode
Advanced Battery Management (ABM) Technology
Hot-Swappable Batteries
Programmable Load Segments
Graphical LCD Display
Network Management Card Ready
VMware, Hyper-V and Citrix Integration
Rack/Tower Convertible Design
Support for Up to 4 External Battery Modules

Performance & Features
Provides enterprise-grade power protection through true online double-conversion technology, continuously monitoring and regulating voltage and frequency to protect critical equipment from power disturbances. The 9PX3000iRT2U is one of the first UPS systems in its class to deliver a true 1.0 power factor, allowing organizations to utilize the full 3000W capacity. Advanced Battery Management technology extends battery life while reducing maintenance costs. The UPS also supports virtualization environments and intelligent power management platforms for modern IT infrastructure.

Key Features
3000VA / 3000W Capacity
Unity Power Factor (VA = W)
Online Double Conversion UPS
Pure Sine Wave Output
Up to 98% Efficiency
8 × IEC C13 Outlets
2 × IEC C19 Outlets
Hot-Swappable Batteries
Advanced Battery Management (ABM)
Graphical LCD Display
Network Management Card Ready
Supports Up to 4 External Battery Modules
Rack/Tower Convertible 2U Design
VMware & Hyper-V Compatible

Typical Use Cases
Enterprise Servers
Blade Servers
Virtualization Hosts
VMware Clusters
Hyper-V Infrastructure
Storage Arrays
Network Switches
Firewalls and Security Appliances
Telecommunications Equipment
Healthcare IT Systems
Data Centers
Hyperconverged Infrastructure (HCI)
Mission-Critical Business Applications
Edge Computing Deployments

Certifications & Compliance
CE Certified
ENERGY STAR Qualified
IEC/EN 62040-1
IEC/EN 62040-2
UL 1778
TÜV Certified
FCC Part 15 Class B
CSA 22.2 Compliant

UPC / GTIN
UPC: 743172081384
