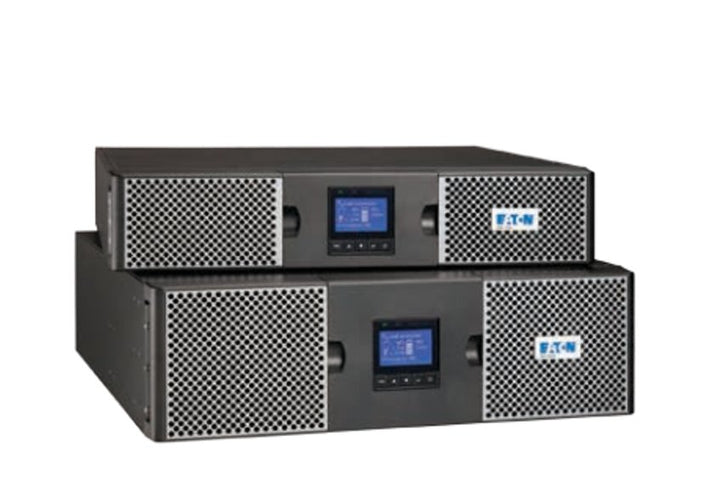

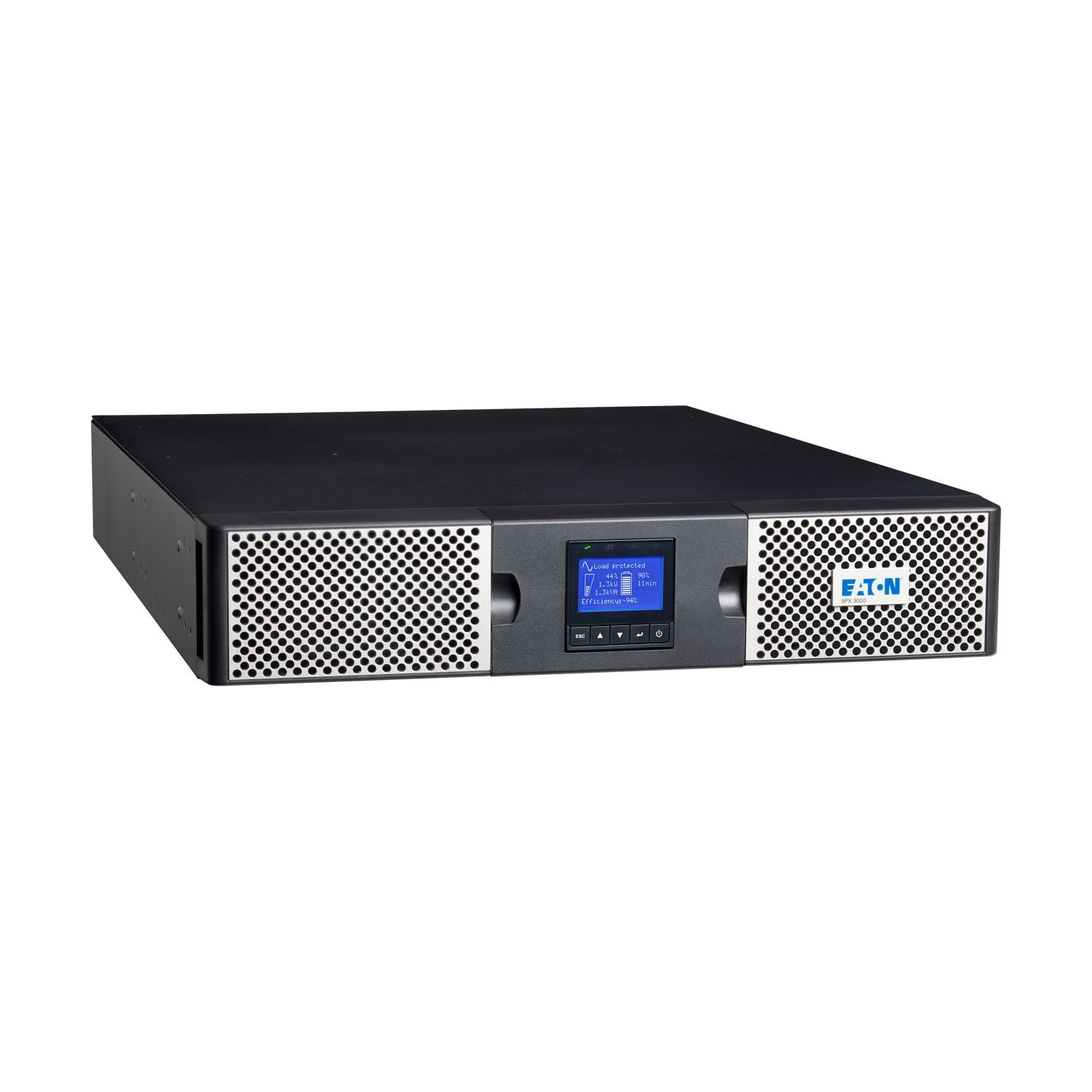

Eaton 9PX2200iRT2U UPS 2200VA Tower Models 230V

Eaton 9PX2200iRT2U UPS 2200VA Tower Models 230V - 3 Years Local Warranty

Eaton 9PX 2200VA Tower UPS – Advanced Power Protection for Your Critical Equipment

The Eaton 9PX 2200VA Tower UPS 230V is a robust and energy-efficient uninterruptible power supply, providing 2200VA/1980W of power protection for your critical equipment. Designed to keep your servers, network devices, and other essential systems running during power interruptions, surges, and brownouts, the Eaton 9PX UPS offers reliable backup power when you need it most. With its high-performance capabilities and compact tower design, this UPS is perfect for businesses and homes where uptime is essential.

Enhanced Energy Efficiency for Cost Savings and Eco-Friendly Operation

With an energy efficiency rating of up to 98% in double-conversion mode, the Eaton 9PX 2200VA Tower UPS is designed to minimize energy consumption while offering superior power protection. This exceptional efficiency helps reduce operating costs, making it a cost-effective choice for businesses and home offices. The UPS ensures that your devices are always powered with clean, stable electricity while consuming less energy, contributing to an eco-friendly operation. Additionally, the 9PX series features a small environmental footprint, reducing carbon emissions and saving on electricity bills.

Advanced Lithium-Ion Batteries for Longer Life and Faster Recharging

The Eaton 9PX 2200VA Tower UPS uses lithium-ion batteries, which provide significant advantages over traditional lead-acid batteries. Lithium-ion technology offers extended battery life, faster recharge times, and improved energy density, ensuring reliable backup power for your critical equipment. These batteries are lighter, smaller, and more compact, making the Eaton 9PX 2200VA UPS a space-saving solution. Additionally, the longer lifespan of lithium-ion batteries reduces the need for frequent replacements, saving you both time and money in the long run.

Comprehensive Monitoring and Smart Management Features

Equipped with a user-friendly LCD graphical display, the Eaton 9PX 2200VA Tower UPS allows you to monitor the UPS status, battery health, input/output voltage, and load levels in real time. The built-in SmartSlot offers additional network management capabilities, allowing you to integrate remote monitoring through Eaton’s Intelligent Power Manager (IPM) software or compatible network management cards. This feature helps businesses track energy usage, receive alerts for potential issues, and perform diagnostics, ensuring that your UPS system operates optimally.

Flexible Installation with Tower Form Factor

The Eaton 9PX 2200VA Tower UPS is designed with flexibility in mind. Its compact tower form factor makes it easy to integrate into spaces where traditional rack-mounted UPS systems may not fit. Whether you need to protect a small business’s IT infrastructure or provide backup power for office equipment, this UPS offers versatile installation options. The included rail kit also allows for easy rack-mounting, giving you more flexibility when configuring your power protection solution.

Technical Specifications

General
Model: 9PX2200iRT2U
Part Number: 9PX2200IRT2U
Product Name: Eaton 9PX2200iRT2U UPS 2200VA Rack/Tower Models 230V
Manufacturer: Eaton
Product Type: Online Double-Conversion UPS
UPS Topology: Online Double Conversion (VFI)

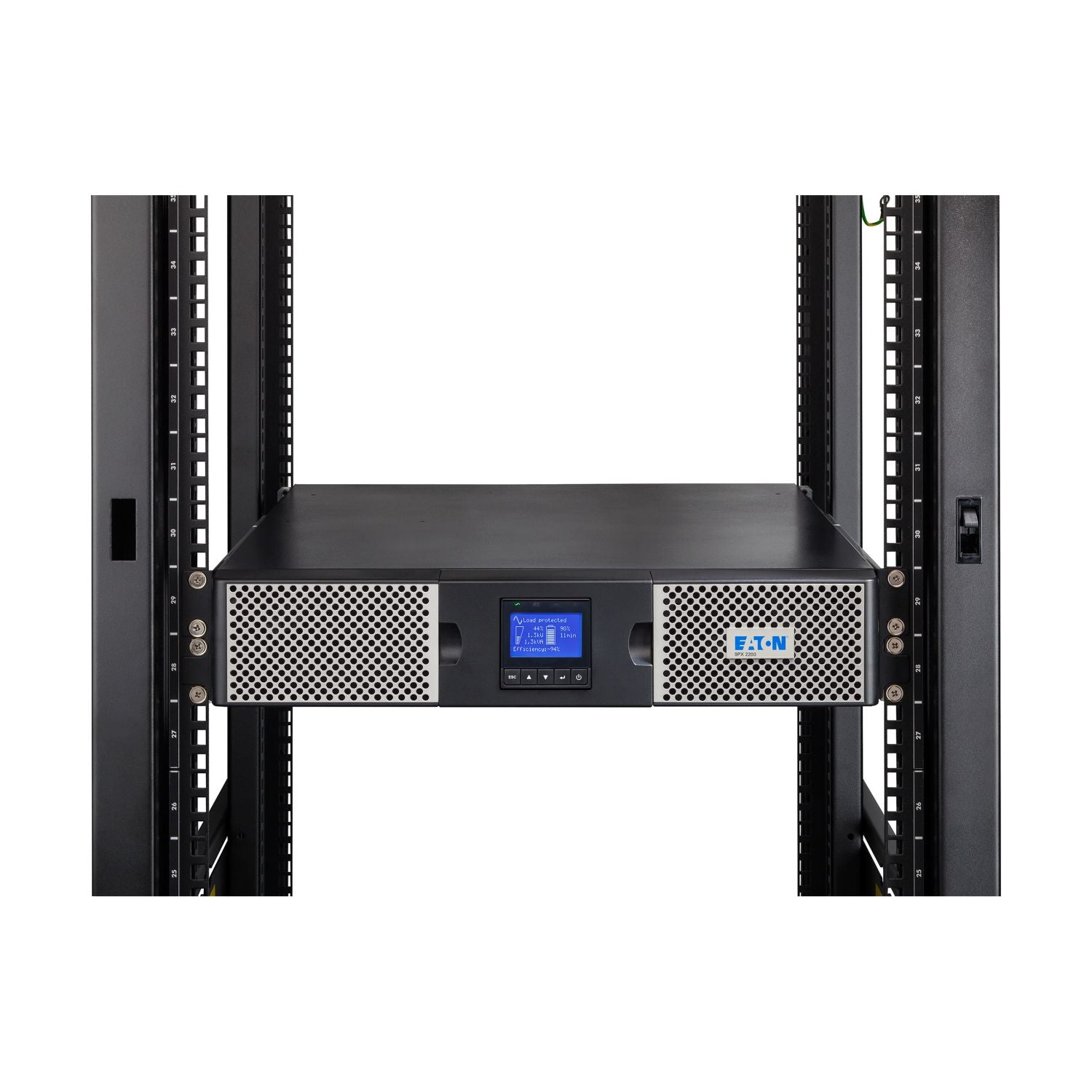

Form Factor: Rack/Tower Convertible
Rack Height: 2U
Power Capacity: 2200VA / 2200W
Power Factor: 1.0 (Unity Power Factor)
Input Voltage: 230V AC
Output Voltage: 200V / 208V / 220V / 230V / 240V Configurable
Application: Servers, Storage Systems, Network Switches, Firewalls, Hyperconverged Infrastructure, Edge Computing
Warranty: 3 Years Electronics Warranty, 2 Years Battery Warranty

Power Specifications
Rated Capacity: 2200VA / 2200W
UPS Topology: Online Double Conversion
Output Power Factor: 1.0
Output Waveform: Pure Sine Wave
Input Voltage Range: 176V – 276V AC (Without Derating)
Extended Input Voltage Range: 100V – 276V AC (With Derating)
Input Frequency Range: 40Hz – 70Hz
Output Frequency: 50/60Hz Auto-Sensing
Output Voltage Regulation: ±1%
Input Power Factor: >0.99
Efficiency (Online Mode): Up to 93.5%
Efficiency (High-Efficiency Mode): Up to 98%
Internal Automatic Bypass: Supported
Auto Restart: Supported

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Quantity: 6 Batteries
Battery Rating: 12V / 7Ah
Battery Replacement: Hot-Swappable
Battery Management: Advanced Battery Management (ABM)
Automatic Battery Test: Supported
Deep Discharge Protection: Supported
Temperature Compensated Charging: Supported
Extended Battery Modules (EBM): Supported
Maximum External Battery Modules: Up to 4
Automatic EBM Detection: Supported

Runtime Specifications
Runtime at 50% Load: Approximately 10 Minutes
Runtime at 70% Load: Approximately 6 Minutes
Runtime at 100% Load: Approximately 3 Minutes
Extended Runtime Support: Supported via Optional Battery Modules
Load Segment Runtime Optimization: Supported

Input Specifications
Input Connector: IEC C20
Input Phase: Single Phase
Input Source Monitoring: Supported
Input Protection: Integrated

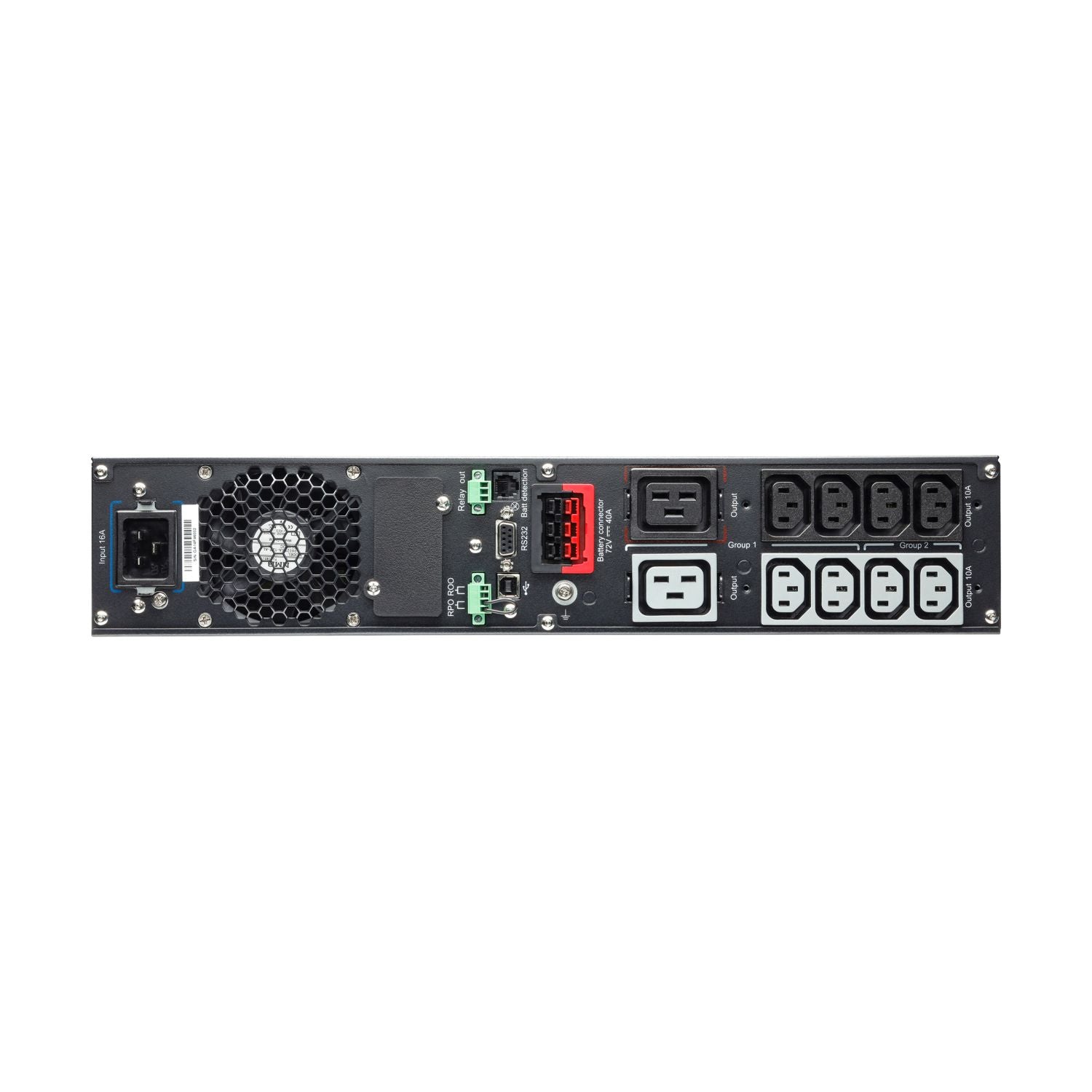

Output Specifications
Total Output Outlets: 10
IEC C13 Outlets: 8
IEC C19 Outlets: 2
Programmable Load Segments: 2
Critical Load Management: Supported
Load Shedding: Supported
Surge Protection: Integrated

Display & User Interface
Display Type: Multilingual Graphical LCD Display
Display Rotation: Automatic Rack/Tower Orientation
Real-Time Power Monitoring: Supported
Battery Monitoring: Supported
Load Monitoring: Supported
Input/Output Metering: Supported
Energy Consumption Metering: Supported
Event Logging: Supported
Alarm Notifications: Supported

Management & Communication
USB HID Port: Supported
RS232 Serial Port: Supported
Remote On/Off Terminal: Supported
Remote Power Off Terminal: Supported
Output Relay Contacts: Supported
Dry Contact Interface: Supported
Communication Card Slot: 1 Expansion Slot
Network Management Card: Optional
SNMP Monitoring: Supported (Optional Card)
Remote Monitoring: Supported
Eaton Intelligent Power Manager (IPM): Supported
Eaton Intelligent Power Protector (IPP): Supported

Virtualization & Cloud Integration
VMware Compatible
Microsoft Hyper-V Compatible
Citrix Xen Compatible
Red Hat Virtualization Compatible
Hyperconverged Infrastructure Ready
Virtual Machine Shutdown Automation
Cloud Integration Support

Protection Features
Online Double Conversion Protection
Voltage Regulation
Frequency Regulation
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Surge Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Internal Automatic Bypass
Critical Load Segmentation

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -15°C to 50°C
Operating Humidity: 0% to 96% Non-Condensing
Maximum Operating Altitude: 3000m
Noise Level: Less Than 40 dB at 1 Meter

Design & Construction
Color: Black / Silver
Form Factor: Rack/Tower Convertible
Rack Size: 2U
Rack Mount Kit: Included
Tower Stand Kit: Included
Construction: Enterprise-Grade Steel Chassis
19-Inch Rack Compatible: Yes

Physical Specifications
Dimensions (W × H × D): 440 × 86.5 × 605 mm
Weight: 28 kg
Rack Height: 2U
Installation Type: Rack or Tower

Package Contents
Eaton 9PX2200iRT2U UPS
Input Power Cable
2 × IEC Output Power Cables
USB Communication Cable
RS232 Serial Cable
Rack Mount Brackets
Rail Kit
Tower Support Stands
Quick Start Guide
Safety Documentation

Features
2200VA / 2200W Unity Power Factor Output
Online Double Conversion Topology
Pure Sine Wave Output
Up to 98% Efficiency
Advanced Battery Management (ABM) Technology
Hot-Swappable Batteries
Programmable Load Segments
Graphical LCD Display
Network Management Card Ready
VMware, Hyper-V and Citrix Integration
Rack/Tower Convertible Design
Support for Up to 4 External Battery Modules

Performance & Features
Provides continuous clean power through true online double-conversion technology, ensuring connected equipment is protected from power outages, voltage fluctuations, surges, harmonics, and frequency disturbances. The 9PX2200iRT2U delivers a full 2200W of usable power thanks to its unity power factor design, allowing more equipment to be protected without oversizing the UPS. Advanced Battery Management extends battery lifespan while reducing maintenance costs, making it ideal for business-critical IT infrastructure.

Key Features
2200VA / 2200W Capacity
Unity Power Factor (VA = W)
Online Double Conversion UPS
Pure Sine Wave Output
Up to 98% Efficiency
8 × IEC C13 Outlets
2 × IEC C19 Outlets
Hot-Swappable Batteries
Advanced Battery Management (ABM)
Graphical LCD Display
Network Management Card Ready
Supports Up to 4 External Battery Modules
Rack/Tower Convertible 2U Design
VMware & Hyper-V Compatible
ENERGY STAR Certified

Typical Use Cases
Enterprise Servers
Blade Servers
Storage Arrays
Network Switches
Firewalls and Security Appliances
Virtualization Hosts
VMware Clusters
Hyper-V Infrastructure
Hyperconverged Infrastructure (HCI)
Data Centers
Healthcare IT Systems
Telecommunications Equipment
Edge Computing Deployments
Mission-Critical Business Applications

Certifications & Compliance
CE Certified
TÜV Certified
cULus Listed
CSA 22.2
FCC Part 15 Class B
CISPR22 Class B
ENERGY STAR Certified
IEC/EN 62040-1
IEC/EN 62040-2
UL 1778

UPC / GTIN
UPC: 743172081360
