Eaton 9PX 1500VA 1500W Online Double-Conversion Rack/Tower UPS, 2U, 8x IEC C13
PRODUCT DESCRIPTION
Eaton 9PX 1500VA/1500W Online Rack/Tower UPS (9PX1500IRT2U, 9103-63130) - 3 Years Local Warranty
True Online Double-Conversion Protection for Servers and Network Racks
The Eaton 9PX 9PX1500IRT2U is a 1500 VA / 1500 W online double-conversion UPS for server rooms, comms racks and branch offices in Singapore. Every watt your equipment draws is regenerated as a clean 230 V sine wave, so servers, storage, switches and firewalls are isolated from sags, surges, frequency drift and the noise that building loads push onto shared circuits.
Eaton rates the 9PX at unity power factor (VA = W), so the full 1500 W is usable, not just a fraction of the VA figure. That makes sizing simple for modern IT loads with power-factor-corrected power supplies.

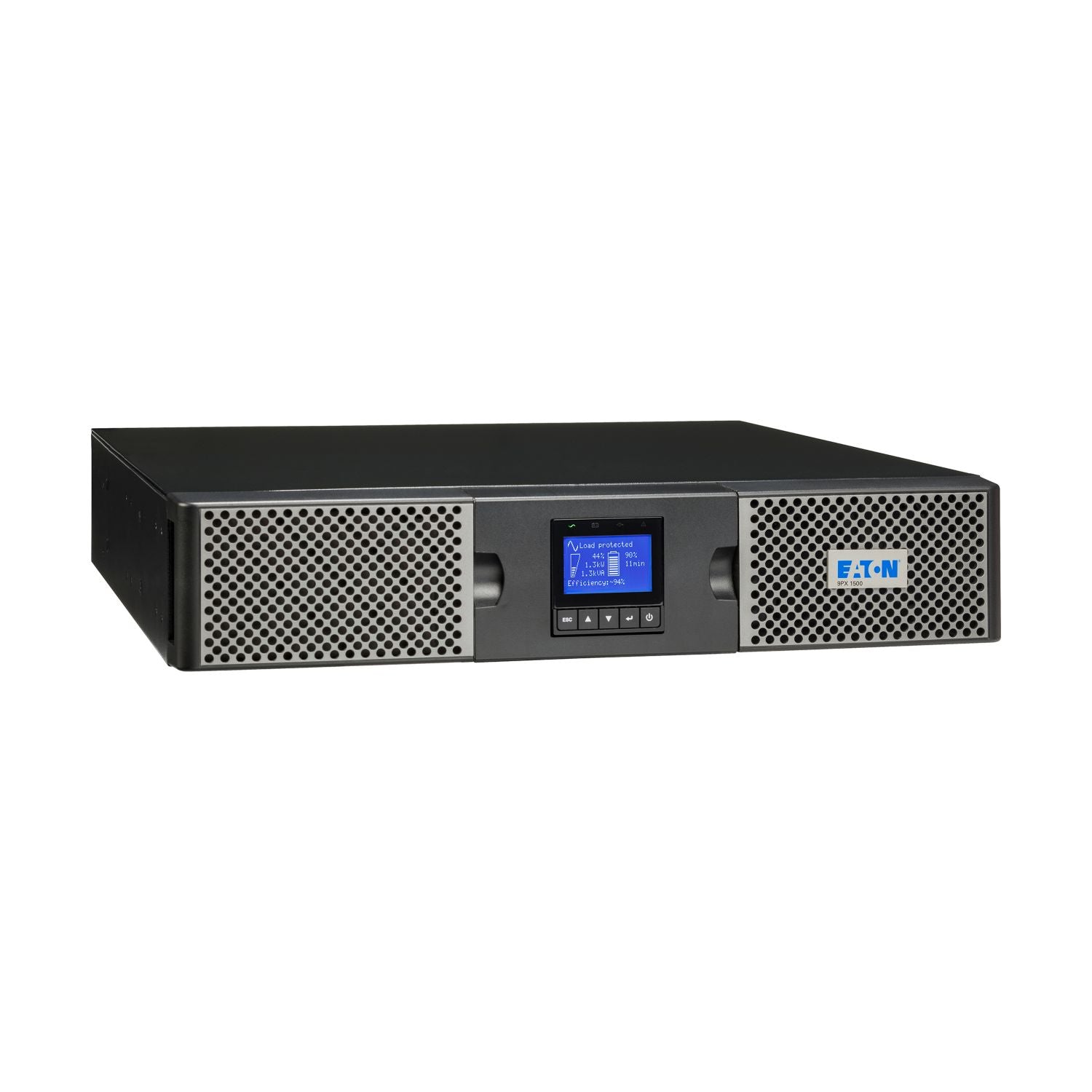

2U Rack or Tower — One Unit for Either Install

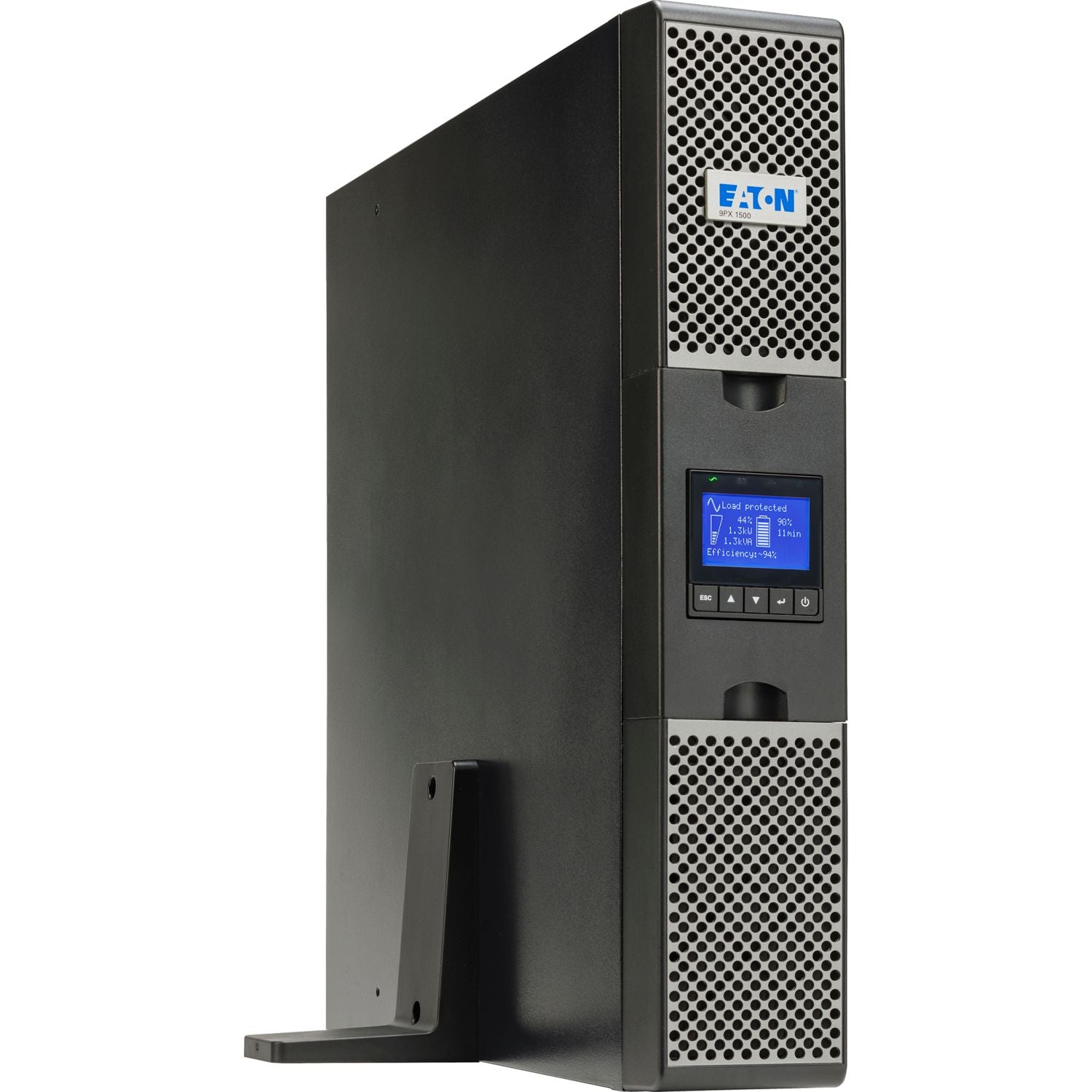

The 9PX1500IRT2U ships with 19-inch mounting brackets, a rack-mounting kit and tower supports in the box, so the same unit can go into a 19-inch cabinet at 2U or stand upright under a desk. A multilingual graphical LCD gives local status, and Eaton notes the 9PX meters energy consumption down to its managed outlet groups.
Wide Input Window and High Efficiency
Eaton specifies an input range of 176–276 V without touching the battery (down to 100 V with derating) and a 40–70 Hz input frequency window. Efficiency at maximum load is 92.5% per Eaton, and the unit is ENERGY STAR certified, which keeps heat and running costs down in small, closed server rooms.
Hot-Swappable Batteries and Expandable Runtime
Internal batteries and external battery modules (EBMs) are hot-swappable, so battery service does not mean downtime. Eaton's Advanced Battery Management (ABM) charging extends battery life, and up to 4 optional EBMs can be added for longer runtime. Eaton publishes a runtime graph for the 9PX1500IRT2U, linked in the specifications below.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the 9PX in Singapore with a full GST invoice and local warranty support; Eaton's Singapore price list gives the 9PX 3 years on the UPS and 3 years on the internal battery. Need help sizing runtime or adding a network card? Email sales@sourceit.com.sg.
Eaton 9PX1500IRT2U Datasheet — Technical Specifications
General
| Product Name | Eaton 9PX UPS |
| Catalogue Number | 9PX1500IRT2U |
| Part Number (SKU) | 9103-63130 |
| Range | Eaton 9PX |
| Topology | Online / double-conversion |
| Form Factor | Rack/tower convertible, 2U (482.6 mm / 19-inch device) |
| Local Warranty (Singapore) | 3 years UPS / 3 years internal battery (Eaton Singapore price list), with GST invoice from SourceIT |
Power
| Rated Power | 1500 VA / 1500 W (output power factor 1) |
| Output Waveform | Sine wave |
| Output Nominal Voltage | 230 V default (200/208/220/230/240 V) |
| Output Voltage Regulation | ±1% |
| Output Voltage Distortion (linear load) | 3% max |
| Output Frequency | 50/60 Hz |
| Output Outlets | 8 x IEC C13 |
| Input Connection | C14 |
| Input Nominal Voltage | 230 V default (200/208/220/230/240 V) |
| Input Voltage Range | 176–276 V (100–276 V with derating) |
| Input Frequency Range | 40–70 Hz (50/60 Hz nominal) |
| Input Power Factor | >0.99 |
| Efficiency at Max. Load | 92.5% |
| Internal Bypass | Yes |
Battery & Runtime
| Battery Type | Sealed lead-acid |
| Internal Batteries | 4 x 12 V / 9 Ah |
| Battery Management | ABM & temperature-compensated charging (user selectable); automatic battery test; deep discharge protection; automatic recognition of external battery units |
| Battery Replacement | Hot-swappable internal batteries and EBMs |
| Extended Runtime | Yes — up to 4 optional EBMs |
| Runtime Graph | Eaton runtime graph for 9PX1500IRT2U |
Communications
| Communication Ports | USB port (HID compliant); serial port (RS232); mini terminal block for remote On/Off; mini terminal block for remote power off; mini terminal block for output relay; dry contacts (3 outputs, 1 input, optocoupler, DB9) |
| Expansion Slot | 1 slot for optional communication card (network card not included) |
| User Interface | Multilingual graphical LCD display |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
Physical & Environmental
| Dimensions (W x H x D) | 440 x 86.5 x 450 mm |
| Weight | 19.5 kg |
| Noise Level | <35 dB at 1 m |
| Heat Dissipation (online) | 386 BTU/h |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–96% non-condensing |
| Altitude | 3000 m |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, UL 1778, CE, cULus Listed, EAC, ENERGY STAR certified |
Compatibility & Software Support
What It Is Suited To
The 9PX1500IRT2U suits rack servers, storage arrays, core and access switches, firewalls, PABX and VoIP systems and other equipment that needs a stable, regenerated supply. Total the continuous watts of the connected load and keep it under 1500 W with headroom for growth.
Monitoring and Shutdown Software
The HID-compliant USB port lets most operating systems see the UPS as a power source without extra drivers. Eaton Intelligent Power Protector handles automatic shutdown of a directly connected server; Eaton Intelligent Power Manager adds centralised monitoring and virtualisation integration (VMware, Hyper-V, Citrix Xen and Red Hat are listed by Eaton as compatible environments). For SNMP/web monitoring, fit an optional Eaton network card in the communication slot.

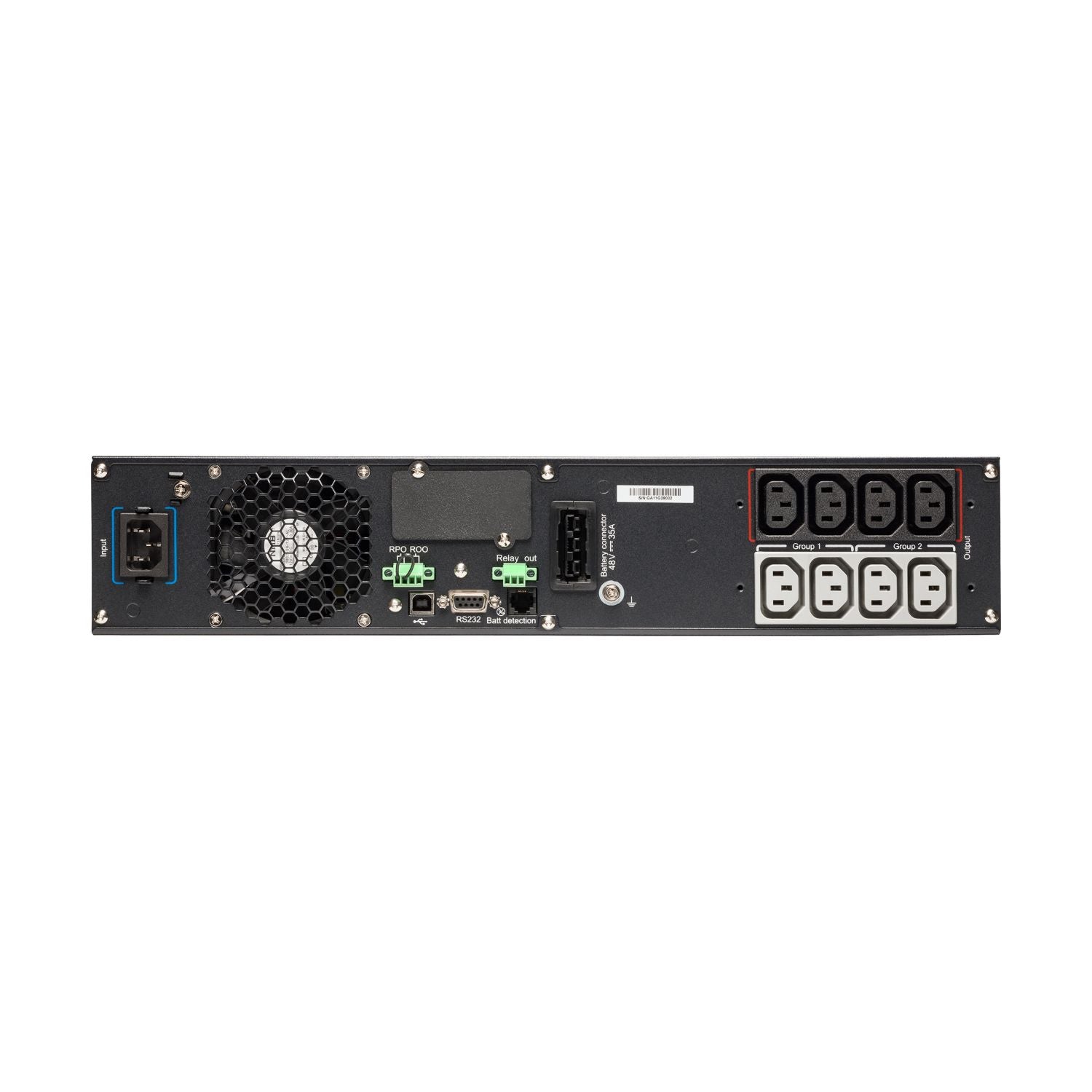

Outlets and Input
Outputs are 8 x IEC C13. Input is via an IEC C14 inlet. Equipment with BS 1363 (Type G) plugs needs IEC leads or an IEC-input PDU.
Package Contents & 9PX Ordering Information
In the Box
UPS, (2) IEC-IEC output cables, USB cable, serial cable, (2) brackets for 19" mounting, (2) rack-mounting kit, (2) supports for tower mounting, cable locking system, safety instructions, quick start guide (per Eaton).
Eaton 9PX 1–3 kVA Range — Ordering Information
| 9PX1000IRT2U | 1000 VA / 1000 W | 8 x IEC C13 | 9103-53748 |
| 9PX1500IRT2U (this listing) | 1500 VA / 1500 W | 8 x IEC C13 | 9103-63130 |
| 9PX2200IRT2U | 2200 VA / 2200 W | 8 x IEC C13 + 2 x IEC C19 | 9103-73784 |
| 9PX3000IRT2U | 3000 VA / 3000 W | 8 x IEC C13 + 2 x IEC C19 | 9103-83800 |
| 9PX2200IRT3U | 2200 VA / 2200 W (3U) | — | 9103-73789 |
| 9PX3000IRT3U | 3000 VA / 3000 W (3U) | — | 9103-83805 |
Lithium-ion versions with a 5-year warranty are also listed: 9PX1000IRT2U-L, 9PX1500IRT2U-L, 9PX2200IRT2U-L.
Datasheet & Downloads
| Eaton product page | Eaton 9PX1500IRT2U specifications |
| Eaton datasheet | Eaton 9PX 1000–3000 W UPS Datasheet (PDF) |
| Eaton user manual | Eaton 9PX 1–3 kVA Installation and User Manual (PDF) |
| Eaton quick start | Eaton 9PX 1–3 kVA Quick Start Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9PX1500IRT2U.
Frequently Asked Questions — Eaton 9PX1500IRT2U
Is the 9PX a true online UPS?
Yes. It is online double-conversion: the load always runs from the inverter, so there is no transfer gap when the mains fails.
How much load can I connect?
Up to 1500 W — Eaton rates the 9PX at unity power factor, so the watt and VA ratings are the same. Leave headroom for growth and start-up surges.
How long will it run on battery?
It depends on load. Eaton publishes a runtime graph for the 9PX1500IRT2U (see Technical Specifications); send us your load in watts and target runtime and we will size EBMs for you.
Can I monitor it over the network?
Yes, with an optional Eaton network card in the communication slot. The card is not included.
Can the batteries be replaced without shutting down?
Yes. Eaton specifies hot-swappable internal batteries and EBMs.
What warranty do I get?
3 years on the UPS and 3 years on the internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
