Eaton 5E1600UI-EA G2 1600VA Tower Models 230V

SKU: 9C00-73010

  • $299.00
    Unit price per
  • Save $342.24
Shipping calculated at checkout.

PRODUCT DESCRIPTION

Eaton 5E1600UI-EA G2 1600VA Tower Models 230V (9C00-73010) - 3 Years Local Warranty

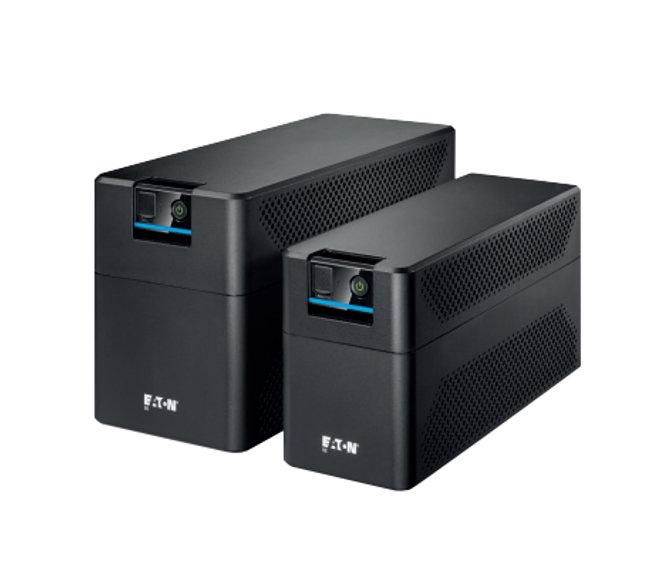

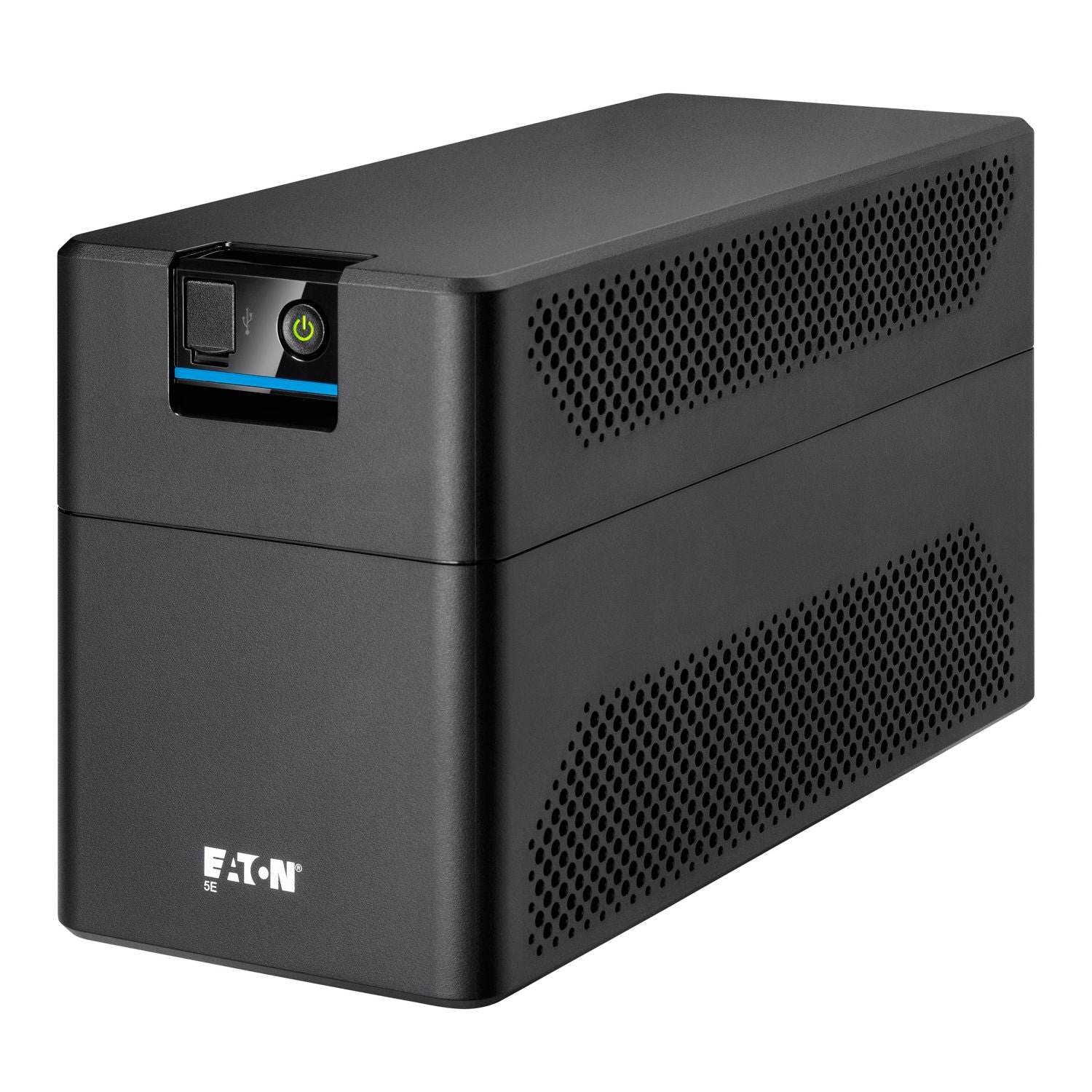

Eaton 5E G2 1600VA Tower UPS for Home and Office Use

The Eaton 5E G2 1600VA Tower UPS is a reliable and high-performance power backup solution for home and office environments. Designed to protect critical devices like computers, networking equipment, and other sensitive electronics, this UPS ensures that your equipment stays powered during electrical outages and fluctuations. Offering 1600VA power, it provides sufficient backup power to keep your systems running smoothly, offering peace of mind even during power interruptions.

Efficient Power Management with 230V Voltage Output

With an output voltage of 230V, the Eaton 5E G2 1600VA UPS ensures your equipment receives stable power. This model is specifically designed for regions with a 230V power supply, making it ideal for use in countries with this standard. It efficiently handles power surges and provides automatic voltage regulation (AVR), stabilizing the voltage to ensure connected devices are safe from any sudden spikes or dips, protecting them from potential damage.

Compact and Space-Saving Tower Design

The Eaton 5E G2 1600VA Tower UPS is designed with a compact form factor that makes it easy to integrate into any environment. Its tower configuration allows it to fit neatly into your office or server room, providing the necessary backup power without taking up excessive space. This feature is especially beneficial for users with limited space who require a high-performance UPS that doesn't compromise on functionality.

Advanced Features for Reliable Performance

Equipped with advanced features, the Eaton 5E G2 1600VA UPS offers superior protection for sensitive equipment. The system includes battery-saving features such as an energy-efficient design that reduces power consumption while maintaining reliable performance. Additionally, the UPS comes with an intuitive LCD display that provides real-time monitoring of the unit’s performance, including battery status, load capacity, and more. This ensures users can easily keep track of their power management system.

Ease of Use and Installation

The Eaton 5E G2 1600VA Tower UPS is designed for ease of installation and use. With a straightforward setup process, users can quickly integrate this UPS into their power network. Its simple interface and plug-and-play design ensure minimal downtime during installation. Whether you're protecting home electronics or business-critical equipment, this UPS offers hassle-free operation, giving users confidence that their systems will remain safe and operational.

Technical Specifications


General
Model: 5E1600UI-EA G2
Part Number: 9C00-73010
Product Name: Eaton 5E1600UI-EA G2 1600VA Tower UPS 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Form Factor: Tower
Power Capacity: 1600VA / 900W
Output Power Factor: 0.56
Input Voltage: 220V / 230V / 240V AC
Output Voltage: 220V / 230V / 240V AC Adjustable
Battery Technology: Sealed Lead Acid (VRLA)
Application: Desktop PCs, Workstations, NAS Storage, Network Switches, Routers, CCTV Systems, POS Systems, Home Offices, Small Business IT Infrastructure
Warranty: 3 Years Warranty (Region Dependent)

Power Specifications
Rated Capacity: 1600VA / 900W
UPS Topology: Line-Interactive
Output Waveform: Modified Sine Wave / Stepped Sine Wave
Input Voltage Range: 140V – 300V AC
Output Voltage: 230V Default (Adjustable to 220V / 230V / 240V)
Input Frequency Range: 45Hz – 65Hz
Output Frequency: 50Hz / 60Hz Auto-Sensing
Efficiency at Full Load: Up to 95%
Automatic Voltage Regulation (AVR): Supported
Cold Start Capability: Supported
Auto Restart Function: Supported
Surge Protection: Integrated

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Quantity: 2 Batteries
Battery Rating: 12V / 7Ah
Battery Management: Constant Battery Recharge
Automatic Battery Test: Supported
Battery Replacement Alarm: Supported
Deep Discharge Protection: Supported
Cold Start Function: Supported
Extended Battery Capability: No

Runtime Specifications
Typical Backup Time for 1 PC: Up to 42 Minutes
Typical Backup Time for 2 PCs: Up to 19 Minutes
Typical Backup Time for 3 PCs: Up to 8 Minutes
Runtime Monitoring: Supported
Load-Based Runtime Estimation: Supported

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Input Protection: Integrated
Nominal Input Voltage: 220V – 240V AC

Output Specifications

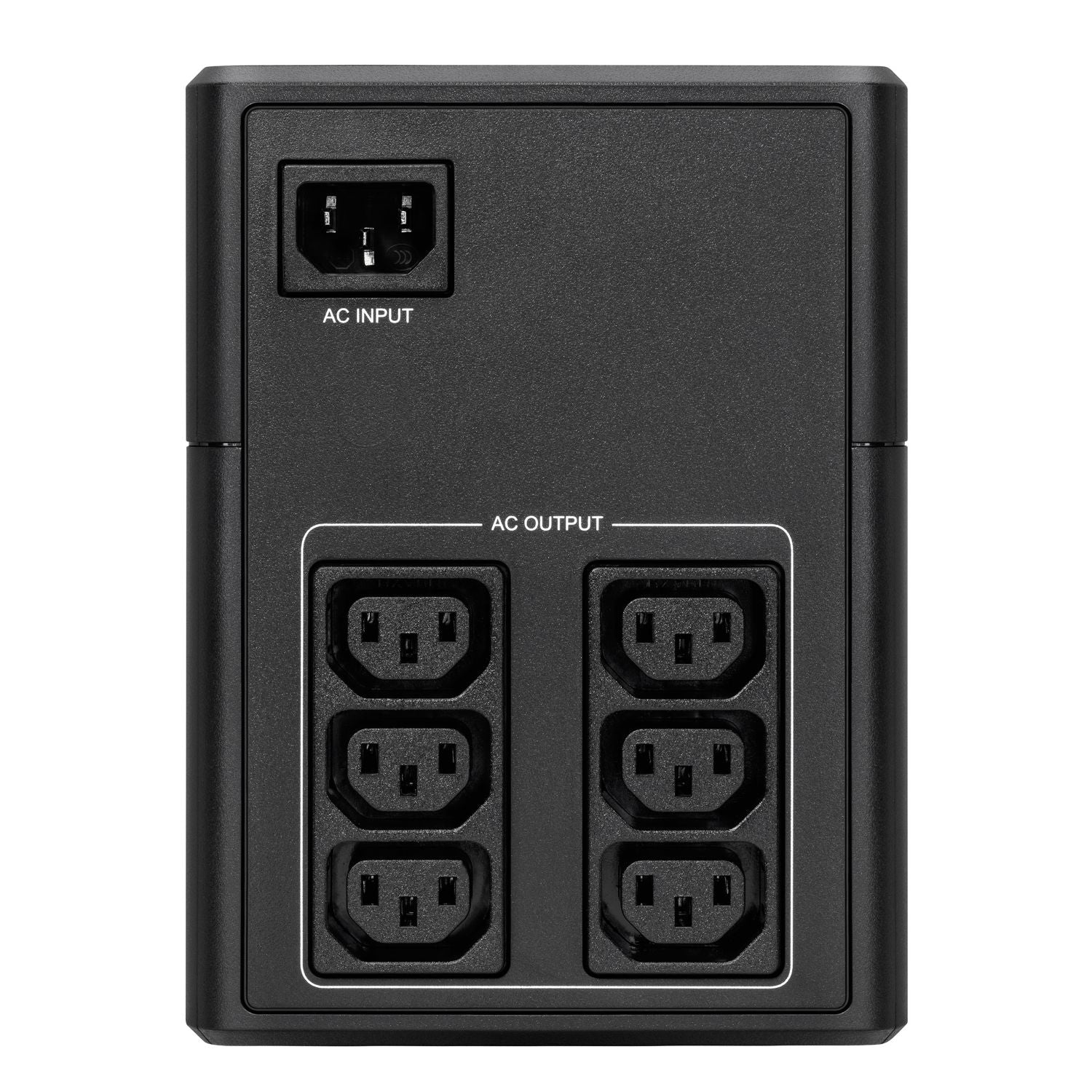

Total Output Outlets: 6
Outlet Type: IEC C13
Battery Backup & Surge Protection: Supported on All Outlets
Output Phase: Single Phase
Output Voltage Range: 195V – 257V
Critical Equipment Protection: Supported

Display & User Interface

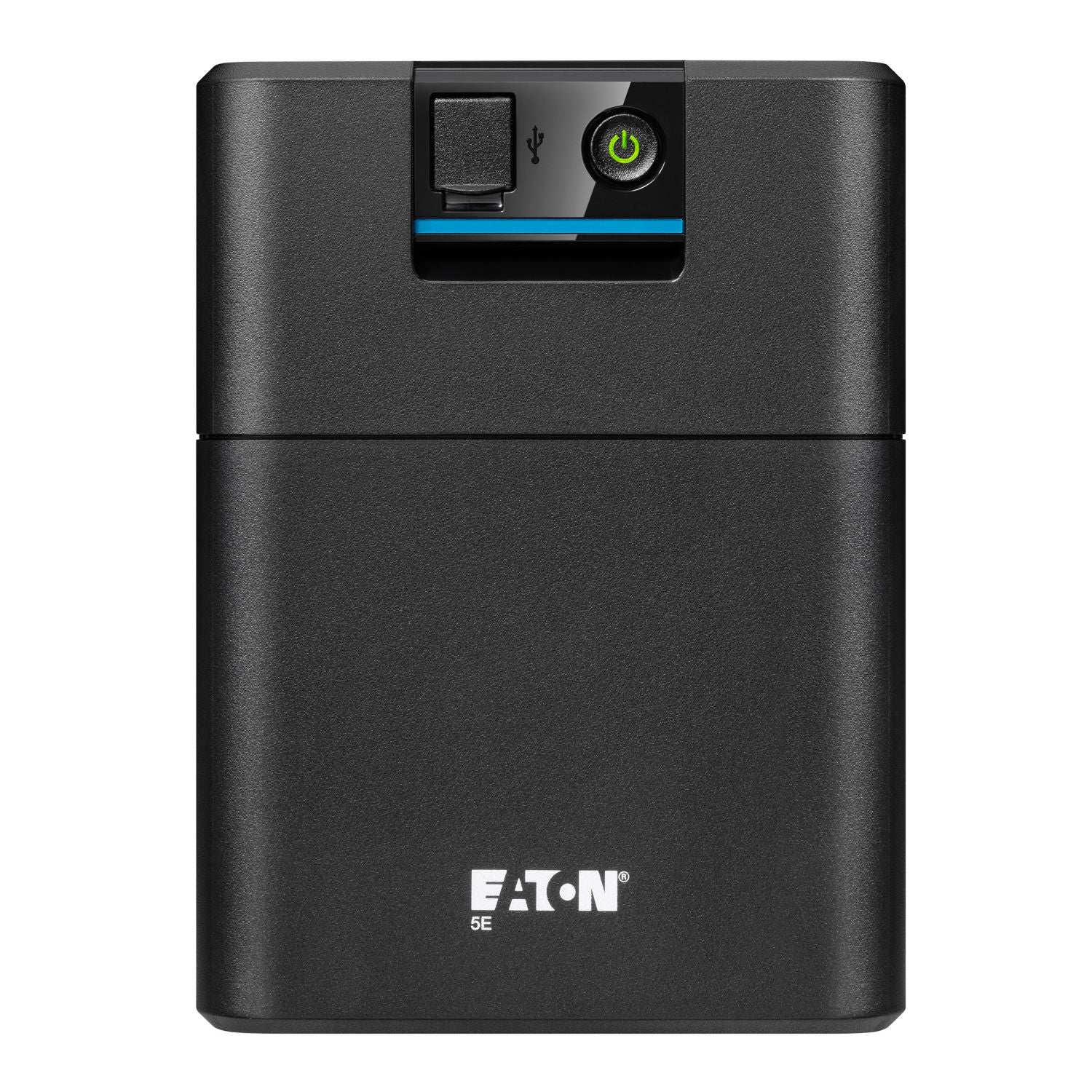

Display Type: LED Status Indicators
Power Status Monitoring: Supported
Battery Status Monitoring: Supported
Fault Notifications: Supported
Replace Battery Indicator: Supported
Audible Alarm System: Supported
User-Friendly Operation: Supported

Management & Communication
USB Port (HID Compliant): 1
Communication Interface: USB
Network Management Card: Not Supported
SNMP Monitoring: Not Supported
Software Included: Eaton UPS Companion Software
Automatic Safe Shutdown: Supported
Windows Compatible: Supported
macOS Compatible: Supported
Linux Compatible: Supported
Energy Usage Monitoring: Supported

Protection Features
Automatic Voltage Regulation (AVR)
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Auto Restart After Power Recovery
Safe System Shutdown Support

Environmental Specifications
Operating Temperature: 0°C to 40°C
Operating Humidity: 0% – 85% Non-Condensing
Noise Level: <25dBA (Line Mode)
Noise Level: <40dBA (Battery / AVR Mode)
Storage Conditions: Indoor Use Recommended

Design & Construction
Color: Black
Form Factor: Tower
Construction Type: Free Standing Model
Compact Space-Saving Design: Supported
Fanless Design: Supported for Quiet Operation
Office-Friendly Design: Supported

Physical Specifications
Dimensions (D × H × W): 330 × 180 × 133 mm
Weight: 8.9 kg
Installation Type: Tower Only

Package Contents
Eaton 5E1600UI-EA G2 UPS
2 × IEC-to-IEC Output Cables
USB Communication Cable
Quick Start Guide
Safety Instructions

Features
1600VA / 900W Capacity
Line-Interactive UPS Technology
Automatic Voltage Regulation (AVR)
USB HID Communication Port
6 × IEC C13 Outputs
Cold Start Capability
Automatic Battery Testing
Battery Replacement Alarm
Auto Restart Function
Compact Tower Design
Energy Efficient Operation
Windows, macOS & Linux Compatibility

Performance & Features
The Eaton 5E1600UI-EA G2 delivers affordable and dependable power protection for office and home environments. Its wide 140V–300V AVR operating range minimizes battery usage during voltage fluctuations, extending battery life while maintaining stable power delivery. The USB HID interface integrates seamlessly with major operating systems for automated shutdown and monitoring. With six IEC outlets, compact tower design, and up to 95% efficiency, it is well suited for protecting workstations, NAS devices, networking equipment, CCTV systems, and business-critical peripherals.

Key Features
1600VA / 900W Capacity
Wide AVR Input Range (140V–300V)
6 × IEC C13 Outputs
USB HID Communication
Automatic Battery Testing
Battery Replacement Alarm
Cold Start Capability
Auto Restart Function
Modified Sine Wave Output
Compact Tower Design
95% Efficiency
Safe System Shutdown Support

Typical Use Cases
Desktop Computers
Professional Workstations
NAS Storage Systems
Network Switches
Routers & Firewalls
CCTV Systems
Retail POS Systems
Home Offices
Small Business IT Infrastructure
Telecommunications Equipment
Security Systems
Ticketing Machines

Certifications & Compliance
CE Certified
CB Report Certified
IEC 62040-1
IEC 62040-2
IEC 62040-3
IEC 62040-4
RoHS Compliant
WEEE Directive Compliant
EMC Directive Compliant
UKCA Certified
EAC Certified

UPC / GTIN
EAN: 3553340704321
