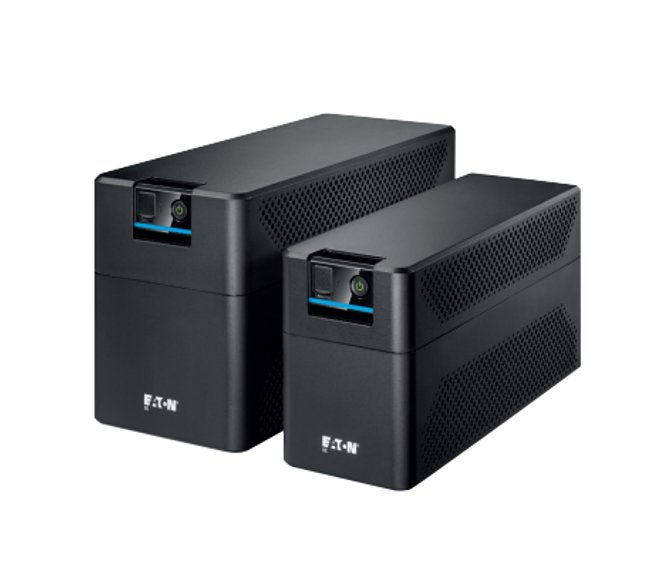

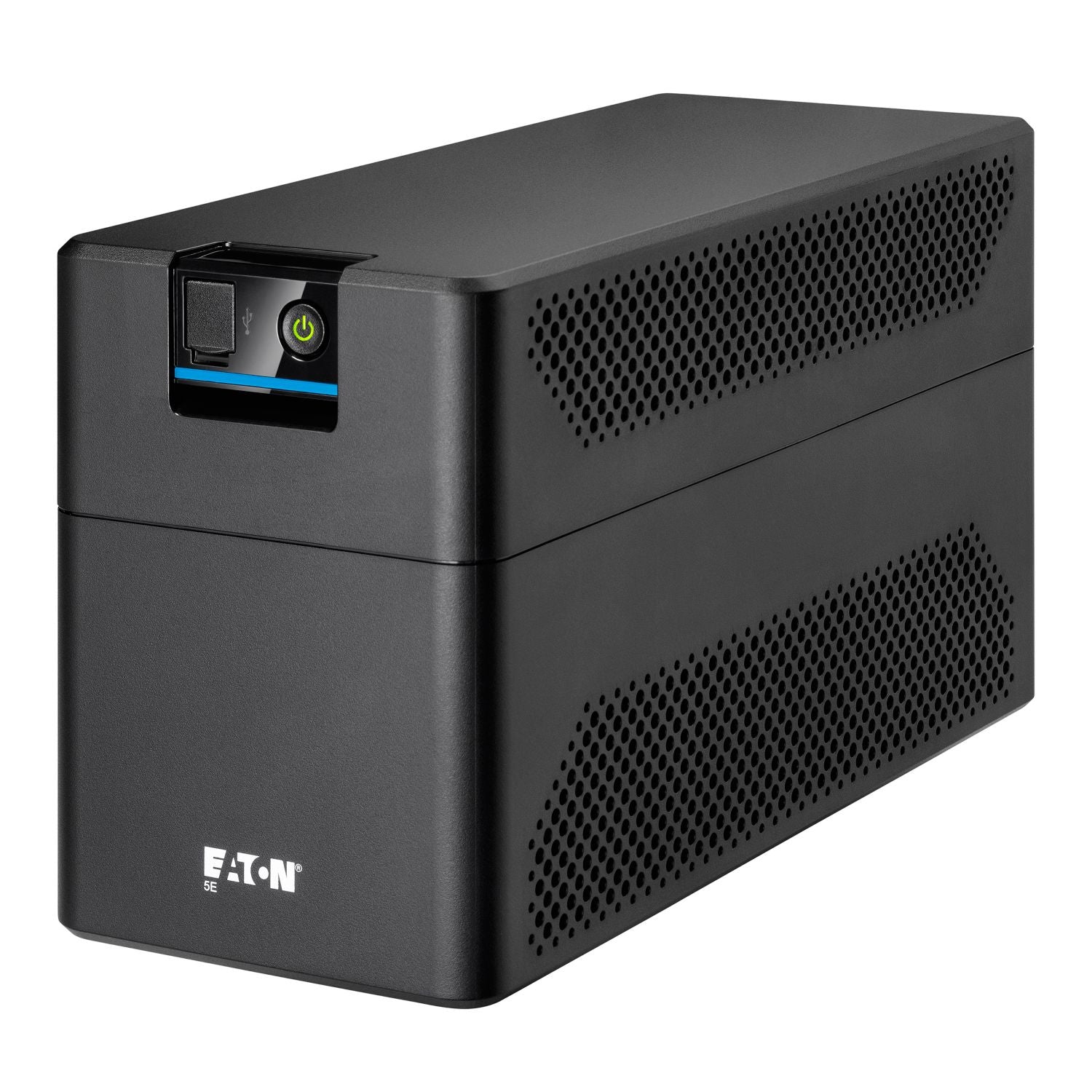

Eaton 5E2200UI-EA G2 2200VA Tower Models 230V

Eaton 5E2200UI-EA G2 2200VA Tower Models 230V (9C00-83009) - 3 Years Local Warranty

Reliable Power Protection for Business and Home Offices

The Eaton 5E2200UI-EA G2 2200VA Tower UPS is designed to provide dependable backup power and surge protection for computers, networking equipment, workstations, and business-critical devices. With its 2200VA capacity, this UPS helps protect connected equipment from unexpected power interruptions, voltage fluctuations, and electrical disturbances, ensuring business continuity and minimizing downtime. Eaton's UPS solutions are widely recognized for delivering reliable power management and protection across IT and commercial environments.

Line-Interactive Technology for Enhanced Power Stability

Featuring line-interactive UPS technology, the Eaton 5E G2 automatically regulates voltage fluctuations without relying excessively on battery power. This helps extend battery lifespan while maintaining stable power delivery to connected devices. The system is suitable for protecting desktop PCs, small servers, NAS storage systems, point-of-sale terminals, and network infrastructure from common electrical issues such as brownouts and power surges.

High-Capacity Backup Solution for IT Equipment

With a robust 2200VA power rating, the Eaton 5E2200UI-EA G2 supports multiple devices simultaneously, making it an ideal solution for small businesses, remote offices, educational institutions, and enterprise edge deployments. Its tower form factor allows easy placement under desks or alongside IT equipment while maintaining efficient use of workspace.

User-Friendly Design and Efficient Operation

The UPS is engineered for straightforward deployment and daily operation. Its intuitive status indicators provide visibility into power conditions, battery status, and system performance. Combined with Eaton's proven expertise in power management, the unit offers dependable protection while helping organizations safeguard valuable hardware and critical data.

Technical Specifications

General
Model: 5E2200UI-EA G2
Part Number: 9C00-83009
Product Name: Eaton 5E2200UI-EA G2 2200VA Tower UPS 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Form Factor: Tower
Power Capacity: 2200VA / 1200W
Output Power Factor: 0.55
Input Voltage: 220V / 230V / 240V AC
Output Voltage: 220V / 230V / 240V AC
Battery Technology: Sealed Lead Acid (VRLA)
Application: Desktop PCs, Workstations, NAS Storage, Network Equipment, CCTV Systems, POS Systems, Home Offices, Small Business IT Infrastructure
Warranty: 2–3 Years (Region Dependent)

Power Specifications
Rated Capacity: 2200VA / 1200W
UPS Topology: Line-Interactive
Output Waveform: Stepped Sine Wave
Input Voltage Range: 140V – 300V AC
Output Voltage: 220V / 230V / 240V Selectable
Input Frequency: 50Hz / 60Hz
Input Frequency Range: 45Hz – 63Hz
Output Frequency: 50Hz / 60Hz
Automatic Voltage Regulation (AVR): Supported
Efficiency at Full Load: Up to 95%
Cold Start Capability: Supported
Auto Restart Function: Supported
Surge Protection: Supported

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Quantity: 2 Batteries
Battery Rating: 12V / 9Ah
Battery Management: Automatic Battery Test
Deep Discharge Protection: Supported
Battery Health Monitoring: Supported
Cold Start Function: Supported
Battery Replacement Alert: Supported
Extended Battery Capability: No

Runtime Specifications
Runtime Monitoring: Supported
Load-Based Runtime Estimation: Supported
Automatic Safe Shutdown: Supported via USB Models
Backup Runtime: Dependent on Connected Load
Runtime Graph: Available via Eaton Software Tools

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Input Protection: Integrated Circuit Breaker
Nominal Input Voltage: 230V (220V / 230V / 240V Configurable)

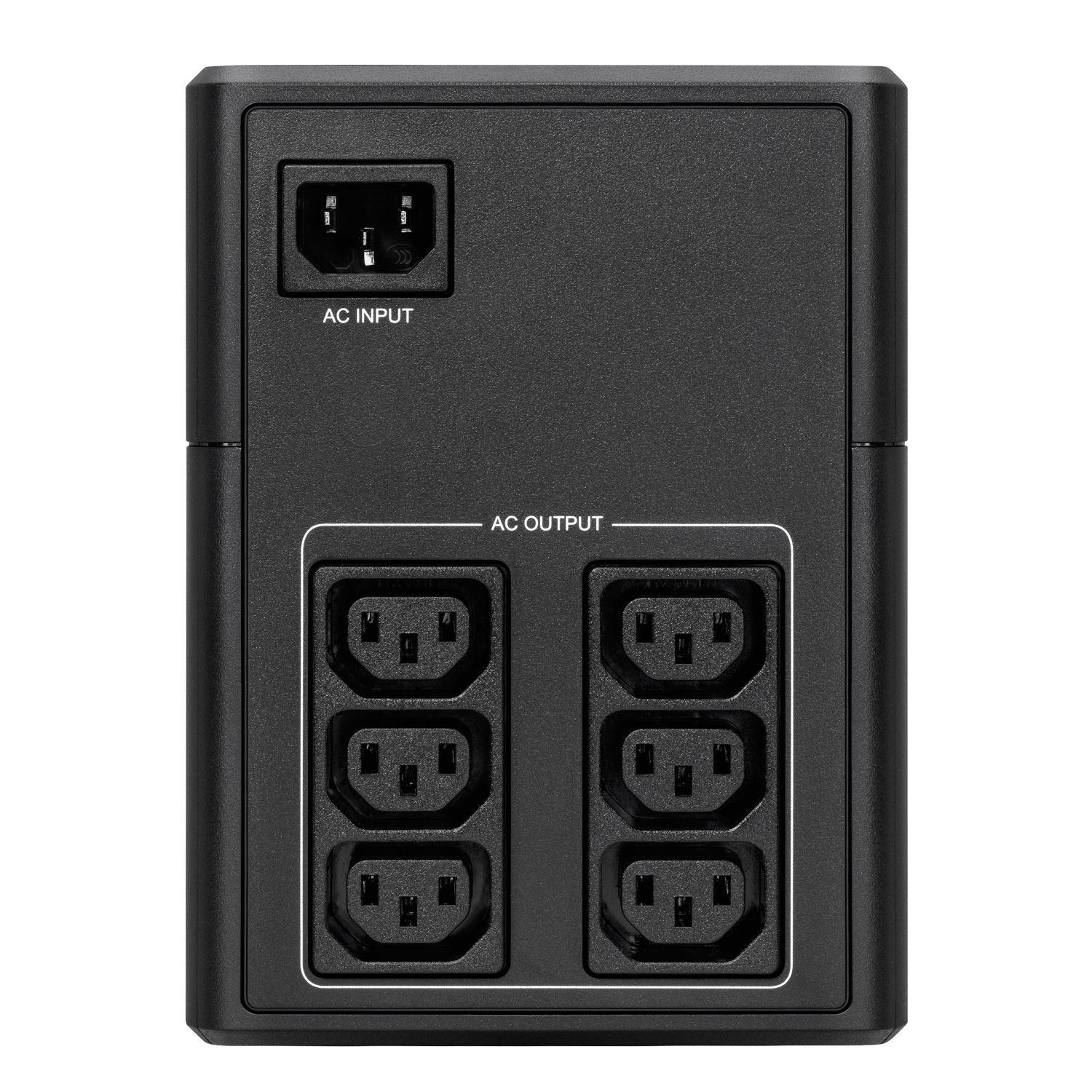

Output Specifications
Total Output Outlets: 6
Outlet Type: IEC C13
Battery Backup & Surge Protection: Supported on All Outlets
Output Phase: Single Phase
Output Voltage Range: 195V – 257V
Output Nominal Voltage: 230V
Critical Equipment Protection: Supported

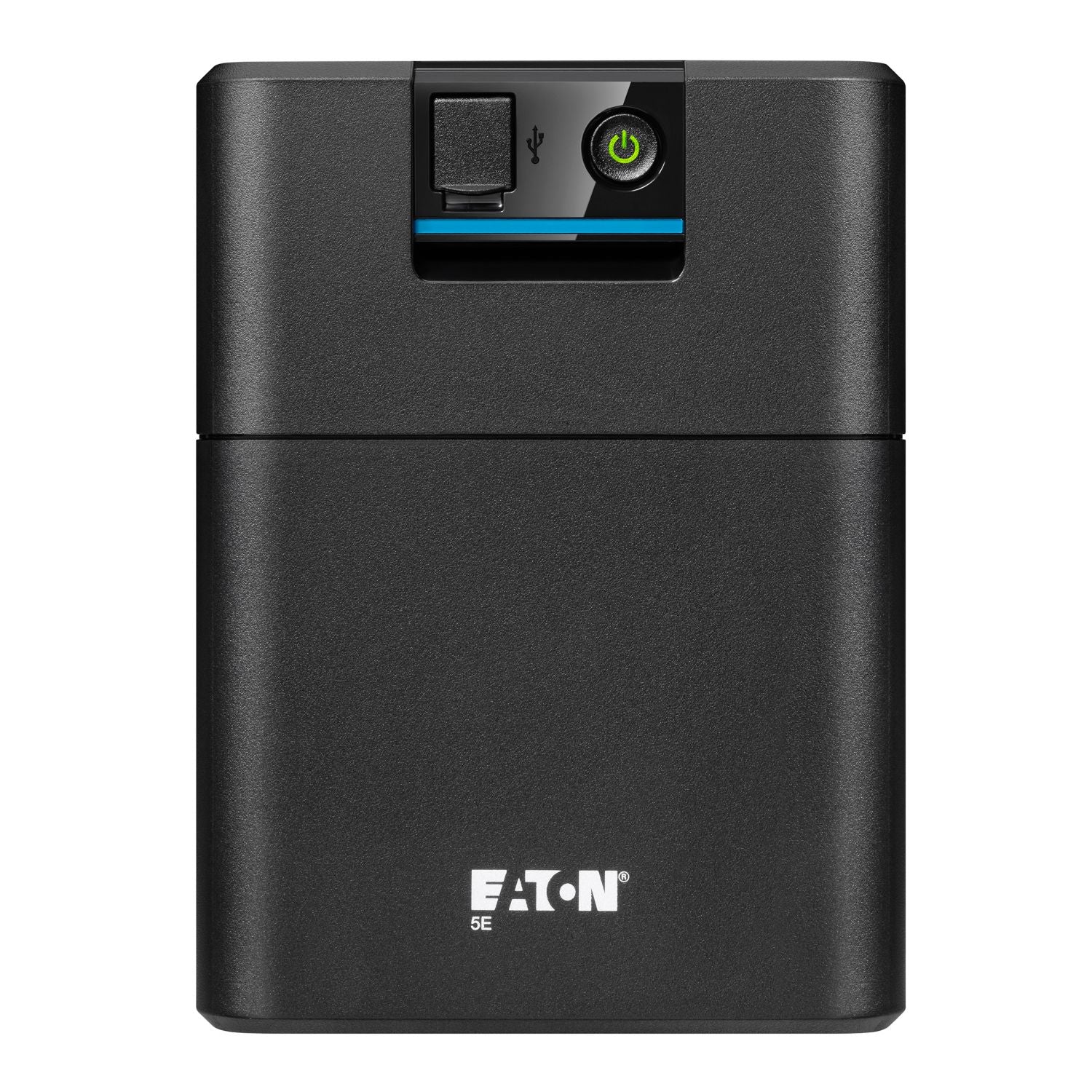

Display & User Interface
Display Type: LED Indicators
Power Status Monitoring: Supported
Battery Status Monitoring: Supported
Fault Notifications: Supported
Replace Battery Indicator: Supported
Audible Alarm System: Supported
Mute Function: Supported via Power Button

Management & Communication
USB Port (HID Compliant): Supported
USB Interface: 1 × USB Port
Network Management Card: Not Supported
SNMP Monitoring: Not Supported
Software Compatibility: Eaton UPS Companion Software
Automatic Operating System Integration: Supported
Windows Compatible: Supported
macOS Compatible: Supported
Linux Compatible: Supported
Automatic Safe Shutdown: Supported

Protection Features
Automatic Voltage Regulation (AVR)
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Auto Restart After Power Recovery
Safe Shutdown Support

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -25°C to 55°C (Without Battery)
Operating Humidity: 0% – 85% Non-Condensing
Storage Humidity: Up to 93% Non-Condensing
Operating Altitude: Up to 2000m
Noise Level: Less Than 25dBA (Line Mode), Less Than 40dBA (Battery/AVR Mode)

Design & Construction
Color: Black
Form Factor: Tower
Construction Type: Free Standing Model
Compact Design: Supported
Space Saving Footprint: Supported
Fanless Design: Supported
Silent Operation: Supported

Physical Specifications
Dimensions (H × W × D): 180 × 133 × 330 mm
Weight: Approximately 9.8 – 10.0 kg
Installation Type: Tower Only

Package Contents
Eaton 5E2200UI-EA G2 UPS
2 × IEC-to-IEC Output Cables
USB Communication Cable
Quick Start Guide
Safety Instructions

Features
2200VA / 1200W Capacity
Line-Interactive UPS Technology
Automatic Voltage Regulation (AVR)
USB HID Connectivity
Automatic Battery Testing
Cold Start Capability
Auto Restart Function
6 × IEC C13 Outputs
Compact Tower Design
Silent Operation
Windows, macOS & Linux Compatible
Eaton UPS Companion Software Support

Performance & Features
The Eaton 5E2200UI-EA G2 is designed for users seeking affordable and reliable power protection for PCs, NAS devices, networking equipment, CCTV systems, and small office environments. Its wide 140V–300V AVR operating range helps preserve battery life by correcting voltage fluctuations without switching to battery mode. The compact tower design, silent operation, and USB-based shutdown integration make it particularly suitable for home offices and SMB deployments.

Key Features
2200VA / 1200W Capacity
Wide AVR Input Range (140V–300V)
6 × IEC C13 Outlets
USB HID Communication
Automatic Battery Testing
Cold Start Capability
Auto Restart Function
Stepped Sine Wave Output
Compact Tower Design
Silent Operation
Safe System Shutdown Support
95% Efficiency at Full Load

Typical Use Cases
Desktop Computers
Professional Workstations
NAS Storage Systems
Network Switches
Routers & Firewalls
CCTV Systems
Retail POS Systems
Home Offices
Small Business IT Infrastructure
Telecommunications Equipment
Security Systems

Certifications & Compliance
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
CE Certified
EAC Certified
UKCA Certified
RoHS Compliant
LVD Directive
EMC Directive
WEEE Directive

UPC / GTIN
EAN: 3553340704376
