Eaton 9PX1000IRT2U-L Lithium 1000VA RT2U Models 230V

Eaton 9PX1000IRT2U-L Lithium 1000VA RT2U Models 230V (9103-LB53924) - 5 Years Local Warranty

Eaton 9PX Lithium 1000VA RT2U – Reliable Power Backup with Advanced Lithium Technology

The Eaton 9PX Lithium 1000VA RT2U is a cutting-edge UPS designed to provide superior protection for critical equipment in small to medium-sized IT environments. Built with advanced lithium-ion battery technology, it offers enhanced reliability, longer life, and greater efficiency compared to traditional lead-acid battery systems. The 1000VA capacity is ideal for servers, network devices, and other essential equipment that require continuous, uninterrupted power.

Extended Battery Life with Lithium-ion Technology

One of the key benefits of the Eaton 9PX Lithium 1000VA RT2U UPS is its use of lithium-ion batteries. These batteries offer a significantly longer lifespan than traditional sealed lead-acid batteries, reducing the need for frequent replacements. In addition, lithium-ion technology provides faster recharging times, improving operational efficiency. The result is a UPS that delivers reliable, long-term performance and minimizes the total cost of ownership for businesses looking for a sustainable power solution.

High Efficiency and Energy Savings

The Eaton 9PX Lithium 1000VA RT2U is designed with energy efficiency in mind. It operates at up to 98% efficiency in double-conversion mode, which helps to reduce operating costs by minimizing energy consumption. This high level of efficiency not only lowers your business’s carbon footprint but also saves money on electricity bills. With its energy-efficient design, the Eaton 9PX UPS is an environmentally friendly solution for organizations looking to optimize their power protection strategy.

Compact Design for Rack-Mountable Flexibility

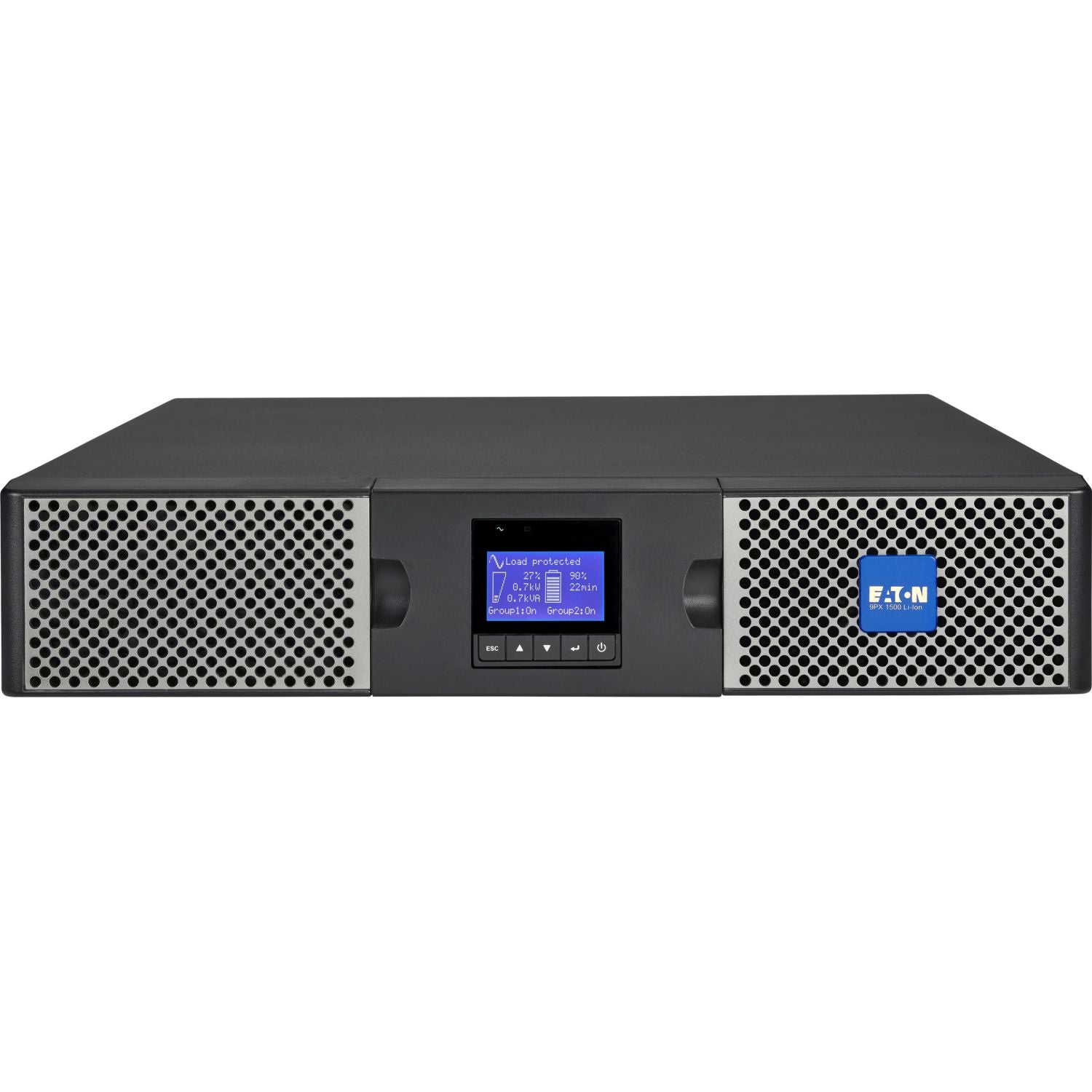

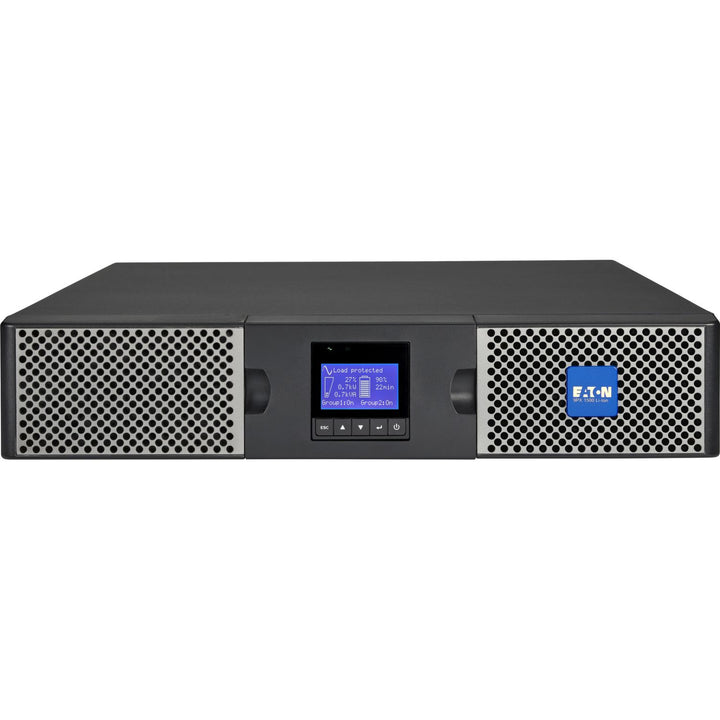

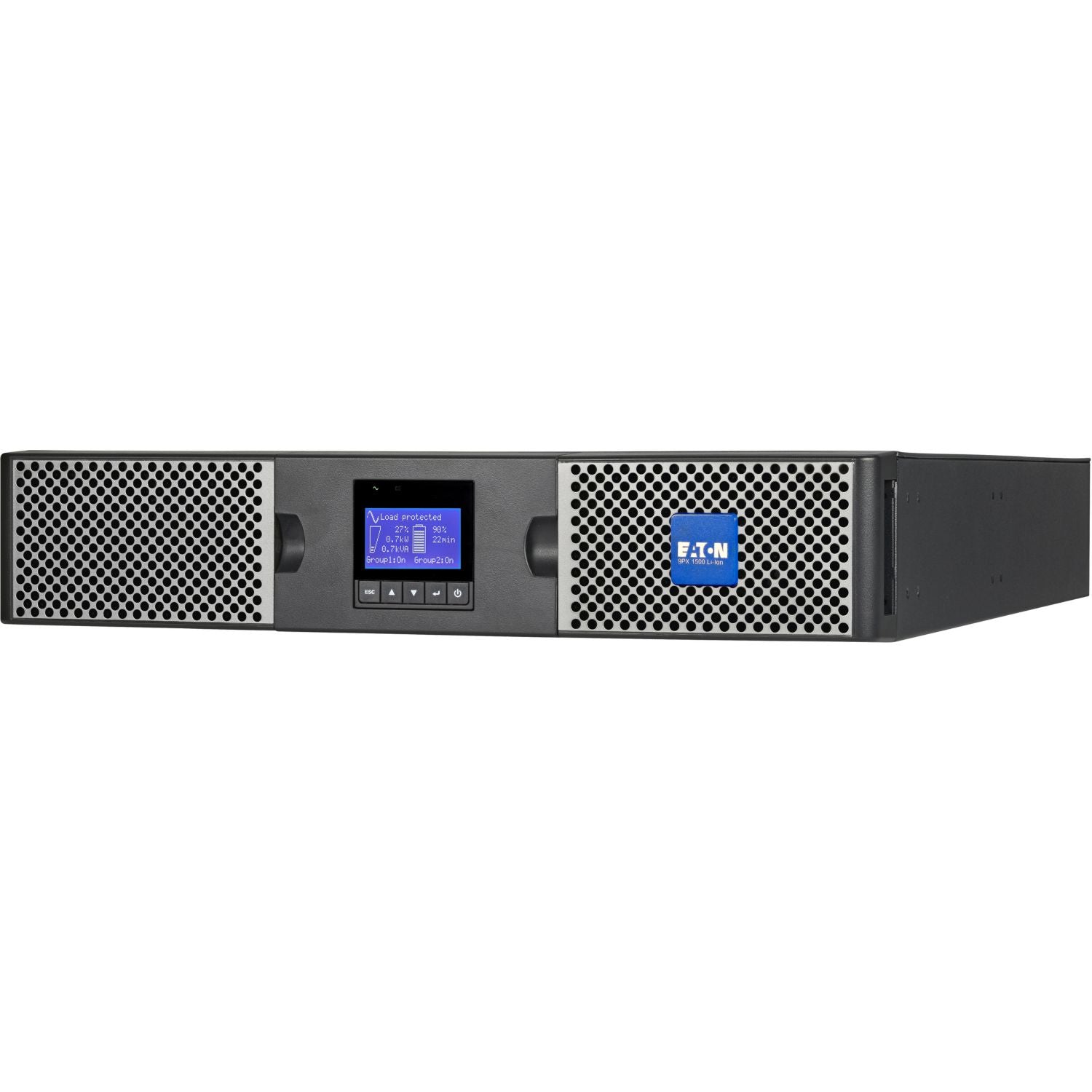

This Eaton 9PX UPS is a 2U rack-mountable unit that saves valuable space in your server room or data center. Its compact form factor makes it easy to integrate into any standard rack, offering flexibility and convenience for businesses with limited space. Despite its small size, the Eaton 9PX Lithium UPS delivers powerful performance, making it the perfect solution for businesses that require reliable, high-performance power protection in a small, space-efficient package.

Intelligent Monitoring for Seamless Performance

The Eaton 9PX Lithium 1000VA RT2U features an LCD display that provides real-time information on UPS status, including input/output voltage, battery charge level, load levels, and system diagnostics. The UPS also supports Eaton’s Intelligent Power Manager software, which allows for remote monitoring and management of the UPS through a network. This feature ensures that users can track performance, receive alerts for potential issues, and make adjustments to maximize efficiency and minimize downtime.

Technical Specifications

General
Model: 9PX1000IRT2U-L
Part Number: 9103-LB53924
Product Name: Eaton 9PX1000IRT2U-L Lithium 1000VA RT2U UPS 230V
Manufacturer: Eaton
Product Type: Online Double-Conversion UPS
UPS Topology: Online Double Conversion (VFI)

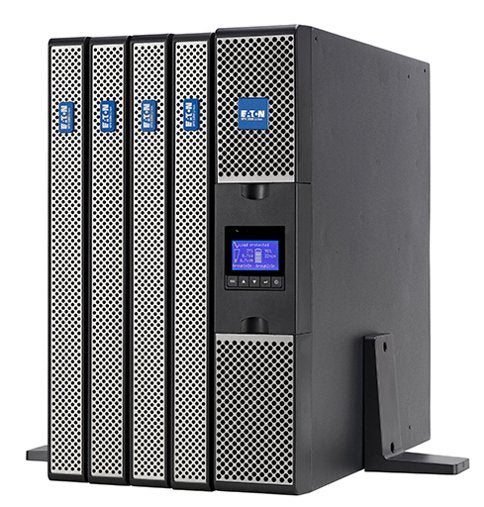

Form Factor: Rack/Tower Convertible
Rack Height: 2U
Power Capacity: 1000VA / 1000W
Power Factor: 1.0 (Unity Power Factor)
Battery Technology: Lithium-Ion (Li-Ion)
Input Voltage: 230V AC
Output Voltage: 200V / 208V / 220V / 230V / 240V Configurable
Application: Servers, Storage Systems, Network Switches, Firewalls, Edge Computing, Hyperconverged Infrastructure
Warranty: 5 Years Electronics & Battery Warranty

Power Specifications
Rated Capacity: 1000VA / 1000W
UPS Topology: Online Double Conversion
Output Power Factor: 1.0
Output Waveform: Pure Sine Wave
Input Voltage Range: 100V – 276V AC
Input Frequency Range: 40Hz – 70Hz
Output Frequency: 50/60Hz Auto-Sensing
Output Voltage Regulation: ±1%
Input Power Factor: >0.99
Efficiency (Online Mode): Up to 95%
Efficiency (Eco Mode): Up to 98%
Internal Automatic Bypass: Supported
Auto Restart: Supported

Battery Specifications
Battery Type: Lithium-Ion
Battery Chemistry: Lithium-Ion with Integrated Battery Management System (BMS)
Battery Design Life: Up to 8–10 Years
Hot-Swappable Batteries: Supported
Battery Health Monitoring: Supported
Automatic Battery Testing: Supported
Deep Discharge Protection: Supported
Fast Recharge Capability: Supported
Extended Battery Modules (EBM): Supported
Maximum External Battery Modules: Up to 4
Automatic EBM Detection: Supported

Runtime Specifications
Runtime at 50% Load: Approximately 20–25 Minutes (Typical)
Runtime at 100% Load: Approximately 8–10 Minutes (Typical)
Extended Runtime Support: Supported via External Battery Modules
Load Segment Runtime Optimization: Supported
Battery Runtime Monitoring: Supported

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Protection: Integrated
Input Source Monitoring: Supported
Input Voltage Monitoring: Supported

Output Specifications
Total Output Outlets: 8
IEC C13 Outlets: 8
Programmable Load Segments: 2
Critical Load Management: Supported
Load Shedding: Supported
Surge Protection: Integrated
Power Distribution: Managed Outlet Groups

Display & User Interface
Display Type: Graphical LCD Display
Display Rotation: Automatic Rack/Tower Orientation
Real-Time Power Monitoring: Supported
Input/Output Metering: Supported
Battery Monitoring: Supported
Load Monitoring: Supported
Energy Consumption Metering: Supported
Event Logging: Supported
Alarm Notifications: Supported
Multi-Language Interface: Supported

Management & Communication
USB HID Port: Supported
RS232 Serial Port: Supported
Dry Contact Interface: Supported
Remote On/Off Function: Supported
Remote Power Off (RPO): Supported
Communication Card Slot: 1 Expansion Slot
Gigabit Network Card: Optional
SNMP Monitoring: Supported (Optional Network Card)
Remote Monitoring: Supported
Remote Shutdown: Supported
Eaton Intelligent Power Manager (IPM): Supported
Eaton Intelligent Power Protector (IPP): Supported

Virtualization & Cloud Integration
VMware Compatible
Microsoft Hyper-V Compatible
Citrix Xen Compatible
Red Hat Virtualization Compatible
Hyperconverged Infrastructure Ready
Virtual Machine Shutdown Automation
Cloud Monitoring Support

Protection Features
Online Double Conversion Protection
Voltage Regulation
Frequency Regulation
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Surge Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Internal Automatic Bypass
Critical Load Segmentation

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -15°C to 50°C
Operating Humidity: 0% to 96% Non-Condensing
Maximum Operating Altitude: 3000m
Noise Level: Less Than 35 dB at 1 Meter

Design & Construction
Color: Black / Silver
Form Factor: Rack/Tower Convertible
Rack Size: 2U
Rack Mount Kit: Included
Tower Stand Kit: Included
Construction: Enterprise-Grade Steel Chassis
19-Inch Rack Compatible: Yes

Physical Specifications
Dimensions (W × H × D): 440 × 86.5 × 450 mm
Weight: Approximately 17–19.5 kg
Rack Height: 2U
Installation Type: Rack or Tower

Package Contents
Eaton 9PX1000IRT2U-L Lithium UPS
Input Power Cable
2 × IEC Output Power Cables
USB Communication Cable
RS232 Serial Cable
Rack Mount Brackets
Rail Kit
Tower Support Stands
Cable Locking System
Quick Start Guide
Safety Documentation

Features
1000VA / 1000W Unity Power Factor Output
Lithium-Ion Battery Technology
Online Double Conversion Topology
Pure Sine Wave Output
Up to 98% Efficiency in Eco Mode
Up to 10-Year Battery Life
Hot-Swappable Battery System
Advanced Battery Management Technology
Graphical LCD Display
Network Management Card Ready
VMware & Hyper-V Compatible
Rack/Tower Convertible Design
Supports Up to 4 External Battery Modules

Performance & Features
Provides continuous clean power through true online double-conversion technology, protecting critical IT equipment from outages, voltage fluctuations, surges, harmonics, and frequency disturbances. The lithium-ion battery platform offers significantly longer battery lifespan, faster recharge times, reduced maintenance requirements, and lower total cost of ownership compared to traditional VRLA battery UPS systems. The unity power factor design ensures the full 1000W output capacity is available to connected equipment.

Key Features
1000VA / 1000W Capacity
Lithium-Ion Battery Technology
Up to 10-Year Battery Life
5-Year Electronics & Battery Warranty
Online Double Conversion UPS
Pure Sine Wave Output
Unity Power Factor (VA = W)
Up to 98% Efficiency
8 × IEC C13 Outputs
Hot-Swappable Batteries
Graphical LCD Display
Network Management Ready
Supports Up to 4 External Battery Modules
Rack/Tower Convertible 2U Design
VMware & Hyper-V Compatible
ENERGY STAR Qualified

Typical Use Cases
Enterprise Servers
Storage Systems
Network Switches
Firewalls and Security Appliances
Virtualization Hosts
VMware Clusters
Hyper-V Infrastructure
Edge Computing Deployments
Telecommunications Equipment
Healthcare IT Systems
Remote Branch Offices
Mission-Critical Business Applications
Hyperconverged Infrastructure (HCI) Deployments

Certifications & Compliance
CE Certified
ENERGY STAR Qualified
IEC/EN 62040-1
IEC/EN 62040-2
TÜV Certified
cULus Listed
CSA 22.2
FCC Part 15 Class B
CISPR22 Class B

UPC / GTIN
UPC: 743172105431
