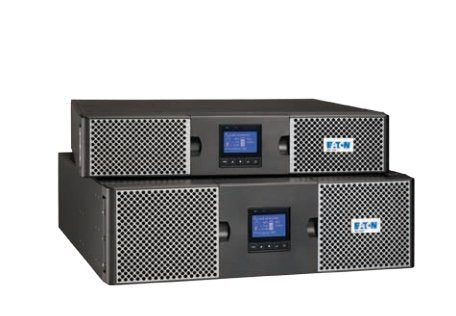

Eaton 9PX1000iRT2U UPS 1000VA Tower Models 230V

Eaton 9PX1000iRT2U UPS 1000VA Tower Models 230V (9103-53748) - 3 Years Local Warranty

Eaton 9PX 1000VA Tower UPS – High-Performance Power Backup for Critical Systems

The Eaton 9PX 1000VA Tower UPS 230V is an advanced, reliable power protection solution designed for businesses and critical environments. With a 1000VA capacity, this UPS delivers uninterrupted backup power to essential systems such as servers, network devices, and security systems. Offering superior protection against power interruptions, surges, and voltage fluctuations, the Eaton 9PX 1000VA ensures that your valuable equipment stays protected and operates without disruption. It is ideal for small to medium-sized businesses, data centers, and home offices where uptime is essential.

Energy-Efficient Power Protection for Cost Savings

One of the standout features of the Eaton 9PX 1000VA Tower UPS is its remarkable energy efficiency. Operating at up to 98% efficiency in double-conversion mode, this UPS reduces energy consumption, helping businesses save on electricity costs. By offering highly efficient power conversion, the Eaton 9PX 1000VA also minimizes environmental impact, making it an eco-friendly choice for power protection. Whether you need to power essential devices during an outage or ensure continuous operation of equipment, this UPS provides the necessary energy protection with minimal energy waste.

Advanced Lithium-Ion Battery Technology for Enhanced Reliability

The Eaton 9PX 1000VA Tower UPS utilizes advanced lithium-ion batteries, which offer several advantages over traditional lead-acid batteries. These include longer battery life, faster recharge times, and greater energy density, allowing the UPS to deliver reliable power over extended periods. The use of lithium-ion batteries also makes the Eaton 9PX more compact and lighter than traditional UPS systems, making it a perfect fit for environments with limited space. With a longer lifespan, the battery reduces the need for frequent replacements, providing a more cost-effective and efficient power backup solution.

Comprehensive Monitoring and Management Features

Equipped with an easy-to-read LCD display, the Eaton 9PX 1000VA Tower UPS provides real-time monitoring of system status, load, and battery health. This ensures that users can quickly assess the UPS performance and identify any potential issues before they become critical. The unit also includes a SmartSlot, enabling the integration of network management cards for remote monitoring via Eaton’s Intelligent Power Manager (IPM) software. This makes it easier for businesses to manage their power infrastructure, track energy usage, and perform proactive maintenance, thereby ensuring maximum uptime and reducing the risk of unexpected downtime.

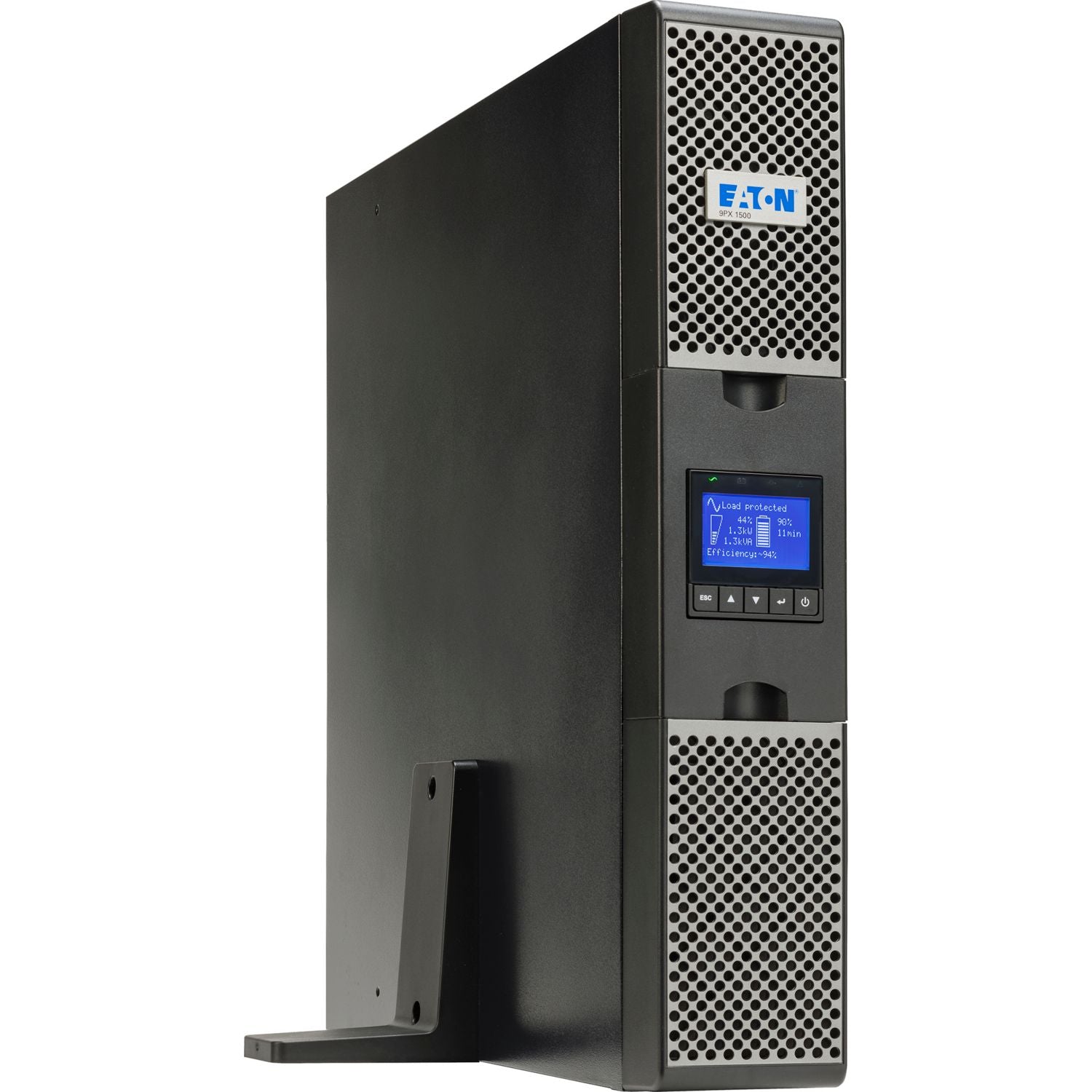

Compact and Space-Saving Design for Versatile Installation

The Eaton 9PX 1000VA Tower UPS is designed with a compact form factor, making it easy to install in spaces with limited room. Its tower design ensures that it fits seamlessly into most business environments, whether it’s positioned on the floor or in a rack. With its versatile design and efficient use of space, this UPS offers a solution for businesses that require high-quality power protection without occupying a large footprint. It is perfect for small server rooms, network closets, and home office setups.

Technical Specifications

General
Model: 9PX1000iRT2U
Part Number: 9103-53748
Product Name: Eaton 9PX1000iRT2U UPS 1000VA Rack/Tower Models 230V
Manufacturer: Eaton
Product Type: Online Double-Conversion UPS
UPS Topology: Online Double Conversion (VFI)
Form Factor: Rack/Tower Convertible
Rack Height: 2U
Power Capacity: 1000VA / 1000W
Power Factor: 1.0 (Unity Power Factor)
Input Voltage: 230V AC
Output Voltage: 200V / 208V / 220V / 230V / 240V Configurable
Battery Technology: Sealed Lead Acid (VRLA)
Application: Servers, Storage Systems, Network Switches, Firewalls, Virtualization Hosts, Edge Computing Infrastructure
Warranty: 3 Years Electronics Warranty, 2 Years Battery Warranty (Region Dependent)

Power Specifications
Rated Capacity: 1000VA / 1000W
UPS Topology: Online Double Conversion
Output Power Factor: 1.0
Output Waveform: Pure Sine Wave
Input Voltage Range: 176V – 276V AC (100V – 276V AC with Derating)
Input Frequency Range: 40Hz – 70Hz
Output Frequency: 50/60Hz Auto-Sensing
Output Voltage Regulation: ±1%
Input Power Factor: >0.99
Efficiency (Online Mode): Up to 91.5%
Efficiency (Eco Mode): Up to 97.5%
Internal Automatic Bypass: Supported
Auto Restart: Supported
Auto Shutdown Function: Supported

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Quantity: 4 Batteries
Battery Rating: 12V / 7Ah
Battery Management: Eaton ABM® Advanced Battery Management
Temperature Compensated Charging: Supported
Automatic Battery Testing: Supported
Deep Discharge Protection: Supported
Hot-Swappable Internal Batteries: Supported
Extended Battery Modules (EBM): Supported
Maximum External Battery Modules: Up to 4
Automatic EBM Recognition: Supported

Runtime Specifications
Runtime at Full Load: Approximately 6 Minutes
Runtime at Half Load: Approximately 14 Minutes
Extended Runtime Support: Supported via External Battery Modules
Load Segment Runtime Optimization: Supported

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Protection: Integrated
Input Voltage Monitoring: Supported
Input Source Monitoring: Supported
Nominal Frequency: 50/60Hz

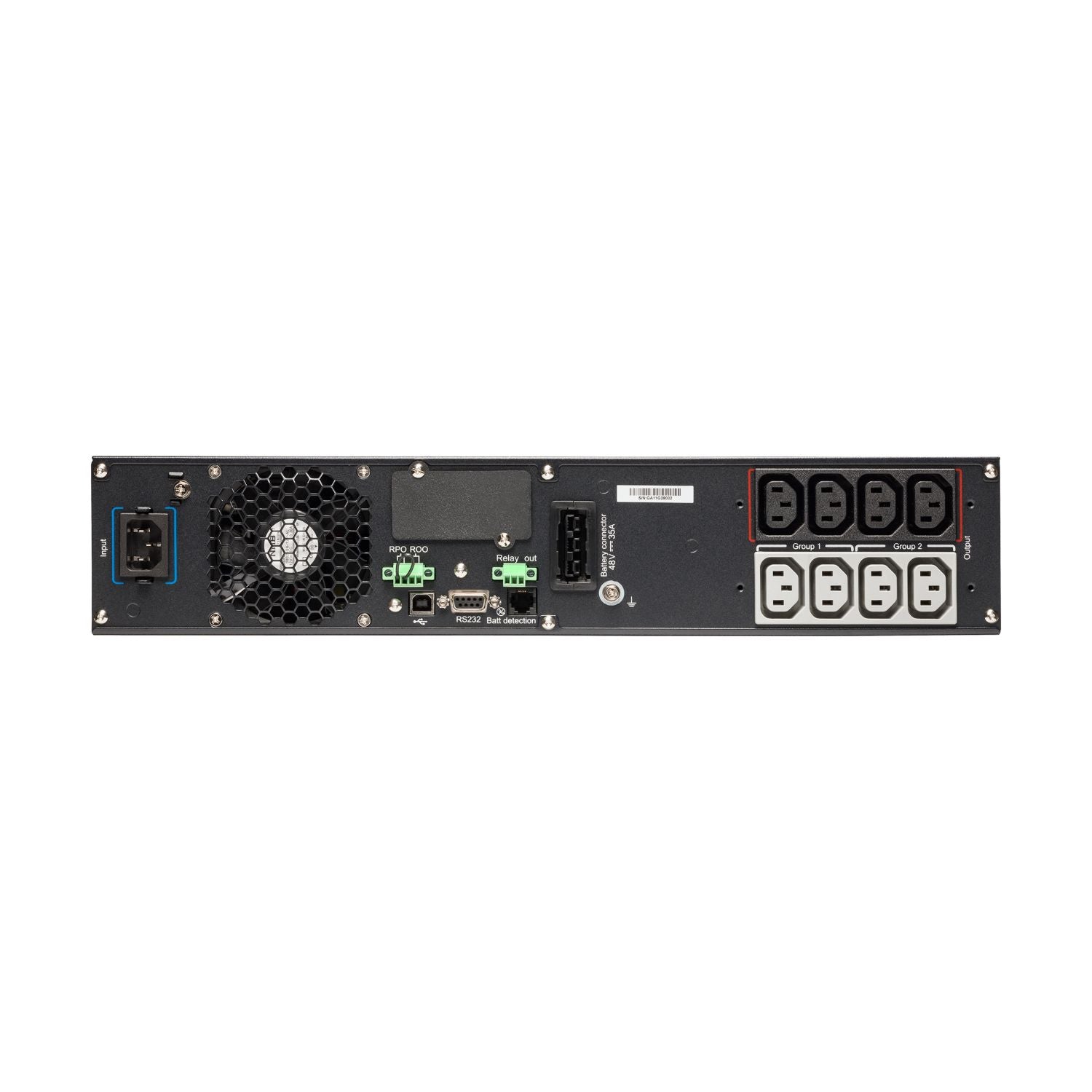

Output Specifications
Total Output Outlets: 8
IEC C13 Outlets: 8
Programmable Load Segments: 2
Critical Load Management: Supported
Load Shedding: Supported
Output Voltage Range: 200V / 208V / 220V / 230V / 240V ±1%
Surge Protection: Integrated

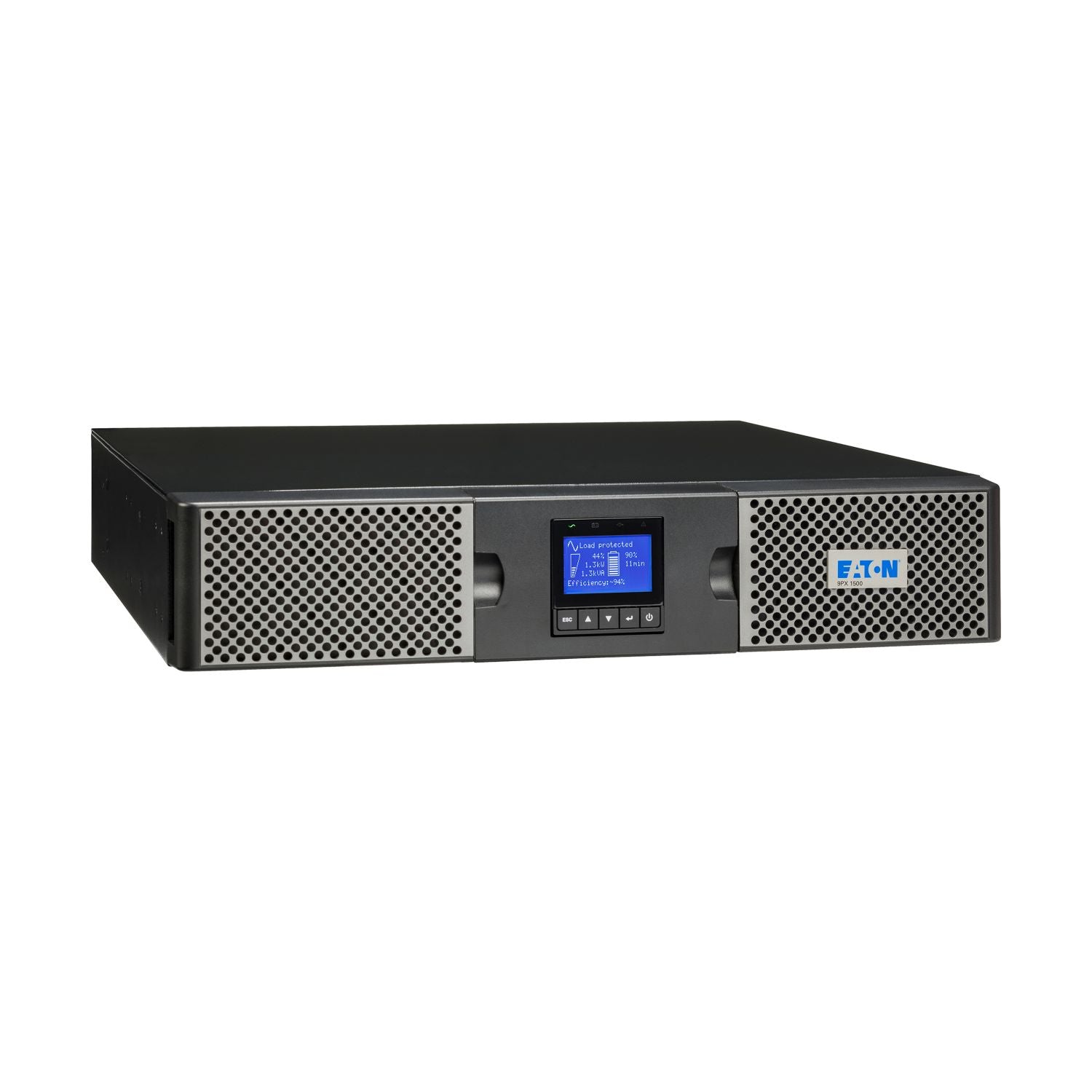

Display & User Interface
Display Type: Graphical LCD Display
Display Rotation: Automatic Rack/Tower Orientation
Real-Time Power Monitoring: Supported
Input/Output Metering: Supported
Battery Monitoring: Supported
Load Monitoring: Supported
Energy Consumption Metering: Supported
Alarm Notifications: Supported
Event Logging: Supported
Multi-Language Interface: Supported

Management & Communication
USB HID Port: Supported
RS232 Serial Port: Supported
Dry Contact Interface: Supported
Remote On/Off Function: Supported
Remote Power Off (RPO): Supported
Output Relay Contacts: Supported
Communication Expansion Slot: 1
Network Management Card: Optional
SNMP Monitoring: Supported (Optional Card)
Remote Monitoring: Supported
Remote Shutdown: Supported
Eaton Intelligent Power Manager (IPM): Supported
Eaton Intelligent Power Protector (IPP): Supported

Virtualization & Cloud Integration
VMware Compatible
Microsoft Hyper-V Compatible
Citrix Xen Compatible
Red Hat Virtualization Compatible
Hyperconverged Infrastructure Ready
Virtual Machine Shutdown Automation
Cloud Monitoring Support

Protection Features
Online Double Conversion Protection
Voltage Regulation
Frequency Regulation
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Surge Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Internal Automatic Bypass
Critical Load Segmentation

Environmental Specifications
Operating Temperature: 0°C to 40°C
Operating Humidity: 0% to 96% Non-Condensing
Maximum Operating Altitude: 3000m
Noise Level: Less Than 35 dB at 1 Meter
BTU Rating: 290 BTU/hr

Design & Construction
Color: Black / Silver
Form Factor: Rack/Tower Convertible
Rack Size: 2U
Rack Mount Kit: Included
Tower Stand Kit: Included
Construction: Enterprise-Grade Steel Chassis
19-Inch Rack Compatible: Yes

Physical Specifications
Dimensions (W × H × D): 440 × 86.5 × 450 mm
Weight: 19.5 kg
Rack Height: 2U
Installation Type: Rack or Tower

Package Contents
Eaton 9PX1000iRT2U UPS
2 × IEC-to-IEC Output Cables
USB Communication Cable
RS232 Serial Cable
Rack Mount Brackets
Rack Mount Rail Kit
Tower Support Stands
Cable Locking System
Quick Start Guide
Safety Instructions

Features
1000VA / 1000W Unity Power Factor Output
Online Double Conversion Topology
Pure Sine Wave Output
Up to 97.5% Efficiency in Eco Mode
Advanced Battery Management (ABM) Technology
Hot-Swappable Batteries
Programmable Load Segments
Graphical LCD Display
Network Management Card Ready
VMware & Hyper-V Compatible
Rack/Tower Convertible Design
Supports Up to 4 External Battery Modules
ENERGY STAR Qualified

Performance & Features
Delivers continuous clean power using true online double-conversion technology, protecting mission-critical equipment from outages, voltage fluctuations, harmonics, and frequency disturbances. The unity power factor design provides the full 1000W output capacity, allowing more IT equipment to be protected without oversizing the UPS. Advanced Battery Management technology extends battery life while reducing maintenance costs, making it ideal for enterprise server rooms, branch offices, and network edge deployments.

Key Features
1000VA / 1000W Capacity
Unity Power Factor (VA = W)
Online Double Conversion UPS
Pure Sine Wave Output
Up to 97.5% Efficiency
8 × IEC C13 Outputs
Hot-Swappable Batteries
Advanced Battery Management (ABM)
Graphical LCD Display
Network Management Card Ready
Supports Up to 4 External Battery Modules
Rack/Tower Convertible 2U Design
VMware, Hyper-V & Citrix Compatible
ENERGY STAR Certified

Typical Use Cases
Enterprise Servers
Storage Systems
Network Switches
Firewalls and Security Appliances
Virtualization Hosts
VMware Clusters
Hyper-V Infrastructure
Edge Computing Deployments
Healthcare IT Systems
Telecommunications Equipment
Branch Office Infrastructure
Mission-Critical Business Applications
Hyperconverged Infrastructure (HCI) Deployments

Certifications & Compliance
CE Certified
TÜV Certified
cULus Listed
CSA 22.2
FCC Part 15 Class B
CISPR22 Class B
ENERGY STAR Certified
IEC/EN 62040-1
IEC/EN 62040-2
UL 1778
EAC Certified

UPC / GTIN
UPC: 743172081407
