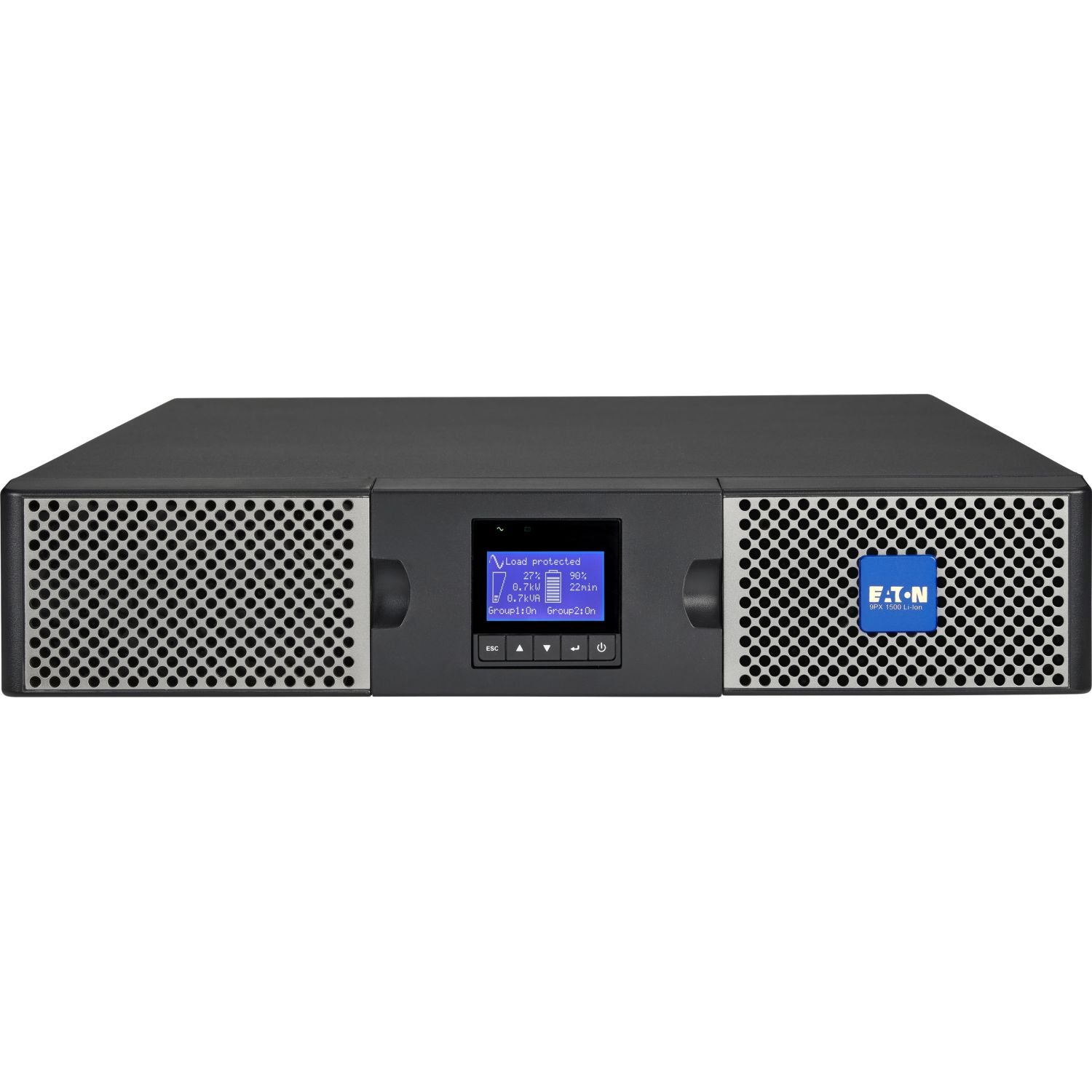

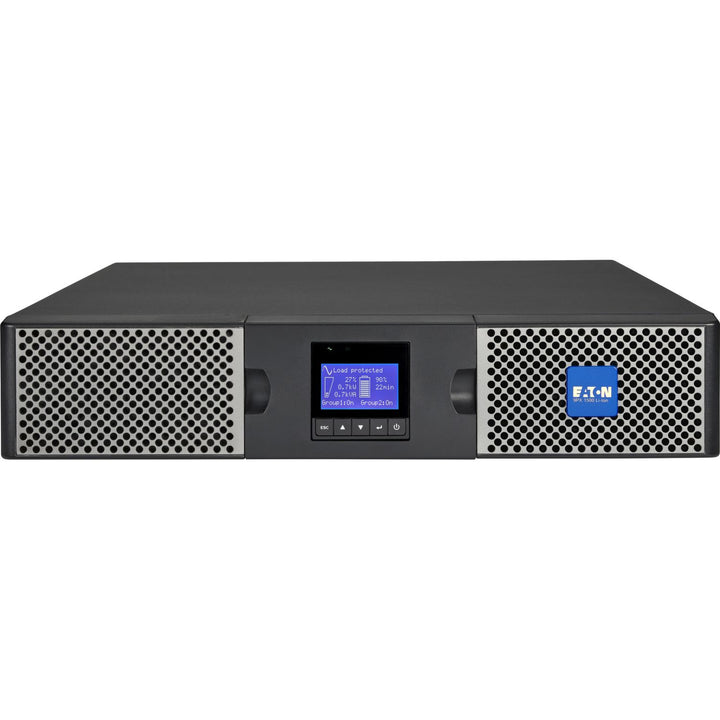

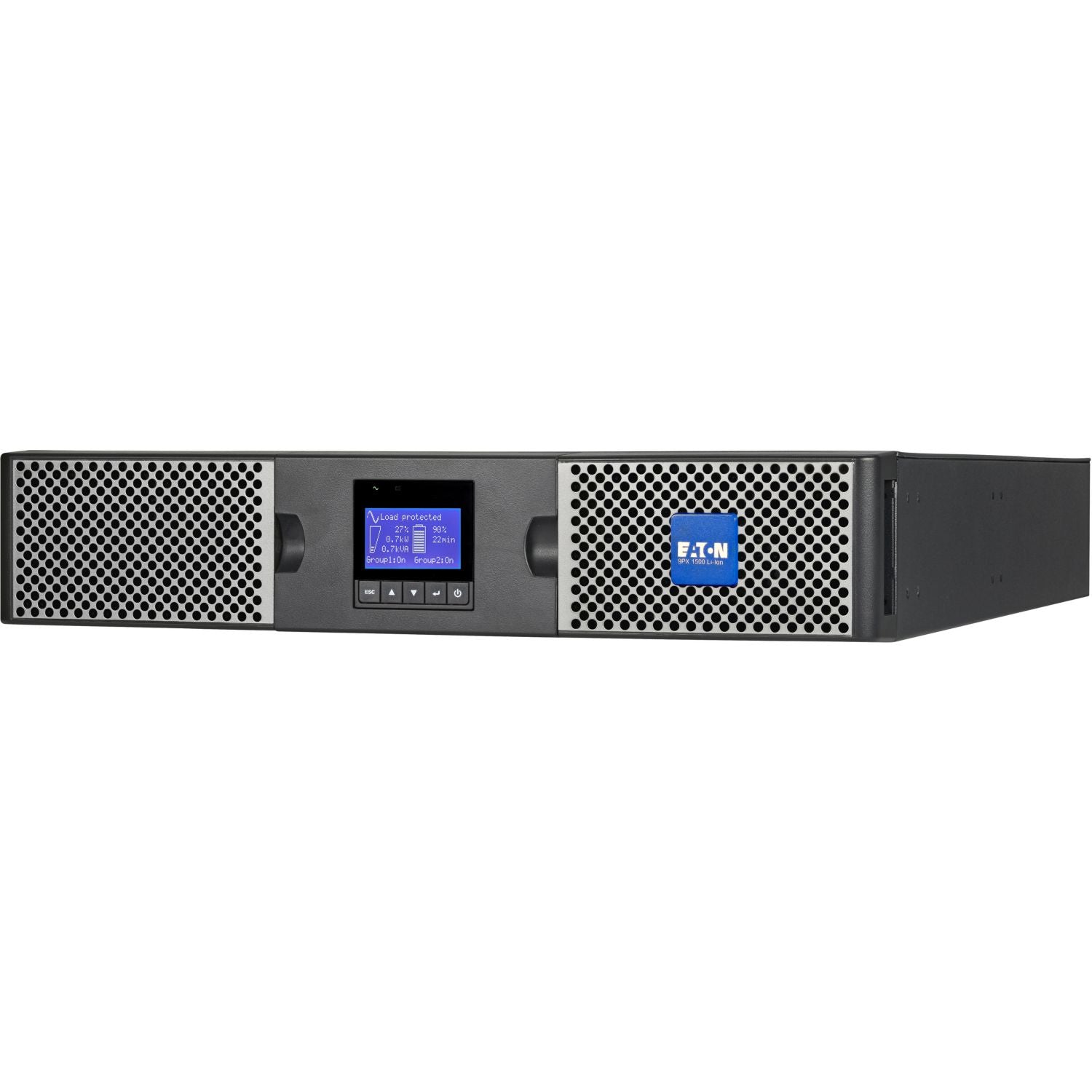

Eaton 9PX Lithium-ion 1500VA 1500W Online Rack/Tower 2U UPS, 8x C13 + 2x C19
PRODUCT DESCRIPTION
Eaton 9PX Lithium-ion 1500VA/1500W RT2U UPS (9PX1500IRT2U-L, 9103-LB63163) - 5 Years Local Warranty
Online Double-Conversion Protection with an 8–10 Year Lithium Battery
The Eaton 9PX1500IRT2U-L is a 1500 VA / 1500 W online double-conversion UPS in a 2U rack/tower chassis with lithium iron phosphate (LFP) batteries. For Singapore server rooms, network cabinets and edge sites it delivers clean, regulated power at all times, and Eaton rates the battery for 8–10 years of service life, compared with the usual 3–5 years for VRLA lead-acid.
Fewer battery replacements over the life of the UPS mean lower total cost of ownership and fewer visits to branch offices and unmanned cabinets.
Unity Power Factor, C19 Outlets and High Efficiency
The full 1500 VA rating is available as 1500 W, delivered through 8 IEC C13 and 2 IEC C19 outlets for higher-draw servers and storage. Eaton rates efficiency at up to 92.5% online and 97.5% in high-efficiency mode, and the range is Energy Star qualified. The input accepts 176–276 V without derating (100–276 V with derating).
Scalable Runtime with 1U Lithium Battery Modules

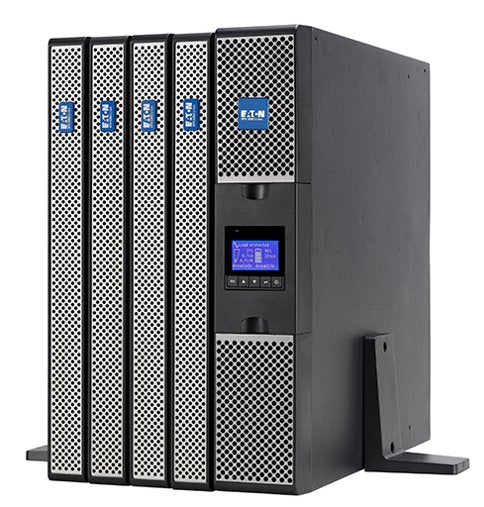

Up to four hot-swappable 9PXEBM48RT1U-L battery modules, each only 1U, can be added. Eaton publishes 13 minutes at 1200 W on the internal battery, 33 minutes with one EBM and 92 minutes with four.
Managed, Secure and Rack-Ready
USB and RS232, remote ON/OFF, remote power off and a relay output are standard, with a card slot for Eaton's Gigabit Network, Industrial Gateway or Relay card. Eaton highlights dual cybersecurity certifications (UL 2900-1 and IEC 62443-4-2). Two switchable outlet groups allow load shedding.
Supplied Locally with GST Invoice and 5-Year Warranty
SourceIT supplies the 9PX Lithium in Singapore with a full GST invoice and local warranty support. Eaton's East Asia datasheet lists a 5-year warranty covering the electronics, batteries and EBM, and Eaton's Singapore price list confirms 5 years.
Need runtime sized for your rack? Email sales@sourceit.com.sg with your load in watts.
Eaton 9PX1500IRT2U-L Datasheet — Technical Specifications
General
| Product Name | Eaton 9PX Lithium-ion 1500VA RT2U |
| Catalogue Number | 9PX1500IRT2U-L |
| Part Number (SKU) | 9103-LB63163 |
| Range | Eaton 9PX Lithium-ion 1000–3000 VA |
| Topology | Online double conversion with Power Factor Correction (PFC) |
| Form Factor | Rack/tower 2U (RT2U) |
| Display | Graphical LCD |
| Manufacturer Warranty | 5 years (electronics, batteries, EBM) — Eaton East Asia datasheet |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Input
| Nominal Voltage | 200 / 208 / 220 / 230 / 240 V |
| Input Voltage Range | 176–276 V without derating (100–276 V with derating) |
| Input Frequency | 40–70 Hz, 50/60 Hz auto-selection, frequency converter mode |
| Input Connection | 1 x IEC C20 (16 A) |
Output
| Rated Power | 1500 VA / 1500 W |
| Output Outlets | 8 x IEC C13 (10 A) + 2 x IEC C19 (16 A) |
| Switchable Outlet Groups | 2 |
| Efficiency | Up to 92.5% online; 97.5% high-efficiency mode |
Battery & Runtime (Eaton published)
| Battery Type | Lithium-ion (LFP) |
| Battery Service Life | 8–10 years |
| Internal Battery | 300 W: 45 min; 500 W: 30 min; 800 W: 20 min; 1200 W: 13 min |
| With 1 EBM | 300 W: 114 min; 500 W: 76 min; 800 W: 52 min; 1200 W: 33 min |
| With 4 EBM | 300 W: 321 min; 500 W: 210 min; 800 W: 145 min; 1200 W: 92 min |
| Compatible EBM | 9PXEBM48RT1U-L (RT1U, up to 4) |
Communications
| Standard Ports | 1 x USB, 1 x RS232, remote ON/OFF, remote power off, relay output |
| Card Slot | 1 (Gigabit Network, Industrial Gateway or Relay card) |
Physical & Environmental
| Dimensions (H x W x D) | 86.5 x 440 x 450 mm |
| Weight | 15.8 kg |
| Noise Level | 35 dB |
| Operating Temperature | 0–40 °C |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| EMC | IEC/EN 62040-2, FCC Class B, CISPR22 Class B |
Compatibility & Software Support
What It Is Suited To
The 9PX1500IRT2U-L suits a rack of servers, switches, firewalls and storage up to 1500 W. The input is an IEC C20 (16 A) inlet, so plan for a 16 A supply or C19-equipped PDU upstream.
Monitoring and Shutdown
Use USB or RS232 for a single host, or add an Eaton Gigabit Network card for SNMP/web monitoring and orderly multi-server or virtualised shutdown with Eaton Intelligent Power Manager. The Industrial Gateway card supports Modbus/BMS integration and the Relay card provides dry contacts.
Outlets
8 x IEC C13 and 2 x IEC C19. Equipment with BS 1363 (Type G) plugs needs an IEC lead or an IEC-input power strip.
Package Contents & 9PX Lithium Ordering Information
In the Box
Eaton 9PX Lithium-ion UPS with user documentation. Eaton's datasheet does not list the carton contents, so confirm rail kit and cables with us before ordering.
Eaton 9PX Lithium-ion 1000–3000 VA — Ordering Information
| 9PX1000IRT2U-L | 1000 VA / 1000 W | 9103-LB53924 |
| 9PX1500IRT2U-L (this listing) | 1500 VA / 1500 W | 9103-LB63163 |
| 9PX2200IRT2U-L | 2200 VA / 2200 W | 9103-LB73949 |
| 9PX3000IRT2U-L | 3000 VA | 9103-LB83988 |
Eaton notes on the Singapore price list that 9PX Lithium order quantities must be in multiples of the MOQ; ask us for current availability.
Extended Warranty
The 9PX Lithium already carries a 5-year warranty. Ask us about service options beyond that.
Datasheet & Downloads
| Eaton datasheet | Eaton 9PX Lithium-ion UPS 1000–3000VA Datasheet — East Asia (PDF) |
| Eaton user guide | Eaton 9PX Lithium-ion Advanced User's Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9PX1500IRT2U-L.
Frequently Asked Questions — Eaton 9PX1500IRT2U-L
Why choose lithium-ion over the standard 9PX?
Eaton rates the LFP battery for 8–10 years of service life versus 3–5 years for VRLA, with lighter UPS and 1U battery modules. That means fewer battery swaps and lower lifetime cost.
How long will it run on battery?
Eaton publishes 45 min at 300 W and 13 min at 1200 W on the internal battery, extendable to 92 min at 1200 W with four EBMs.
Can I add network management?
Yes. The card slot accepts Eaton's Gigabit Network card for SNMP/web monitoring and automatic shutdown.
What warranty do I get?
5 years on the UPS electronics and batteries, supplied by SourceIT with local Singapore support and a GST invoice.
