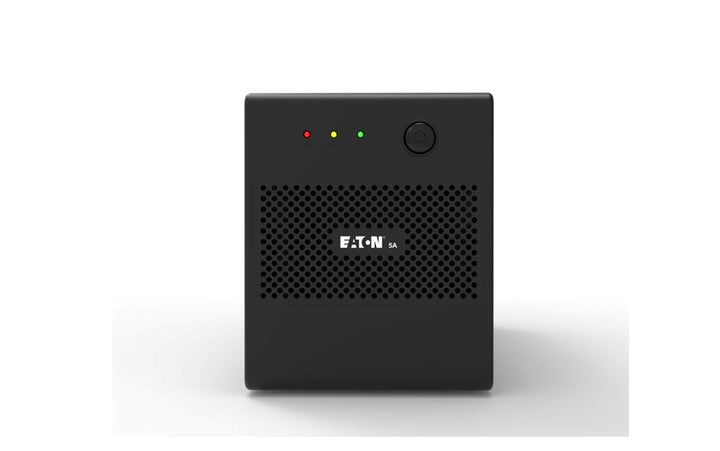

Eaton P-5A900I-UNI 900VA Tower Models 230V

Eaton P-5A900I-UNI 900VA Tower Models 230V (P-5A900I-UNI) - 2 Years Local Warranty

Reliable Backup Power for Home and Business

The Eaton P-5A900I-UNI 900VA Tower UPS is a dependable power protection solution designed to safeguard computers, networking devices, POS systems, and office equipment from power outages, voltage fluctuations, and electrical disturbances. With a 900VA / 480W capacity, this UPS helps ensure business continuity and protects valuable hardware and data from unexpected power disruptions.

Line-Interactive Technology with AVR Protection

Featuring line-interactive topology and Automatic Voltage Regulation (AVR), the Eaton 5A UPS automatically stabilizes voltage fluctuations without frequently switching to battery power. This helps extend battery life while maintaining consistent power delivery to connected devices, making it ideal for both residential and small business environments.

Compact Design with Flexible Deployment

The compact tower design allows the Eaton P-5A900I-UNI to fit easily beside workstations, under desks, or near networking equipment. Universal output sockets provide convenient compatibility with a wide range of devices, making installation simple and efficient for users seeking reliable power protection without requiring additional adapters.

Enhanced Protection and Operational Reliability

Built with surge protection and circuit breaker safeguards, the Eaton 5A UPS helps protect connected equipment from power surges and electrical anomalies. The UPS also supports cold-start functionality, allowing equipment to be powered directly from the battery during utility power outages when needed. Generator compatibility further enhances deployment flexibility.

Technical Specifications

General
Model: 5A900I-UNI
Part Number: P-5A900I-UNI
Product Name: Eaton 5A900I-UNI 900VA Tower UPS 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Form Factor: Tower
Power Capacity: 900VA / 480W
Output Power Factor: 0.53
Input Voltage: 230V AC
Output Voltage: 230V AC
Battery Technology: Sealed Lead Acid (VRLA)
Application: Desktop PCs, Home Offices, Routers, Network Switches, CCTV Systems, POS Systems, NAS Storage, Internet Gateways
Warranty: 2 Years Warranty
Country Availability: Singapore / Malaysia / East Asia Models

Power Specifications
Rated Capacity: 900VA / 480W
UPS Topology: Line-Interactive
Output Waveform: Stepped Sine Wave
Input Voltage Range: 140V – 300V AC
Output Voltage: 230V AC
Output Voltage Regulation (Battery Mode): ±10%
Input Frequency Range: 50Hz / 60Hz Auto-Sensing
Transfer Time: 2–6ms Typical, 10ms Maximum
Automatic Voltage Regulation (AVR): Supported
Cold Start Capability: Supported
Generator Compatible: Supported
Surge Protection: Supported
Circuit Breaker Protection: Supported

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Quantity: 1 Battery
Battery Rating: 12V / 9Ah
Battery Recharge Time: 4–6 Hours to 90% Capacity
Deep Discharge Protection: Supported
Cold Start Function: Supported
Battery Backup Support: Supported
Battery Health Monitoring: Supported

Runtime Specifications
Runtime at 100W Load: Up to 35 Minutes
Runtime at 50% Load: Approximately 8 Minutes
Runtime at Full Load: Approximately 2 Minutes
Runtime Performance: Dependent on Connected Load and Battery Condition
Battery Backup for Safe Shutdown: Supported

Input Specifications
Input Connection: Fixed Power Cord
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Input Protection: Circuit Breaker
Nominal Input Voltage: 230V AC

Output Specifications
Output Receptacles: 4 × Universal Outlets
Output Phase: Single Phase
Output Voltage: 230V AC
Battery Backup Outlets: 4 × Universal Outlets
Surge Protection: Available on All Outlets
Critical Equipment Protection: Supported

Display & User Interface
Display Type: LED Status Indicators
Power Status Monitoring: Supported
Battery Status Monitoring: Supported
Fault Notification: Supported
Audible Alarm: Supported
Mute Function: Supported via Power Button
Simple Plug-and-Play Operation: Supported

Management & Communication
USB Communication Port: No
RS232 Communication Port: No
Network Management Card: Not Supported
SNMP Monitoring: Not Supported
Remote Monitoring: Not Supported
Local LED Monitoring: Supported

Protection Features
Automatic Voltage Regulation (AVR)
Surge Protection on All Outlets
Circuit Breaker Protection
Overvoltage Protection
Undervoltage Protection
Brownout Protection
Overload Protection
Short Circuit Protection
PCBA Current Sensor Protection
Cold Start Function
Generator Compatibility
Power Line Conditioning

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -25°C to 55°C
Operating Humidity: Up to 90% Non-Condensing
Operating Altitude: Up to 2000m
Indoor Use Recommended
Ventilated Installation Recommended

Design & Construction
Color: Black
Form Factor: Tower
Construction Type: Compact Free-Standing Design
Installation Type: Desktop / Floor Standing
Space Saving Design: Supported
Business & Residential Deployment: Supported

Physical Specifications
Dimensions (D × W × H): 330 × 122 × 192 mm
Weight: Approximately 6.5 kg
Installation Type: Tower Only

Package Contents
Eaton 5A900I-UNI UPS
Fixed Input Power Cord
User Documentation
Quick Start Guide
Warranty Information

Features
900VA / 480W Capacity
Line-Interactive UPS Technology
Automatic Voltage Regulation (AVR)
Wide Input Voltage Range (140V–300V)
Cold Start Capability
Generator Compatible
Surge Protection on All Outlets
Circuit Breaker Protection
4 Universal Power Outlets
LED Status Indicators
Compact Tower Design
2-Year Warranty

Performance & Features
The Eaton 5A900I-UNI is designed to provide dependable backup power and surge protection for desktop computers, networking devices, CCTV systems, POS terminals, and home office equipment. The integrated AVR technology automatically corrects voltage fluctuations without consuming battery power, helping extend battery lifespan and improve operational efficiency. Its wide 140V–300V input voltage range makes it suitable for locations experiencing unstable utility power, while generator compatibility provides additional flexibility during prolonged outages.

Key Features
900VA / 480W Capacity
Automatic Voltage Regulation (AVR)
4 Universal Power Outlets
Stepped Sine Wave Output
140V–300V Wide Input Voltage Range
Cold Start Capability
Generator Compatible
Circuit Breaker Protection
Surge Protection on All Outlets
LED Status Indicators
Compact Tower Design
2-Year Warranty

Typical Use Cases
Desktop Computers
Professional Workstations
Home Office Setups
NAS Storage Systems
Network Switches
Routers & Firewalls
Business Telephony Systems
Retail POS Systems
CCTV Recording Systems
Internet Access Points
Small Office Infrastructure
Security Systems

Certifications & Compliance
CE Certified
RoHS Compliant
IEC 62040-1
IEC 62040-2
EMC Compliance Standards
Single-Phase UPS Safety Standards

UPC / GTIN
EAN: 3553340705205
