Eaton 5PX2200IRT2UG2 2200VA Tower Models 230V

Eaton 5PX2200IRT2UG2 2200VA Tower Models 230V (9210-73043) - 3 Years Local Warranty

Eaton 5PX 2200VA Tower UPS - Superior Power Protection for Critical Devices

The Eaton 5PX 2200VA Tower UPS is a high-performance uninterruptible power supply, offering reliable backup for demanding equipment in small and medium-sized businesses or home office environments. With a 2200VA (or 1980W) power rating, this UPS ensures that sensitive electronics like computers, networking devices, and storage systems remain protected from power outages or fluctuations. Designed for maximum reliability, the Eaton 5PX delivers superior power protection to safeguard your valuable devices and keep your operations running smoothly.

Eaton 5PX 230V - Enhanced Power Efficiency for Energy Savings

Operating on a 230V input, the Eaton 5PX 2200VA Tower UPS is built with advanced power management features that provide maximum efficiency. Its Energy Star-certified design ensures that your power consumption is minimized, helping to reduce energy costs while maintaining optimal protection for your devices. The Eaton 5PX also features Automatic Voltage Regulation (AVR), ensuring a stable voltage level and preventing damage caused by power spikes or sags.

Eaton UPS Tower Models - Compact Design with Cutting-Edge Features

The Eaton 5PX 2200VA Tower UPS is engineered with a compact form factor that allows for easy installation in a wide range of environments. Despite its small footprint, the 5PX offers advanced features such as an intuitive LCD display for real-time monitoring, adjustable runtime settings, and smart connectivity options. Whether used as a tower unit or in a rackmount configuration, this UPS ensures seamless operation and flexible installation.

2200VA UPS - Ideal Power Backup for Small to Medium-Sized Applications

With its 2200VA rating, the Eaton 5PX Tower UPS is perfect for providing backup power to small to medium-sized setups. From protecting servers to ensuring network equipment operates without interruptions, this UPS provides ample backup to keep your systems running during power outages. The reliable 2200VA rating ensures that critical systems are powered long enough for safe shutdowns or until main power is restored.

Technical Specifications

General
Model: 5PX2200IRT2UG2
Part Number: 9210-73043
Product Name: Eaton 5PX2200IRT2UG2 UPS 2200VA Rack/Tower Gen2 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Form Factor: Rack/Tower Convertible
Rack Height: 2U
Power Capacity: 2200VA / 2200W
Power Factor: 1.0 (Unity Power Factor)
Input Voltage: 230V AC
Output Voltage: 230V AC
Battery Technology: Sealed Lead Acid (VRLA)
Application: Servers, Storage Systems, Network Switches, Security Appliances, Edge Computing, Enterprise IT Infrastructure
Warranty: 3 Years Electronics Warranty, 2 Years Battery Warranty (Region Dependent)

Power Specifications
Rated Capacity: 2200VA / 2200W
UPS Topology: Line-Interactive
Output Power Factor: 1.0
Output Waveform: Pure Sine Wave
Nominal Input Voltage: 230V AC
Input Voltage Range: 160V – 294V AC
Nominal Output Voltage: 230V AC
Output Voltage Regulation: ±2%
Frequency Range: 47Hz – 70Hz
Automatic Voltage Regulation (AVR): Supported
Efficiency: Up to 99%
Energy Star Certified: Supported
Cold Start Capability: Supported
Generator Compatible: Supported

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Management: Eaton Advanced Battery Management (ABM)
Battery Charging Method: Temperature Compensated Charging
Battery Replacement: Hot-Swappable
Battery Monitoring: Supported
Automatic Battery Testing: Supported
Deep Discharge Protection: Supported
Extended Battery Modules (EBM): Supported
Runtime Expansion: Supported
Battery Health Monitoring: Supported

Runtime Specifications
Runtime at 50% Load: Approximately 14–16 Minutes
Runtime at Full Load: Approximately 5–6 Minutes

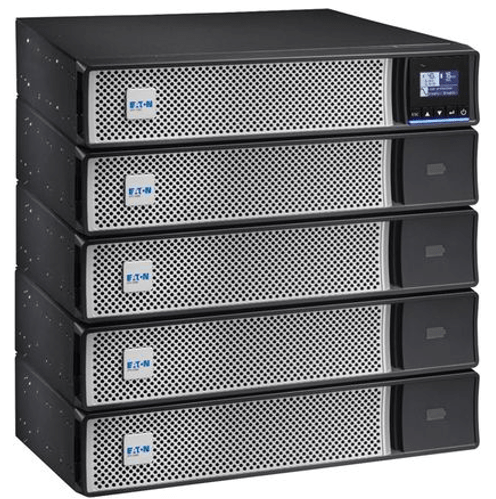

Extended Runtime Capability: Supported with Optional Battery Modules
Load Segment Runtime Optimization: Supported

Input Specifications
Input Connection: IEC C20
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Input Protection: Integrated

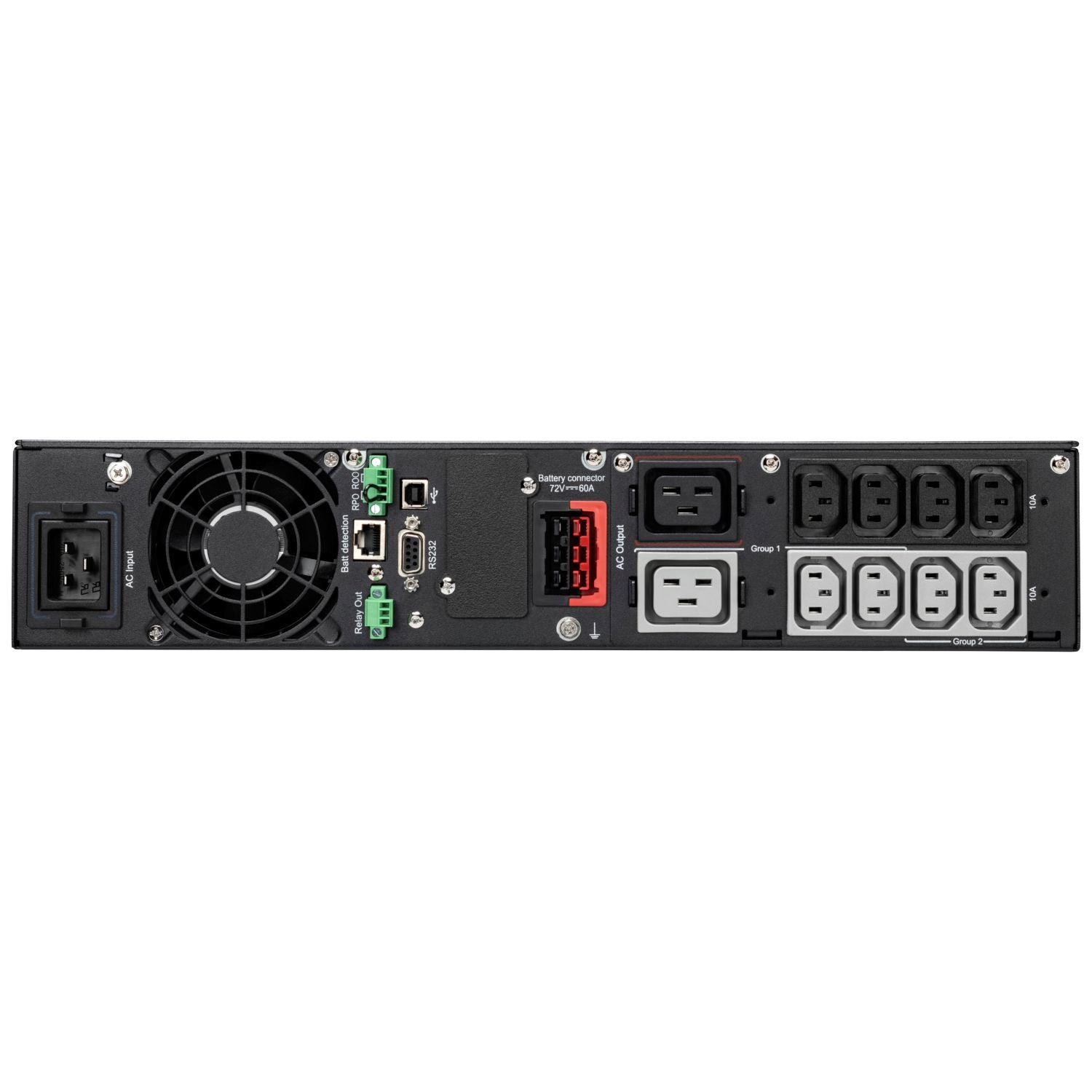

Output Specifications
Total Output Outlets: 10
IEC C13 Outlets: 8
IEC C19 Outlets: 2
Programmable Load Segments: 2
Critical Load Management: Supported
Load Shedding: Supported
Output Protection: Supported
Pure Sine Wave Output: Supported

Display & User Interface

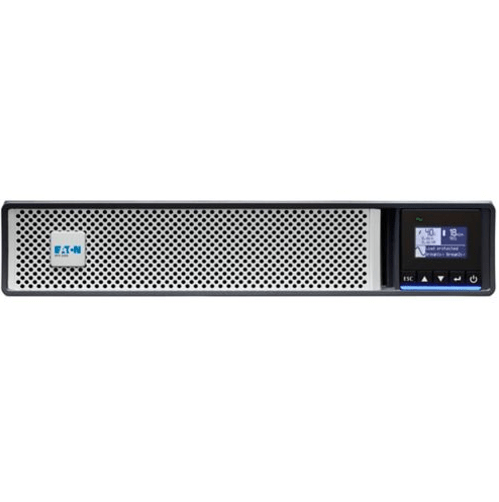

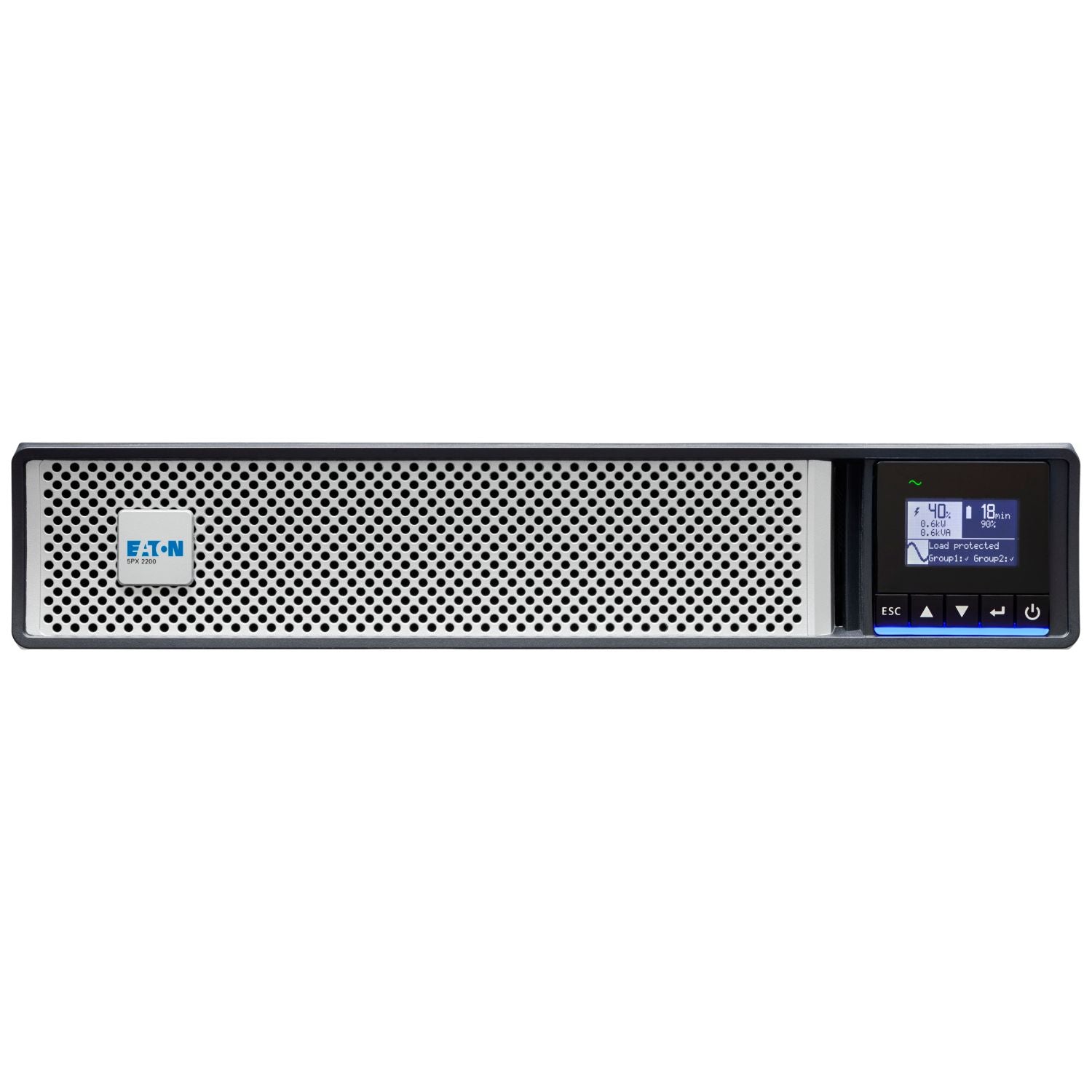

Display Type: Graphical LCD Display
Display Orientation: Rotating Display for Rack or Tower Deployment
Real-Time Power Monitoring: Supported
Input/Output Metering: Supported
Battery Monitoring: Supported
Load Monitoring: Supported
Energy Consumption Metering: Supported
Alarm Notifications: Supported
Event Logging: Supported
Multilingual Interface: Supported

Management & Communication
USB HID Port: Supported
RS232 Serial Port: Supported
Network Management Card Slot: 1
Gigabit Network Card: Optional
SNMP Monitoring: Supported (Optional Card)
Remote Shutdown: Supported
Remote Monitoring: Supported
Remote Management: Supported
Eaton Intelligent Power Manager (IPM): Supported
Eaton Intelligent Power Protector (IPP): Supported

Virtualization & Cloud Integration
VMware Compatible
Microsoft Hyper-V Compatible
Citrix Compatible
Nutanix Compatible
Red Hat Virtualization Compatible
Hyperconverged Infrastructure Ready
Virtual Machine Shutdown Automation
Cloud Monitoring Integration Supported

Protection Features
Line-Interactive Protection
Automatic Voltage Regulation (AVR)
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Frequency Regulation
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection
Critical Load Segmentation

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -15°C to 50°C
Operating Humidity: 0% to 95% Non-Condensing
Maximum Operating Altitude: 3000m
Noise Level: Less Than 40 dB at 1 Meter

Design & Construction
Color: Black
Form Factor: Rack/Tower Convertible
Rack Size: 2U
Rack Mount Kit: Included
Tower Stand Kit: Included
Construction: Enterprise-Grade Steel Chassis
19-Inch Rack Compatible: Yes

Physical Specifications
Dimensions (W × H × D): Approximately 438 × 86.5 × 603 mm
Weight: Approximately 29–30 kg
Rack Height: 2U
Installation Type: Rack or Tower

Package Contents
Eaton 5PX2200IRT2UG2 UPS
Rack Mount Rail Kit
Tower Support Stands
USB Communication Cable
RS232 Communication Cable
Quick Start Guide
Safety Documentation

Features
2200VA / 2200W Unity Power Factor Output
Line-Interactive UPS with AVR
Pure Sine Wave Output
Graphical LCD Display
Hot-Swappable Batteries
Advanced Battery Management (ABM)
Programmable Load Segments
Energy Metering Capability
Network Management Card Ready
VMware & Hyper-V Compatible
Rack/Tower Convertible Design
Extended Battery Runtime Support

Performance & Features
The Eaton 5PX2200IRT2UG2 Gen2 delivers enterprise-grade power protection with line-interactive technology and automatic voltage regulation, protecting critical equipment from power disturbances without unnecessarily consuming battery power. The unity power factor design provides the full 2200W output capacity, making it ideal for modern servers, storage systems, and networking equipment. The graphical LCD display provides detailed power, load, and battery information while advanced battery management helps maximize battery lifespan and reduce maintenance costs.

Key Features
2200VA / 2200W Capacity
Unity Power Factor (VA = W)
Line-Interactive Topology
Pure Sine Wave Output
Automatic Voltage Regulation (AVR)
8 × IEC C13 Outlets
2 × IEC C19 Outlets
Hot-Swappable Batteries
Graphical LCD Display
Advanced Battery Management (ABM)
Network Management Ready
Extended Battery Module Support
Rack/Tower Convertible 2U Design
VMware, Hyper-V & Nutanix Compatible

Typical Use Cases
Enterprise Servers
Storage Arrays
Network Switches
Firewalls and Security Appliances
Virtualization Hosts
VMware Clusters
Hyper-V Infrastructure
Nutanix Deployments
Edge Computing Environments
Healthcare IT Systems
Telecommunications Equipment
Branch Office Infrastructure
Mission-Critical Business Applications

Certifications & Compliance
CE Certified
ENERGY STAR Certified
IEC/EN 62040-1
IEC/EN 62040-2
UL 1778
RoHS Compliant
FCC Part 15 Class B
TÜV Certified

UPC / GTIN
UPC: 743172108883
