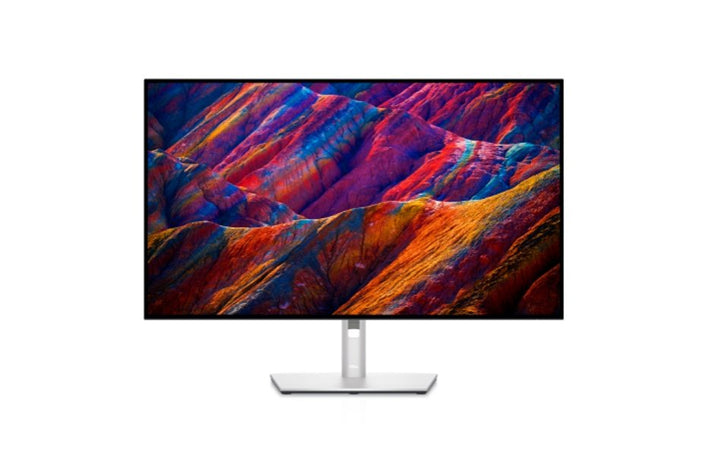

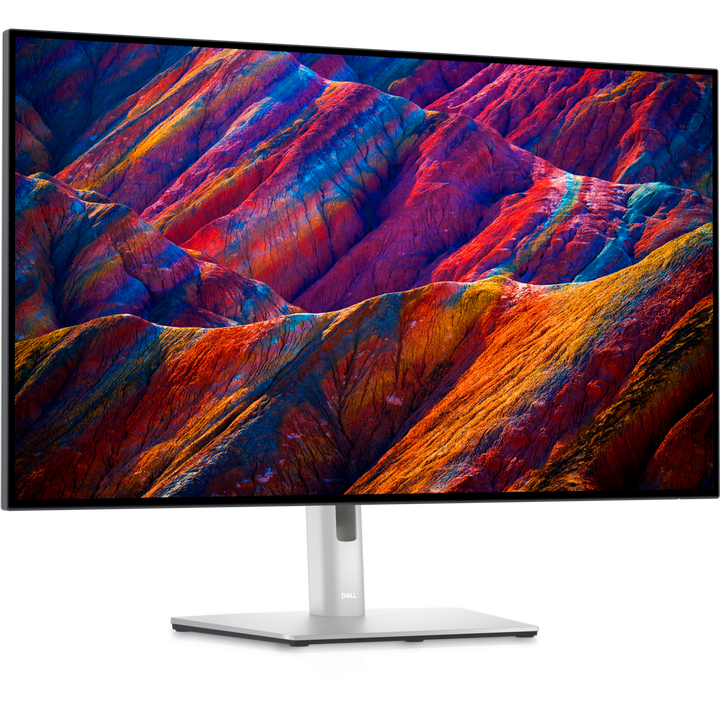

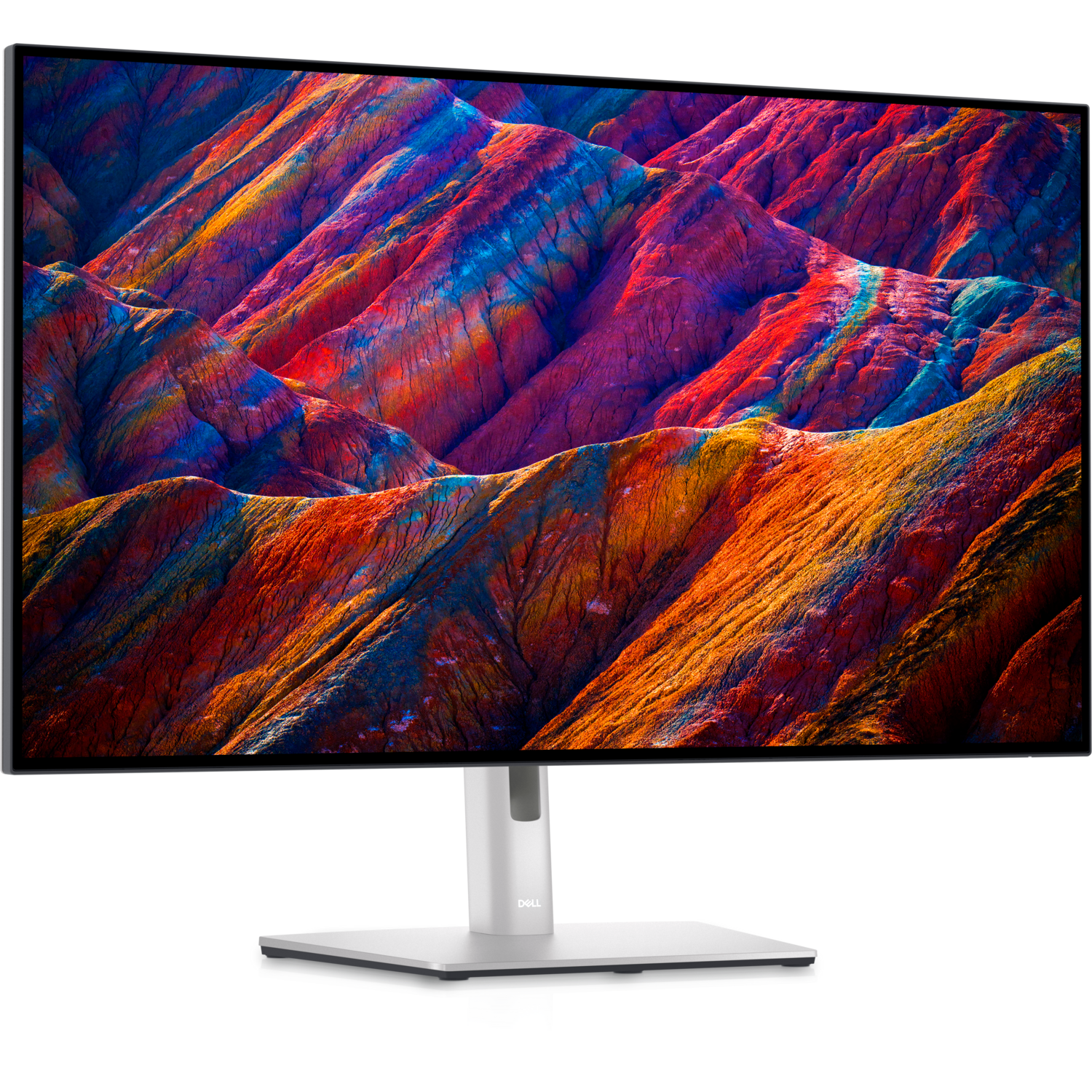

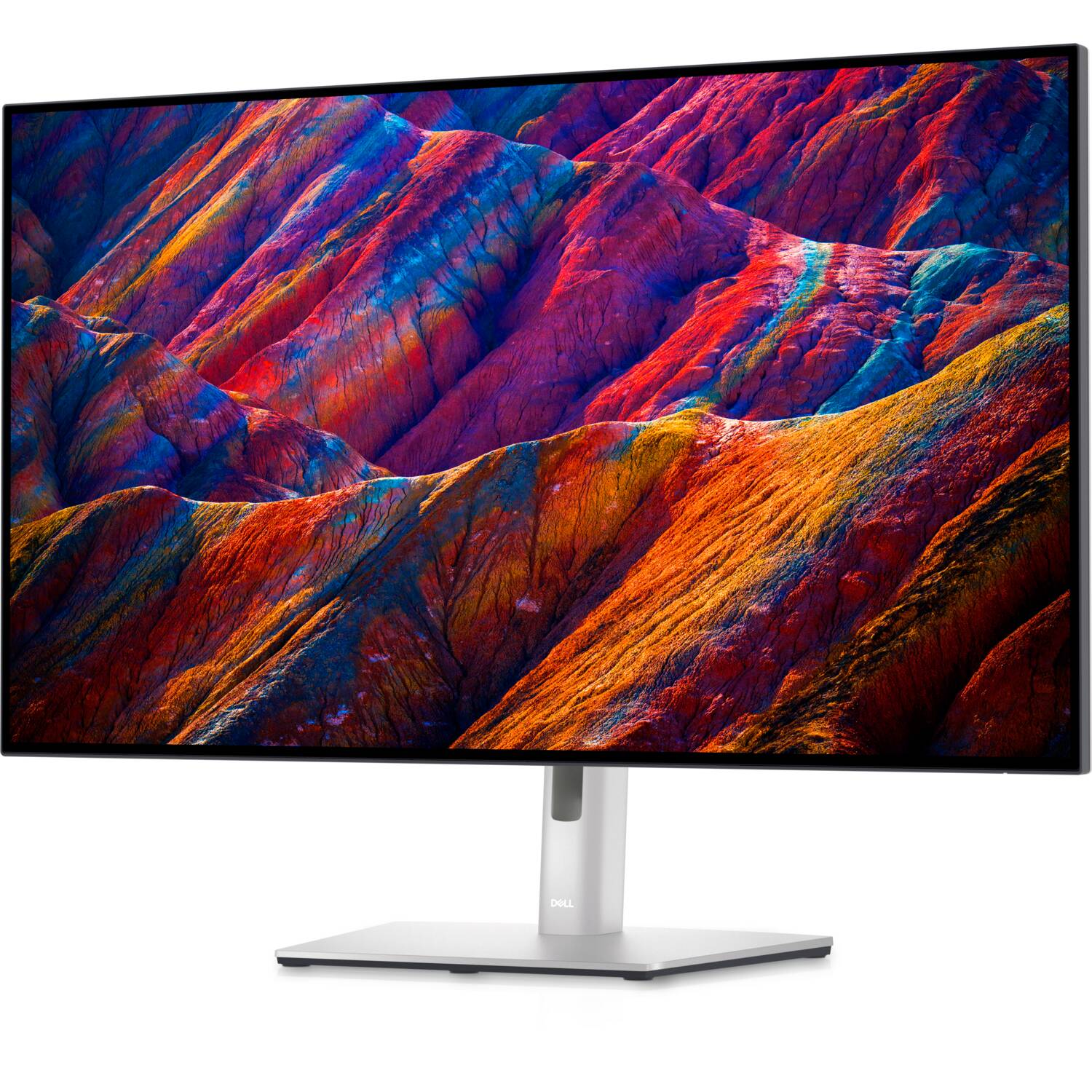

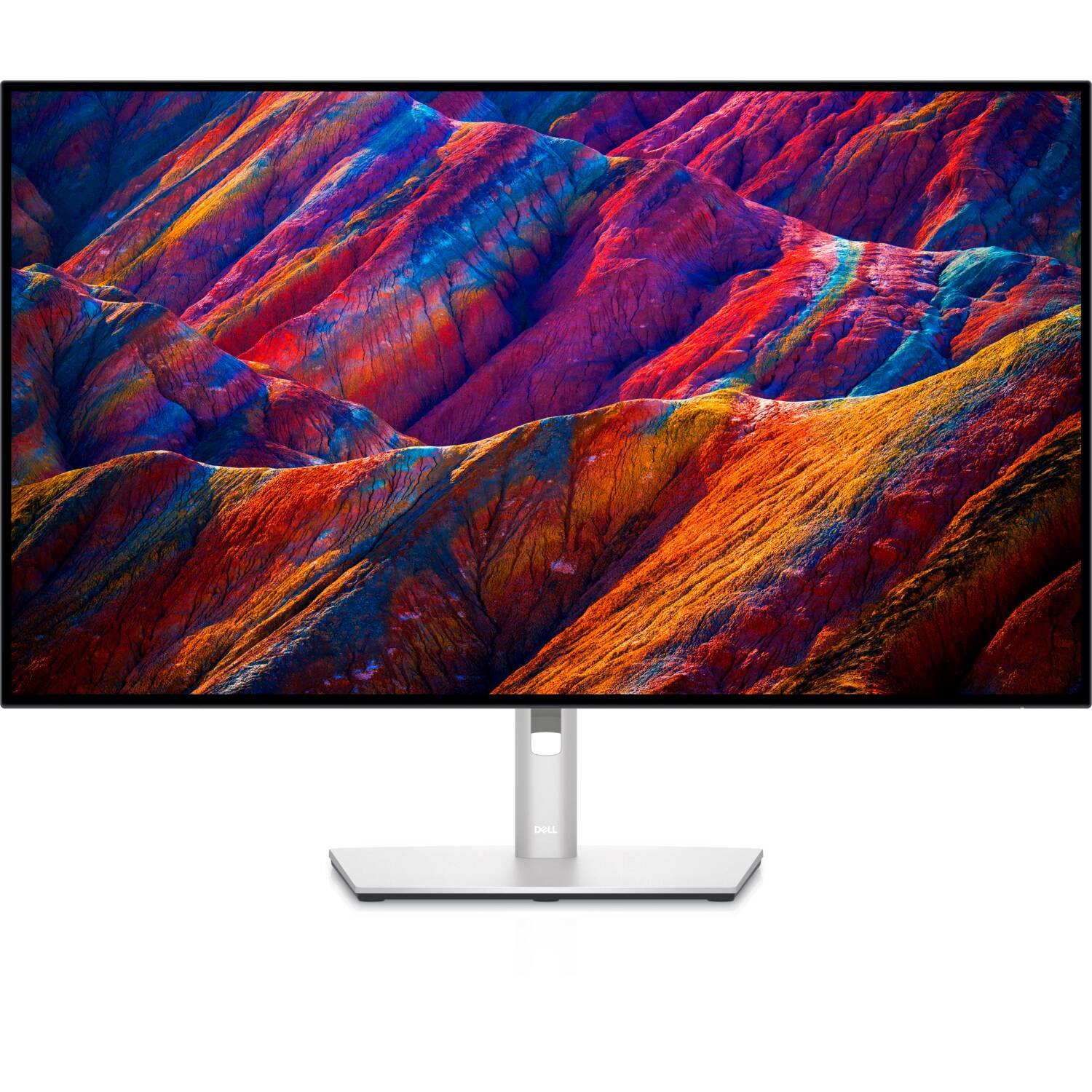

Dell UltraSharp 32 U3223QE 31.5" 4K USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 32 4K USB-C Hub Monitor U3223QE (210-BEBN) - 3 Years Local Warranty
4K with IPS Black contrast
A 31.5-inch 3840 x 2160 IPS Black panel delivers 2000:1 contrast, 400 cd/m² brightness and VESA DisplayHDR 400.
Wide, calibrated colour
Covers 100% sRGB, 100% Rec. 709 and 98% DCI-P3 with 1.07 billion colours, factory calibrated to Delta E < 2.
USB-C hub with KVM and RJ45
USB-C with 90 W Power Delivery, 1GbE RJ45, a 10 Gbps USB hub, built-in KVM and DisplayPort out for daisy chaining.
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell U3223QE Datasheet — Technical Specifications
Display
| Screen size | 31.5" (80.01 cm) viewable |
| Panel type | IPS Black Technology, LED backlight |
| Aspect ratio | 16:9 |
| Native resolution | 4K UHD 3840 x 2160 at 60 Hz |
| Active display area | 697.31 x 392.23 mm |
| Pixel pitch | 0.18159 mm |
| Pixels per inch | 137.68 PPI |
| Brightness | 400 cd/m² (typical) |
| Contrast ratio | 2000:1 (typical) |
| HDR | VESA DisplayHDR 400 |
| Colour support | 1.07 billion colours |
| Colour gamut | 100% sRGB, 100% Rec. 709, 98% DCI-P3 |
| Factory calibration | Delta E < 2 |
| Response time | 8 ms grey-to-grey (Normal); 5 ms grey-to-grey (Fast) |
| Viewing angle | 178° horizontal / 178° vertical |
| Screen coating | Anti-glare, 3H hard coating |
| Built-in speakers | No |

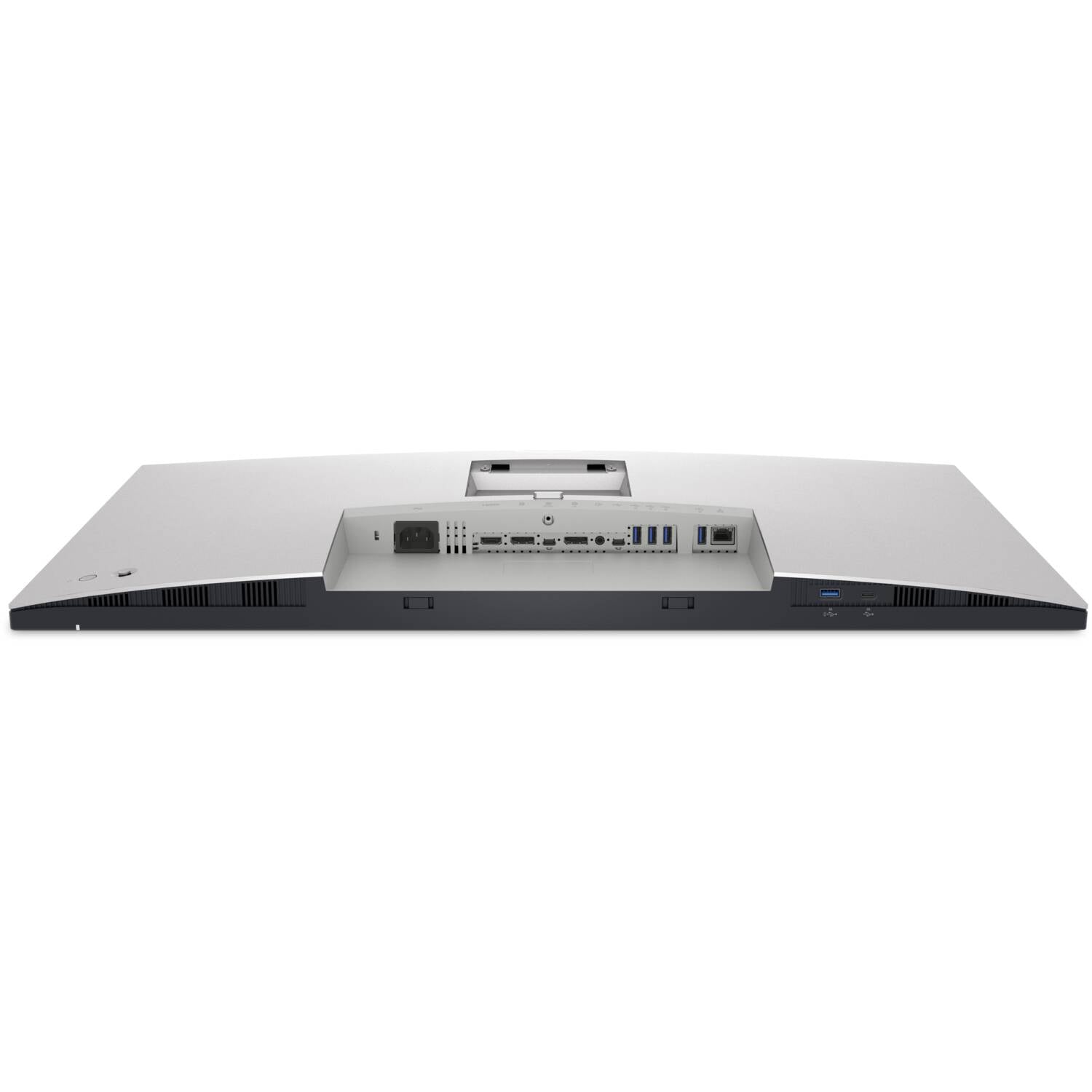

Connectivity
| HDMI | 1 x HDMI 2.0 (HDCP 2.2) |
| DisplayPort in | 1 x DisplayPort 1.4 with DSC (HDCP 2.2) |
| DisplayPort out | 1 x DisplayPort out (daisy chain) |
| USB-C upstream (video + power) | 1 x USB-C with DSC (DisplayPort 1.4 Alt Mode, HDCP 2.2), Power Delivery up to 90 W |
| USB-C upstream (data / KVM) | 1 x USB-C 3.2 Gen 2 (10 Gbps), data only |
| USB-C downstream | 1 x USB-C 3.2 Gen 2 (10 Gbps), up to 15 W charging |
| USB-A downstream | 4 x USB 3.2 Gen 2 (10 Gbps) |
| USB-A downstream with charging | 1 x USB 3.2 Gen 2 (10 Gbps) with BC 1.2 |
| Ethernet | 1 x RJ45, 1GbE |
| Audio | 1 x audio line-out (3.5 mm jack) |
| KVM | Built-in KVM and Auto KVM |
| Multitasking | Picture-by-Picture (PbP), Picture-in-Picture (PiP) |
| USB Power Delivery | 90 W |
Ergonomics
| Adjustments | Height, tilt, swivel, pivot |
| Height adjustment | 150 mm |
| Tilt | -5° / +21° |

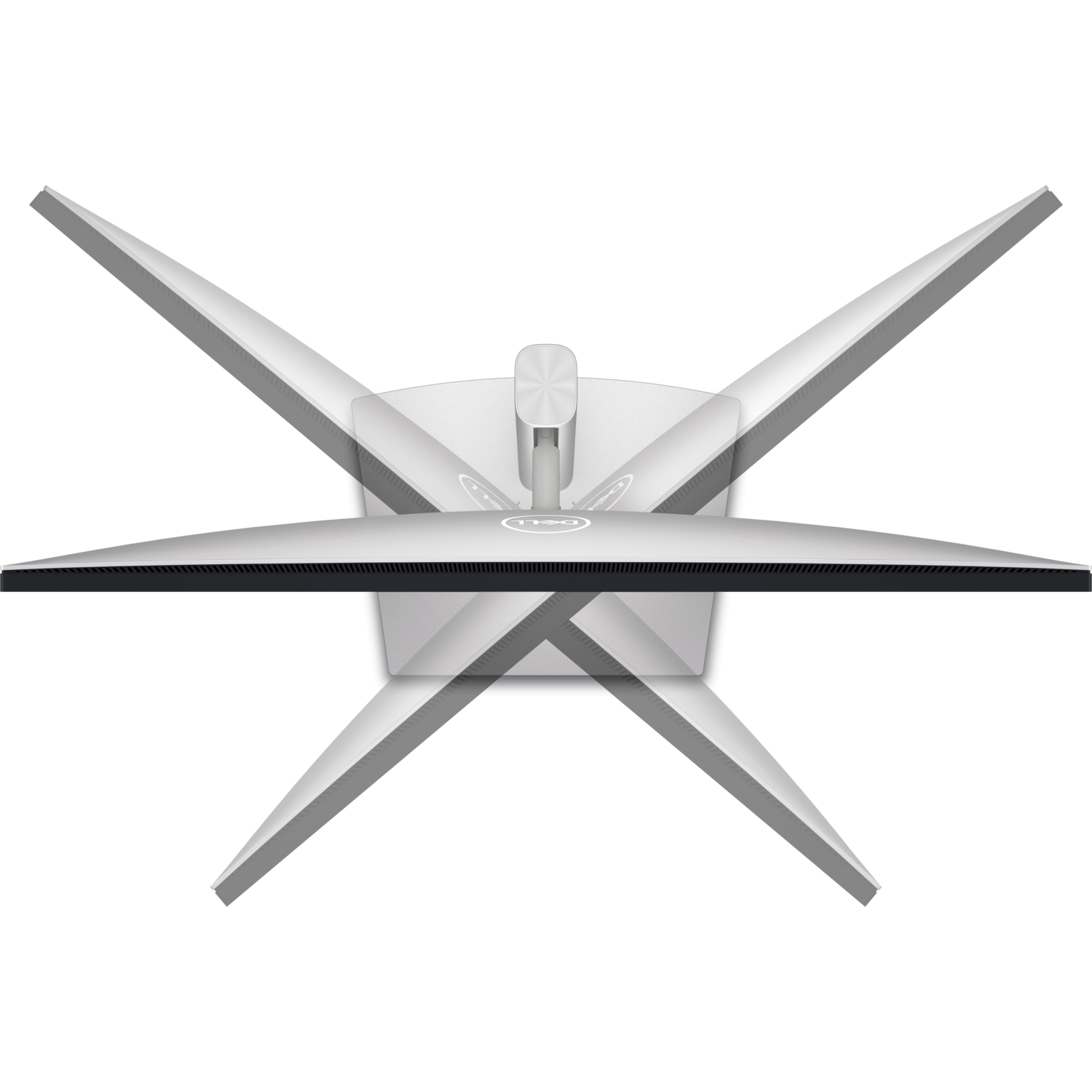

| Swivel | -30° / +30° |
| Pivot | -90° / +90° |

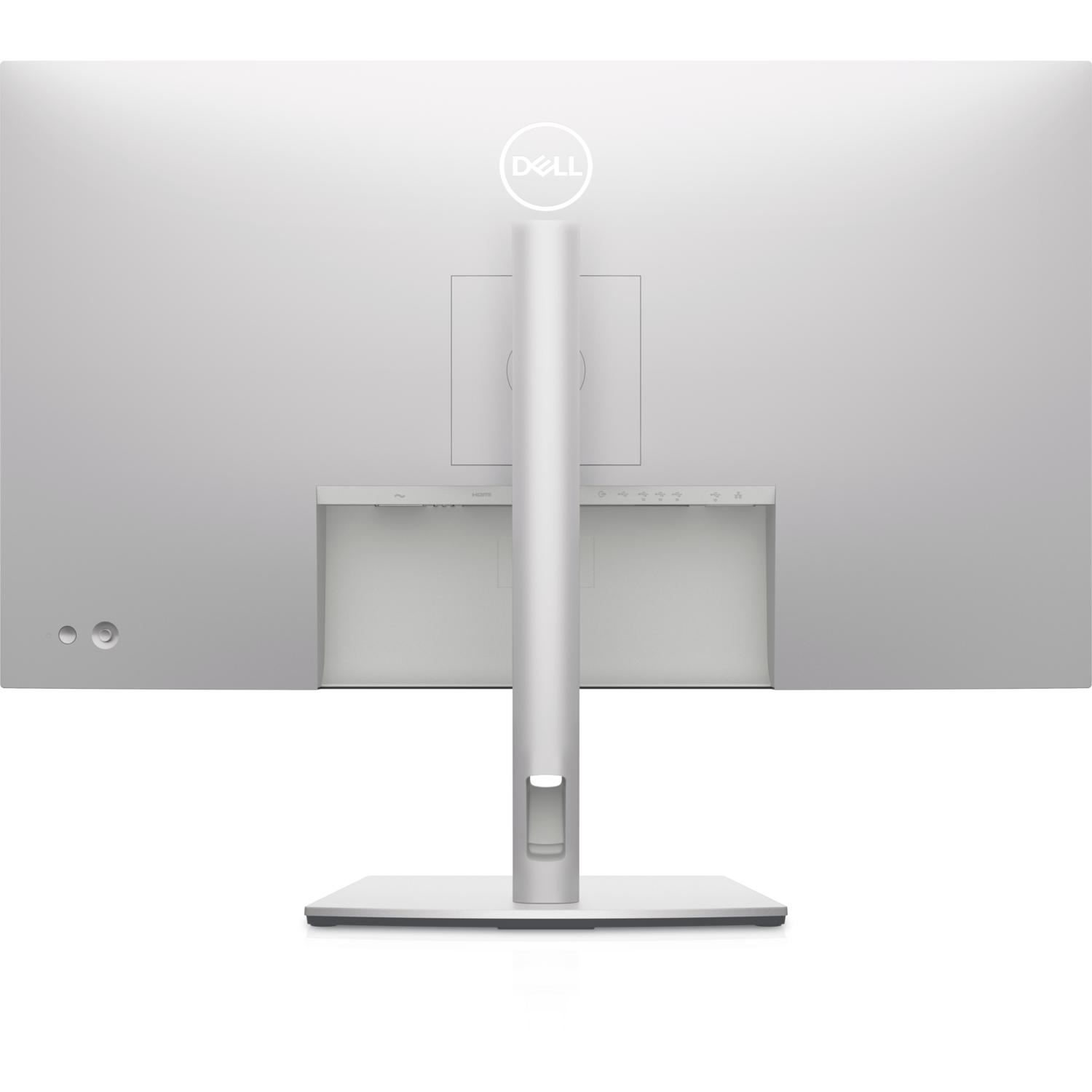

| VESA mount | 100 x 100 mm (behind attached VESA cover) |
| Security | Security lock slot (cable lock sold separately), anti-theft stand lock slot |
Power
| Input voltage | AC 100-240 V (50/60 Hz) |
| Power consumption (on mode, typical) | 29.4 W |
| Energy consumption SDR (on mode) | 29.4 kWh/1000h |
| Energy consumption HDR (on mode) | 26.1 kWh/1000h |
| Power consumption (max) | 220 W |
| Standby | 0.3 W |
| Off mode | 0.2 W |
| Energy class | F (SDR), E (HDR) |
| On/off switch | Yes |
Physical
| Dimensions with stand (W x D x H) | 712.61 x 233.17 x 469.34-618.77 mm (height compressed to extended) |
| Dimensions without stand (W x D x H) | 712.61 x 55.78 x 410.04 mm |
| Weight, panel only (for VESA mount) | 5.65 kg |
| Weight with stand assembly and cables | 10.36 kg |
| Weight with packaging | 14.49 kg |
| Operating temperature | 0 °C to 40 °C |
| Operating humidity | 10% to 80% (non-condensing) |
| Operating altitude | 5000 m max |
Certifications
| Environmental | ENERGY STAR certified, EPEAT Gold registered, TCO Certified Edge |
| Compliance | RoHS compliant, BFR/PVC-free (halogen-free) |
| Materials | Arsenic-free glass and mercury-free (panel only) |
Warranty
| Local Warranty (Singapore) | Dell Singapore: 3-Year Advanced Exchange Service and Premium Panel Exchange; supplied by SourceIT with a GST invoice |
Compatibility & Software Support
PC connection
Connect via HDMI 2.0, DisplayPort 1.4 or USB-C (DP 1.4 Alt Mode). The built-in KVM lets two computers share one keyboard and mouse, with PbP and PiP modes.
USB-C laptops
One USB-C cable carries 4K video, USB data, Ethernet and up to 90 W of charging to a compatible laptop.
Mounting
The stand offers 150 mm height, tilt, swivel and ±90° pivot, and the 5.65 kg panel supports 100 x 100 mm VESA mounting.
Package Contents & Dell UltraSharp Monitors Ordering Information
In the Box
Monitor, stand riser and stand base, 1 x power cable, 1 x USB Type-C cable (C to C, 1 m), 1 x DisplayPort cable (DP to DP, 1.8 m), 1 x SuperSpeed USB cable (Type-A to Type-C), factory calibration report, quick setup guide, and safety, environmental and regulatory information.
Dell UltraSharp Monitors
| Model | Key feature |
| U2421E | 24.1" WUXGA 16:10, USB-C 90 W, RJ45 |
| U2422H | 24" FHD IPS, USB hub |
| U2422HE | 24" FHD IPS, USB-C 90 W, RJ45 |
| U2424H | 24" FHD 120 Hz, USB hub |
| U2424HE | 24" FHD 120 Hz, USB-C 90 W, RJ45 |
| U2520D | 25" QHD IPS, USB-C 90 W |
| U2722D | 27" QHD IPS, USB hub |
| U2722DE | 27" QHD IPS, USB-C 90 W, RJ45 |
| U2723QE | 27" 4K IPS Black, USB-C 90 W, RJ45 |
| U2724D | 27" QHD IPS Black 120 Hz |
| U2724DE | 27" QHD 120 Hz, Thunderbolt 4 90 W |
| U2725QE | 27" 4K 120 Hz, Thunderbolt 4 |
| U3023E | 30" WQXGA 16:10, USB-C 90 W, RJ45 |
| U3223QE (this listing) | 31.5" 4K IPS Black, USB-C 90 W, RJ45 |
| U3224KB | 32" 6K, Thunderbolt 4, webcam |
| U3225QE | 32" 4K 120 Hz, Thunderbolt 4 |
| U3226Q | 32" 4K QD-OLED |
Datasheet & Downloads
| User guide | Dell U3223QE Monitor User's Guide (PDF) |
| Datasheet | Dell U3223QE product datasheet (PDF) |
| Dell Singapore | U3223QE on dell.com/en-sg |
| Manuals & drivers | U3223QE on Dell Support (Singapore) |
| Warranty | Dell Monitor Service & Warranty brochure (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U3223QE.
Frequently Asked Questions — Dell U3223QE
What resolution and panel does the U3223QE use?
A 31.5-inch IPS Black Technology panel at 3840 x 2160 (4K) and 60 Hz, with 2000:1 contrast.
How much power does the USB-C port deliver?
The USB-C upstream port supports DisplayPort 1.4 Alt Mode with Power Delivery up to 90 W.
Can I daisy chain a second monitor?
Yes. Dell lists daisy chain support via the DisplayPort out port.
Does the U3223QE have KVM and Ethernet?
Yes. It has built-in KVM and Auto KVM, plus a 1GbE RJ45 port.
What warranty comes with the U3223QE?
Dell Singapore: 3-Year Advanced Exchange Service and Premium Panel Exchange; supplied by SourceIT with a GST invoice.
