Dell UltraSharp 27 U2724D 27" QHD Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 27 Monitor U2724D (210-BKMS) - 3 Years Local Warranty
IPS Black at 120 Hz
A 27-inch QHD panel with IPS Black technology delivers 2000:1 contrast and 350 cd/m2, now at up to 120 Hz.
Wide, accurate colour
1.07 billion colours with 100% sRGB, 100% BT.709 and 98% DCI-P3 / Display P3, Delta E < 2, and a factory calibration report in the box.
5-star eye comfort
Certified by TÜV with 5-star eye comfort, with ComfortView Plus reducing harmful blue light to less than 35% and an ambient light sensor.
Equipping a team or meeting rooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell U2724D Datasheet — Technical Specifications
General
| Product Name | Dell UltraSharp 27 Monitor - U2724D |
| Model | U2724D |
| Dell SKU | 210-BKMS |
| Local Warranty (Singapore) | 3-Year Advanced Exchange Service and Premium Panel Exchange (Dell), supplied by SourceIT with a GST invoice |
Display
| Diagonal Viewing Size | 27" |
| Preset Display Area (H x V) | 596.74 mm x 335.66 mm / 23.49" x 13.22" / 200,301.74 mm² (310.47 inches²) |
| Panel Type | IPS Black Technology |
| Display Screen Coating | Anti-Glare with 3H hardness |
| Maximum Preset Resolution | 2560 x 1440 at 120 Hz |
| Viewing Angle | 178° vertical / 178° horizontal |
| Pixel Pitch | 0.2331 mm x 0.2331 mm |
| Pixel Per Inch (PPI) | 108.97 |
| Contrast Ratio | 2000 to 1 (typical) |
| Aspect Ratio | 16:9 |
| Backlight Technology | LED Edgelight System |
| Brightness | 350 cd/m² (typical) |
| Response Time | 8 ms (Normal), 5 ms (Fast) |
| HDR Ready | No |
| Ambient Light Sensor | Yes, auto brightness and color temperature adjustment |
| Color Support | 1.07 billion colors |
| Color Gamut | 100% sRGB, 100% BT.709, 98% Display P3, 98% DCI-P3, Delta E < 2 (average) |

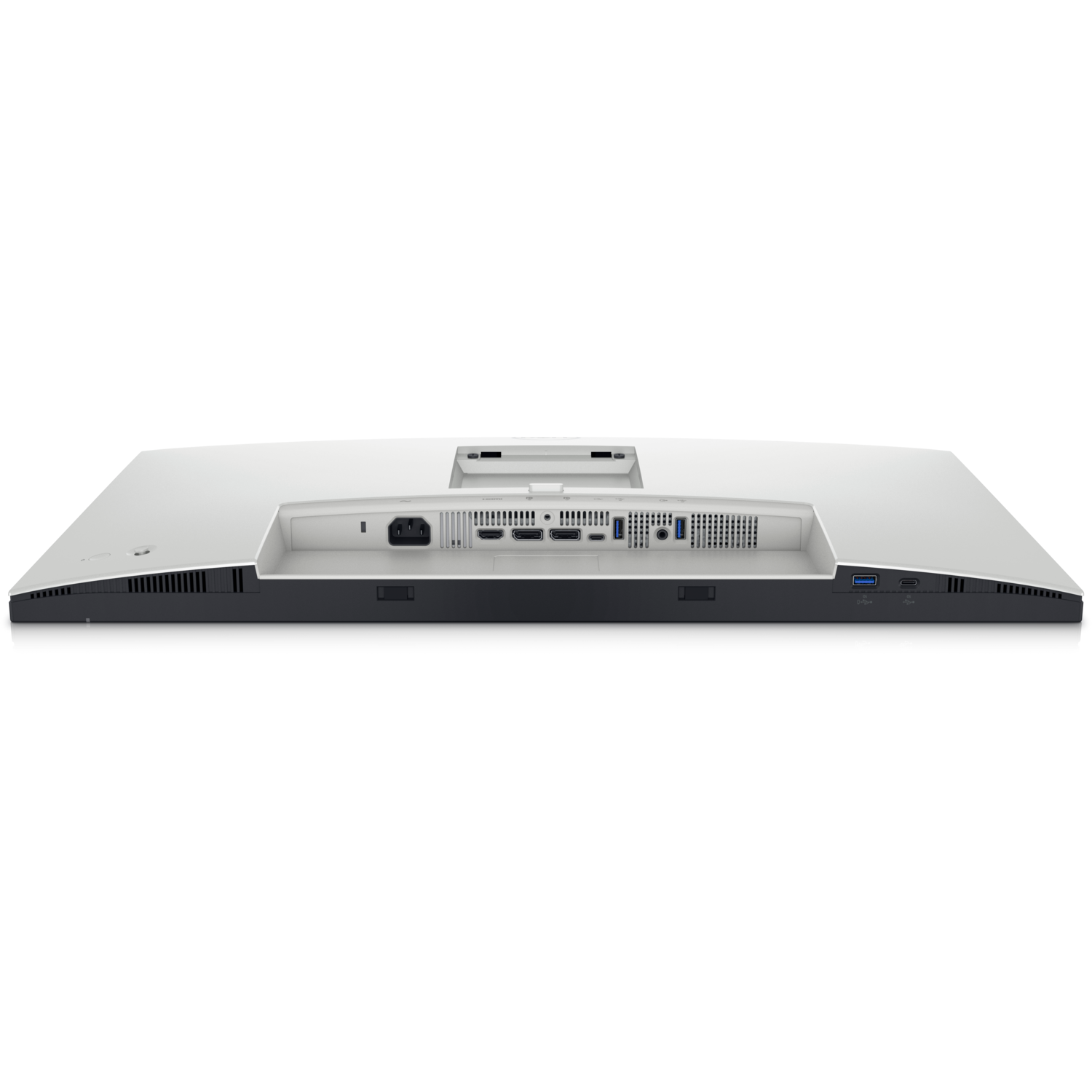

Ports & Connectivity
| Port | 1 x DisplayPort 1.4 (DRR for Microsoft Windows) (Supports 2 x QHD 120Hz 8 bit) |
| Port | 1 x DisplayPort 1.4 (Out) |
| Port | 1 x HDMI (HDCP 1.4)(Supports up to QHD 2560 x 1440 120Hz TMDS, VRR as per specified in HDMI 2.1) |
| Port | 1 x USB-Type C upstream port (data only) (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) |
| Port | 2 x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) |
| Port | 1 x Audio line out |
| Quick access port | 1 x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with BC1.2 power charging |
| Quick access port | 1 x USB Type-C downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with power charging (15W) |
| Daisy Chain Availability | Yes |
| Keyboard, Video and Mouse (KVM) | No |
| PbP / PiP | Yes |
| Audio Output | 1 x Audio line-out |
| Built-in Speaker | No |
Ergonomics / Stand
| Adjustability | Height, Tilt, Swivel, Pivot |
| Height Adjustable | 150 mm |
| Tilt | -5°/+21° |
| Swivel | -45°/+45° |
| Pivot | -90°/+90° |
| Flat Panel Mount Interface | VESA mounting holes (100 mm x 100 mm - behind attached VESA Cover) |
| Security | Security lock slot (cable lock sold separately); Anti-theft stand lock slot |
Power
| Voltage Required | 100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 1.6 A (typical) |
| Power Consumption (On mode) | 23.9 W |
| Power Consumption (Max) | 85 W |
| Power Consumption Standby | 0.5 W |
| Power Consumption (Off Mode) | 0.3 W |
Dimensions & Weight
| Height with stand (Compressed ~ Extended) | 385.58 mm ~ 535.58 mm |
| Width with stand | 612.24 mm |
| Depth with stand | 192.28 mm |
| Height without stand | 352.51 mm |
| Width without stand | 612.24 mm |
| Depth without stand | 50.12 mm |
| Weight (panel only - for VESA mount) | 4.49 kg |
| Weight (with stand assembly and cables) | 6.56 kg |
| Weight (with packaging) | 9.40 kg |
Environmental Conditions
| Temperature Range | Operating: 0°C to 40°C; Non-operating: –20°C to 60°C |
| Humidity Range | Operating: 10% to 80% (non-condensing); Non-Operating: 5% to 90% |
| Altitude | Operating: 5000 m max; Non-Operating: 12192 m max |
Eye Comfort
| TÜV | certified by TÜV with 5-star eye comfort |
| ComfortView Plus | improved ComfortView Plus that reduces harmful blue light to less than 35% |
Compliance / Certifications
| Compliant Standards | ENERGY STAR certified Monitor. EPEAT registered where applicable. TCO Certified & TCO Certified Edge. RoHS Compliant. BFR/PVC Free monitor (excluding external cables). Arsenic-Free glass and Mercury-Free for the panel only. |
Software
| Dell Display Manager Compatibility | Yes, Easy Arrange, Other key features |
Compatibility & Software Support
PC Connection
DisplayPort 1.4 and HDMI (up to 2560 x 1440 at 120 Hz, VRR as specified in HDMI 2.1). A 1.8 m DP cable is included.
USB Hub
USB-C upstream (data only, 10 Gbps) to 2 x USB-A 10 Gbps downstream, plus quick-access USB-C (15 W charging) and USB-A (BC1.2). Audio line-out. The USB-C port does not carry video or laptop charging — see the U2724DE for that.
Multi-monitor
DisplayPort 1.4 out for daisy chaining; PbP/PiP supported; Dell Display Manager compatible.
Mounting
VESA 100 x 100 mm (behind attached VESA cover).
Package Contents & Dell UltraSharp 24 & 27 Monitors Ordering Information
In the Box
Monitor, Stand Riser, Stand Base, Quick setup guide, Safety, Environmental and Regulatory Information, Factory calibration report, 1 x Power cable, 1 x DisplayPort 1.4 cable - 1.8 m, 1 x USB Type-A to USB Type-C Gen 2 cable - 1 m.
Dell UltraSharp 24 & 27 Monitors
| Model | Key feature |
| U2424H | 24" FHD IPS 120 Hz, USB hub |
| U2424HE | 24" FHD 120 Hz, USB-C 90 W, RJ45, KVM |
| U2724D (this listing) | 27" QHD IPS Black 120 Hz, USB hub |
| U2724DE | 27" QHD IPS Black 120 Hz, Thunderbolt 4 90 W, RJ45, KVM |
Datasheet & Downloads
| Datasheet (PDF) | U2724D datasheet on delltechnologies.com |
| Manuals & drivers | U2724D manuals and documents on Dell Support |
| Dell product page | U2724D on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U2724D.
Frequently Asked Questions — Dell U2724D
Can the U2724D charge my laptop over USB-C?
No. Its USB-C upstream port is data only; the quick-access USB-C port provides 15 W charging for accessories. The U2724DE adds Thunderbolt 4 with 90 W charging.
What is the maximum refresh rate?
2560 x 1440 at 120 Hz.
Can I daisy-chain monitors?
Yes, via the DisplayPort 1.4 out port.
What stand adjustments are supported?
Height (150 mm), tilt (-5°/+21°), swivel (-45°/+45°) and pivot (-90°/+90°).
What warranty do I get?
3-Year Advanced Exchange Service and Premium Panel Exchange (Dell), supplied locally by SourceIT with a GST invoice.
