Dell UltraSharp 32 U3225QE 32" 4K Thunderbolt Hub Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 32 4K Thunderbolt Hub Monitor U3225QE (210-BQMF) - 3 Years Local Warranty
IPS Black at 120 Hz
31.5-inch 4K UHD IPS Black panel with 3,000:1 native contrast, up to 120 Hz and 99% DCI-P3 colour.
Thunderbolt 4 hub
Single-cable connection with up to 140 W power delivery, Thunderbolt 4 daisy chaining, 2.5GbE RJ45 and multiple 10Gbps USB-A and USB-C ports.
5-star eye comfort
TÜV Rheinland 5-star eye comfort certified, with ComfortView Plus and an ambient light sensor that adjusts brightness and colour temperature.
Equipping a team or studio? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell U3225QE Datasheet — Technical Specifications
General
| Product Name | Dell UltraSharp 32 4K Thunderbolt Hub Monitor - U3225QE |
| Model | U3225QE |
| Dell SKU | 210-BQMF |
| Local Warranty (Singapore) | 3 Years Limited Hardware and Advanced Exchange Service (Dell), supplied by SourceIT with a GST invoice |
Display
| Screen Size Class | 32" |
| Viewable Screen Size | 31.5" |
| Screen Mode | 4K UHD |
| Panel Technology | In-plane Switching (IPS) Black Technology |
| Maximum Resolution | 3840 x 2160 |
| Refresh Rate | 3840 x 2160 up to 120 Hz |
| Response Time | 5 ms GTG (Fast), 8 ms GTG |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.18159 mm x 0.18159 mm |
| Pixel Per Inch (PPI) | 140 |
| Viewing Angle | 178° horizontal / 178° vertical |
| Colours Supported | 1.07 Billion Colours |
| Native Contrast Ratio | 3,000:1 |
| Brightness | 450 cd/m², 600 cd/m² |
| Colour Gamut | DCI-P3 99% (CIE1976), Display P3 99%, sRGB 100% (CIE1931), BT.709 100%, Delta E <1.5 (Average) |
| HDR | VESA Certified DisplayHDR 600 |

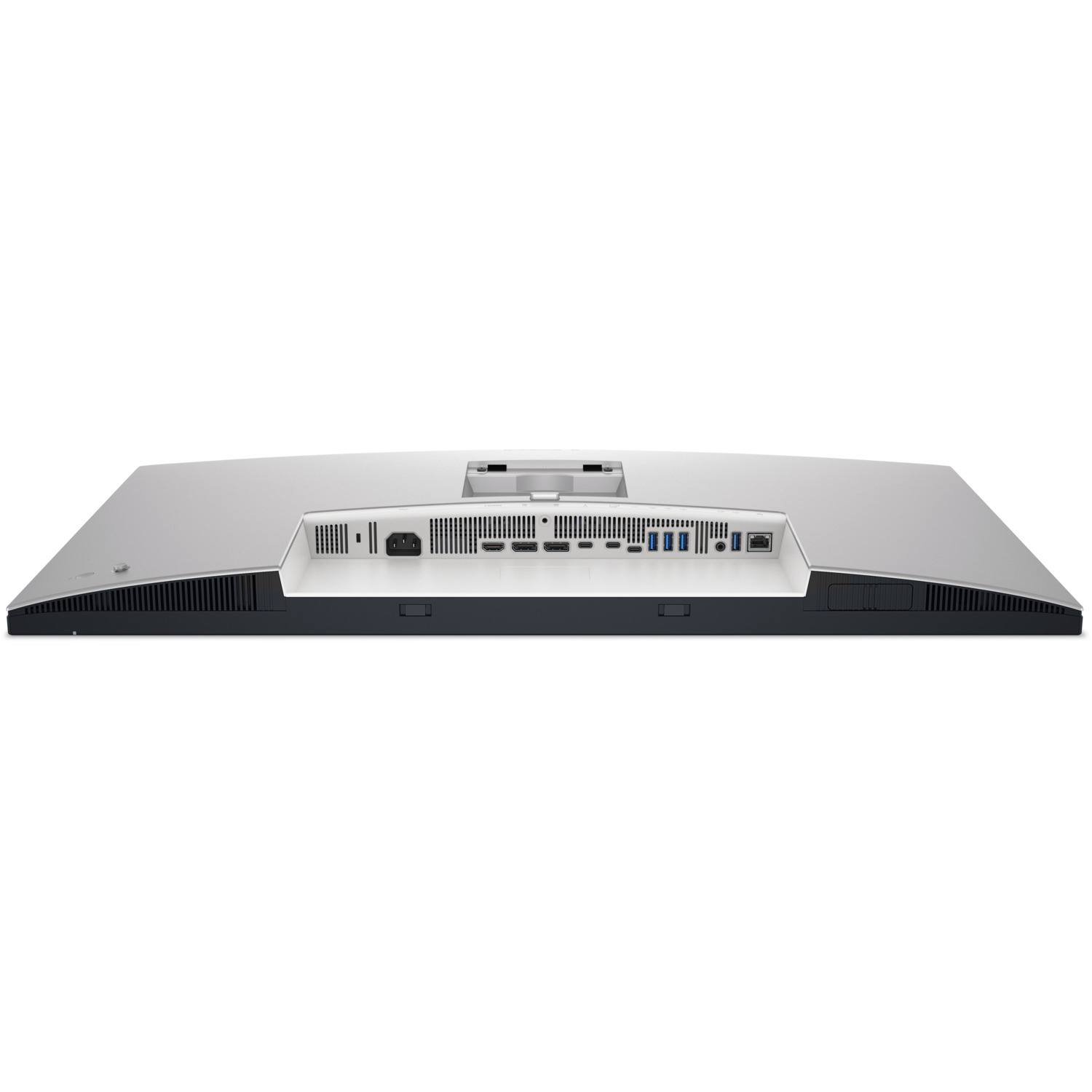

Ports & Connectivity
| Thunderbolt 4 upstream | 1 x Thunderbolt 4 upstream port (DP1.4 with HDCP 2.2, DSC support, PD: Up to 140W EPR, 2/4 Lanes switching) |
| Thunderbolt 4 downstream | 1 x Thunderbolt 4 downstream port (Downstream, Daisy Chain, 15 W) |
| HDMI | 1 x HDMI port (Supports up to UHD 3840 x 2160 120Hz FRL, VRR as per HDMI2.1) |
| DisplayPort in | 1 x DisplayPort 1.4 port with DSC support (DRR for Microsoft Windows) |
| DisplayPort out | 1 x DisplayPort 1.4 port out |
| USB-C upstream | 1 x USB-C (USB 10Gbps KVM) upstream port |
| USB-C downstream | 2 x USB-C 10Gbps downstream ports |
| USB-A | 4 x USB Type-A ports 10Gbps; 1 x USB Type-A 10Gbps port with BC 1.2 |
| Ethernet | 1 x RJ45 Ethernet port, 2.5GbE |
| Audio | 1 x Analog 2.0 audio line out port (3.5 mm jack) |
| USB Type-C Power Delivery | Up to 140W EPR |

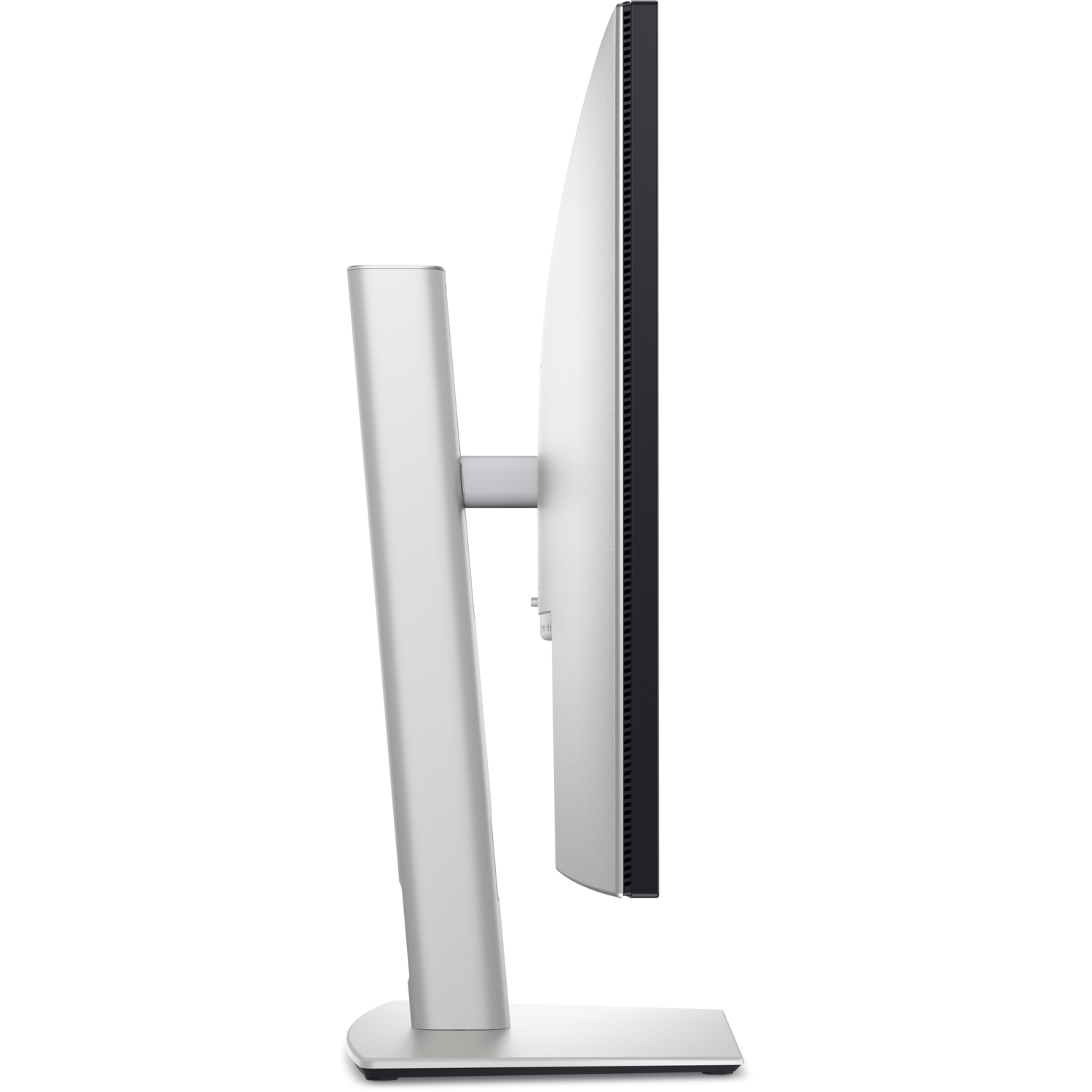

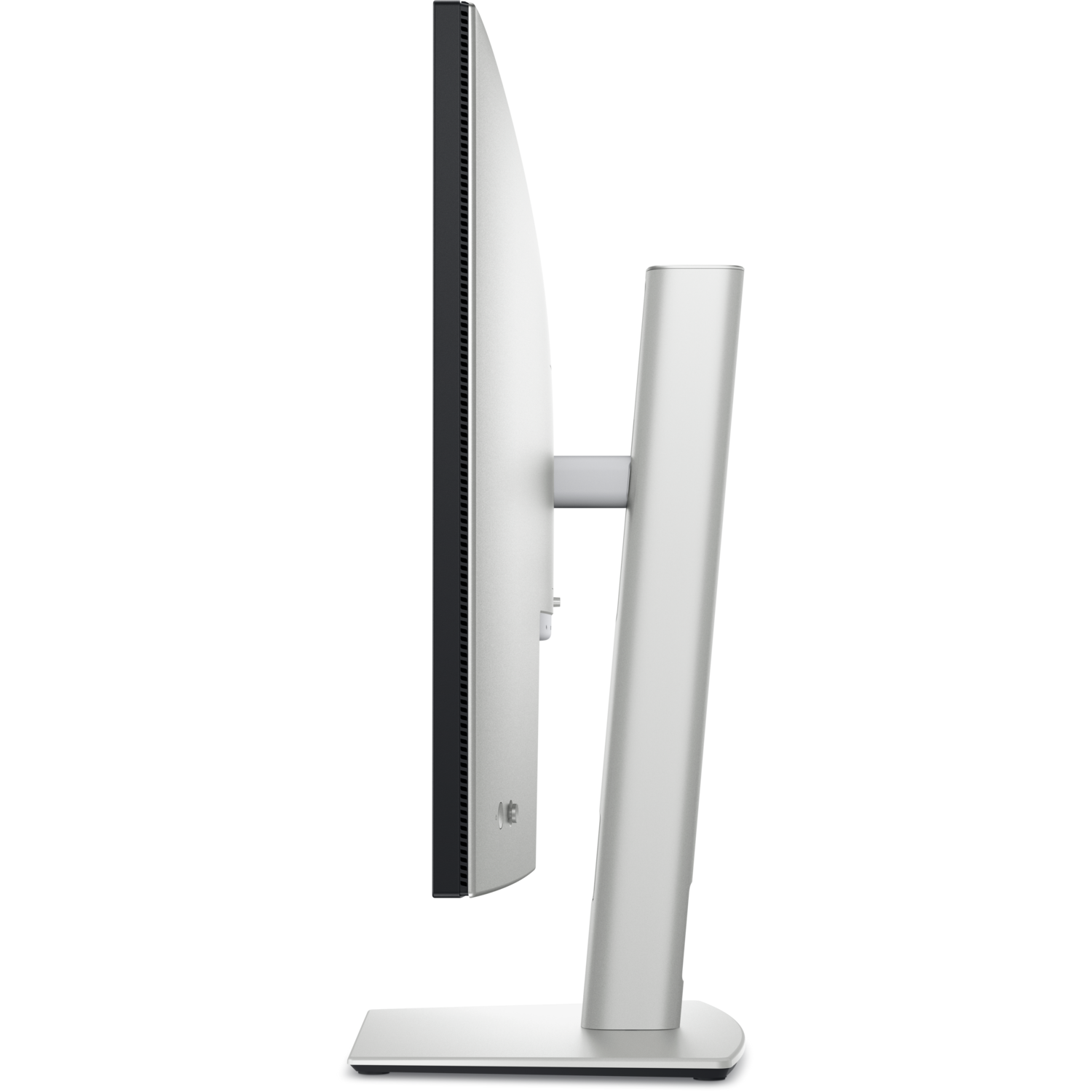

Ergonomics / Stand
| Height Adjustment | Up to 150 mm |
| Tilt | -5° / +21° |
| Swivel | -30° / +30° |
| Pivot | -90° / +90° |
| VESA Mount | 100 x 100 |
Power
| Input Voltage Range | 100V AC to 240V AC |
| Frequency | 60 Hz, 50 Hz |
| Current | 4.20 A |
| Operating Power Consumption | 30.50 W |
| Standby Power Consumption | 0.5 W |
| Off-Mode Power Consumption | 0.3 W |
| Maximum Power Consumption | 335 W |
Dimensions & Weight
| Dimensions without Stand (H x W x D) | 410.34 mm x 713.20 mm x 57.50 mm |
| Height with Stand | 468.94 mm (compressed) to 618.94 mm (extended) |
| Width with Stand | 713.20 mm |
| Depth with Stand | 215 mm |
| Weight (panel only, approx.) | 6.52 kg |
| Weight with Stand (approx.) | 9.34 kg |
Environmental Conditions
| Operating Temperature | 0°C to 40°C |
| Non-operating Temperature | -20°C to 60°C |
| Operating Humidity | 10% to 80% (Non-condensing) |
| Non-operating Humidity | 5% to 90% (Non-condensing) |
| Maximum Operating Altitude | 4998.72 m |
| Maximum Non-operating Altitude | 12192 m |
Eye Comfort
| ComfortView Plus | Improved ComfortView Plus technology reduces blue light emission to less than 35% |
| Certification | TÜV Rheinland 5-star eye comfort certified |
| Ambient Light Sensor | Yes - automatically adjusts brightness and colour temperature |
Compliance / Certifications
| Energy Efficiency | ENERGY STAR 8.0; Energy-related Products Directive Lot 5 (ErP Lot 5) |
| Environmental Certification | TCO Certified Edge; TCO Certified |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other | EPEAT registered; BFR/PVC free |
| Country of Origin | China |
Audio / Camera
| Audio Line Out | Yes - 3.5 mm analog 2.0 line out (no built-in speakers or camera) |
Software
| Dell Display Manager Compatibility | Yes |
Compatibility & Software Support
Laptop & PC Connection
1 x Thunderbolt 4 upstream port (DP1.4 with HDCP 2.2, DSC support, PD: Up to 140W EPR, 2/4 Lanes switching); 1 x Thunderbolt 4 downstream port (Downstream, Daisy Chain, 15 W); 1 x HDMI port (Supports up to UHD 3840 x 2160 120Hz FRL, VRR as per HDMI2.1); 1 x DisplayPort 1.4 port with DSC support (DRR for Microsoft Windows); 1 x DisplayPort 1.4 port out; 1 x USB-C (USB 10Gbps KVM) upstream port; 2 x USB-C 10Gbps downstream ports; 4 x USB Type-A ports 10Gbps; 1 x USB Type-A 10Gbps port with BC 1.2; 1 x RJ45 Ethernet port, 2.5GbE; 1 x Analog 2.0 audio line out port (3.5 mm jack); USB Type-C Power Delivery: Up to 140W EPR.
Software
Dell Display Manager Compatibility: Yes.
Mounting
VESA Mount: 100 x 100.
Package Contents & Dell UltraSharp 27 to 49-inch Hub & Creator Monitors Ordering Information
In the Box
Monitor with stand, Power cable, DisplayPort to DisplayPort cable (1.80 m), USB Type-A to Type-C upstream cable (1.00 m), Thunderbolt 4 passive cable (1.00 m), Drivers and documentation media, QR card, Safety information.
Dell UltraSharp 27 to 49-inch Hub & Creator Monitors
| Model | Key feature |
| U2725QE | 27" 4K IPS Black 120 Hz, HDR 600, Thunderbolt 4 140 W, 2.5GbE RJ45 |
| U3224KB | 32" 6K IPS Black, HDR 600, 4K webcam + 2x14W speakers, Thunderbolt 4 140 W, RJ45 |
| U3225QE (this listing) | 32" 4K IPS Black 120 Hz, Thunderbolt 4 140 W, RJ45 2.5GbE |
| U3226Q | 32" 4K QD-OLED 120 Hz, built-in colorimeter, Thunderbolt 4 140 W, RJ45 |
| U3425WE | 34" WQHD 1900R IPS Black 120 Hz, Thunderbolt 4 90 W, RJ45, KVM |
| U3824DW | 38" WQHD+ 2300R IPS Black 60 Hz, USB-C 90 W, RJ45, KVM |
| U4025QW | 40" 5K2K (5120x2160) IPS Black 120 Hz curved, Thunderbolt 4 140 W, RJ45 |
| U4924DW | 49" DQHD (5120x1440) IPS Black 60 Hz curved, USB-C 90 W, RJ45 |
Datasheet & Downloads
| Datasheet (PDF) | U3225QE datasheet on delltechnologies.com |
| Product page | U3225QE on dell.com Singapore |
| Manuals & drivers | U3225QE manuals and documents on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U3225QE.
Frequently Asked Questions — Dell U3225QE
Can the U3225QE charge my laptop?
Yes. The Thunderbolt 4 upstream port delivers up to 140 W (EPR) power to a connected laptop.
What refresh rate does it support at 4K?
3840 x 2160 up to 120 Hz.
Does it have a wired network port?
Yes, a built-in RJ45 2.5GbE Ethernet port.
Can I daisy-chain a second monitor?
Yes. It has a Thunderbolt 4 downstream port for daisy chaining and a DisplayPort 1.4 out port.
What warranty does it come with in Singapore?
Dell Singapore lists 3 Years Limited Hardware and Advanced Exchange Service.
