Dell UltraSharp 24 U2424HE 24" FHD USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 24 USB-C Hub Monitor U2424HE (210-BKMQ) - 3 Years Local Warranty
One-cable USB-C hub
A single USB-C connection carries video, data and up to 90 W of power to your laptop, with 2.5GbE RJ45, 10 Gbps USB ports and a built-in KVM.
Smooth 120 Hz, accurate colour
Full HD IPS at 120 Hz with 100% sRGB, 100% BT.709 and 85% DCI-P3 coverage, factory calibrated to Delta E < 2.
Comfort all day
TÜV 4-star eye comfort, an ambient light sensor that adjusts brightness and colour temperature, and a stand with height, tilt, swivel and pivot.
Equipping a team or meeting rooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell U2424HE Datasheet — Technical Specifications
General
| Product Name | Dell UltraSharp 24 USB-C® Hub Monitor - U2424HE |
| Model | U2424HE |
| Dell SKU | 210-BKMQ |
| Local Warranty (Singapore) | 3-Year Advanced Exchange Service and Premium Panel Exchange (Dell), supplied by SourceIT with a GST invoice |
| Diagonal Viewing Size | 604.70 mm / 23.80 inches |
| Panel Type | IPS |
| Display Screen Coating | Anti-Glare with 3H hardness |
| Aspect Ratio | 16:9 |
Display
| Maximum Preset Resolution | 1920 x 1080 at 120 Hz |
| Preset Display Area (H x V) | 527.04 mm x 296.46 mm / 20.75" x 11.67" |
| Viewing Angle | 178° vertical / 178° horizontal |
| Pixel Pitch | 0.2745 mm x 0.2745 mm |
| Pixel Per Inch (PPI) | 92.53 |
| Contrast Ratio | 1000 to 1 (typical) |
| Backlight Technology | LED Edgelight System |
| Brightness | 250 cd/m2 (typical) |
| Response Time | 8 ms (Normal) / 5 ms (Fast) |
| HDR Ready | No |
| Ambient Light Sensor | Yes, auto brightness and color temperature adjustment |
| Color Support | 16.7 million colors |
| Color Gamut | 100% sRGB, 100% BT.709, 85% DCI-P3, Delta E < 2 (average) (sRGB, BT.709) |

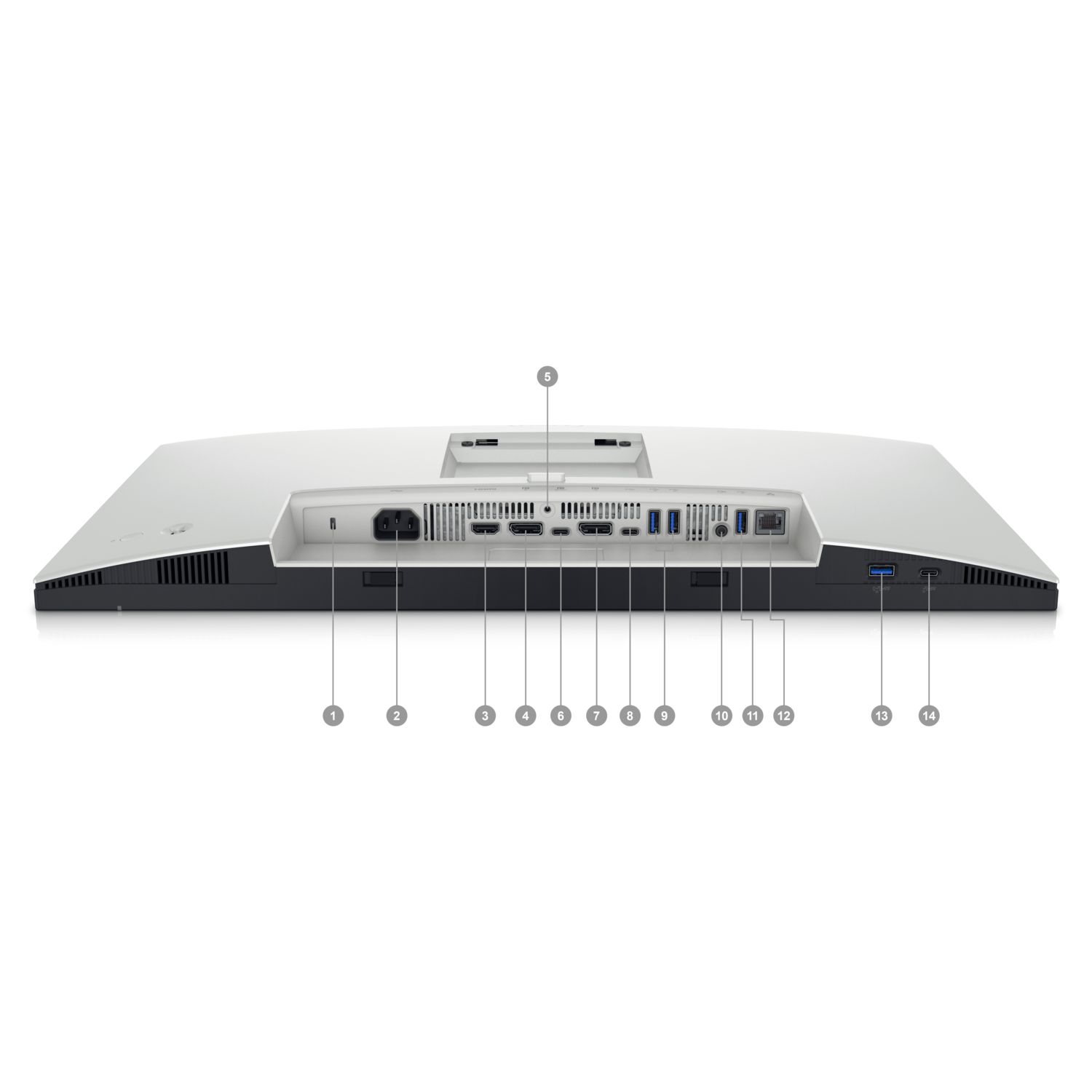

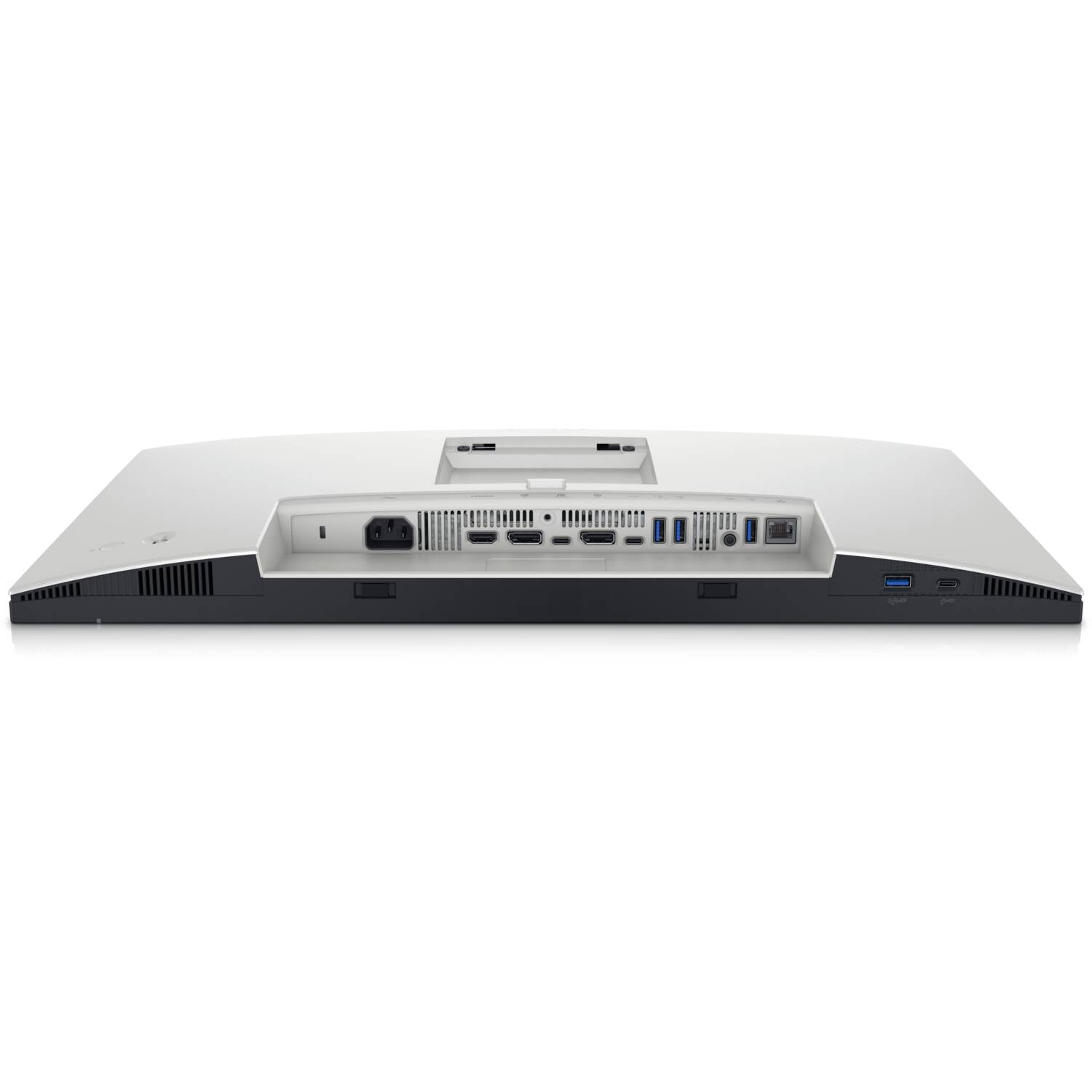

Connectivity/Ports
| Ports | 1 x DisplayPort version 1.4 (DRR for Microsoft Windows) (HDCP 1.4) (supports up to FHD 1920 x 1080 120 Hz) |
| Ports | 1 x HDMI (HDCP 1.4)(supports up to FHD 1920 x 1080 120Hz TMDS as per specified in HDMI 1.4) |
| Ports | 1 x DisplayPort 1.4 (Out) with MST (HDCP 1.4) |
| Ports | 1 x USB Type-C upstream port (video and data) (Alternate mode with DisplayPort 1.4, Power Delivery PD up to 90 W) |
| Ports | 1 x USB Type-C upstream port (data only, 10 Gbps USB 3.2 Gen2) |
| Ports | 3 x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) |
| Ports | 1 x Audio line out |
| Ports | 1 x RJ45 Ethernet port, 2.5GbE |
| Quick Access Ports | 1 x USB Type-C downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with power charging (15W) |
| Quick Access Ports | 1 x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with BC1.2 power charging |
| Keyboard, Video and Mouse (KVM) | Yes |
| Daisy Chain Availability | Yes |
| PbP / PiP | No |
| Audio Output | 1 x Audio line-out |
| Built-in Speaker | No |

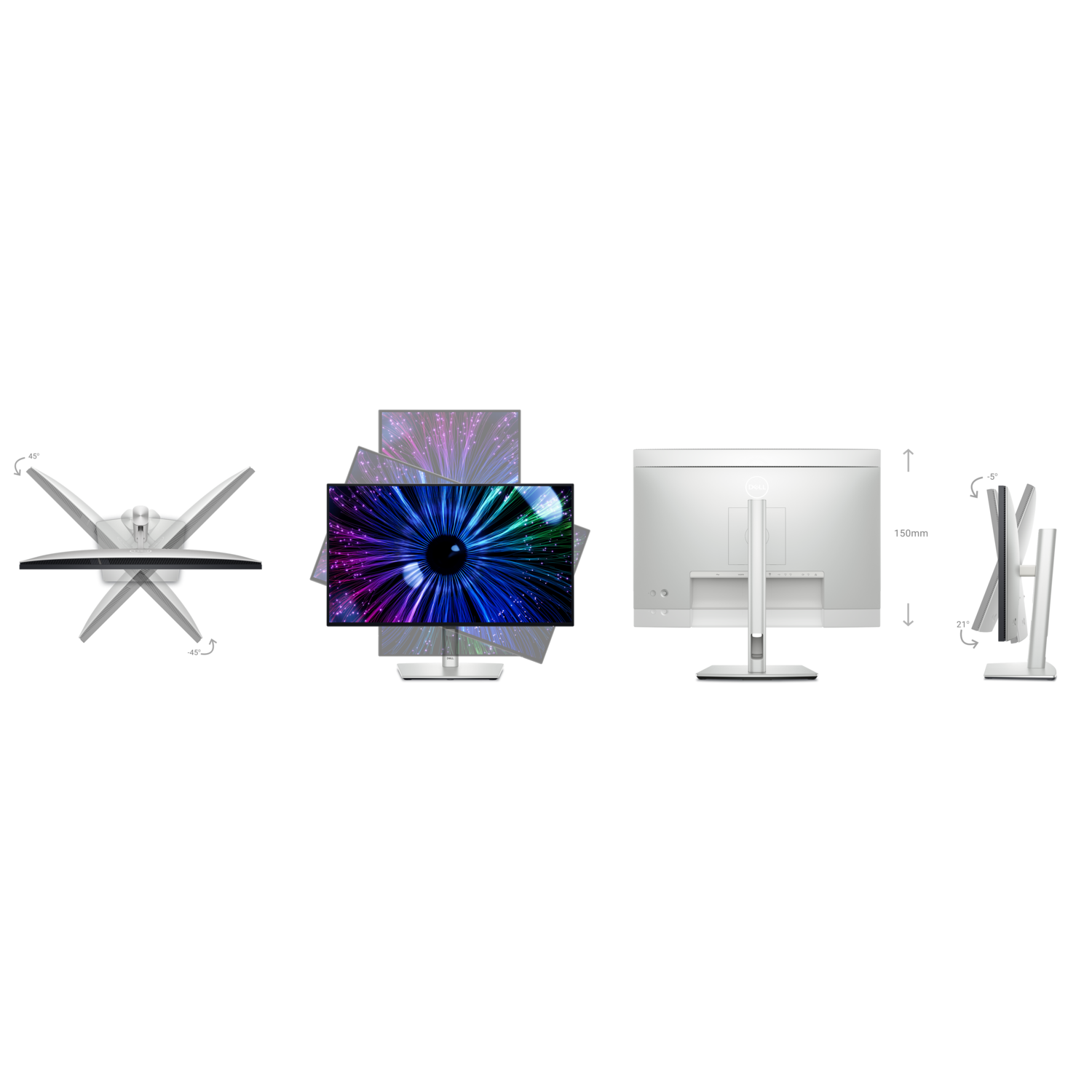

Ergonomics/Stand
| Adjustability | Height, Tilt, Swivel, Pivot |
| Height adjustable | 150 mm |
| Tilt | -5°/+21° |
| Swivel | -45°/+45° |
| Pivot | -90°/+90° |
| Security | Security lock slot (cable lock sold separately) / Anti-theft stand lock slot (to lock stand to monitor using screw) |
| Flat Panel Mount Interface | VESA mounting holes (100 mm x 100 mm - behind attached VESA Cover) |
Power
| Voltage Required | 100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 2.2 A (typical) |
| Power Consumption (On mode) | 14.5 W |
| Power Consumption (Max) | 210.0 W |
| Power Consumption Stand by | 0.5 W |
| Power Consumption (Off Mode) | 0.3 W |
| Networked standby mode | 1.5 W |
Dimensions/Weight
| Height with stand (Compressed ~ Extended) | 364.00 mm ~ 496.53 mm |
| Width with stand | 538.64 mm |
| Depth with stand | 181.75 mm |
| Height without stand | 311.21 mm |
| Width without stand | 538.64 mm |
| Depth without stand | 49.10 mm |
| Weight (panel only - for VESA mount) | 3.98 kg |
| Weight (with stand assembly and cables) | 5.91 kg |
| Weight (with packaging) | 7.29 kg |
Environmental/Certifications
| Compliant Standards | ENERGY STAR certified monitor / EPEAT registered where applicable / RoHS-compliant / TCO Certified & TCO Certified Edge / BFR/PVC free monitor (excluding external cables) / Arsenic-free glass and Mercury-free for the panel only |
| Temperature Range | Operating: 0°C to 40°C (32°F to 104°F) / Non-operating: –20°C to 60°C (–4°F to 140°F) |
| Humidity Range | Operating: 10% to 80% (non-condensing) / Non-Operating: 5% to 90% (non-condensing) |
| Altitude | Operating: 5000 m (16404 ft) max / Non-Operating: 12192 m (40000 ft) max |
Eye Comfort
| TÜV eye comfort | Certified by TÜV for 4-star eye comfort |
Software
| Dell Display Manager Compatibility | Yes, Easy Arrange, Other key features |
Compatibility & Software Support
Laptop & PC Connection
USB-C upstream (DisplayPort 1.4 Alt Mode, Power Delivery up to 90 W), a second USB-C upstream for data only (10 Gbps), DisplayPort 1.4 and HDMI inputs. Both USB-C and DP cables are included.
Hub & Network
3 x USB-A 10 Gbps downstream, quick-access USB-C (15 W charging) and USB-A (BC1.2), 2.5GbE RJ45, audio line-out, DisplayPort out with MST for daisy chaining. KVM: Yes.
Software
Dell Display Manager compatible (Easy Arrange and other key features).
Mounting
VESA 100 x 100 mm (behind attached VESA cover).
Package Contents & Dell UltraSharp 24 & 27 Monitors Ordering Information
In the Box
Monitor, Stand Riser, Stand Base, Quick setup guide, Safety, Environmental and Regulatory Information, Factory calibration report; cables: 1 x Power cable, 1 x DisplayPort 1.4 cable - 1.8 m, 1 x USB Type-C to USB Type-C Gen 2 cable - 1 m, 1 x USB Type-A to USB Type-C Gen 2 cable - 1 m.
Dell UltraSharp 24 & 27 Monitors
| Model | Key feature |
| U2424H | 24" FHD IPS 120 Hz, USB hub |
| U2424HE (this listing) | 24" FHD 120 Hz, USB-C 90 W, RJ45, KVM |
| U2724D | 27" QHD IPS Black 120 Hz, USB hub |
| U2724DE | 27" QHD IPS Black 120 Hz, Thunderbolt 4 90 W, RJ45, KVM |
Datasheet & Downloads
| Datasheet (PDF) | U2424HE datasheet on delltechnologies.com |
| Manuals & drivers | U2424HE manuals and documents on Dell Support |
| Dell product page | U2424HE on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U2424HE.
Frequently Asked Questions — Dell U2424HE
Can the U2424HE charge my laptop?
Yes, the USB-C upstream port delivers up to 90 W.
Does it have Ethernet?
Yes, a 2.5GbE RJ45 port.
Can I daisy-chain a second monitor?
Yes, via the DisplayPort 1.4 out port with MST.
What is the maximum refresh rate?
1920 x 1080 at 120 Hz.
What warranty do I get?
3-Year Advanced Exchange Service and Premium Panel Exchange (Dell), supplied locally by SourceIT with a GST invoice.
