Dell UltraSharp 32 U3224KB 32" 6K Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 32 6K Monitor U3224KB (210-BHRP) - 3 Years Local Warranty
6K IPS Black clarity
A 31.5-inch 6144 x 3456 IPS Black panel at 223 PPI with 2000:1 contrast, VESA DisplayHDR 600 and 99% DCI-P3 coverage.
Built-in 4K conferencing
An integrated 8MP 4K HDR webcam with 65/78/90 degree field of view and 5x digital zoom, dual array microphones and 2 x 14W speakers.
Thunderbolt 4 hub
Thunderbolt 4 with up to 140W power delivery, daisy chaining, 2.5GbE RJ45, KVM and 10Gbps USB-A and USB-C ports.
Equipping a team or studio? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell U3224KB Datasheet — Technical Specifications
General
| Product Name | Dell UltraSharp 32 6K Monitor - U3224KB |
| Model | U3224KB |
| Dell SKU | 210-BHRP |
| Local Warranty (Singapore) | 3-Year Advanced Exchange Service and Premium Panel Exchange (Dell), supplied by SourceIT with a GST invoice |
Display
| Diagonal Viewing Size | 79.94 cm (31.5 inches) |
| Preset Display Area (H x V) | 696.73 mm x 391.91 mm (27.43" x 15.43") |
| Panel Type | IPS Black Technology |
| Maximum Preset Resolution | 6144 x 3456 at 60Hz |
| Aspect Ratio | 16:9 |
| Viewing Angle (Typical) | 178° vertical / 178° horizontal |
| Pixel Pitch | 0.1134 mm x 0.1134 mm |
| Pixel Per Inch (PPI) | 223 |
| Contrast Ratio | 2000 to 1 (typical) |
| Backlight Technology | LED |
| Brightness | 450 cd/m² (typical) |
| HDR | VESA DisplayHDR 600 |
| Color Gamut | 100% sRGB, 100% Rec. 709, 99% DCI-P3, 99% Display-P3 |
| Color Depth | 1.07 billion colors |
| Response Time | 5 ms gray to gray in Fast mode; 8 ms gray to gray in Normal mode |
| Display Screen Coating | Anti-glare treatment of the front polarizer (3H) hard coating |
Ports & Connectivity
| Port | 1 x Mini DisplayPort 2.1 (HDCP 2.2) - Supports up to 6K 6144 x 3456 60Hz 10bit HDR |
| Port | 1 x HDMI (HDCP 2.2) - Supports up to 6K 6144 x 3456 60Hz 10bit FRL, HDR per HDMI 2.1 |
| Port | 1 x Thunderbolt 4 upstream (140W EPR) with DSC (Alternate mode with DisplayPort 1.4/1.2, USB 3.2 Gen 2 upstream port, Power Delivery up to 140W EPR) |
| Port | 1 x Thunderbolt 4 downstream (15W) for video output under daisy chain |
| Port | 1 x USB-C PD3.1 (Extended Power Range 140W EPR) |
| Port | 4 x super speed USB 10Gbps (USB 3.2 Gen 2) |
| Port | 1 x RJ45 Ethernet port, 2.5GbE |
| Quick Access Port | 1 x USB-A (USB 3.2 Gen 2 10Gbps) with BC1.2 |
| Quick Access Port | 2 x USB Type-C downstream (15W), USB 3.2 Gen 2 (10Gbps) |
| PbP / PiP | Yes for both |
| KVM | Yes, KVM and Auto-KVM |
| Daisy Chain Availability | Yes |
Ergonomics / Stand
| Height Adjustment | 160 mm |
| Tilt | -5° to 21° |

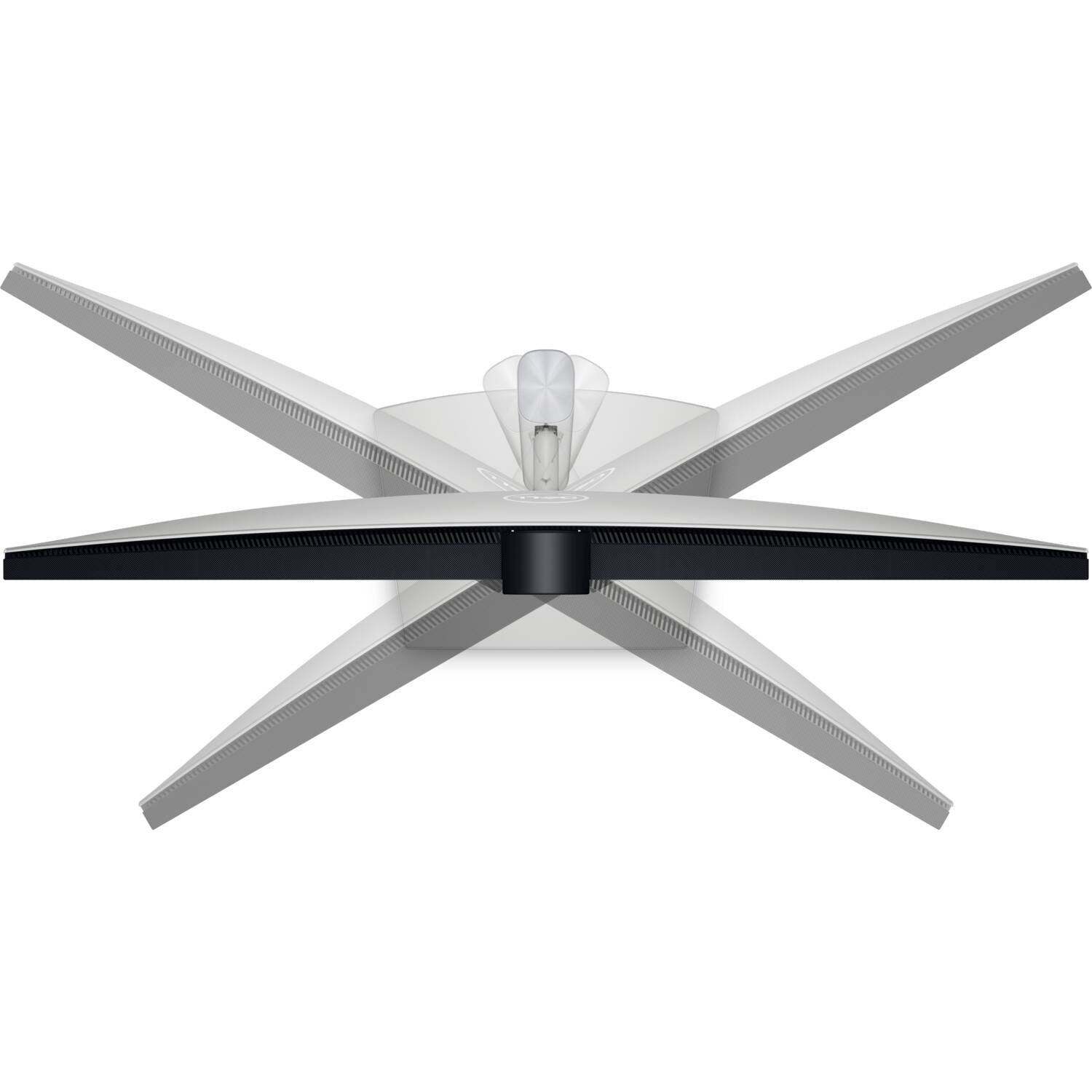

| Swivel | -30° to 30° |
| Pivot | -90° to 90° |
| Flat Panel Mount Interface | VESA mounting holes (100 mm x 100 mm - behind attached VESA Cover) |
| Security | Security lock slot (cable lock sold separately) (based on Kensington Security Slot) |
Power
| Voltage Required | 100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 4.6 A (typical) |
| Power Consumption (Normal Operation) | 56.73 W |
| Power Consumption (Standby Mode) | 0.26 W |
| Power Consumption (Off Mode) | 0.25 W |
| Power Consumption (Maximum) | 420 W |
Dimensions & Weight
| Height with Stand (Compressed ~ Extended) | 522.63 mm ~ 682.63 mm (20.58" ~ 26.88") |
| Width with Stand | 717.42 mm (28.24") |
| Depth with Stand | 237 mm (9.33") |
| Height without Stand | 486.64 mm (19.16") |
| Width without Stand | 717.42 mm (28.24") |
| Depth without Stand | 66.29 mm (2.61") |
| Weight (Panel Only - For VESA Mount) | 8.61 kg (18.98 lb) |
| Weight (With Stand Assembly and Cables) | 13.30 kg (29.32 lb) |
| Weight (With Packaging) | 17.70 kg (39.02 lb) |
Environmental Conditions
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Non-operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 10% to 80% (non-condensing) |
| Non-operating Humidity | 5% to 90% (non-condensing) |
| Operating Altitude | 5000 m (16404 ft) max |
| Non-operating Altitude | 12192 m (40000 ft) max |
Eye Comfort
| Low Blue Light | ComfortView Plus - an always-on, built-in low blue light screen |
Compliance / Certifications
| Compliant Standards | ENERGY STAR certified Monitor, EPEAT registered where applicable, TCO Certified & TCO Certified Edge, RoHS Compliant, BFR/PVC Free monitor (excluding external cables), Meets NFPA 99 leakage current requirements, Arsenic-Free glass and Mercury-Free for the panel only |
Audio / Camera
| Camera Type | 4K Digital Overlap (DOL) HDR webcam |
| Active Array Size | 8 mega-pixel |
| Video Frame Rate | 3840 x 2160 (4K UHD) up to 30 fps; 1920 x 1080 (Full HD) up to 60 fps |
| Field of View | 65/78/90 degrees |
| Zoom | 5x digital zoom |
| Windows Hello | Yes, compatible with non-Enhanced Sign-In Security (ESS) systems |
| Built-in Microphones | Dual Array Microphones |
| Built-in Speaker | 2 x 14W |
Software
| Dell Display Manager Compatibility | Yes, Easy Arrange and other key features |
Compatibility & Software Support
Laptop & PC Connection
1 x Mini DisplayPort 2.1 (HDCP 2.2) - Supports up to 6K 6144 x 3456 60Hz 10bit HDR; 1 x HDMI (HDCP 2.2) - Supports up to 6K 6144 x 3456 60Hz 10bit FRL, HDR per HDMI 2.1; 1 x Thunderbolt 4 upstream (140W EPR) with DSC (Alternate mode with DisplayPort 1.4/1.2, USB 3.2 Gen 2 upstream port, Power Delivery up to 140W EPR); 1 x Thunderbolt 4 downstream (15W) for video output under daisy chain; 1 x USB-C PD3.1 (Extended Power Range 140W EPR); 4 x super speed USB 10Gbps (USB 3.2 Gen 2); 1 x RJ45 Ethernet port, 2.5GbE; 1 x USB-A (USB 3.2 Gen 2 10Gbps) with BC1.2; 2 x USB Type-C downstream (15W), USB 3.2 Gen 2 (10Gbps); PbP / PiP: Yes for both; KVM: Yes, KVM and Auto-KVM; Daisy Chain Availability: Yes.
Software
Dell Display Manager Compatibility: Yes, Easy Arrange and other key features.
Mounting
Flat Panel Mount Interface: VESA mounting holes (100 mm x 100 mm - behind attached VESA Cover).
Package Contents & Dell UltraSharp 27 to 49-inch Hub & Creator Monitors Ordering Information
In the Box
Monitor, Stand Riser, Stand Base, 1 x Power cable, 1 x Thunderbolt 4 (C-C cable) - 1.5 m, 1 x mDP Cable (mDP to mDP) - 1 m, 1 x USB 3.2 Gen 2 (Type A to Type C) - 1 m, Factory calibration report, Quick setup guide, Safety, Environmental and Regulatory Information.
Dell UltraSharp 27 to 49-inch Hub & Creator Monitors
| Model | Key feature |
| U2725QE | 27" 4K IPS Black 120 Hz, HDR 600, Thunderbolt 4 140 W, 2.5GbE RJ45 |
| U3224KB (this listing) | 32" 6K IPS Black, HDR 600, 4K webcam + 2x14W speakers, Thunderbolt 4 140 W, RJ45 |
| U3225QE | 32" 4K IPS Black 120 Hz, Thunderbolt 4 140 W, RJ45 2.5GbE |
| U3226Q | 32" 4K QD-OLED 120 Hz, built-in colorimeter, Thunderbolt 4 140 W, RJ45 |
| U3425WE | 34" WQHD 1900R IPS Black 120 Hz, Thunderbolt 4 90 W, RJ45, KVM |
| U3824DW | 38" WQHD+ 2300R IPS Black 60 Hz, USB-C 90 W, RJ45, KVM |
| U4025QW | 40" 5K2K (5120x2160) IPS Black 120 Hz curved, Thunderbolt 4 140 W, RJ45 |
| U4924DW | 49" DQHD (5120x1440) IPS Black 60 Hz curved, USB-C 90 W, RJ45 |
Datasheet & Downloads
| Datasheet (PDF) | U3224KB datasheet on delltechnologies.com |
| Product page | U3224KB on dell.com Singapore |
| Manuals & drivers | U3224KB manuals and documents on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U3224KB.
Frequently Asked Questions — Dell U3224KB
What resolution is the U3224KB?
6K: 6144 x 3456 at 60Hz on a 31.5-inch IPS Black panel, 223 pixels per inch.
Does it have a built-in webcam and speakers?
Yes. It has an 8MP 4K HDR webcam (up to 4K 30 fps or Full HD 60 fps), dual array microphones and 2 x 14W speakers. The webcam is Windows Hello compatible with non-ESS systems.
Can it charge my laptop?
Yes. The Thunderbolt 4 upstream port supplies up to 140W EPR power delivery along with video and USB data.
Which Mac or PC connections are supported?
Thunderbolt 4, HDMI (6K 60Hz per HDMI 2.1) and Mini DisplayPort 2.1 inputs, plus a Thunderbolt 4 downstream port for daisy chaining.
What warranty is included?
3-Year Advanced Exchange Service and Premium Panel Exchange, which replaces the monitor even if only one bright pixel is found during the warranty period.
