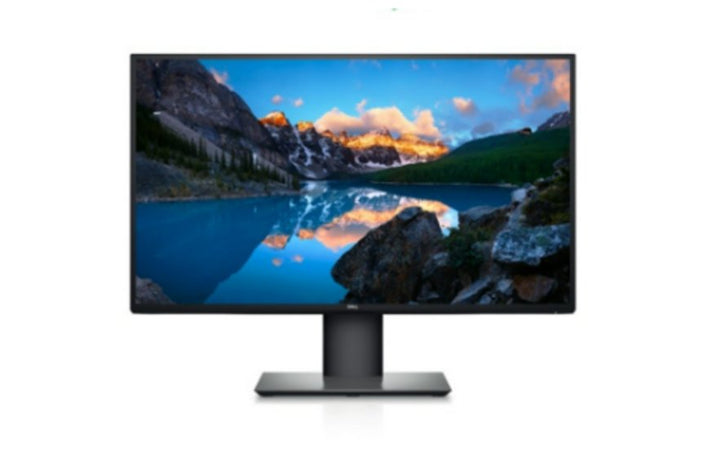

Dell UltraSharp 25 U2520D 25" QHD USB-C Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 25 USB-C Monitor U2520D (210-AVKQ) - Local Dell Warranty
Sharp 25-inch QHD
2560 x 1440 on a 25-inch IPS panel gives a dense 117.5 PPI for crisp text and detail.
Wide, calibrated colour
99% sRGB, 99% Rec. 709 and 95% DCI-P3 coverage with Delta E < 2 average accuracy and a factory calibration report.
USB-C with 90 W charging
USB-C with DisplayPort 1.4 Alt Mode and up to 90 W Power Delivery, plus DP-out MST daisy chaining and a four-port USB hub.
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell U2520D Datasheet — Technical Specifications
Display
| Screen size | 25" (diagonal) |
| Panel type | In-Plane Switching (IPS) |
| Resolution | 2560 x 1440 (QHD) at 60 Hz |
| Aspect ratio | 16:9 |
| Pixel pitch | 0.216 mm x 0.216 mm |
| Pixels per inch | 117.5 PPI |
| Brightness | 350 cd/m² (typical) |
| Contrast ratio | 1000:1 (typical) |
| Colour gamut | 99% sRGB, 99% Rec. 709, 95% DCI-P3 |
| Colour accuracy | Delta E < 2 (average) |
| Colour support | 16.78 million colours |
| Response time | 8 ms (Normal), 5 ms (Fast) |
| Viewing angle | 178° vertical / 178° horizontal (typical) |
| Screen coating | Anti-glare with 3H hardness |
Connectivity
| DisplayPort in | 1 x DisplayPort 1.4 |
| DisplayPort out | 1 x DisplayPort out with MST (daisy chain) |
| HDMI | 1 x HDMI 2.0 |
| USB-C upstream | 1 x USB-C (DisplayPort 1.4 Alt Mode, Power Delivery up to 90 W) |
| USB-C downstream | 1 x USB-C with charging at 3 A (maximum) |
| USB-A downstream | 3 x USB 3.0 |
| Audio | 1 x audio line-out |
Ergonomics

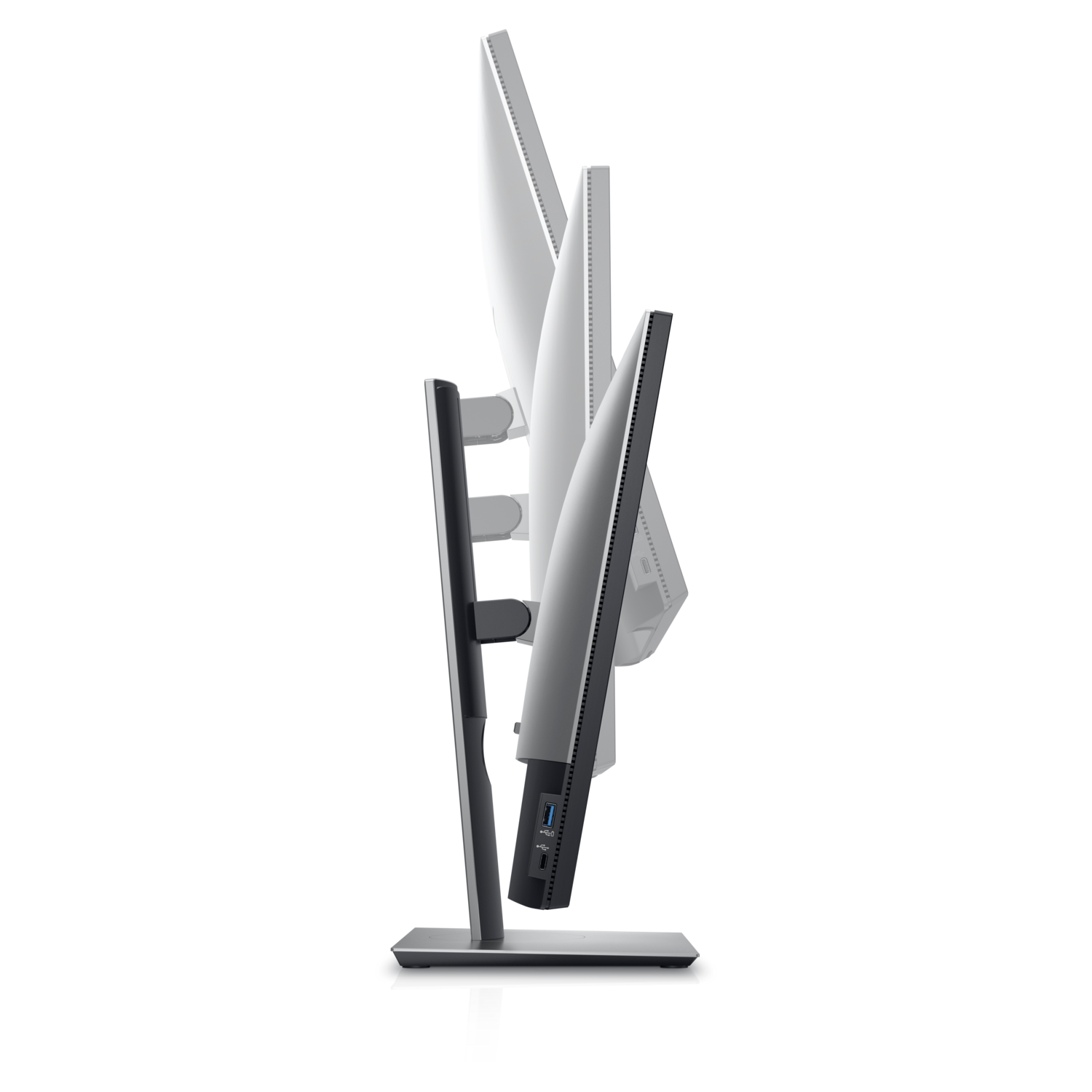

| Height adjustment | 130 mm |
| Tilt | -5° to 21° |

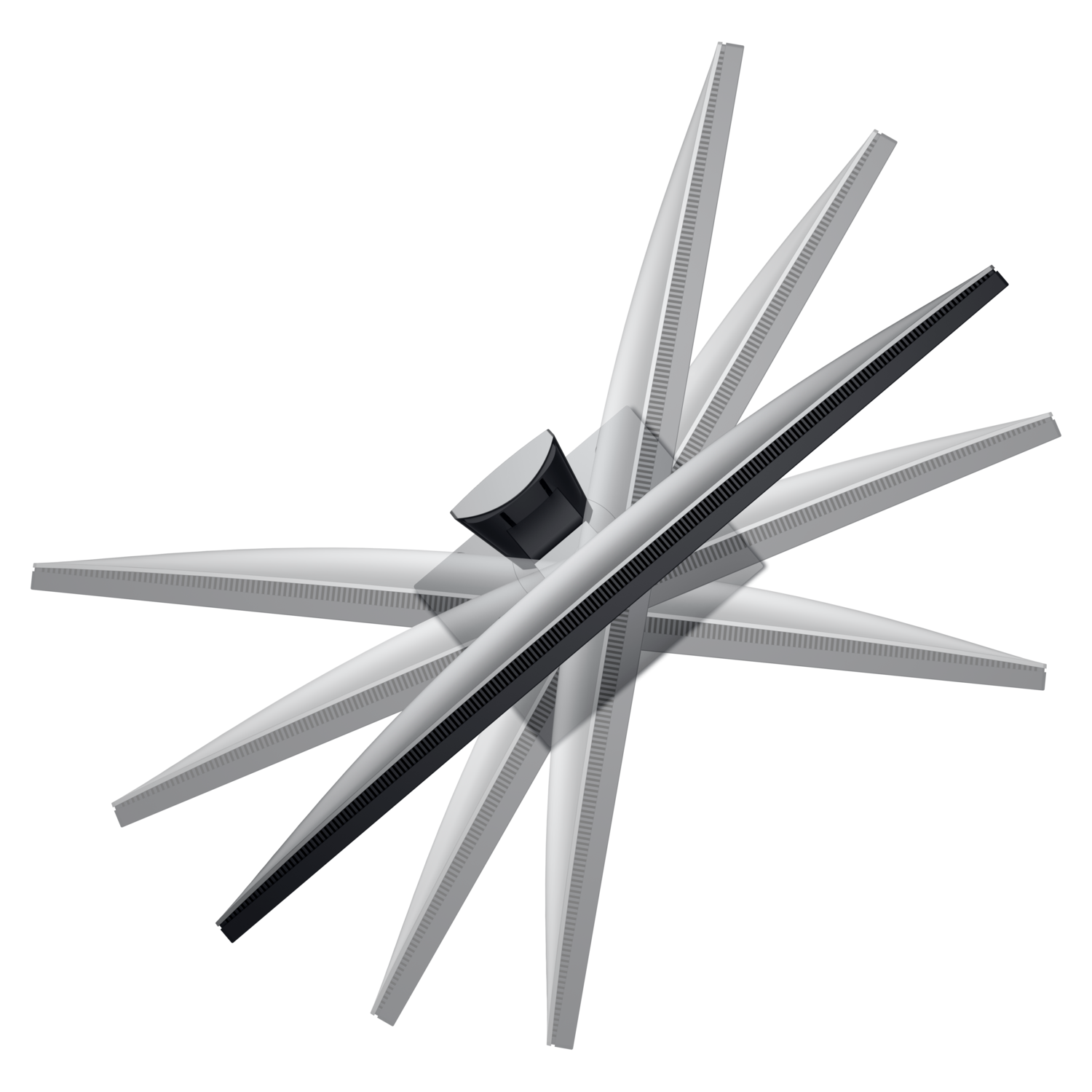

| Swivel | -45° to 45° |

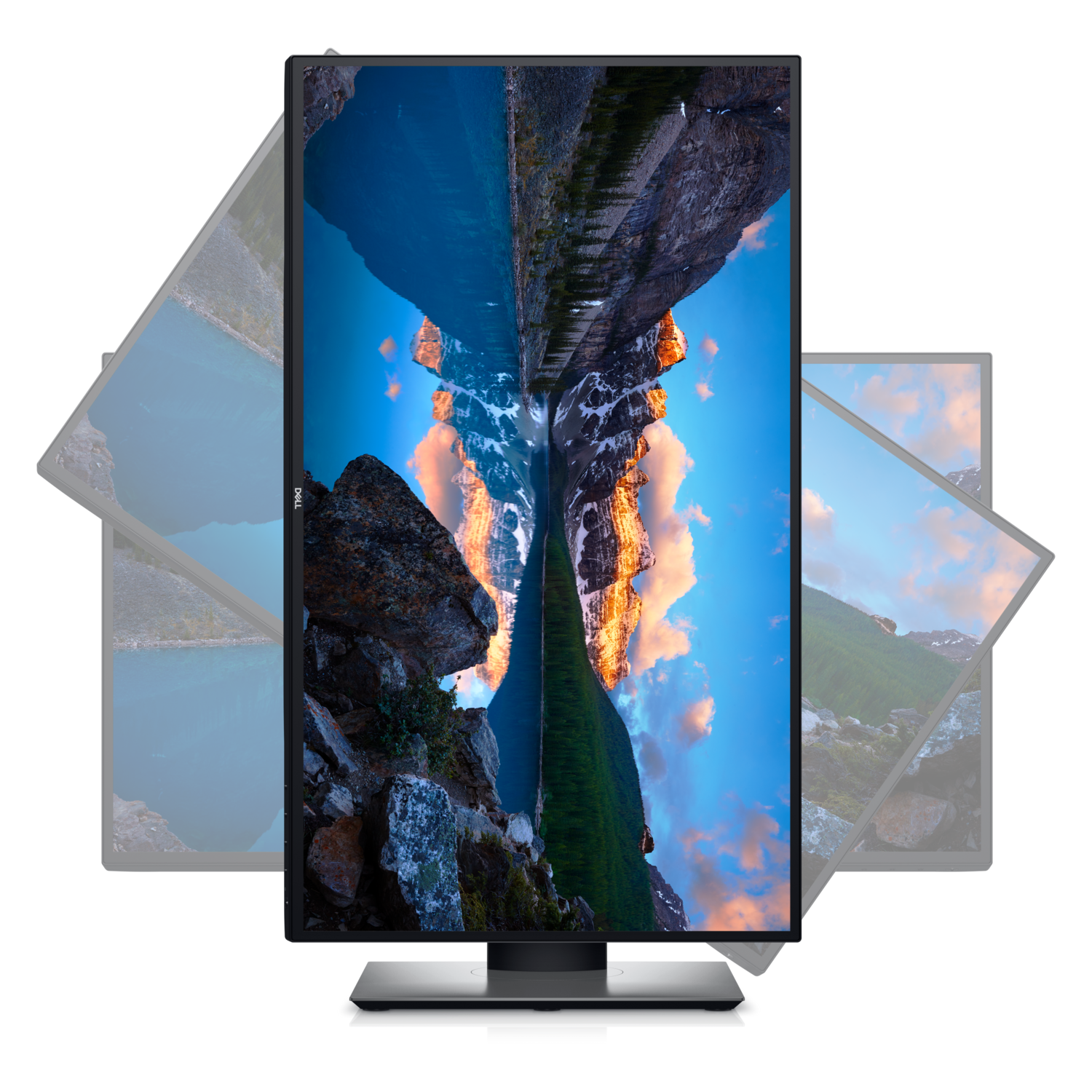

| Pivot | -90° to 90° |
| VESA mount | 100 mm |
| Security slot | Security lock slot (cable lock sold separately) |
Power
| Input voltage | 100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 2.5 A (typical) |
| Power consumption (On mode) | 22 W |
| Power consumption (Max) | 200 W |
| Standby mode | 0.2 W |
| Off mode | 0.2 W |
Physical
| Dimensions with stand (W x H x D) | 567.7 x 382.9-512.9 x 185.0 mm |
| Dimensions without stand (W x H x D) | 567.7 x 332.1 x 49.9 mm |
| Weight with stand and cables | 6.4 kg |
| Weight without stand | 4.2 kg |
| Stand weight | 1.8 kg |
| Weight with packaging | 8.8 kg |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 10% to 80% (non-condensing) |
Certifications
| Compliance | ENERGY STAR, EPEAT, TCO, RoHS, BFR/PVC-free |
Warranty
| Local Warranty (Singapore) | Local Dell warranty, supplied by SourceIT with a GST invoice; email sales@sourceit.com.sg to confirm the term |
Compatibility & Software Support
USB-C laptops
One USB-C cable carries video, data and up to 90 W of power to compatible laptops.
PC connection
Also connects via DisplayPort 1.4 or HDMI 2.0, and DisplayPort out with MST supports daisy chaining.
Mounting
100 mm VESA mounting holes; the included stand offers 130 mm height, tilt, swivel and pivot.
Package Contents & Dell UltraSharp Monitors Ordering Information
In the Box
Monitor, stand riser, stand base, power cable, DisplayPort cable, USB-C cable, USB-C to USB-A cable, factory calibration report, quick setup guide and safety documentation.
Dell UltraSharp Monitors
| Model | Key feature |
| U2421E | 24.1" WUXGA 16:10, USB-C 90 W, RJ45 |
| U2422H | 24" FHD IPS, USB hub |
| U2422HE | 24" FHD IPS, USB-C 90 W, RJ45 |
| U2424H | 24" FHD 120 Hz, USB hub |
| U2424HE | 24" FHD 120 Hz, USB-C 90 W, RJ45 |
| U2520D (this listing) | 25" QHD IPS, USB-C 90 W |
| U2722D | 27" QHD IPS, USB hub |
| U2722DE | 27" QHD IPS, USB-C 90 W, RJ45 |
| U2723QE | 27" 4K IPS Black, USB-C 90 W, RJ45 |
| U2724D | 27" QHD IPS Black 120 Hz |
| U2724DE | 27" QHD 120 Hz, Thunderbolt 4 90 W |
| U2725QE | 27" 4K 120 Hz, Thunderbolt 4 |
| U3023E | 30" WQXGA 16:10, USB-C 90 W, RJ45 |
| U3223QE | 31.5" 4K IPS Black, USB-C 90 W, RJ45 |
| U3224KB | 32" 6K, Thunderbolt 4, webcam |
| U3225QE | 32" 4K 120 Hz, Thunderbolt 4 |
| U3226Q | 32" 4K QD-OLED |
Datasheet & Downloads
| User guide | Dell U2520D Monitor User's Guide (PDF) |
| Manuals & drivers | U2520D on Dell Support (Singapore) |
| Warranty | Dell Monitor Service & Warranty brochure (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U2520D.
Frequently Asked Questions — Dell U2520D
What resolution is the Dell U2520D?
2560 x 1440 (QHD) at 60 Hz on a 25-inch IPS panel.
Can the U2520D charge my laptop over USB-C?
Yes, its USB-C port supports Power Delivery up to 90 W with DisplayPort 1.4 Alt Mode.
Does it support daisy chaining?
Yes, via its DisplayPort out port with MST.
What colour coverage does it offer?
99% sRGB, 99% Rec. 709 and 95% DCI-P3, with Delta E < 2 (average).
What warranty applies?
Local Dell warranty, supplied by SourceIT with a GST invoice; email sales@sourceit.com.sg to confirm the term.
