Dell UltraSharp 27 U2725QE 27" 4K Thunderbolt Hub Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 27 4K Thunderbolt Hub Monitor U2725QE (210-BQML) - 3 Years Local Warranty
4K IPS Black at 120 Hz
A 27-inch 3840 x 2160 IPS Black panel with 3000:1 contrast, up to 120 Hz and VESA DisplayHDR 600, covering 99% DCI-P3 and 100% sRGB with Delta E <1.5.
Thunderbolt 4 hub
A single Thunderbolt 4 cable carries video, data and up to 140W power, with a Thunderbolt 4 downstream port for daisy chaining, 2.5GbE RJ45 and 10Gbps USB-A and USB-C ports.
TÜV 5-star eye comfort
TÜV Eye Comfort 5-star rated, with ComfortView Plus built-in low blue light technology and an ambient light sensor.
Equipping a team or studio? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell U2725QE Datasheet — Technical Specifications
General
| Product Name | Dell UltraSharp 27 4K Thunderbolt Hub Monitor - U2725QE |
| Model | U2725QE |
| Dell SKU | 210-BQML |
| Local Warranty (Singapore) | 3 Years Limited Hardware and Advanced Exchange Service (Dell), supplied by SourceIT with a GST invoice |
Display
| Diagonal Viewing Size | 684.7 mm (27.0 in.) |
| Panel Type | In-Plane Switching (IPS) Black Technology |
| Maximum Preset Resolution and Refresh Rate | 3840 x 2160 up to 120 Hz |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178°, Vertical: 178° |
| Pixel Pitch | 0.1554 mm x 0.1554 mm |
| Pixel Per Inch (PPI) | 163 |
| Contrast Ratio | 3000:1 (typical) |
| Backlight Technology | LED Edgelight System |
| Brightness | 450 cd/m² (typical), 600 cd/m² (HDR peak) |
| HDR | VESA DisplayHDR 600 |
| Response Time | Normal mode: 8.0 ms (gray to gray), Fast mode: 5.0 ms (gray to gray) |
| Color Gamut | DCI-P3 99% (CIE1976) (typical), Display P3 99%, sRGB 100% (CIE1931) (typical), BT.709 100% |
| Color Accuracy | Delta E <1.5 (Average) |
| Color Depth | 1.07 billion colors |
| Display Screen Coating | Low reflectance with anti-glare and hard-coating 3H |
| Horizontal Frequency | 30 kHz to 275 kHz |
| Vertical Frequency | 48 Hz to 120 Hz |
| Variable Refresh Rate | HDMI VRR |

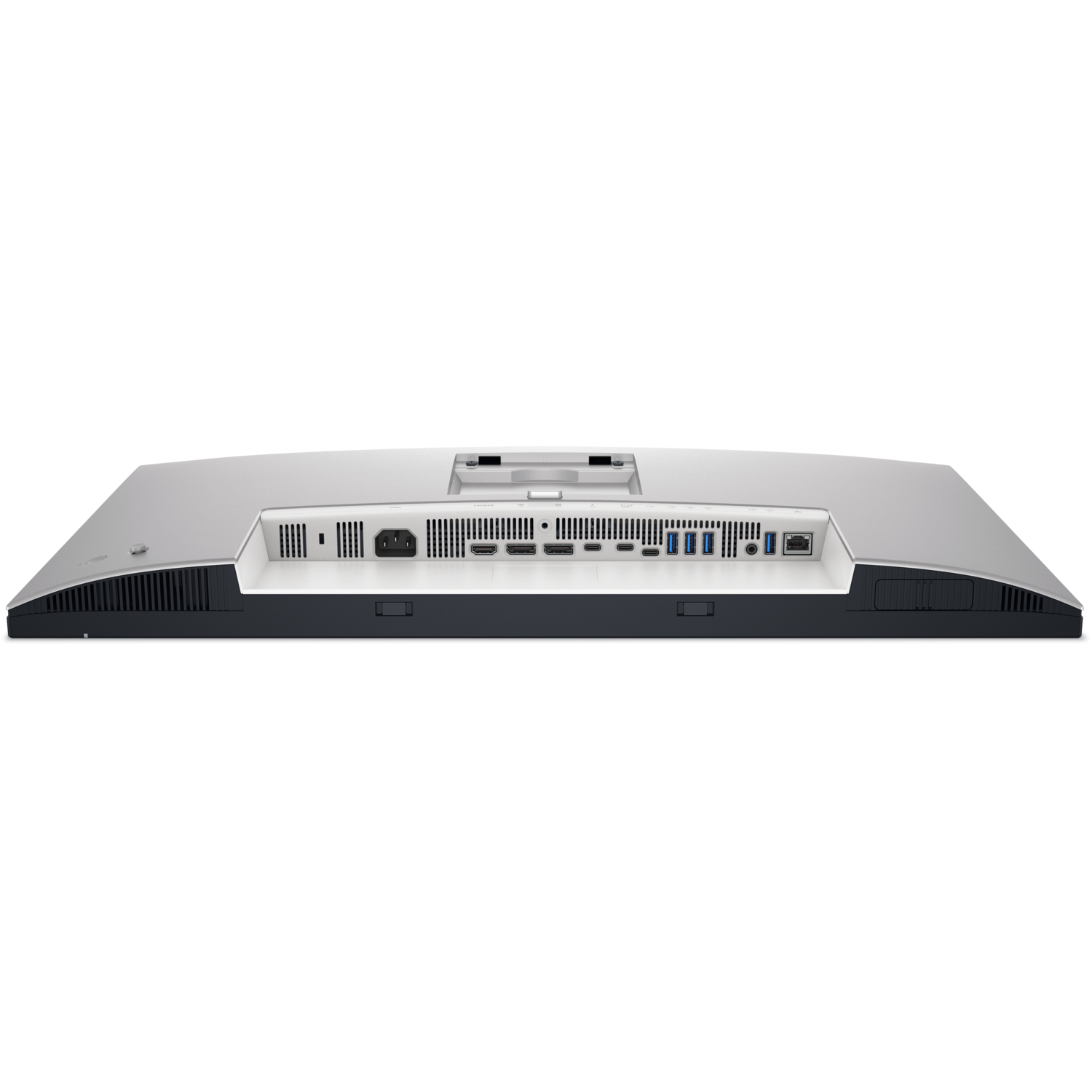

Ports & Connectivity
| Port | 1 x DisplayPort 1.4 port with DSC support (DRR for Microsoft Windows) |
| Port | 1 x DisplayPort 1.4 port out |
| Port | 1 x HDMI port (Supports up to UHD 3840 x 2160 120Hz FRL, VRR as per specified in HDMI2.1) |
| Port | 1 x Thunderbolt 4 upstream port (DP1.4 (HDCP 2.2) with DSC support, PD: Up to 140W EPR, 2/4 Lanes switching) |
| Port | 1 x Thunderbolt 4 downstream port (Downstream, Daisy Chain, 15 W) |
| Port | 1 x USB-C (USB 10Gbps KVM) upstream port |
| Port | 1 x Analog 2.0 audio line out port (3.5 mm jack) |
| Port | 4 x USB Type-A ports 10Gbps |
| Port | 1 x RJ45 Ethernet port, 2.5GbE |
| Quick Access Port | 1 x USB Type-A 10Gbps port with BC 1.2 |
| Quick Access Port | 2 x USB-C 10Gbps downstream ports |
| USB Power Delivery | Up to 140W EPR |
| PbP / PiP / KVM | Picture by Picture (PbP), Picture in Picture (PiP), USB Keyboard Video Mouse (USB KVM) |
| Daisy Chain Availability | Yes |

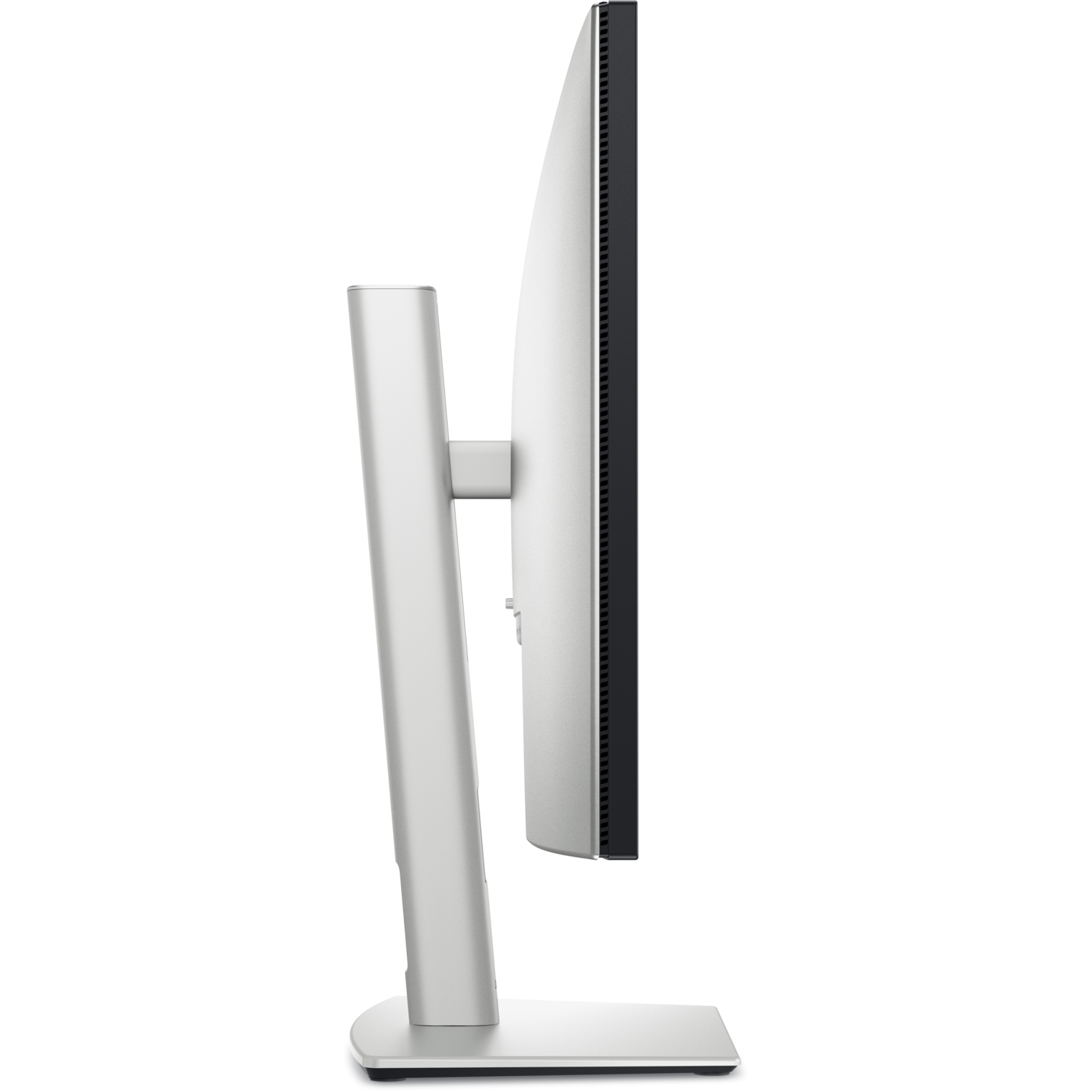

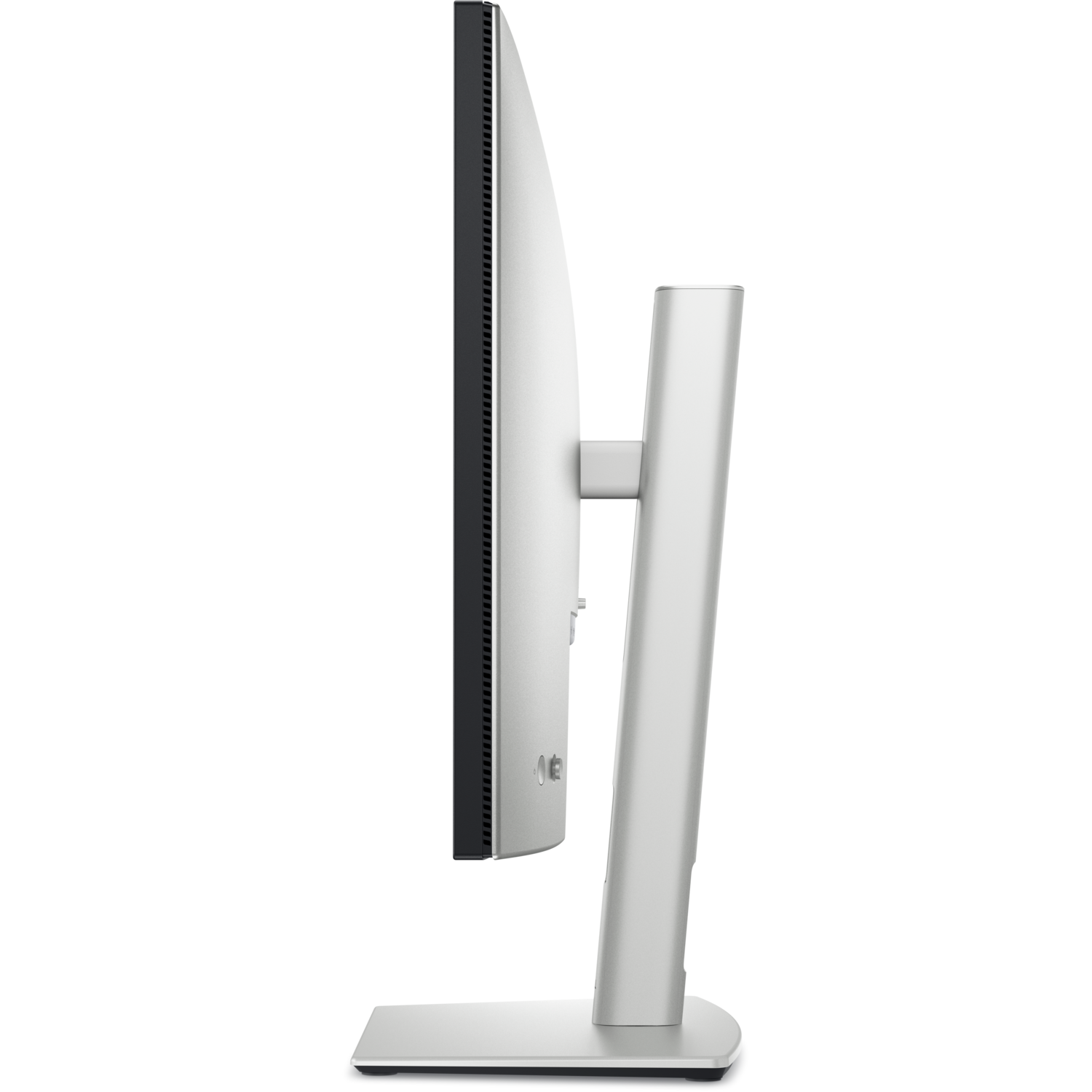

Ergonomics / Stand
| Height Adjustment | 150 mm |
| Tilt | -5° to +21° |
| Swivel | -45° to +45° |
| Pivot | -90° to +90° |

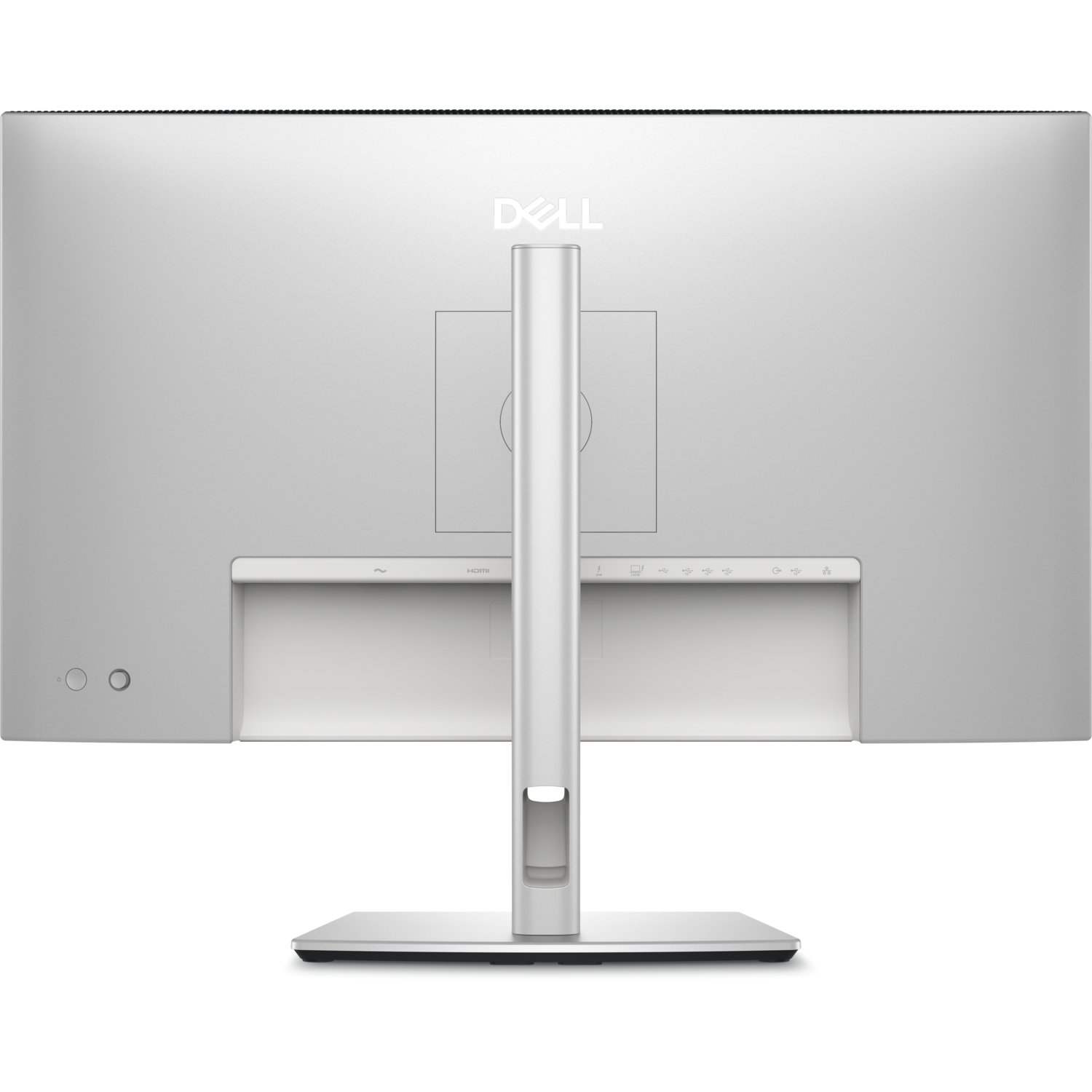

| VESA Mount Interface | 100 mm x 100 mm |
| Built-in Devices | Ambient Light Sensor |
| Security | Security lock slot (cable lock sold separately) |
Power
| Voltage Required | 100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 4 A |
| Power Consumption (On mode) | 25.4 W |
| Power Consumption (Standby mode) | 0.5 W |
| Power Consumption (Off mode) | 0.3 W |
| Power Consumption (Max.) | 325 W |
Dimensions & Weight
| Height with Stand (Compressed ~ Extended) | 385.68 mm ~ 535.68 mm (15.18 in. ~ 21.09 in.) |
| Width with Stand | 612.44 mm (24.11 in.) |
| Depth with Stand | 189.00 mm (7.44 in.) |
| Height without Stand | 353.51 mm (13.92 in.) |
| Width without Stand | 612.44 mm (24.11 in.) |
| Depth without Stand | 55.60 mm (2.19 in.) |
| Weight without Stand Assembly | 5.22 kg (11.51 lb) |
| Weight with Stand Assembly | 7.06 kg (15.56 lb) |
| Weight with Packaging | 9.73 kg (21.45 lb) |
Environmental Conditions
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Non-operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 10% to 80% (non-condensing) |
| Non-operating Humidity | 5% to 90% (non-condensing) |
| Operating Altitude | 5,000 m (16,400 ft) maximum |
| Non-operating Altitude | 12,191 m (40,000 ft) maximum |
Eye Comfort
| TÜV Eye Comfort | 5 stars |
| Low Blue Light Technology | ComfortView Plus |
Compliance / Certifications
| Compliant Standards | ENERGY STAR certified monitor, EPEAT registered where applicable (registration varies by country), TCO Certified & TCO Certified Edge, RoHS Compliant, BFR/PVC free monitor (excluding external cables), Arsenic-free glass and Mercury-free for the panel only |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 5 (ErP Lot 5) |
Audio / Camera
| Speakers | No |
| Webcam | No |
| Audio Line Out | 1 x Analog 2.0 audio line out port (3.5 mm jack) |
| Soundbar Compatibility | Optional Soundbar (Sold Separately) |
Software
| Software Compatibility | Dell Display and Peripheral Manager (DDPM) for Windows operating system, Dell Display and Peripheral Manager (DDPM) for macOS |
| Color Calibration SDK SW | Yes |
| Color Calibration with X-Rite Colorimeter | Yes |
Compatibility & Software Support
Laptop & PC Connection
1 x DisplayPort 1.4 port with DSC support (DRR for Microsoft Windows); 1 x DisplayPort 1.4 port out; 1 x HDMI port (Supports up to UHD 3840 x 2160 120Hz FRL, VRR as per specified in HDMI2.1); 1 x Thunderbolt 4 upstream port (DP1.4 (HDCP 2.2) with DSC support, PD: Up to 140W EPR, 2/4 Lanes switching); 1 x Thunderbolt 4 downstream port (Downstream, Daisy Chain, 15 W); 1 x USB-C (USB 10Gbps KVM) upstream port; 1 x Analog 2.0 audio line out port (3.5 mm jack); 4 x USB Type-A ports 10Gbps; 1 x RJ45 Ethernet port, 2.5GbE; 1 x USB Type-A 10Gbps port with BC 1.2; 2 x USB-C 10Gbps downstream ports; USB Power Delivery: Up to 140W EPR; PbP / PiP / KVM: Picture by Picture (PbP), Picture in Picture (PiP), USB Keyboard Video Mouse (USB KVM); Daisy Chain Availability: Yes.
Software
Software Compatibility: Dell Display and Peripheral Manager (DDPM) for Windows operating system, Dell Display and Peripheral Manager (DDPM) for macOS; Color Calibration SDK SW: Yes; Color Calibration with X-Rite Colorimeter: Yes.
Mounting
VESA Mount Interface: 100 mm x 100 mm.
Package Contents & Dell UltraSharp 27 to 49-inch Hub & Creator Monitors Ordering Information
In the Box
UltraSharp 27 4K Thunderbolt Hub Monitor - U2725QE, Stand, Power cable, 1 x DisplayPort-DisplayPort cable - 1.80 m, 1 x USB Type-A to Type-C upstream cable 1.00 m, 1 x Thunderbolt 4 passive cable - 1.00 m, Drivers and documentation media, QR Card.
Dell UltraSharp 27 to 49-inch Hub & Creator Monitors
| Model | Key feature |
| U2725QE (this listing) | 27" 4K IPS Black 120 Hz, HDR 600, Thunderbolt 4 140 W, 2.5GbE RJ45 |
| U3224KB | 32" 6K IPS Black, HDR 600, 4K webcam + 2x14W speakers, Thunderbolt 4 140 W, RJ45 |
| U3225QE | 32" 4K IPS Black 120 Hz, Thunderbolt 4 140 W, RJ45 2.5GbE |
| U3226Q | 32" 4K QD-OLED 120 Hz, built-in colorimeter, Thunderbolt 4 140 W, RJ45 |
| U3425WE | 34" WQHD 1900R IPS Black 120 Hz, Thunderbolt 4 90 W, RJ45, KVM |
| U3824DW | 38" WQHD+ 2300R IPS Black 60 Hz, USB-C 90 W, RJ45, KVM |
| U4025QW | 40" 5K2K (5120x2160) IPS Black 120 Hz curved, Thunderbolt 4 140 W, RJ45 |
| U4924DW | 49" DQHD (5120x1440) IPS Black 60 Hz curved, USB-C 90 W, RJ45 |
Datasheet & Downloads
| Datasheet (PDF) | U2725QE datasheet on delltechnologies.com |
| Product page | U2725QE on dell.com Singapore |
| Manuals & drivers | U2725QE manuals and documents on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U2725QE.
Frequently Asked Questions — Dell U2725QE
Can I power my laptop through the monitor?
Yes. The Thunderbolt 4 upstream port delivers up to 140W EPR power while also carrying video and USB data over one cable.
What refresh rate does the U2725QE support?
It runs 3840 x 2160 at up to 120 Hz, and supports HDMI VRR (variable refresh rate) via its HDMI 2.1-spec port.
Can I daisy chain a second monitor?
Yes. It has a Thunderbolt 4 downstream port for daisy chaining plus a DisplayPort 1.4 out port.
Does it have a network port?
Yes, a built-in RJ45 Ethernet port supporting 2.5GbE, along with USB KVM to control two computers with one keyboard and mouse.
What warranty is included?
Dell Singapore lists 3 Years Limited Hardware and Advanced Exchange Service; Dell's datasheet also includes Premium Panel Exchange, replacing the monitor even if only one bright pixel is found during the warranty period.
