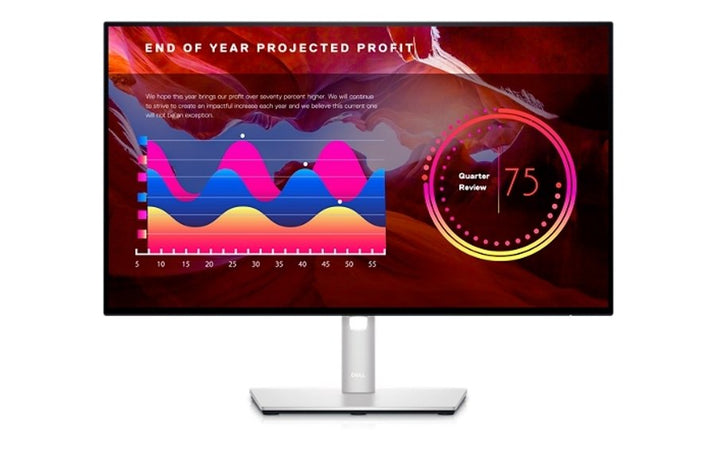

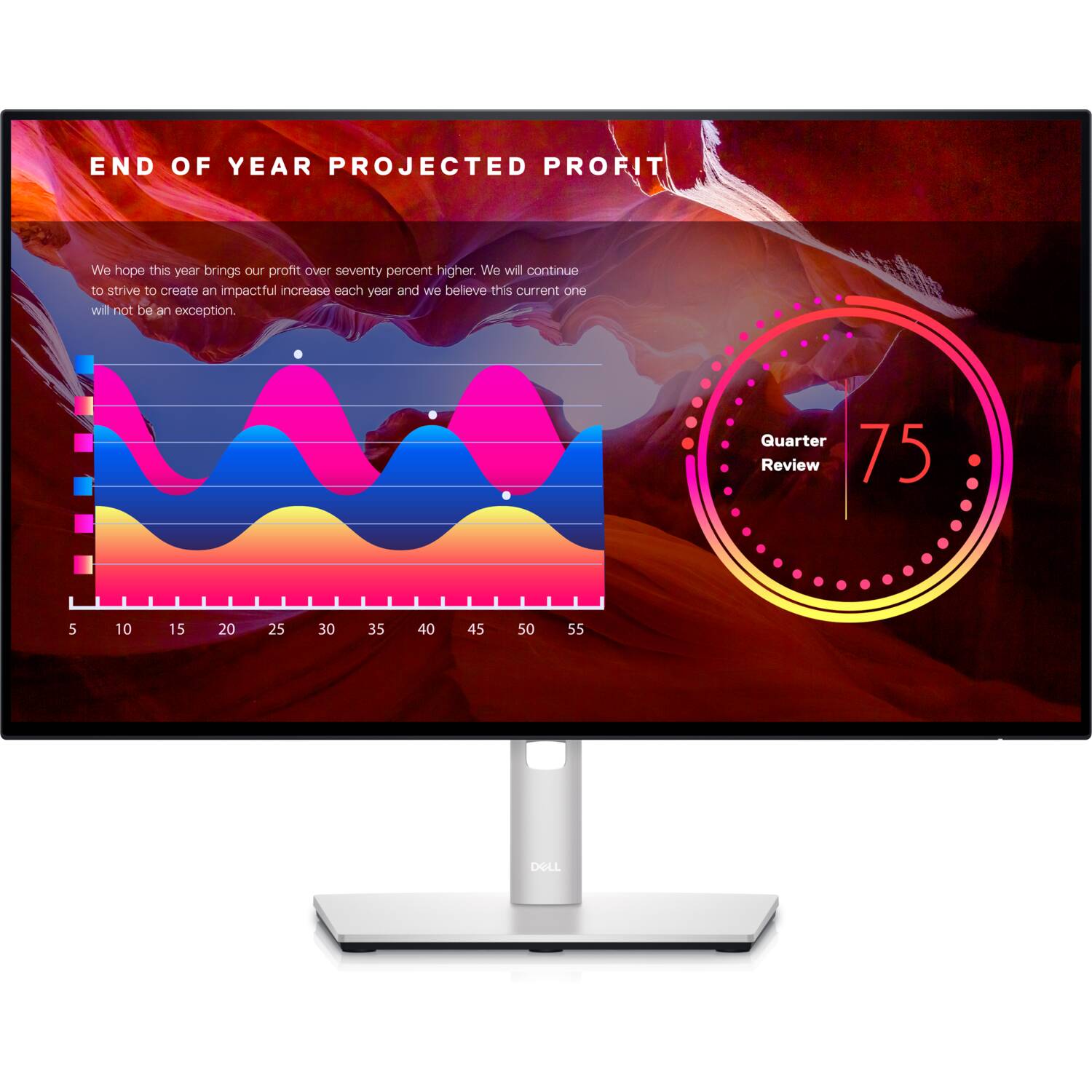

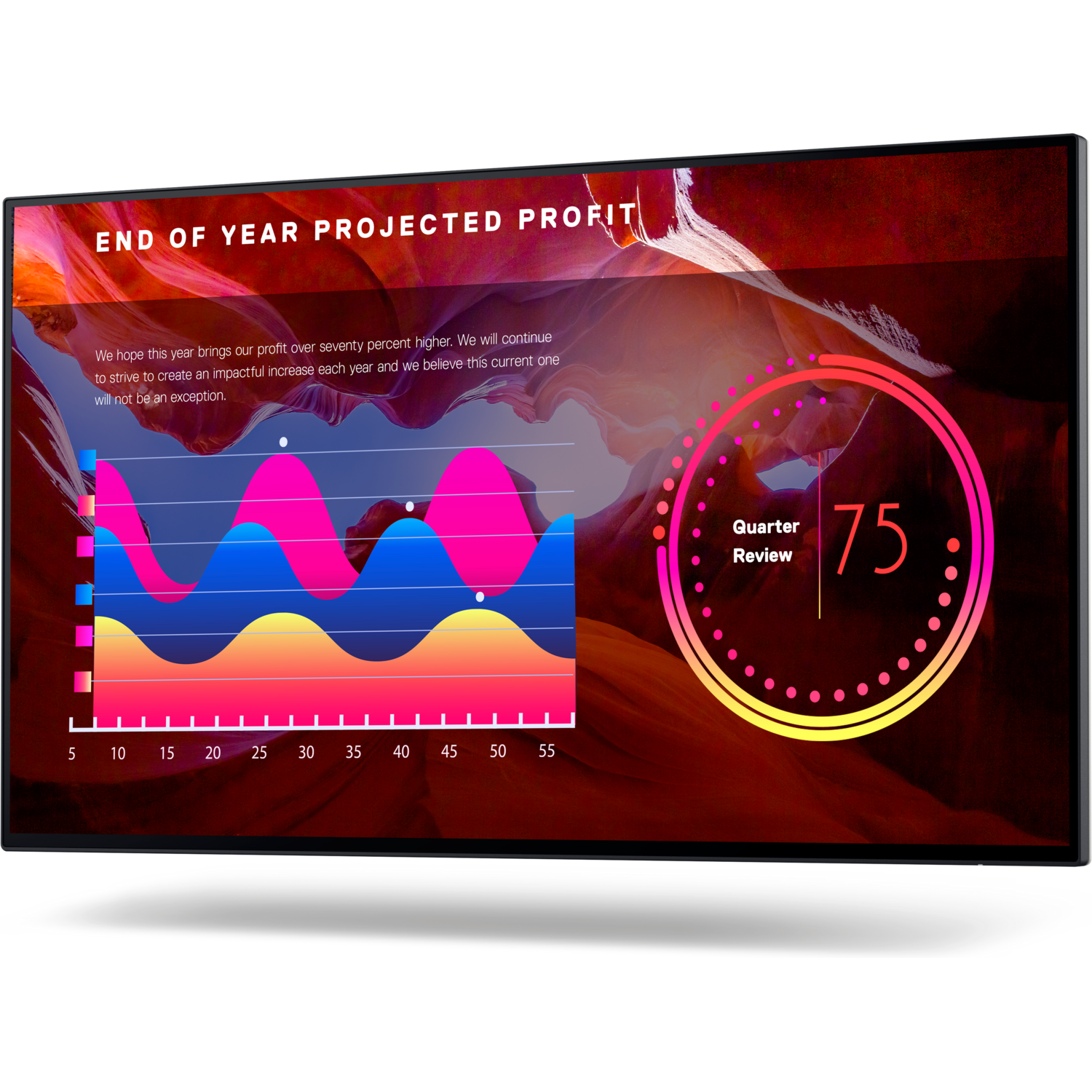

Dell UltraSharp 24 U2422H 24" FHD IPS Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 24 Monitor U2422H (210-AZFE) - Local Dell Warranty
Colour you can trust
A 23.8-inch Full HD IPS panel covers 100% sRGB, 100% Rec. 709 and 85% DCI-P3, factory calibrated to an average Delta E < 2.
10 Gbps USB hub built in
A USB-C upstream link feeds four 10 Gbps downstream ports: two USB-A, one USB-A with Battery Charging 1.2 and one 15 W USB-C.
Multi-monitor ready
DisplayPort out with MST lets you daisy chain up to three FHD monitors, with ultra-thin bezels on three sides.
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell U2422H Datasheet — Technical Specifications
Display
| Diagonal size | 23.8" viewable (60.47 cm), 24" class |
| Panel type | IPS (In-Plane Switching), anti-glare with 3H hardness |
| Backlight | White LED edgelight system |
| Aspect ratio | 16:9 |
| Native resolution | 1920 x 1080 (Full HD) at 60 Hz |
| Pixel pitch | 0.2745 mm x 0.2745 mm |
| Pixels per inch | 92.53 PPI |
| Brightness | 250 cd/m² (typical) |
| Contrast ratio | 1000:1 (typical) |
| Colour support | 16.7 million colours |
| Colour gamut | 100% sRGB, 100% Rec. 709, 85% DCI-P3 |
| Factory calibration | Delta E < 2 (average), sRGB and Rec. 709 |
| Response time | 8 ms (Normal); 5 ms (Fast), grey to grey |
| Viewing angle | 178° horizontal / 178° vertical |
| Bezel | 3-sided ultra-thin bezel |

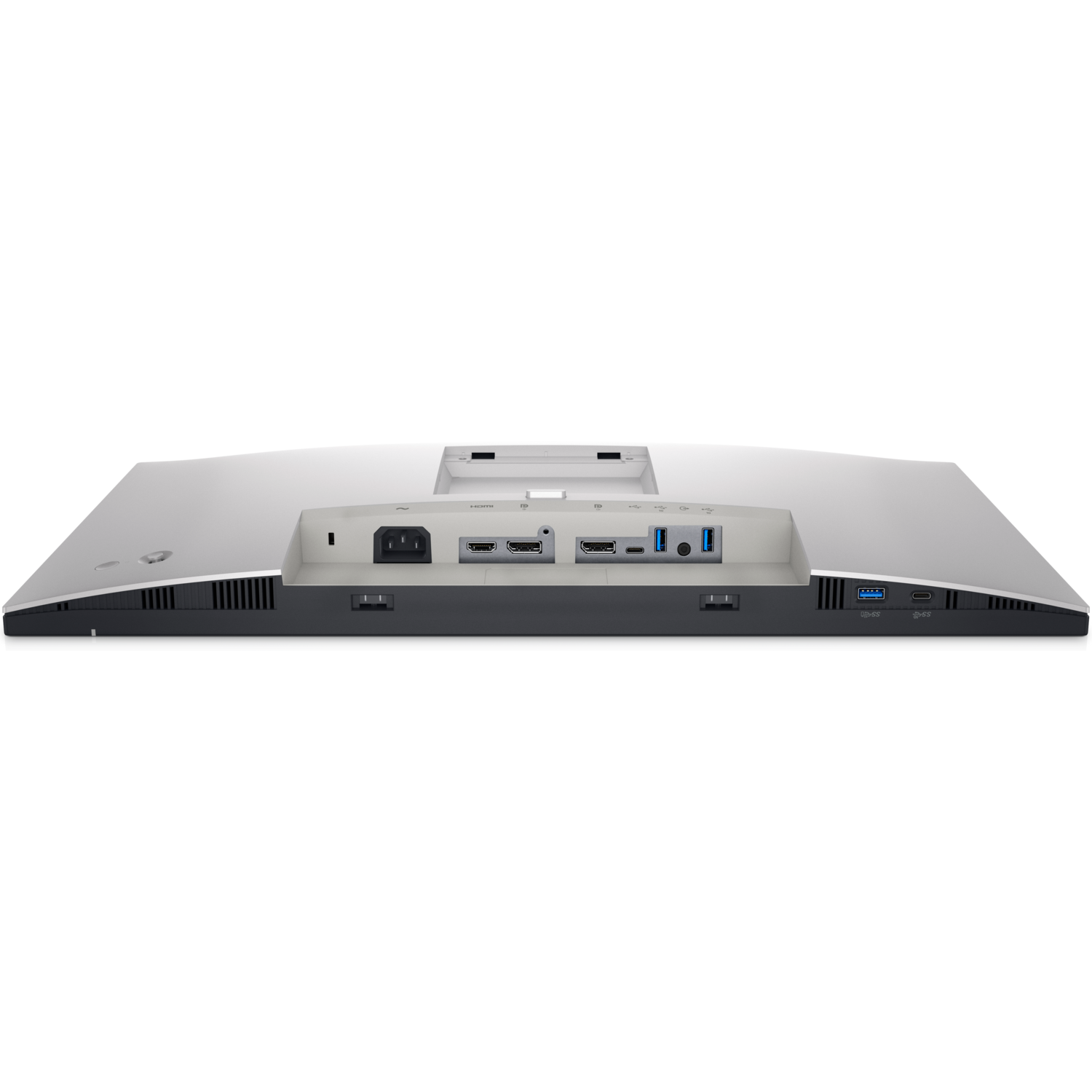

Connectivity
| HDMI | 1 x HDMI 1.4 |
| DisplayPort in | 1 x DisplayPort 1.4 |
| DisplayPort out | 1 x DisplayPort out (MST capable, daisy chain) |
| USB-C upstream (data only) | 1 x USB-C, 10 Gbps USB 3.2 Gen 2 |
| USB-A downstream | 2 x USB 3.2 Gen 2 (10 Gbps) Type-A |
| USB-A downstream (charging) | 1 x USB 3.2 Gen 2 (10 Gbps) Type-A with Battery Charging 1.2 |
| USB-C downstream | 1 x USB-C, 10 Gbps, 15 W |
| Audio | 1 x audio line-out |
| Speakers | None |
| MST over DisplayPort | Up to 3 x FHD monitors at 60 Hz |
Ergonomics

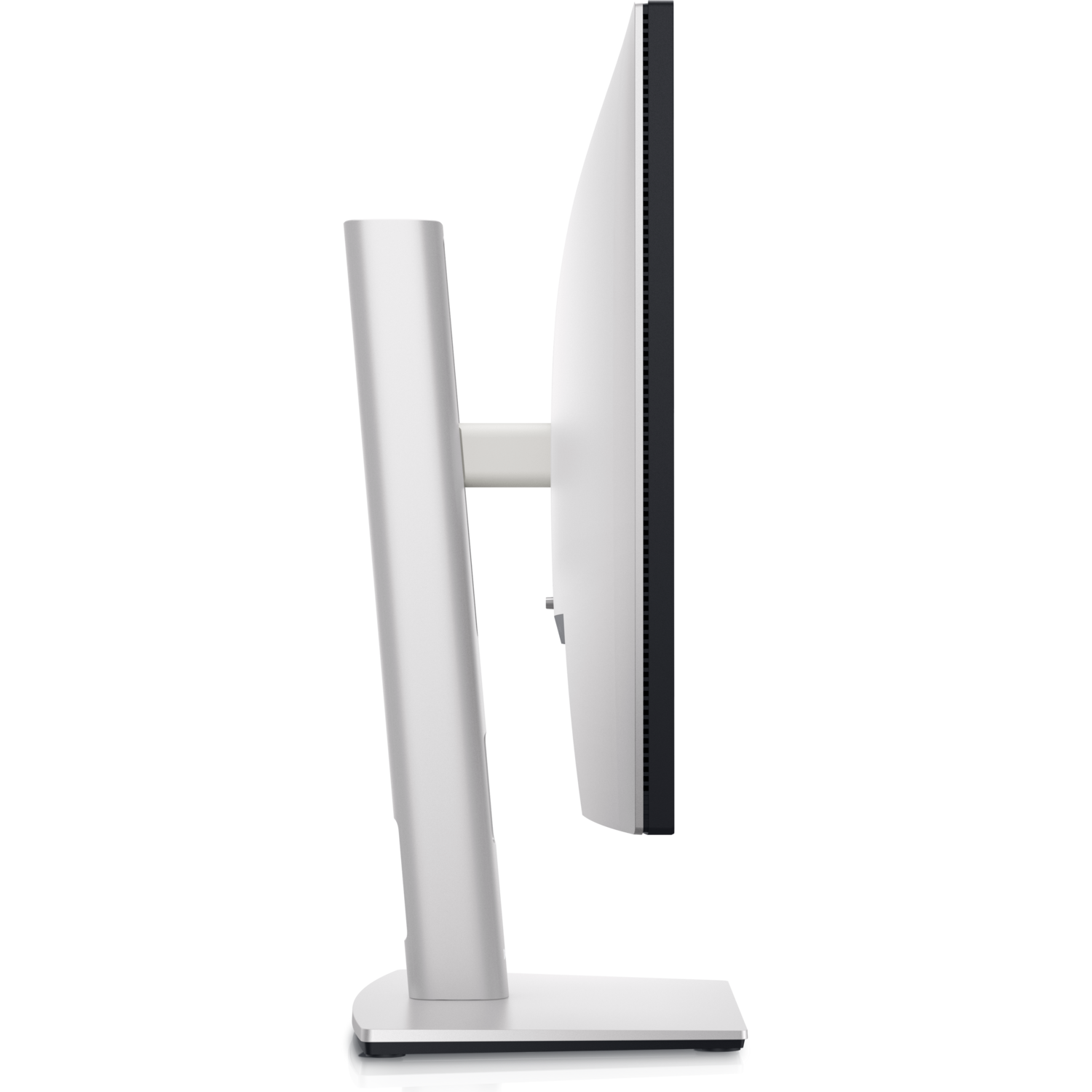

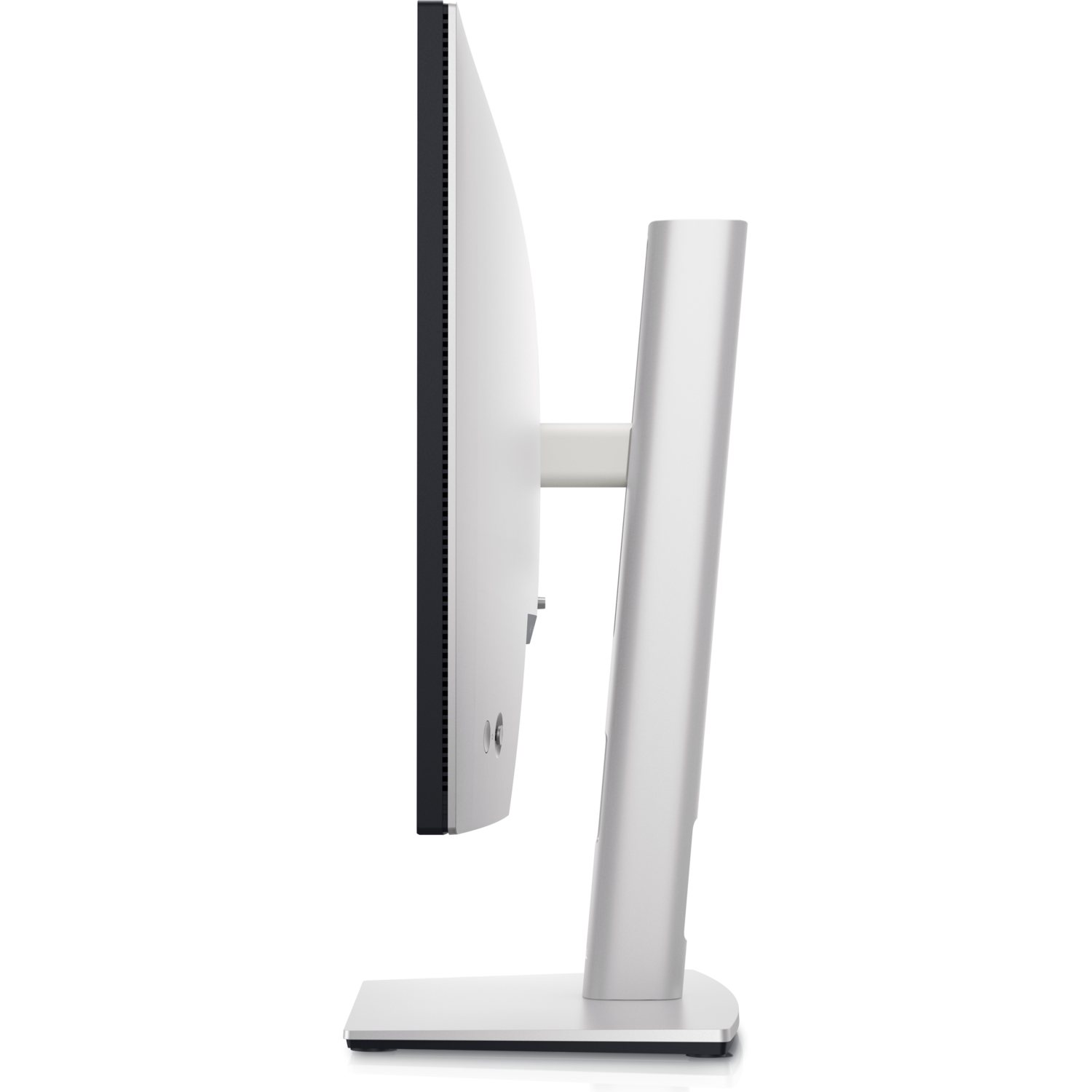

| Tilt | -5° to +21° |

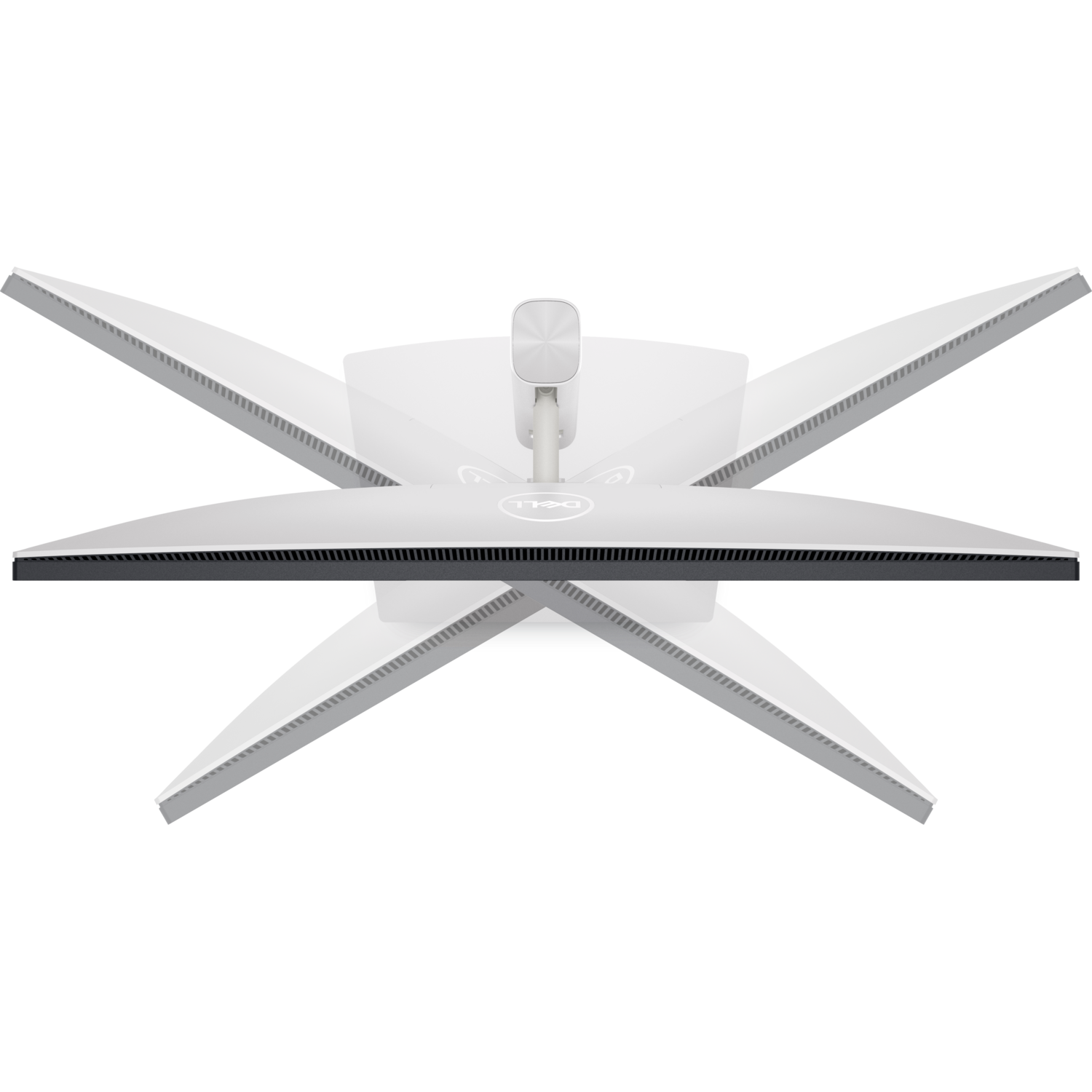

| Swivel | -45° to +45° |
| Pivot | -90° to +90° |

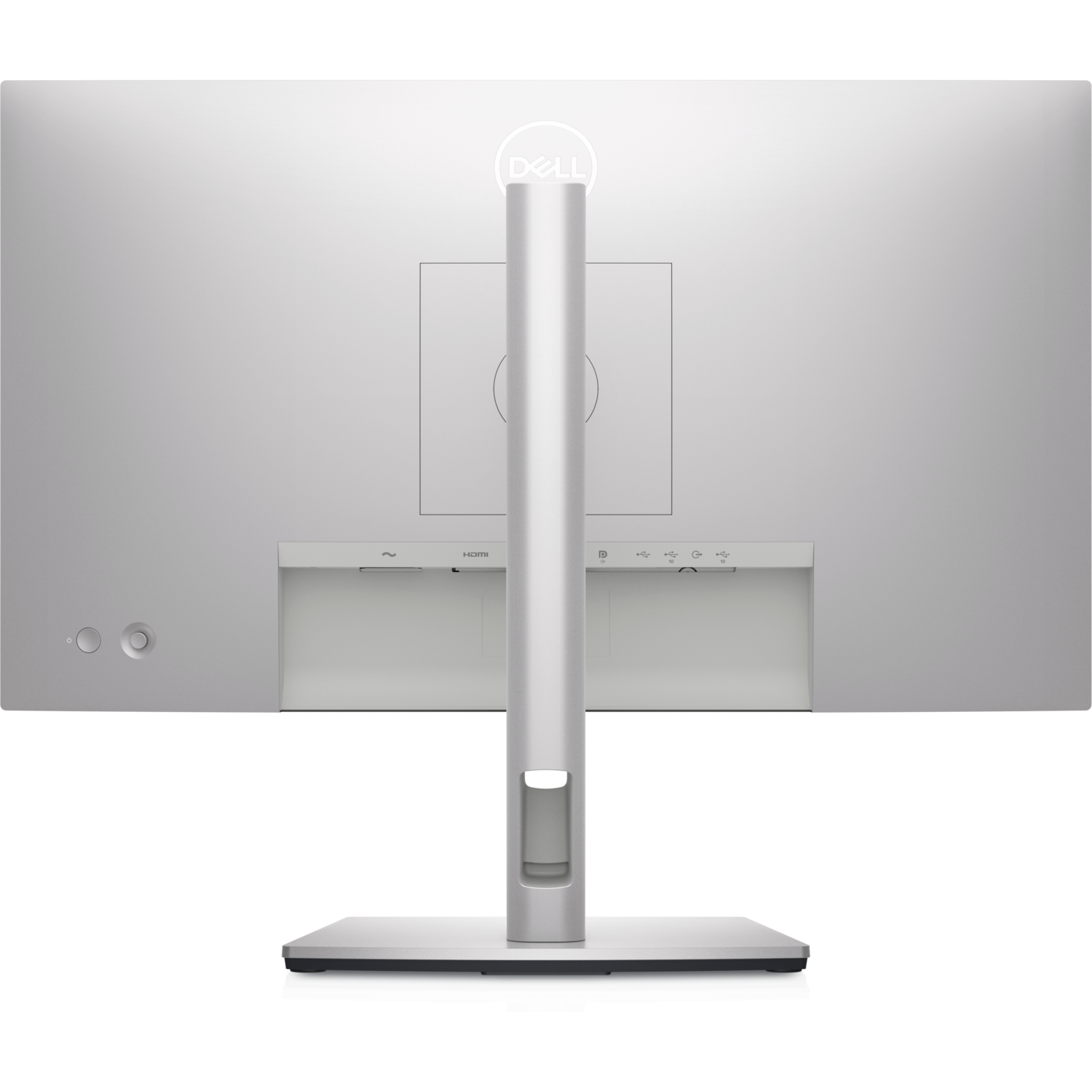

| VESA mount | 100 x 100 mm (M4 x 10 mm screws) |
| Security | Security lock slot; stand lock |
| Stand | Removable stand |
Eye Comfort
| Flicker-free | Yes |
| Blue light reduction | Dell ComfortView Plus (built-in low blue light) |
Power
| Input voltage | 100-240 VAC, 50/60 Hz ± 3 Hz |
| On mode | 11.6 W |
| Maximum | 63 W |
| Pon (ENERGY STAR 8.0) | 11.06 W |
| TEC (ENERGY STAR 8.0) | 38.47 kWh |
| Standby | 0.3 W |
| Off mode | 0.3 W |
Physical
| Dimensions with stand (W x D x H) | 537.64 x 179.57 x 364.00 mm (compressed) / 496.03 mm (extended) |
| Dimensions without stand (W x D x H) | 537.64 x 48.50 x 310.71 mm |
| Weight with stand and cables | 5.57 kg |
| Weight without stand | 3.52 kg |
| Shipping weight | 7.82 kg |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 10% to 80% (non-condensing) |
Certifications
| Environmental | ENERGY STAR; TCO Certified and TCO Certified Edge; EPEAT registered where applicable; RoHS |
| Materials | BFR/PVC-free (excluding external cables); arsenic-free glass and mercury-free (panel) |
Warranty
| Local Warranty (Singapore) | Local Dell warranty, supplied by SourceIT with a GST invoice. Dell lists this model with 3-Years Advanced Exchange Service and Premium Panel Guarantee in other markets; email sales@sourceit.com.sg to confirm the Singapore term |
Compatibility & Software Support
PC connection
Connect via DisplayPort 1.4 or HDMI 1.4 for video; the USB-C upstream port is data-only (10 Gbps) and does not carry video or charge a laptop.
Dell Display Manager
Dell Display Manager software is supported, including Dell Easy Arrange window layouts.
Mounting
The stand is removable and the monitor accepts VESA 100 x 100 mm mounts (M4 x 10 mm screws).
Package Contents & Dell UltraSharp Monitors Ordering Information
In the Box
Monitor, stand riser, stand base, power cable, DisplayPort 1.4 cable (DP to DP, 1.8 m), USB-A to USB-C Gen 2 cable (1 m), Quick Setup Guide, Factory Calibration Report and safety/regulatory information.
Dell UltraSharp Monitors
| Model | Key feature |
| U2421E | 24.1" WUXGA 16:10, USB-C 90 W, RJ45 |
| U2422H (this listing) | 24" FHD IPS, USB hub |
| U2422HE | 24" FHD IPS, USB-C 90 W, RJ45 |
| U2424H | 24" FHD 120 Hz, USB hub |
| U2424HE | 24" FHD 120 Hz, USB-C 90 W, RJ45 |
| U2520D | 25" QHD IPS, USB-C 90 W |
| U2722D | 27" QHD IPS, USB hub |
| U2722DE | 27" QHD IPS, USB-C 90 W, RJ45 |
| U2723QE | 27" 4K IPS Black, USB-C 90 W, RJ45 |
| U2724D | 27" QHD IPS Black 120 Hz |
| U2724DE | 27" QHD 120 Hz, Thunderbolt 4 90 W |
| U2725QE | 27" 4K 120 Hz, Thunderbolt 4 |
| U3023E | 30" WQXGA 16:10, USB-C 90 W, RJ45 |
| U3223QE | 31.5" 4K IPS Black, USB-C 90 W, RJ45 |
| U3224KB | 32" 6K, Thunderbolt 4, webcam |
| U3225QE | 32" 4K 120 Hz, Thunderbolt 4 |
| U3226Q | 32" 4K QD-OLED |
Datasheet & Downloads
| User guide | Dell U2422H Monitor User's Guide (PDF) |
| Dell Singapore | U2422H on dell.com/en-sg |
| Manuals & drivers | U2422H on Dell Support (Singapore) |
| Warranty | Dell Monitor Service & Warranty brochure (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U2422H.
Frequently Asked Questions — Dell U2422H
What warranty does the Dell U2422H come with?
Local Dell warranty, supplied by SourceIT with a GST invoice. Dell lists this model with 3-Years Advanced Exchange Service and Premium Panel Guarantee in other markets; email sales@sourceit.com.sg to confirm the Singapore term.
Can the U2422H charge my laptop over USB-C?
No. Its USB-C upstream port is data only (10 Gbps). For USB-C video and 90 W charging, see the U2422HE.
Does it support daisy chaining?
Yes. DisplayPort out with MST supports up to three FHD monitors at 60 Hz.
Does it have built-in speakers?
No. It has an audio line-out port for external speakers or headphones.
Is the stand adjustable?
Yes: tilt -5° to +21°, swivel ±45°, pivot ±90° plus height adjustment, and it is VESA 100 x 100 mm mountable.
