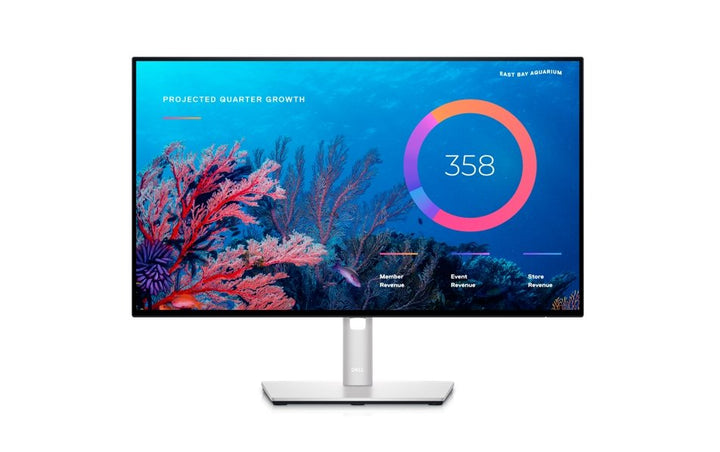

Dell UltraSharp 24 U2422HE 24" FHD USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 24 USB-C Hub Monitor U2422HE (210-AZFC) - Local Dell Warranty
One cable to your laptop
USB-C with DisplayPort 1.4 Alt Mode carries video, data, Gigabit Ethernet and up to 90 W of power to a compatible notebook.
Hub with RJ45
Four 10 Gbps USB-A ports (one with Battery Charging 1.2), a 15 W USB-C downstream port and RJ45 Ethernet keep peripherals and network on the monitor.
Accurate Full HD IPS
23.8-inch 1920 x 1080 IPS panel with 100% sRGB, 100% Rec. 709 and 85% DCI-P3, factory calibrated to Delta E < 2.
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell U2422HE Datasheet — Technical Specifications
Display
| Diagonal size | 23.8" viewable (60.47 cm), 24" class |
| Panel type | IPS (In-Plane Switching), anti-glare with 3H hardness |
| Backlight | White LED edgelight system |
| Aspect ratio | 16:9 |
| Native resolution | 1920 x 1080 (Full HD) at 60 Hz |
| Pixel pitch | 0.2745 mm x 0.2745 mm |
| Pixels per inch | 92.53 PPI |
| Brightness | 250 cd/m² (typical) |
| Contrast ratio | 1000:1 (typical) |
| Colour support | 16.7 million colours |
| Colour gamut | 100% sRGB, 100% Rec. 709, 85% DCI-P3 |
| Factory calibration | Delta E < 2 (average), sRGB and Rec. 709 |
| Response time | 8 ms (Normal); 5 ms (Fast), grey to grey |
| Viewing angle | 178° horizontal / 178° vertical |
| Bezel | 3-sided ultra-thin bezel |

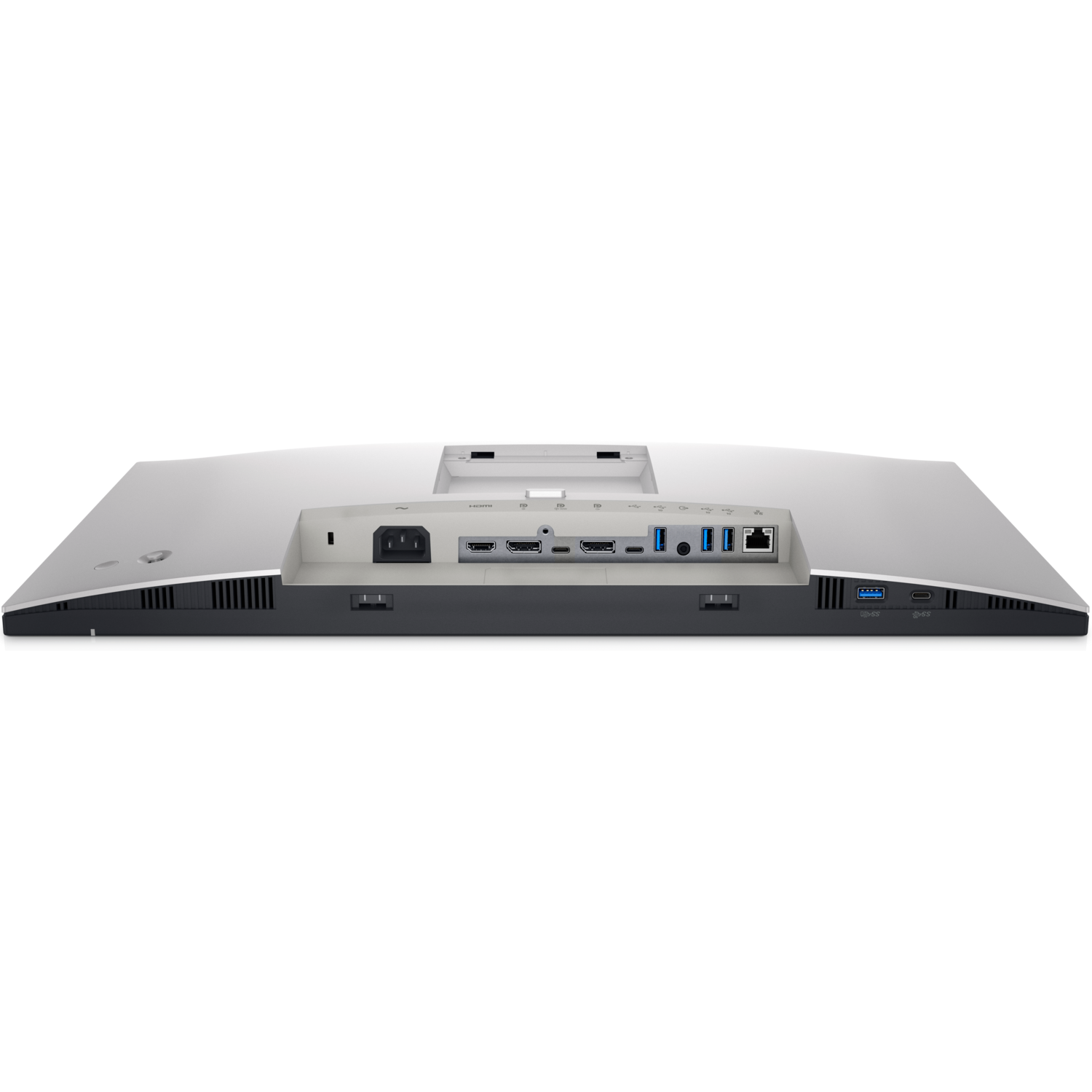

Connectivity
| HDMI | 1 x HDMI 1.4 |
| DisplayPort in | 1 x DisplayPort 1.4 |
| DisplayPort out | 1 x DisplayPort out (MST capable, daisy chain) |
| USB-C upstream (video + data) | 1 x USB-C (DisplayPort 1.4 Alt Mode, Power Delivery up to 90 W) |
| USB-C upstream (data only) | 1 x USB-C, 10 Gbps USB 3.2 Gen 2 |
| USB-A downstream | 3 x USB 3.2 Gen 2 (10 Gbps) Type-A |
| USB-A downstream (charging) | 1 x USB 3.2 Gen 2 (10 Gbps) Type-A with Battery Charging 1.2 |
| USB-C downstream | 1 x USB-C, 10 Gbps, 15 W |
| RJ45 | 1 x RJ45 Gigabit Ethernet (1000 Mbps max, via USB-C) |
| Audio | 1 x audio line-out |
| Speakers | None |
| MST over USB-C | Up to 2 x FHD monitors at 60 Hz (HBR3 with USB-C DP Alt Mode) |
| MST over DisplayPort | Up to 3 x FHD monitors at 60 Hz |
Ergonomics
| Height adjustment | 150 mm |
| Tilt | -5° to +21° |
| Swivel | -45° to +45° |
| Pivot | -90° to +90° |
| VESA mount | 100 x 100 mm (M4 x 10 mm screws) |
| Security | Security lock slot; stand lock |
| Stand | Removable stand |
Eye Comfort
| Flicker-free | Yes |
| Blue light reduction | Dell ComfortView Plus (built-in low blue light) |
Power
| Input voltage | 100-240 VAC, 50/60 Hz ± 3 Hz |
| On mode | 11.8 W |
| Maximum | 210 W |
| Pon (ENERGY STAR 8.0) | 14.80 W |
| TEC (ENERGY STAR 8.0) | 50.84 kWh |
| Standby | 0.3 W |
| Off mode | 0.3 W |
Physical
| Dimensions with stand (W x D x H) | 537.64 x 179.57 x 364.00 mm (compressed) / 496.03 mm (extended) |
| Dimensions without stand (W x D x H) | 537.64 x 48.50 x 310.71 mm |
| Weight with stand and cables | 6.06 kg |
| Weight without stand | 3.96 kg |
| Shipping weight | 8.30 kg |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 10% to 80% (non-condensing) |
Certifications
| Environmental | ENERGY STAR; TCO Certified and TCO Certified Edge; EPEAT registered where applicable; RoHS |
| Materials | BFR/PVC-free (excluding external cables); arsenic-free glass and mercury-free (panel) |
Warranty
| Local Warranty (Singapore) | Local Dell warranty, supplied by SourceIT with a GST invoice. Dell lists this model with 3-Years Advanced Exchange Service and Premium Panel Guarantee in other markets; email sales@sourceit.com.sg to confirm the Singapore term |
Compatibility & Software Support
USB-C laptops
Laptops with USB-C DisplayPort Alt Mode get video, USB, Ethernet and up to 90 W Power Delivery over a single USB-C cable (included).
Other PCs
Desktops can connect via DisplayPort 1.4 or HDMI 1.4, with a separate data-only USB-C upstream port for the hub.
Mounting and software
Removable stand with VESA 100 x 100 mm mounting; supported by Dell Display Manager.
Package Contents & Dell UltraSharp Monitors Ordering Information
In the Box
Monitor, stand riser, stand base, power cable, DisplayPort 1.4 cable (DP to DP, 1.8 m), USB-A to USB-C Gen 2 cable (1 m), USB-C to USB-C Gen 2 cable (1 m), Quick Setup Guide, Factory Calibration Report and safety/regulatory information.
Dell UltraSharp Monitors
| Model | Key feature |
| U2421E | 24.1" WUXGA 16:10, USB-C 90 W, RJ45 |
| U2422H | 24" FHD IPS, USB hub |
| U2422HE (this listing) | 24" FHD IPS, USB-C 90 W, RJ45 |
| U2424H | 24" FHD 120 Hz, USB hub |
| U2424HE | 24" FHD 120 Hz, USB-C 90 W, RJ45 |
| U2520D | 25" QHD IPS, USB-C 90 W |
| U2722D | 27" QHD IPS, USB hub |
| U2722DE | 27" QHD IPS, USB-C 90 W, RJ45 |
| U2723QE | 27" 4K IPS Black, USB-C 90 W, RJ45 |
| U2724D | 27" QHD IPS Black 120 Hz |
| U2724DE | 27" QHD 120 Hz, Thunderbolt 4 90 W |
| U2725QE | 27" 4K 120 Hz, Thunderbolt 4 |
| U3023E | 30" WQXGA 16:10, USB-C 90 W, RJ45 |
| U3223QE | 31.5" 4K IPS Black, USB-C 90 W, RJ45 |
| U3224KB | 32" 6K, Thunderbolt 4, webcam |
| U3225QE | 32" 4K 120 Hz, Thunderbolt 4 |
| U3226Q | 32" 4K QD-OLED |
Datasheet & Downloads
| User guide | Dell U2422HE Monitor User's Guide (PDF) |
| Dell Singapore | U2422HE on dell.com/en-sg |
| Manuals & drivers | U2422HE on Dell Support (Singapore) |
| Warranty | Dell Monitor Service & Warranty brochure (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U2422HE.
Frequently Asked Questions — Dell U2422HE
What warranty does the Dell U2422HE come with?
Local Dell warranty, supplied by SourceIT with a GST invoice. Dell lists this model with 3-Years Advanced Exchange Service and Premium Panel Guarantee in other markets; email sales@sourceit.com.sg to confirm the Singapore term.
How much power does USB-C deliver?
Up to 90 W Power Delivery to a compatible notebook via the USB-C video + data upstream port.
Does it have Ethernet?
Yes, an RJ45 port provides wired networking (up to 1000 Mbps) to a laptop connected over USB-C.
Can I daisy chain monitors?
Yes. DisplayPort out with MST supports up to 3 FHD monitors from DisplayPort, or up to 2 via USB-C (HBR3).
How far does the stand adjust?
150 mm height, tilt -5° to +21°, swivel ±45° and pivot ±90°.
