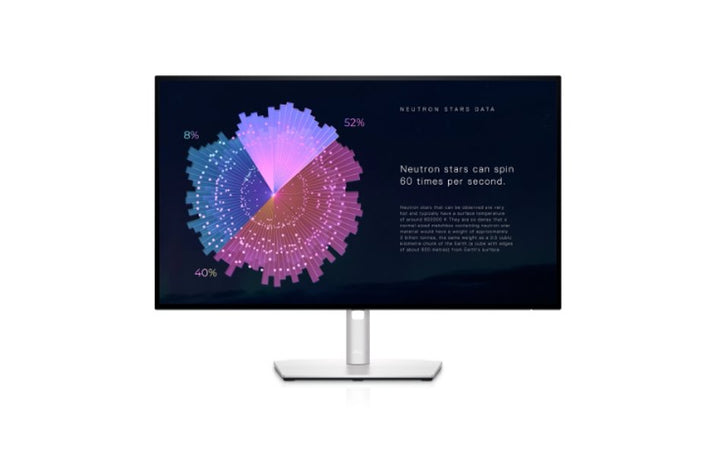

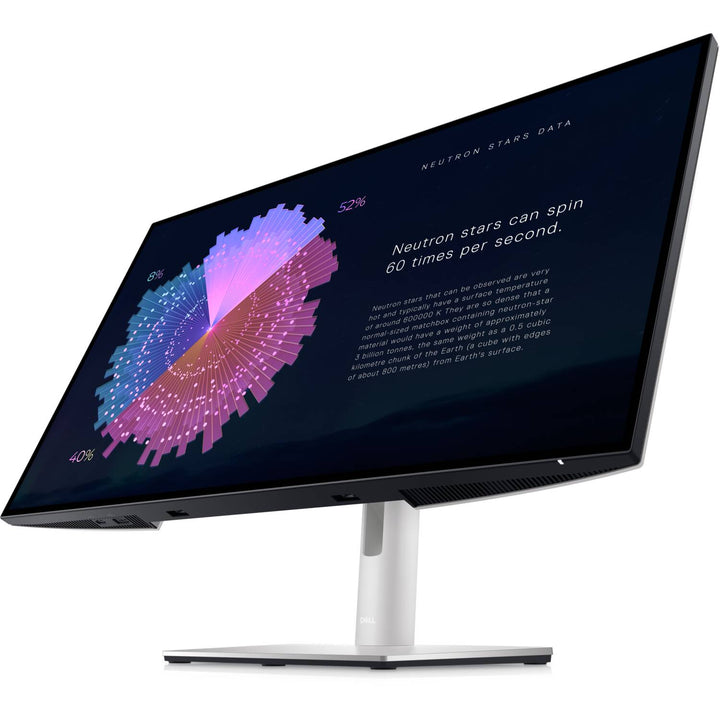

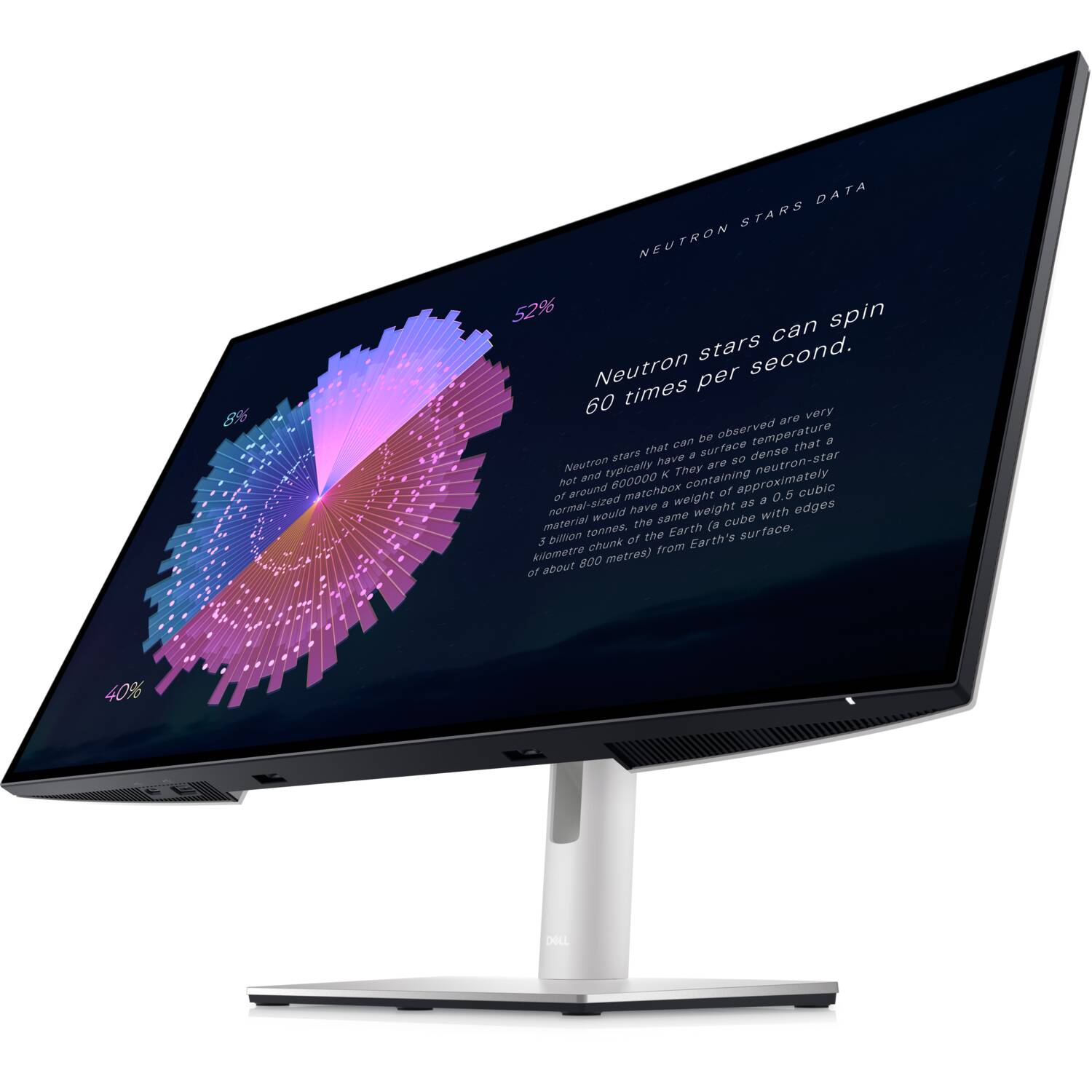

Dell UltraSharp 27 U2722DE 27" QHD USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell UltraSharp 27 USB-C Hub Monitor U2722DE (210-AZFR) - Local Dell Warranty

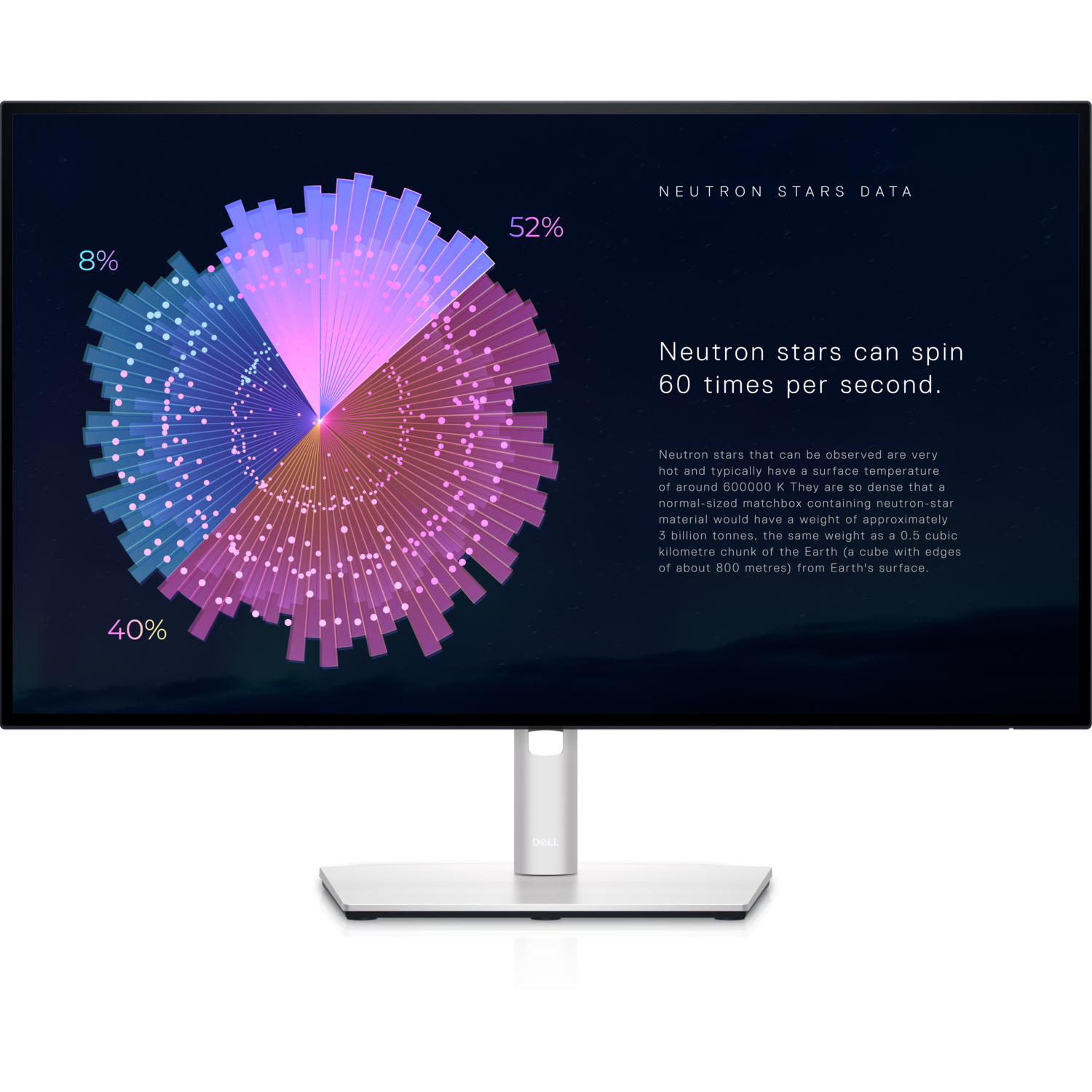

27" QHD IPS with 100% sRGB
A 27-inch 2560 x 1440 IPS panel with 350 cd/m² brightness, 1.07 billion colours and 100% sRGB and Rec 709 coverage, viewable at 178° from any side.
One-cable USB-C hub with 90 W
A single USB-C connection carries DisplayPort 1.4 video, USB 3.2 Gen 2 data and up to 90 W of power to a laptop, while the built-in RJ45 port adds wired networking.

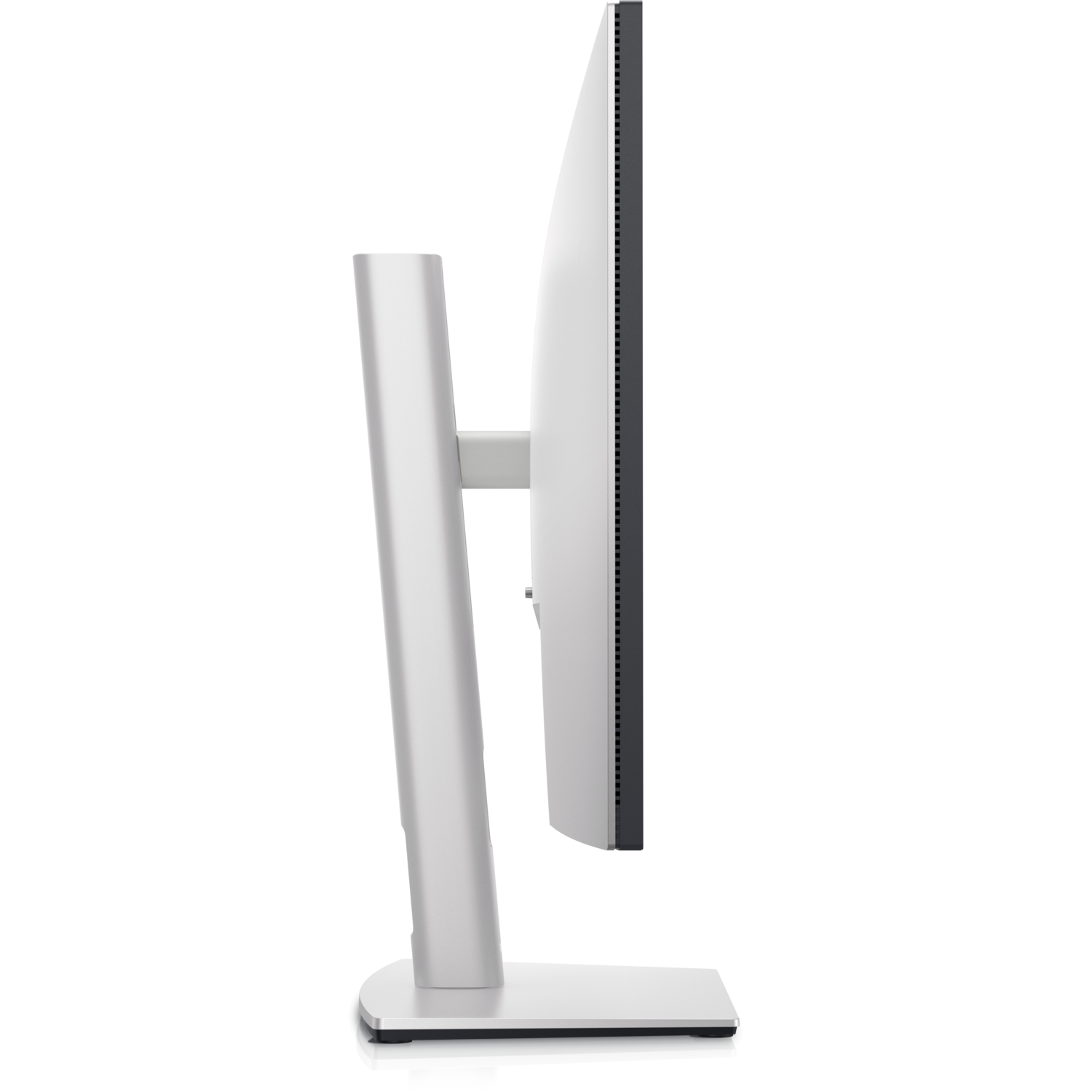

Fully adjustable and eye-friendly
The stand offers 150 mm height adjustment plus tilt, swivel and pivot, and Dell ComfortView Plus provides built-in low blue light with flicker-free operation.
Equipping a team or office? Email sales@sourceit.com.sg for volume pricing, delivery lead time and availability of current Dell successors.
Dell U2722DE Datasheet — Technical Specifications
Display
| Screen size | 27" (16:9) |
| Panel type | IPS, LED-backlit LCD / TFT active matrix |
| Native resolution | QHD 2560 x 1440 at 60 Hz |
| Pixel pitch | 0.2331 mm |
| Pixels per inch | 108.78 PPI |
| Brightness | 350 cd/m² |
| Contrast ratio | 1000:1 |
| Colour support | 1.07 billion colours |
| Colour gamut | 100% sRGB, 100% Rec 709 |
| Response time | 8 ms (normal); 5 ms (fast) |
| Viewing angle | 178° horizontal / 178° vertical |
| Screen coating | Anti-glare, 3H hard coating |
| Bezel | 3-sided bezel-less design |

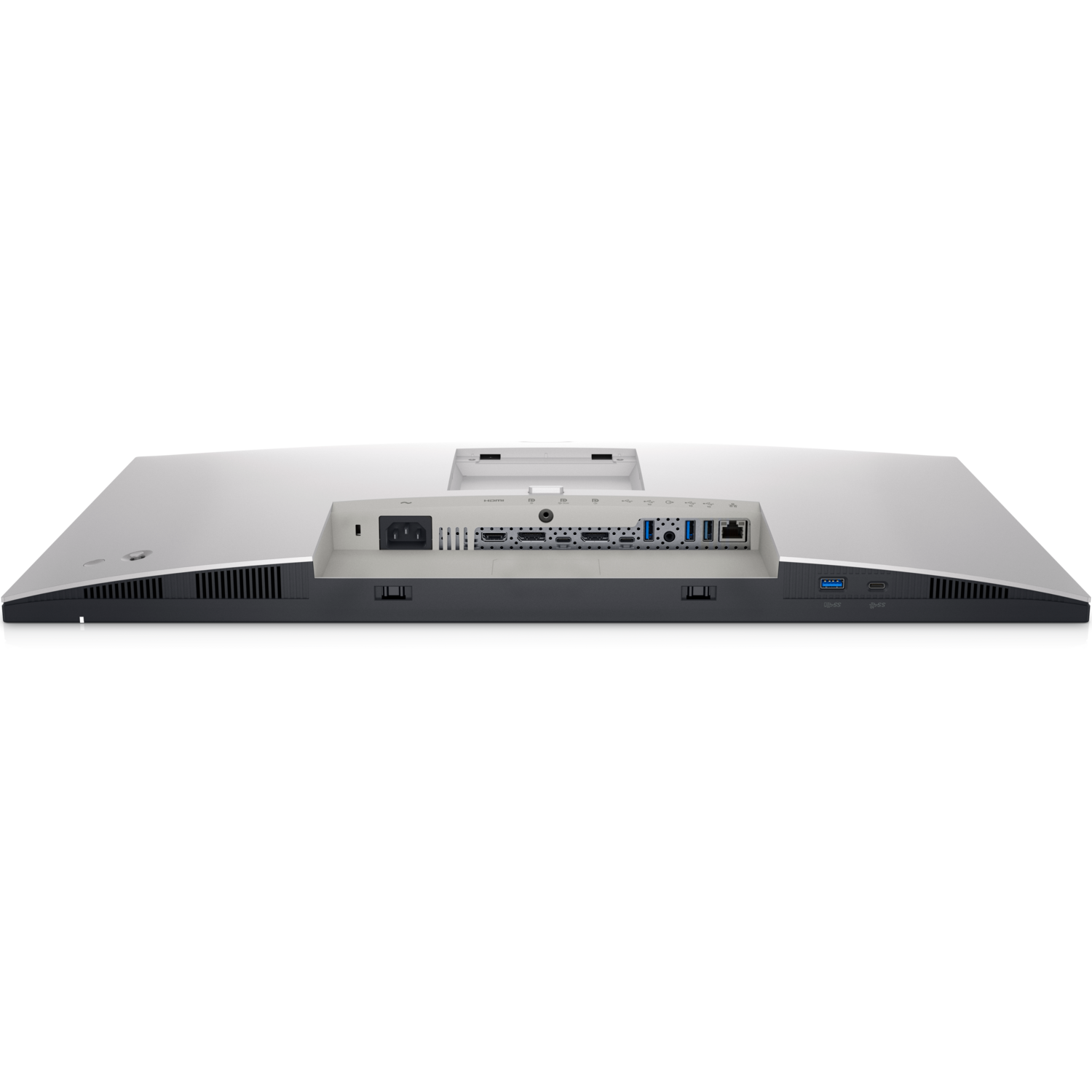

Connectivity
| HDMI | 1 x HDMI (HDCP 1.4) |
| DisplayPort in | 1 x DisplayPort 1.4 (HDCP 1.4) |
| DisplayPort out | 1 x DisplayPort output (MST) |
| USB-C upstream (video + power) | 1 x USB-C 3.2 Gen 2 upstream / DisplayPort 1.4 Alt Mode, power delivery up to 90 W |
| USB-C upstream (data) | 1 x USB-C 3.2 Gen 2 upstream |
| USB-C downstream | 1 x USB-C 3.2 Gen 2 downstream (power up to 15 W) |
| USB-A downstream | 3 x USB 3.2 Gen 2 downstream, plus 1 x USB 3.2 Gen 2 downstream with Battery Charging 1.2 |
| Network | 1 x RJ45 (Ethernet) |
| Audio | Audio line-out (3.5 mm mini-jack) |
| USB-C Power Delivery | Up to 90 W |
| Built-in speakers | No |
Ergonomics

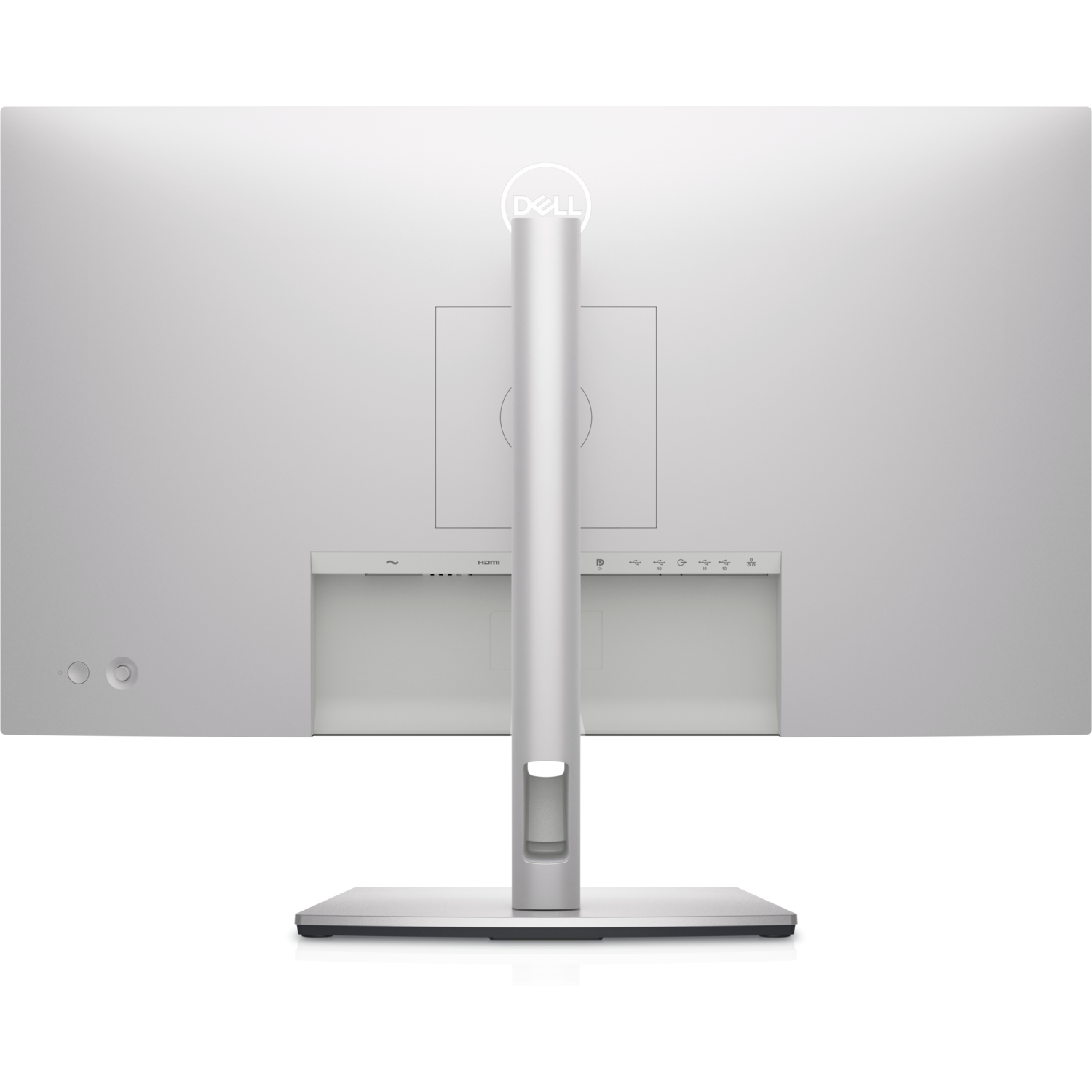

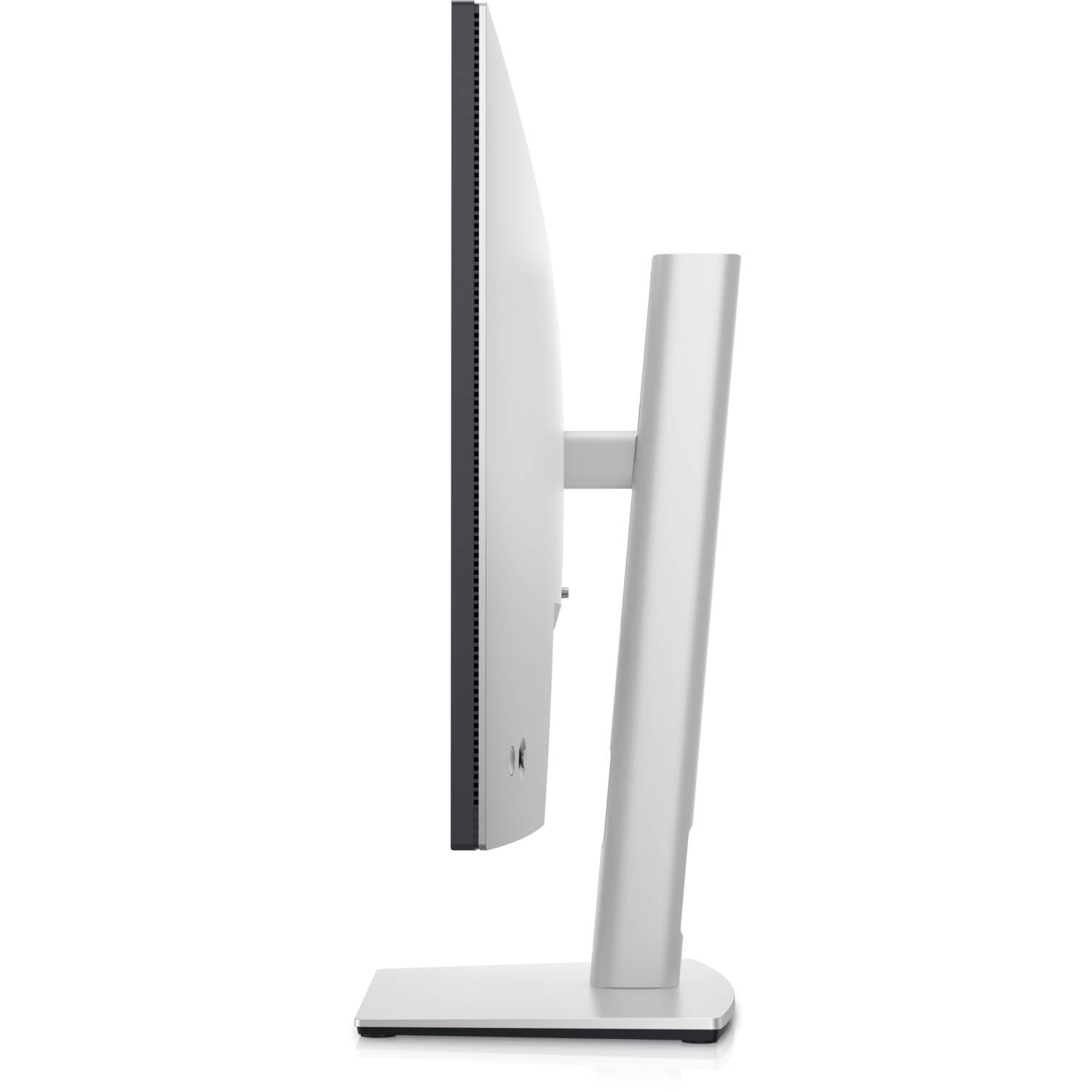

| Adjustments | Height, tilt, swivel, pivot |
| Height adjustment | 150 mm |
| Tilt | -5° / +21° |

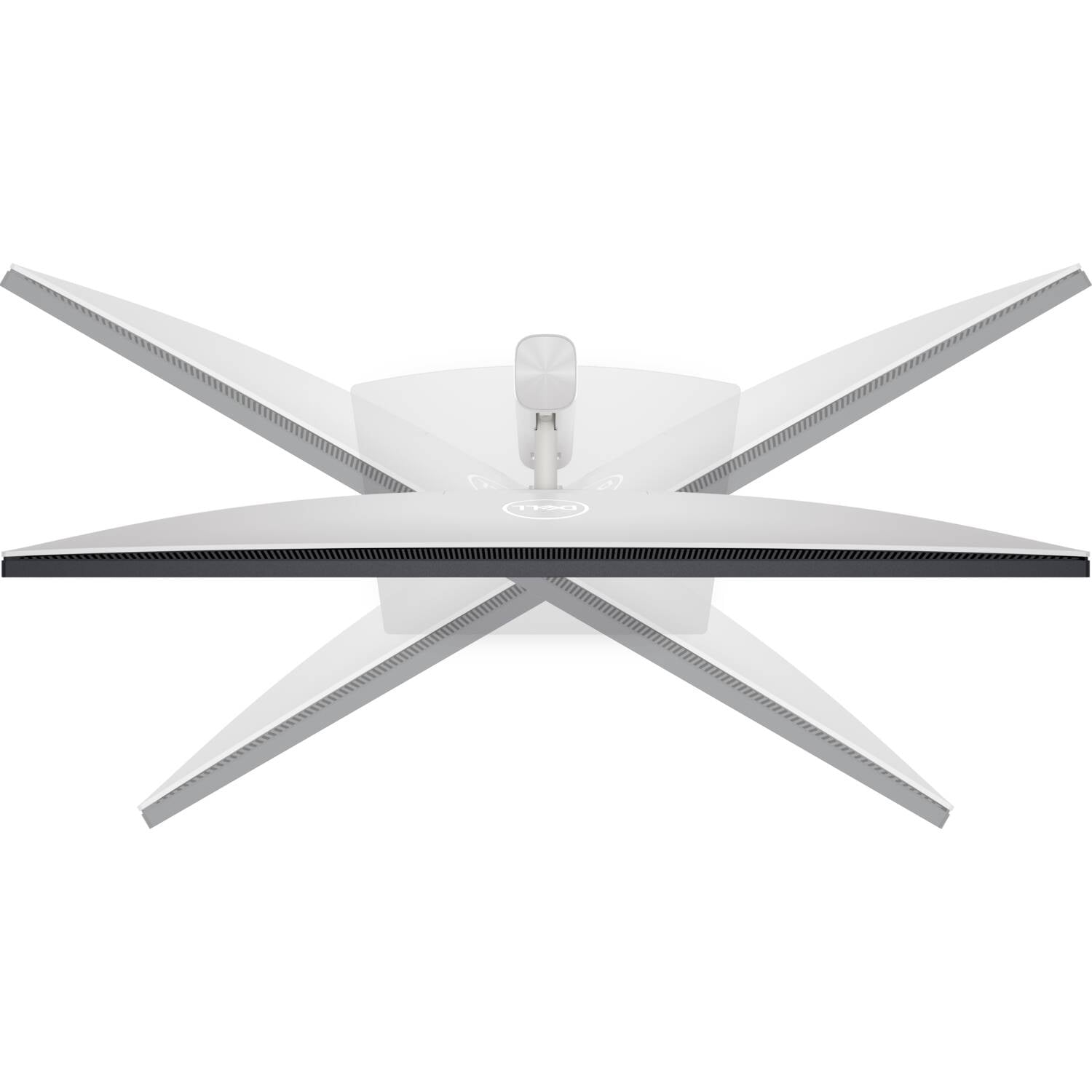

| Swivel | -45° / +45° |
| Pivot (rotation) | -90° / +90° |
| VESA mounting | 100 x 100 mm |
| Security | Kensington security lock slot (cable lock sold separately) |
Eye Comfort
| Low blue light | Dell ComfortView Plus |
| Flicker | Flicker-free technology |
Power
| Input voltage | AC 100-240 V (50/60 Hz) |
| On mode | 20.4 W |
| Typical | 30 W |
| Maximum | 197 W |
| Standby | 0.5 W |
| Off mode | 0.3 W |
| On/off switch | Yes |
Physical
| Dimensions with stand (W x D x H) | 611.3 x 185 x 385.1 mm (lowest position) |
| Dimensions without stand (W x D x H) | 611.3 x 49.5 x 352 mm |
| Weight (panel only) | 4.78 kg |
| Colour | Black |
| Operating temperature | 0 °C to 40 °C |
| Operating humidity | 10% to 80% (non-condensing) |
Certifications
| Environmental | TCO Certified, EPEAT Gold, ENERGY STAR |
| Compliant standards | RoHS, NFPA 99, BFR-free, PVC-free, mercury-free, arsenic-free glass |
| Software | Dell Display Manager |
Warranty
| Local Warranty (Singapore) | Local Dell warranty, supplied by SourceIT with a GST invoice. Dell lists this model with 3-Year Advanced Exchange Service and Premium Panel Exchange in other markets; email sales@sourceit.com.sg to confirm the Singapore term |
Compatibility & Software Support
PC and laptop connection
Connect via HDMI (HDCP 1.4), DisplayPort 1.4 or USB-C with DisplayPort 1.4 Alt Mode; a DisplayPort output supports MST for connecting a second monitor.
USB-C laptops
USB-C laptops that support DisplayPort Alt Mode get video, USB 3.2 Gen 2 hub access, Ethernet and up to 90 W charging over one cable.
Dell Display Manager and mounting
Dell Display Manager software is supported for display management, and the panel accepts 100 x 100 mm VESA mounts.
Package Contents & Dell UltraSharp Monitors Ordering Information
In the Box
Cables included per Dell: 1 x DisplayPort to DisplayPort cable (1.8 m), 1 x SuperSpeed USB Type-C to Type-A cable (1 m) and 1 x USB-C to USB-C cable (1 m).
Dell UltraSharp Monitors
| Model | Key feature |
| U2421E | 24.1" WUXGA 16:10, USB-C 90 W, RJ45 |
| U2422H | 24" FHD IPS, USB hub |
| U2422HE | 24" FHD IPS, USB-C 90 W, RJ45 |
| U2424H | 24" FHD 120 Hz, USB hub |
| U2424HE | 24" FHD 120 Hz, USB-C 90 W, RJ45 |
| U2520D | 25" QHD IPS, USB-C 90 W |
| U2722D | 27" QHD IPS, USB hub |
| U2722DE (this listing) | 27" QHD IPS, USB-C 90 W, RJ45 |
| U2723QE | 27" 4K IPS Black, USB-C 90 W, RJ45 |
| U2724D | 27" QHD IPS Black 120 Hz |
| U2724DE | 27" QHD 120 Hz, Thunderbolt 4 90 W |
| U2725QE | 27" 4K 120 Hz, Thunderbolt 4 |
| U3023E | 30" WQXGA 16:10, USB-C 90 W, RJ45 |
| U3223QE | 31.5" 4K IPS Black, USB-C 90 W, RJ45 |
| U3224KB | 32" 6K, Thunderbolt 4, webcam |
| U3225QE | 32" 4K 120 Hz, Thunderbolt 4 |
| U3226Q | 32" 4K QD-OLED |
Datasheet & Downloads
| User guide | Dell U2722DE Monitor User's Guide (PDF) |
| Manuals & drivers | U2722DE on Dell Support (Singapore) |
| Warranty | Dell Monitor Service & Warranty brochure (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U2722DE.
Frequently Asked Questions — Dell U2722DE
What is the resolution of the Dell U2722DE?
It is a 27-inch QHD monitor with 2560 x 1440 resolution at 60 Hz on an IPS panel.
How much power can the USB-C port deliver to a laptop?
The USB-C upstream port with DisplayPort 1.4 Alt Mode delivers up to 90 W; the downstream USB-C port supplies up to 15 W.
Does the U2722DE have an Ethernet port?
Yes, it has a built-in RJ45 network port, available to a connected computer through the USB-C hub.
Can I daisy-chain a second monitor?
Yes, the monitor has a DisplayPort output with MST support.
What warranty does it come with?
Local Dell warranty, supplied by SourceIT with a GST invoice. Dell lists this model with 3-Year Advanced Exchange Service and Premium Panel Exchange in other markets; email sales@sourceit.com.sg to confirm the Singapore term.
