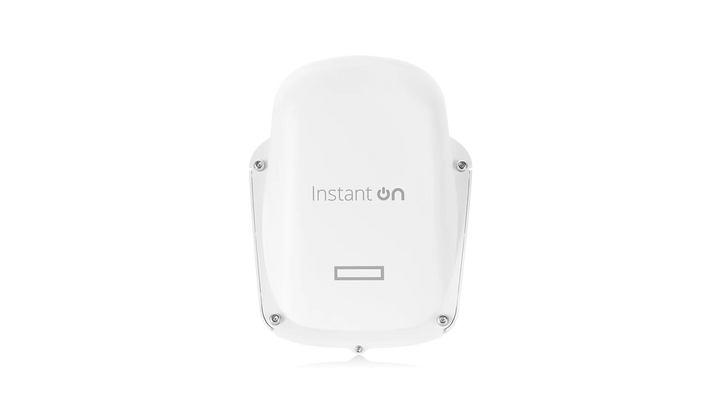

HPE Networking Instant On AP27 Outdoor IP67 Dual-Band Wi-Fi 6 2x2 Access Point with PoE Injector Bundle
PRODUCT DESCRIPTION
HPE Networking Instant On AP27 Outdoor Wi-Fi 6 Access Point Bundle with PSU (S1T43A) - 2 Years Local Warranty
Outdoor Wi-Fi 6 with the Power Supply Included
This bundle pairs the HPE Networking Instant On AP27 outdoor access point with a power supply, so it can be installed even where the upstream switch has no PoE+. The AP27 is a dual-radio 2x2 Wi-Fi 6 access point for patios, courtyards, car parks, warehouses and campus grounds, delivering up to 1774 Mbps across its 2.4 GHz and 5 GHz 802.11ax radios. HPE recommends up to 75 active devices.
Built for Outdoor Conditions: IP67
The AP27 is IP67 rated and specified for -40°C to 65°C, so it can be mounted outdoors in exposed locations.
Secure Guest and Staff Access
HPE lists WPA2, WPA3 and OWE (Enhanced Open) authentication, so outdoor guest Wi-Fi can be encrypted even without a password.
Single-Cable PoE Installation
The AP27 is powered by 802.3at PoE (14.6 W), so one Ethernet cable carries both data and power to the mounting point. The power supply in this bundle feeds that cable from indoors; the AP-only SKU is S1T37A.
Supplied in Singapore with Local Warranty
HPE backs Instant On access points with a two-year warranty and 24/7 phone and chat support. SourceIT supplies them locally in Singapore with a GST invoice.
Not sure whether you need the AP22, AP22D, AP25, AP32 or outdoor AP27? Email sales@sourceit.com.sg with your floor area, user count and cabling, and we will recommend a layout.
HPE Instant On AP27 S1T43A Datasheet — Technical Specifications
General
| Product Name | HPE Networking Instant On Outdoor Access Point Bundle with PSU AP27 |
| Part Number | S1T43A |
| HPE Description | HPE Networking Instant On Outdoor Access Point Bundle with PSU Dual Radio 2x2 Wi-Fi 6 (RW) AP27 |
| Series | HPE Networking Instant On access points |
| Manufacturer Warranty | HPE two-year warranty with 24/7 phone and chat support (HPE Networking Instant On) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standard | 2.4 GHz 802.11ax (Wi-Fi 6); 5 GHz 802.11ax (Wi-Fi 6) |
| Radios / MIMO | Dual radio, 2x2 |
| Max Data Rate | 1774 Mbps |
| Recommended Max Active Devices | 75 |
| Security | WPA2 / WPA3 / OWE |
Power
| Power | PoE in: 802.3at, 14.6 W (PoE); power supply included in this bundle |
Physical & Environmental
| Dimensions | 180 mm (W) x 232 mm (D) x 120 mm (H) |
| Weight | 1170 g |
| Ingress Protection | IP67 |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Deployment | Outdoor |
Management
| Options | HPE Networking Instant On mobile app or Instant On web portal |
Figures are taken from HPE's published AP27 product page and QuickSpecs. For anything not listed, refer to the HPE documents linked under Datasheet & Downloads.
Compatibility & Software Support
What It Is Suited To
Outdoor dining areas, courtyards, car parks, loading bays and school grounds that need weatherproof Wi-Fi 6, especially where the nearest switch has no PoE+ port.
Management Software
Set up and manage with the HPE Networking Instant On mobile app (iOS and Android) or the Instant On web portal — the same platform used for Instant On switches and Secure Gateways, so wired and wireless can be run from one place.
Client Compatibility
Wi-Fi 6 (802.11ax) clients, with backward compatibility for older Wi-Fi devices.
Package Contents & Instant On Access Point Ordering Information
In the Box
One HPE Networking Instant On AP27 outdoor access point with power supply (PoE injector and power cord). HPE's QuickSpecs do not list the full carton contents, so confirm mounting hardware with us if it matters.
HPE Networking Instant On Access Points — Ordering Information
| Instant On AP22 Indoor | Dual-band 2x2 Wi-Fi 6, ceiling/wall | R4W02A |
| Instant On AP22 Bundle with PSU | AP22 supplied with power adapter | R6M51A |
| Instant On AP22D Desk/Wall | Dual-band 2x2 Wi-Fi 6, 2.5G uplink + 4 x 1G ports | S1U76A |
| Instant On AP22D Bundle with PSU | AP22D supplied with power adapter | S0J34A |
| Instant On AP22D 5-Pack | Five AP22D access points | S1U81A |
| Instant On AP25 Indoor | Dual-band 4x4 Wi-Fi 6, 2.5G uplink | R9B28A |
| Instant On AP25 Bundle with PSU | AP25 supplied with power adapter | R9B34A |
| Instant On AP32 Indoor | Tri-band 2x2 Wi-Fi 6E, 2.5G uplink | S1T23A |
| Instant On AP32 Bundle with PSU | AP32 supplied with power adapter | S1T29A |
| Instant On AP32 5-Pack | Five AP32 access points | S1T32A |
| Instant On AP27 Outdoor | Dual-band 2x2 Wi-Fi 6, IP67 | S1T37A |
| Instant On AP27 Outdoor Bundle with PSU (this listing) | AP27 supplied with PoE injector and cord | S1T43A |
Power & Mounting Accessories
HPE lists optional Instant On power accessories for these access points, including the R9M79A 12V/18W Power Adaptor (RW), the R8W31A 802.3af 15.4W PoE Midspan Injector and the R9M77A 30W 802.3at PoE Midspan Injector. Ask us to confirm the right option for your model and installation.
Datasheet & Downloads
| HPE QuickSpecs | HPE Networking Instant On Wi-Fi 6 Access Points QuickSpecs |
| HPE product page | HPE Networking Instant On Access Point AP27 |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting S1T43A.
Frequently Asked Questions — HPE Instant On AP27 S1T43A
What is the difference between S1T43A and S1T37A?
Both are the same AP27 outdoor access point. S1T43A is the bundle with a power supply (PoE injector and cord); S1T37A is the access point only, for sites with a PoE+ switch.
Is the AP27 Wi-Fi 6 or Wi-Fi 6E?
Wi-Fi 6. HPE lists 802.11ax radios on 2.4 GHz and 5 GHz only; it does not use 6 GHz.
Can it be installed fully outdoors?
Yes. It is IP67 rated with an operating range of -40°C to 65°C. Keep the power supply itself indoors.
How many users can it serve?
HPE recommends up to 75 active devices per AP27.
What warranty do I get?
HPE's two-year warranty with 24/7 phone and chat support, supplied by SourceIT with local support and a GST invoice.
