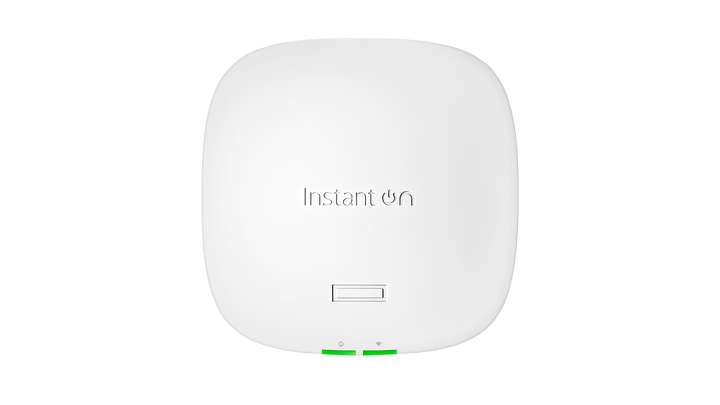

HPE Networking Instant On AP32 Indoor Tri-Band Wi-Fi 6E 2x2 Access Point 5-Pack
PRODUCT DESCRIPTION
HPE Networking Instant On AP32 Tri-Band Wi-Fi 6E Access Point 5-Pack (S1T32A) - 2 Years Local Warranty
Five Wi-Fi 6E Access Points for Whole-Site Coverage
This 5-pack supplies five HPE Networking Instant On AP32 access points under one part number, for offices and multi-room sites being rolled out in one go. The AP32 is a Wi-Fi CERTIFIED 6E indoor access point that adds the 6 GHz band to 2.4 GHz and 5 GHz. Each unit is 2x2 with a maximum data rate of 3.6 Gbps.
HPE recommends up to 75 active devices per AP32.
2.5G Uplink for Multi-Gigabit Wireless
A 2.5 Gigabit Ethernet uplink port on each access point lets the AP32 pass its higher 6 GHz throughput back to the network without a 1G bottleneck.
Smart Mesh and ClientMatch
Smart Mesh extends the network wirelessly to areas that are hard to cable, and ClientMatch dynamically manages how client devices connect across the access points. Older 802.11b/g/n/ac devices remain supported.
Power from Your PoE Switch
Each AP32 runs from 802.3bt/802.3at PoE (12.9 W) or from DC power (11 W). For a five-AP rollout, a PoE switch such as the Instant On 1930 or 1960 PoE models is the tidiest option; power adapters can be ordered separately.
Supplied in Singapore with Local Warranty
HPE backs Instant On access points with a two-year warranty and 24/7 phone and chat support. SourceIT supplies them locally in Singapore with a GST invoice.
Not sure whether you need the AP22, AP22D, AP25, AP32 or outdoor AP27? Email sales@sourceit.com.sg with your floor area, user count and cabling, and we will recommend a layout.
HPE Instant On AP32 S1T32A Datasheet — Technical Specifications
General
| Product Name | HPE Networking Instant On Access Point 5-Pack AP32 |
| Part Number | S1T32A |
| HPE Description | HPE Networking Instant On Access Point Dual Radio Tri Band 2x2 Wi-Fi 6E 5-Pack (RW) AP32 |
| Quantity | 5 access points |
| Series | HPE Networking Instant On access points |
| Manufacturer Warranty | HPE two-year warranty with 24/7 phone and chat support (HPE Networking Instant On) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless (per access point)
| Wi-Fi Standard | 2.4 GHz 802.11ax (Wi-Fi 6); 5 GHz 802.11ax (Wi-Fi 6); 6 GHz 802.11ax (Wi-Fi 6E) |
| MIMO | 2x2 |
| Max Data Rate | 3.6 Gbps |
| Recommended Max Active Devices | 75 |
| Certification | Wi-Fi CERTIFIED 6E |
Ports & Power (per access point)
| Uplink | 2.5 Gigabit Ethernet |
| Power | PoE in: 802.3bt/802.3at, 12.9 W (PoE), or 11 W (DC) |
Physical (per access point)
| Dimensions | 160 mm (W) x 160 mm (D) x 39 mm (H) |
| Weight | 520 g |
| Deployment | Indoor |
Management
| Options | HPE Networking Instant On mobile app or Instant On web portal |
Figures are taken from HPE's published AP32 product page and HPE Store listing. For anything not listed, refer to the HPE documents linked under Datasheet & Downloads.
Compatibility & Software Support
What It Is Suited To
Multi-room offices, clinics, studios and small campuses deploying several Wi-Fi 6E access points at once, each serving up to 75 active devices.
Management Software
Set up and manage all five access points with the HPE Networking Instant On mobile app (iOS and Android) or the Instant On web portal — the same platform used for Instant On switches and Secure Gateways, so wired and wireless can be run from one place.
Client Compatibility
Wi-Fi 6E clients on 6 GHz; Wi-Fi 6 and older 802.11b/g/n/ac clients on 2.4 GHz and 5 GHz.
Package Contents & Instant On Access Point Ordering Information
In the Box
Five HPE Networking Instant On AP32 access points. HPE's description does not list power adapters for the 5-pack, so plan on PoE or order adapters separately. Confirm mounting hardware with us if it matters to your installation.
HPE Networking Instant On Access Points — Ordering Information
| Instant On AP22 Indoor | Dual-band 2x2 Wi-Fi 6, ceiling/wall | R4W02A |
| Instant On AP22 Bundle with PSU | AP22 supplied with power adapter | R6M51A |
| Instant On AP22D Desk/Wall | Dual-band 2x2 Wi-Fi 6, 2.5G uplink + 4 x 1G ports | S1U76A |
| Instant On AP22D Bundle with PSU | AP22D supplied with power adapter | S0J34A |
| Instant On AP22D 5-Pack | Five AP22D access points | S1U81A |
| Instant On AP25 Indoor | Dual-band 4x4 Wi-Fi 6, 2.5G uplink | R9B28A |
| Instant On AP25 Bundle with PSU | AP25 supplied with power adapter | R9B34A |
| Instant On AP32 Indoor | Tri-band 2x2 Wi-Fi 6E, 2.5G uplink | S1T23A |
| Instant On AP32 Bundle with PSU | AP32 supplied with power adapter | S1T29A |
| Instant On AP32 5-Pack (this listing) | Five AP32 access points | S1T32A |
| Instant On AP27 Outdoor | Dual-band 2x2 Wi-Fi 6, IP67 | S1T37A |
| Instant On AP27 Outdoor Bundle with PSU | AP27 supplied with PoE injector and cord | S1T43A |
Power & Mounting Accessories
HPE lists optional Instant On power accessories for these access points, including the R9M79A 12V/18W Power Adaptor (RW), the R8W31A 802.3af 15.4W PoE Midspan Injector and the R9M77A 30W 802.3at PoE Midspan Injector. Ask us to confirm the right option for your model and installation.
Datasheet & Downloads
| HPE product page | HPE Networking Instant On Access Point AP32 |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting S1T32A.
Frequently Asked Questions — HPE Instant On AP32 S1T32A
How many access points are included?
Five AP32 access points under the single part number S1T32A.
Are power adapters included?
HPE's description for the 5-pack does not list power adapters. Each AP32 can be powered by 802.3at/802.3bt PoE (12.9 W); for single units with an adapter, see the S1T29A bundle.
Is the AP32 Wi-Fi 6E?
Yes. It is Wi-Fi CERTIFIED 6E and operates on 2.4 GHz, 5 GHz and 6 GHz.
Can the access points mesh with each other?
Yes. HPE lists Smart Mesh for extending the network wirelessly to hard-to-cable areas.
What warranty do I get?
HPE's two-year warranty with 24/7 phone and chat support on each access point, supplied by SourceIT with local support and a GST invoice.
