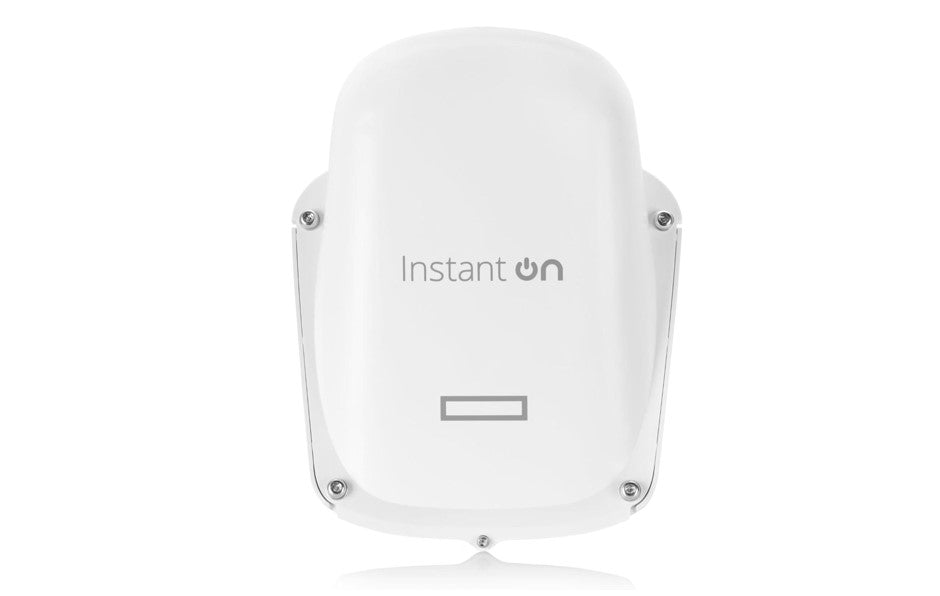

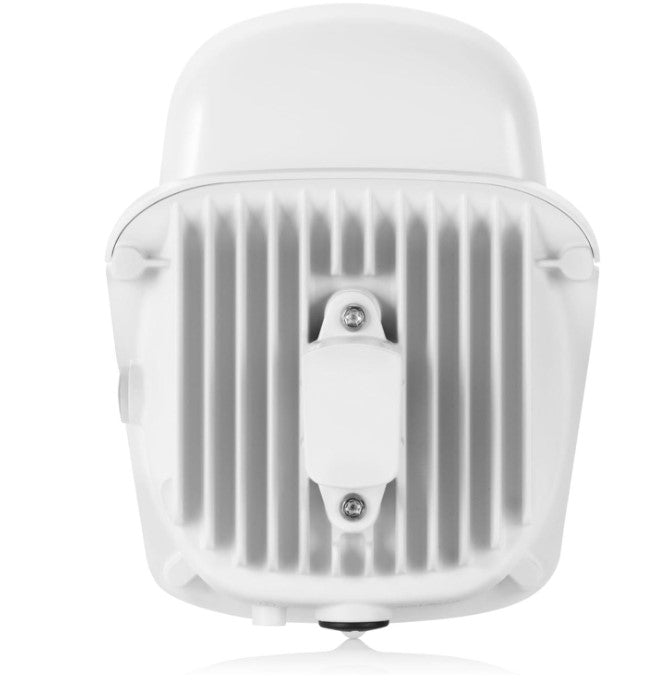

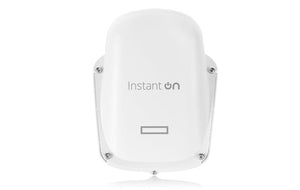

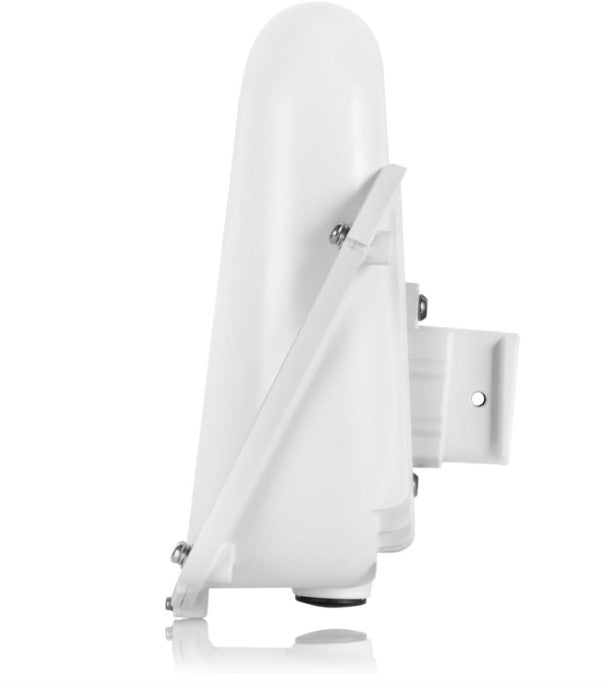

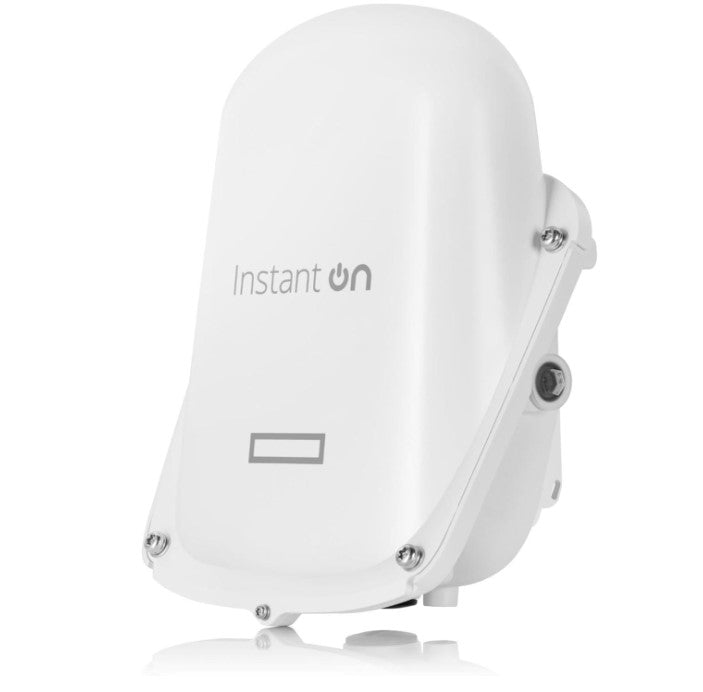

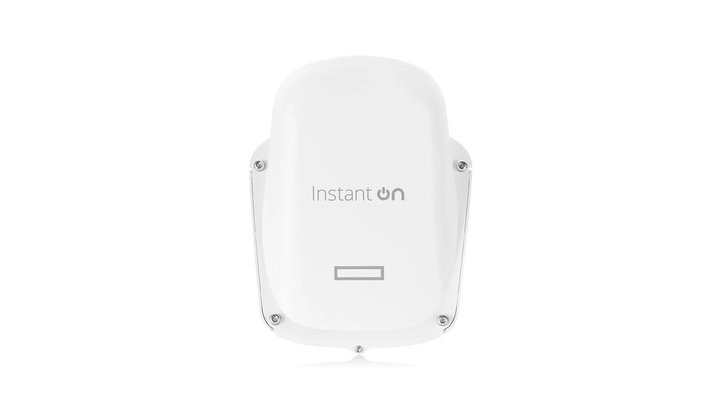

HPE Networking Instant On AP27 WiFi 6E Outdoor Access Point

Outdoor Wi-Fi 6E Connectivity for Modern Business Environments

The HPE Networking Instant On AP27 WiFi 6E Outdoor Access Point (S1T37A) is a high-performance wireless networking solution designed to deliver secure and reliable outdoor connectivity for small and medium-sized businesses. Featuring next-generation Wi-Fi 6E technology, the AP27 utilizes the 6 GHz spectrum to provide faster speeds, lower latency, and enhanced wireless performance for outdoor deployments.

Tri-Band Wi-Fi 6E Performance for Outdoor Coverage

With support for 2.4 GHz, 5 GHz, and 6 GHz wireless bands, the Instant On AP27 offers increased capacity and improved network efficiency in environments with multiple connected devices. Businesses can support cloud applications, outdoor workspaces, video conferencing, guest Wi-Fi services, and IoT devices while maintaining a smooth and responsive wireless experience.

Rugged Outdoor Design for Reliable Operation

Built specifically for outdoor installations, the HPE Networking Instant On AP27 features a durable weather-resistant design suitable for restaurants, resorts, schools, retail outlets, warehouses, hospitality venues, and outdoor event spaces. Its robust construction helps ensure dependable wireless performance even in challenging environmental conditions.

Simple Cloud Management with Enterprise-Level Security

The Instant On AP27 combines easy deployment with powerful management capabilities through the Instant On cloud platform. Businesses can remotely monitor, configure, and manage wireless networks while benefiting from advanced security features that help protect users, devices, and business data across outdoor environments.

Technical Specifications

General
Model: Instant On AP27 (RW)
Part Number: S1T37A
Product Name: HPE Networking Instant On AP27 Wi-Fi 6 Outdoor Access Point
Manufacturer: HPE Aruba Networking
Product Type: Outdoor Wireless Access Point
Series: HPE Networking Instant On AP27 Series
Deployment Type: Outdoor Wireless Networking
Wireless Standard: Wi-Fi 6 (IEEE 802.11ax)
Radio Design: Dual-Radio Access Point
Antenna Type: Integrated Omni-Directional Antennas
Management Platform: Instant On Mobile App, Instant On Cloud Portal
Warranty: 2-Year Limited Warranty with 24/7 Phone and Chat Support
Environmental Rating: IP67 Outdoor Rated

Wireless Specifications
Wireless Standard: IEEE 802.11ax (Wi-Fi 6)

Backward Compatibility:
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac

Frequency Bands:
• 2.4 GHz
• 5 GHz

Radio Configuration: Dual-Radio
MIMO Configuration: 2x2:2 MU-MIMO
Maximum Aggregate Data Rate: Up to 1.77 Gbps
Maximum 5 GHz Data Rate: Up to 1.2 Gbps
Maximum 2.4 GHz Data Rate: Up to 574 Mbps
Channel Width Support: Up to 80 MHz
MU-MIMO: Supported
OFDMA: Supported
Beamforming: Supported
Target Wake Time (TWT): Supported
Wi-Fi CERTIFIED 6™: Supported

Radio Specifications
2.4 GHz Radio: 2x2 MIMO
5 GHz Radio: 2x2 MIMO
Concurrent Dual-Band Operation: Supported
Client Optimization: Supported
High-Density Client Support: Supported
Smart Mesh Networking: Supported
Outdoor Coverage Optimization: Supported

Performance Specifications
Maximum Aggregate Throughput: Up to 1.77 Gbps
Recommended Active Devices: Up to 75 Devices
Voice and Video Optimization: Supported
Cloud Application Optimization: Supported
Low-Latency Wireless Connectivity: Supported
Outdoor High-Density Deployment Support: Supported
Real-Time Collaboration Support: Supported

Networking Specifications
Ethernet Port: 1 x Gigabit Ethernet RJ-45 Uplink Port
Network Speed: 10/100/1000 Mbps
Network Segmentation: Supported
Smart Mesh Networking: Supported
Wireless Backhaul: Supported
Enterprise Switching Compatibility: Supported

IoT & Smart Features
Bluetooth Low Energy (BLE): Supported
Smart Mesh Technology: Supported
Application Visibility: Supported
Remote Monitoring: Supported
Remote Troubleshooting: Supported
Guest Network Support: Supported
Cloud-Based Management: Supported

Security Features
WPA2 Personal: Supported
WPA2 Enterprise: Supported
WPA3 Personal: Supported
WPA3 Enterprise: Supported
Enhanced Open (OWE): Supported
Secure Guest Access: Supported
Built-In Security Gateway: Supported
Traffic Segmentation: Supported

Management Features
Instant On Mobile App: Supported
Instant On Cloud Portal: Supported
Cloud-Based Configuration: Supported
Remote Management: Supported
Zero Touch Deployment: Supported
Firmware Updates: Supported
Network Analytics: Supported

Power Specifications
Power over Ethernet: Supported
PoE Standard: IEEE 802.3at (PoE+)
Power Consumption: Approximately 14.6W
DC Power Input: Supported
Power Optimization Features: Supported

Environmental Specifications
Ingress Protection Rating: IP67
Operating Temperature: -40°C to +65°C
Dust Resistance: Supported
Rain Resistance: Supported
Snow Resistance: Supported
Outdoor Weatherproof Design: Supported
UV Resistant Housing: Supported

Antenna Specifications
Antenna Type: Integrated Omni-Directional Antennas
MIMO Configuration: 2x2:2
2.4 GHz Antenna Gain: 3.2 dBi
5 GHz Antenna Gain: 5.4 dBi
Coverage Optimization: Supported

Physical Specifications
Form Factor: Outdoor Access Point
Dimensions: 180 x 232 x 120 mm
Weight: Approximately 1.17 kg
Color: White
Mounting Options: Wall Mount, Pole Mount, Ceiling Mount
Deployment Environment: Outdoor Use

Features
Wi-Fi 6 (802.11ax) Technology
2x2:2 MU-MIMO Architecture
Up to 1.77 Gbps Aggregate Throughput
IP67 Outdoor Protection
Smart Mesh Networking
Cloud-Based Management
WPA3 Security
Bluetooth Low Energy Support
PoE+ Powered Operation
Support for Up to 75 Connected Devices
Outdoor Enterprise-Class Connectivity
Zero Touch Deployment

Performance & Features
Designed for outdoor business environments requiring reliable Wi-Fi connectivity in harsh weather conditions.
Provides enterprise-grade wireless coverage for patios, outdoor workspaces, school grounds, parking areas, hospitality venues, and public spaces.
Smart Mesh technology enables easy wireless expansion without additional cabling.
IP67-rated enclosure protects against dust, rain, snow, and extreme temperatures.
Supports modern collaboration applications, cloud services, VoIP, and video conferencing over outdoor wireless networks.
Cloud-managed architecture simplifies deployment and ongoing maintenance.

Package Contents
HPE Networking Instant On AP27 Outdoor Access Point
Wall Mount Kit
Quick Start Guide
Regulatory Documentation

Key Features
Wi-Fi 6 (802.11ax) Technology
2x2:2 MU-MIMO Architecture
Up to 1.77 Gbps Wireless Throughput
IP67 Outdoor Weatherproof Design
Support for Up to 75 Active Devices
Smart Mesh Networking
Cloud-Based Management Platform
WPA3 Enterprise Security
Bluetooth Low Energy Integration
PoE+ Powered Deployment
Enterprise-Class Outdoor Performance
No Recurring Cloud Management Fees

Typical Use Cases
Outdoor Dining Areas
School Playgrounds
University Campuses
Outdoor Event Spaces
Hospitality Resorts
Hotel Pools and Recreation Areas
Outdoor Workspaces
Retail Outdoor Seating Areas
Parking Lots
Warehouses and Logistics Facilities
Public Wi-Fi Deployments
Business Outdoor Coverage Expansion

Ordering Information
Model: HPE Networking Instant On AP27 (RW)
Part Number: S1T37A
Configuration: Dual-Radio 2x2 Wi-Fi 6 Outdoor Access Point with Integrated Omni-Directional Antennas
