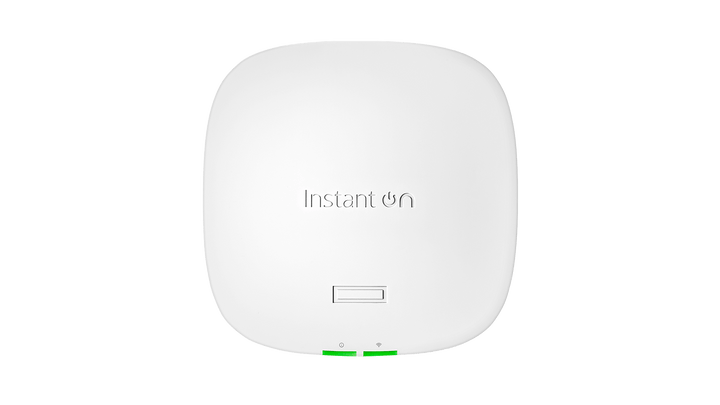

HPE Networking Instant On AP25 Indoor Wi-Fi 6 4x4 Access Point with Power Adapter Bundle
PRODUCT DESCRIPTION
HPE Networking Instant On AP25 Indoor Wi-Fi 6 4x4 Access Point Bundle with PSU (R9B34A) - 2 Years Local Warranty
High-Capacity 4x4 Wi-Fi 6, Ready to Power On
This bundle pairs the HPE Networking Instant On AP25 with a power supply, so it can be installed where no PoE+ switch is available. The AP25 is the high-performance indoor model in HPE's Instant On range: a 4x4 Wi-Fi 6 access point with four spatial streams and a maximum data rate of 5374 Mbps across its 2.4 GHz and 5 GHz 802.11ax radios.
HPE recommends the AP25 for 100+ active devices per access point, making it the pick for busier offices, classrooms, meeting rooms and retail floors.
2.5G Uplink and 160 MHz Channels
A 2.5 Gigabit Ethernet uplink keeps the wired backhaul from becoming the bottleneck, and 160 MHz channel support on 5 GHz lets capable clients reach higher speeds.
Wi-Fi 6 Efficiency and Security
HPE lists Wi-Fi CERTIFIED 6 with WPA3 security, 1024-QAM for up to 25% more data, OFDMA, Target Wake Time (TWT) to extend client battery life, and roughly 4x the capacity of 802.11ac access points.
Flexible Power
The AP25 runs from 802.3at (Class 4) PoE at 20.1 W maximum, or from 12 V DC. This bundle includes the power supply for DC operation; the AP-only SKU is R9B28A.
Supplied in Singapore with Local Warranty
HPE backs Instant On access points with a two-year warranty and 24/7 phone and chat support. SourceIT supplies them locally in Singapore with a GST invoice.
Not sure whether you need the AP22, AP22D, AP25, AP32 or outdoor AP27? Email sales@sourceit.com.sg with your floor area, user count and cabling, and we will recommend a layout.
HPE Instant On AP25 R9B34A Datasheet — Technical Specifications
General
| Product Name | HPE Networking Instant On Access Point Bundle with PSU AP25 |
| Part Number | R9B34A |
| HPE Description | HPE Networking Instant On Access Point Bundle with PSU (WW) AP25 |
| Series | HPE Networking Instant On access points |
| Manufacturer Warranty | HPE two-year warranty with 24/7 phone and chat support (HPE Networking Instant On) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standard | 2.4 GHz 802.11ax (Wi-Fi 6); 5 GHz 802.11ax (Wi-Fi 6) |
| Radios / MIMO | 4x4 (4 spatial streams) |
| Max Data Rate | 5374 Mbps |
| Channel Width | 160 MHz on 5 GHz |
| Recommended Max Active Devices | 100+ |
| Security | WPA3 |
Ports & Power
| Uplink | 2.5 Gigabit Ethernet |
| Power | 802.3at (Class 4), 20.1 W max, or 12 V DC (power supply included in this bundle) |
Physical
| Dimensions | 200 mm (W) x 200 mm (D) x 45 mm (H) |
| Weight | 775 g |
| Deployment | Indoor |
Management
| Options | HPE Networking Instant On mobile app or Instant On web portal |
Figures are taken from HPE's published AP25 product page and QuickSpecs. For anything not listed, refer to the HPE documents linked under Datasheet & Downloads.
Compatibility & Software Support
What It Is Suited To
Busier offices, classrooms, meeting rooms and retail floors that need high capacity — HPE recommends 100+ active devices per AP25 — particularly where the existing switch has no PoE+.
Management Software
Set up and manage with the HPE Networking Instant On mobile app (iOS and Android) or the Instant On web portal — the same platform used for Instant On switches and Secure Gateways, so wired and wireless can be run from one place.
Client Compatibility
Wi-Fi 6 (802.11ax) clients, with backward compatibility for 802.11b/g/n/ac devices.
Package Contents & Instant On Access Point Ordering Information
In the Box
One HPE Networking Instant On AP25 access point with power supply (bundle). HPE's QuickSpecs do not list the full carton contents, so confirm mounting hardware with us if it matters.
HPE Networking Instant On Access Points — Ordering Information
| Instant On AP22 Indoor | Dual-band 2x2 Wi-Fi 6, ceiling/wall | R4W02A |
| Instant On AP22 Bundle with PSU | AP22 supplied with power adapter | R6M51A |
| Instant On AP22D Desk/Wall | Dual-band 2x2 Wi-Fi 6, 2.5G uplink + 4 x 1G ports | S1U76A |
| Instant On AP22D Bundle with PSU | AP22D supplied with power adapter | S0J34A |
| Instant On AP22D 5-Pack | Five AP22D access points | S1U81A |
| Instant On AP25 Indoor | Dual-band 4x4 Wi-Fi 6, 2.5G uplink | R9B28A |
| Instant On AP25 Bundle with PSU (this listing) | AP25 supplied with power adapter | R9B34A |
| Instant On AP32 Indoor | Tri-band 2x2 Wi-Fi 6E, 2.5G uplink | S1T23A |
| Instant On AP32 Bundle with PSU | AP32 supplied with power adapter | S1T29A |
| Instant On AP32 5-Pack | Five AP32 access points | S1T32A |
| Instant On AP27 Outdoor | Dual-band 2x2 Wi-Fi 6, IP67 | S1T37A |
| Instant On AP27 Outdoor Bundle with PSU | AP27 supplied with PoE injector and cord | S1T43A |
Power & Mounting Accessories
HPE lists optional Instant On power accessories for these access points, including the R9M79A 12V/18W Power Adaptor (RW), the R8W31A 802.3af 15.4W PoE Midspan Injector and the R9M77A 30W 802.3at PoE Midspan Injector. Ask us to confirm the right option for your model and installation.
Datasheet & Downloads
| HPE QuickSpecs | HPE Networking Instant On Wi-Fi 6 Access Points QuickSpecs |
| HPE product page | HPE Networking Instant On Access Point AP25 |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R9B34A.
Frequently Asked Questions — HPE Instant On AP25 R9B34A
What is the difference between R9B34A and R9B28A?
Both are the same AP25 access point. R9B34A is the bundle with a power supply; R9B28A is the access point only, for sites with a PoE+ switch or injector.
Can I still power it by PoE?
Yes. It accepts 802.3at (Class 4) PoE up to 20.1 W, so the included power supply is optional where PoE+ is available.
Is it Wi-Fi 6E?
No. It is Wi-Fi 6 on 2.4 GHz and 5 GHz. For 6 GHz, see the AP32.
Do I need a hardware controller?
No hardware controller is needed; it is managed from the HPE Networking Instant On app or web portal.
What warranty do I get?
HPE's two-year warranty with 24/7 phone and chat support, supplied by SourceIT with local support and a GST invoice.
