HPE Networking Instant On AP32 Tri-Band Wi-Fi 6E Access Point

SKU: S1T23A

  • S$354.20
    Unit price per
  • Save S$101.20
Shipping calculated at checkout.

PRODUCT DESCRIPTION

HPE Networking Instant On AP32 Tri-Band Wi-Fi 6E Access Point (S1T23A) - 2 Year Local Warranty Aruba | SourceIT

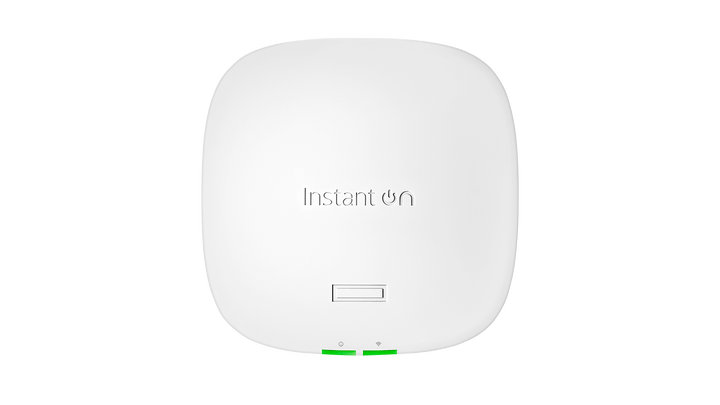

HPE Networking Instant On AP32 Tri-Band Wi-Fi 6E Access Point (S1T23A)

Next-Generation Wi-Fi 6E Connectivity for Modern Businesses

The HPE Networking Instant On AP32 Tri-Band Wi-Fi 6E Access Point (S1T23A) is a high-performance wireless networking solution designed for small and medium-sized businesses seeking faster, more reliable, and future-ready connectivity. Featuring Wi-Fi 6E technology and access to the 6 GHz spectrum, the AP32 delivers enhanced network performance, reduced interference, and improved user experiences for modern workplaces.

Tri-Band Wi-Fi 6E Performance for High-Speed Networking

With support for 2.4 GHz, 5 GHz, and 6 GHz frequency bands, the Instant On AP32 provides greater wireless capacity and improved efficiency for bandwidth-intensive applications. Businesses can support video conferencing, cloud applications, file sharing, collaboration tools, and high-density device environments while maintaining stable and responsive network performance.

Designed for Small Businesses and Growing Organizations

The HPE Networking Instant On AP32 is ideal for offices, retail stores, cafés, hospitality venues, educational facilities, and professional service firms. Its enterprise-inspired capabilities combined with simplified deployment make it easy for organizations to build secure and scalable wireless networks without requiring extensive IT expertise.

Easy Cloud Management and Enterprise-Grade Security

The Instant On AP32 includes intuitive management tools and advanced security features that help businesses monitor, manage, and secure their wireless infrastructure. Organizations can benefit from simplified network administration, secure guest access, and reliable wireless coverage while maintaining control over connected devices and users.

Technical Specifications

General
Model: Instant On AP32 (RW)
Part Number: S1T23A
Product Name: HPE Networking Instant On AP32 Tri-Band Wi-Fi 6E Access Point
Manufacturer: HPE Aruba Networking
Product Type: Business Wireless Access Point
Series: HPE Networking Instant On AP32 Series
Deployment Type: Indoor Wireless Networking
Wireless Standard: Wi-Fi 6E (IEEE 802.11ax)
Radio Design: Dual-Radio Tri-Band Access Point
Antenna Type: Internal Omni-Directional Antennas
Management Platform: Instant On Mobile App, Instant On Cloud Portal
Warranty: 2-Year Limited Warranty with 24/7 Phone and Chat Support
Regulatory Domain: RW (Rest of World)

Wireless Specifications
Wireless Standard: IEEE 802.11ax (Wi-Fi 6E)

Frequency Bands:
• 2.4 GHz
• 5 GHz
• 6 GHz

Radio Configuration: Dual-Radio Tri-Band
MIMO Configuration: 2x2 MU-MIMO
Maximum Aggregate Data Rate: Up to 3.6 Gbps
Maximum 6 GHz Throughput: Up to 2.4 Gbps
Maximum 5 GHz Throughput: Up to 1.2 Gbps
Maximum 2.4 GHz Throughput: Up to 574 Mbps
Channel Width Support: Up to 160 MHz
MU-MIMO: Supported
OFDMA: Supported
Beamforming: Supported
Target Wake Time (TWT): Supported
Wi-Fi CERTIFIED 6E™: Supported

Radio Specifications
2.4 GHz Radio: 2x2 MIMO
5 GHz Radio: 2x2 MIMO
6 GHz Radio: 2x2 MIMO
Tri-Band Operation: Supported
Concurrent Wireless Operation: Supported
High-Density Client Support: Supported
Client Optimization: ClientMatch Technology
Smart Roaming: Supported

Performance Specifications
Maximum Aggregate Throughput: Up to 3.6 Gbps
Recommended User Capacity: Up to 75 Concurrent Devices
High-Density Deployment Support: Supported
Low Latency Connectivity: Supported
Cloud Application Optimization: Supported
Real-Time Collaboration Support: Supported

Networking Specifications
Ethernet Port: 1 x 2.5GbE Smart Rate RJ-45 Uplink Port
Network Speed: 10/100/1000/2500 Mbps
Network Segmentation: Supported
Smart Mesh Networking: Supported
Wireless Backhaul: Supported

IoT & Smart Features
Smart Mesh Technology: Supported
ClientMatch Technology: Supported
Cloud-Based Management: Supported
Application Visibility: Supported
Remote Monitoring: Supported
Remote Troubleshooting: Supported

Security Features
WPA2 Enterprise: Supported
WPA3 Enterprise: Supported
Enhanced Open (OWE): Supported
Secure Guest Access: Supported
Role-Based Access Policies: Supported
Enterprise Wireless Security: Supported

Management Features
Instant On Mobile App: Supported
Instant On Cloud Portal: Supported
Cloud-Based Configuration: Supported
Remote Management: Supported
Zero Touch Deployment: Supported
Firmware Updates: Supported
Network Analytics: Supported

Power Specifications
Power over Ethernet: Supported
PoE Standard: IEEE 802.3at (PoE+)
PoE Standard: IEEE 802.3bt (PoE++)
DC Power Input: Supported
Power Consumption: 12.9W (PoE) / 11W (DC)
Intelligent Power Management: Supported

Antenna Specifications
Antenna Type: Internal Omni-Directional Antennas
MIMO Design: 2x2
Coverage Optimization: Supported
Enterprise Indoor Coverage: Optimized

Physical Specifications
Form Factor: Indoor Ceiling/Wall Mount Access Point
Dimensions: 160 mm x 160 mm x 39 mm
Weight: Approximately 520 g
Color: White
Mounting Options: Ceiling Mount and Wall Mount

Features
Wi-Fi 6E Tri-Band Technology
Dedicated 6 GHz Wireless Band
2x2 MU-MIMO Architecture
Up to 3.6 Gbps Aggregate Throughput
160 MHz Channel Support
2.5GbE Smart Rate Uplink Port
Smart Mesh Networking
ClientMatch Optimization
Cloud-Based Management
WPA3 Security
PoE+ and PoE++ Support
Enterprise-Class Wireless Performance

Performance & Features
Designed for small and medium businesses seeking next-generation Wi-Fi connectivity
Provides dedicated 6 GHz spectrum for Wi-Fi 6E devices, reducing congestion and improving performance
Supports cloud applications, video conferencing, collaboration platforms, and high-density wireless environments
Smart Mesh technology enables wireless network expansion without additional cabling
Offers centralized cloud management through the Instant On platform
Delivers improved wireless efficiency with OFDMA and MU-MIMO technologies
Optimized for modern hybrid workplaces and growing business environments

Package Contents
HPE Networking Instant On AP32 Access Point
Mounting Hardware
Quick Start Guide
Regulatory Documentation

Key Features
Wi-Fi 6E (802.11ax) Technology
Tri-Band Wireless Connectivity
2x2 MU-MIMO Architecture
Up to 3.6 Gbps Wireless Throughput
Dedicated 6 GHz Spectrum Support
2.5GbE Ethernet Uplink
Smart Mesh Networking
Cloud-Based Management Platform
WPA3 Enterprise Security
PoE+ and PoE++ Support
Designed for Up to 75 Connected Devices
Ideal for Modern Business Deployments

Typical Use Cases
Small and Medium Business Networks
Professional Offices
Law Firms and Accounting Firms
Educational Institutions
Retail Stores
Healthcare Clinics
Hybrid Workplace Deployments
Video Conferencing Environments
Cloud Application Access
Wireless Network Modernization Projects
High-Density Wi-Fi Environments
Wi-Fi 6E Device Deployments

Ordering Information
Model: HPE Networking Instant On AP32 (RW)
Part Number: S1T23A
Configuration: Dual-Radio Tri-Band 2x2 Wi-Fi 6E Access Point
