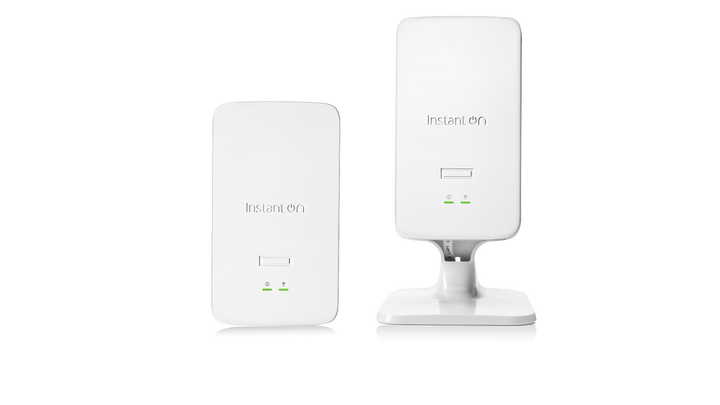

HPE Networking Instant On AP22D Desk/Wall Wi-Fi 6 2x2 Access Point 5-Pack
PRODUCT DESCRIPTION
HPE Networking Instant On AP22D Desk/Wall Wi-Fi 6 Access Point 5-Pack (S1U81A) - 2 Years Local Warranty
Wi-Fi 6 and Wired Ports Right at the Desk
This 5-pack supplies five HPE Networking Instant On AP22D access points. The AP22D is a desk- or wall-mounted dual-radio 2x2 Wi-Fi 6 access point with a built-in 4-port Gigabit switch. It delivers up to 1774 Mbps over its 2.4 GHz and 5 GHz 802.11ax radios and supports up to 75 active devices per access point, as recommended by HPE.
HPE positions the AP22D for boutique hotels, small offices, medical offices and reception areas, where one wall jack needs to serve both Wi-Fi and wired devices.
2.5G Uplink, Four Gigabit Ports and PoE Out
A 2.5 Gigabit Ethernet uplink feeds four 1 Gigabit Ethernet downlink ports, and two of them can power devices such as IP phones or cameras with up to 15 W each (802.3af PoE out). The AP22D itself is powered by 802.3at/802.3bt PoE.
Wi-Fi 6 Efficiency and Security
HPE lists Wi-Fi CERTIFIED 6 with WPA3 security, 1024-QAM for up to 25% more data, OFDMA, Target Wake Time (TWT) to extend client battery life, and roughly 4x the capacity of 802.11ac access points.
Managed from the Instant On App
Set up and monitor the AP22D from the HPE Networking Instant On mobile app or web portal, alongside Instant On switches and Secure Gateways. With five units in one pack, it is a tidy way to fit out hotel rooms, clinic suites or a row of offices.
Supplied in Singapore with Local Warranty
HPE backs Instant On access points with a two-year warranty and 24/7 phone and chat support. SourceIT supplies them locally in Singapore with a GST invoice.
Not sure whether you need the AP22, AP22D, AP25, AP32 or outdoor AP27? Email sales@sourceit.com.sg with your floor area, user count and cabling, and we will recommend a layout.
HPE Instant On AP22D S1U81A Datasheet — Technical Specifications
General
| Product Name | HPE Networking Instant On Access Point AP22D 5-Pack |
| Part Number | S1U81A |
| HPE Description | HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 5-Pack (RW) AP22D |
| Series | HPE Networking Instant On access points |
| Manufacturer Warranty | HPE two-year warranty with 24/7 phone and chat support (HPE Networking Instant On) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standard | 2.4 GHz 802.11ax (Wi-Fi 6); 5 GHz 802.11ax (Wi-Fi 6) |
| Radios / MIMO | Dual radio, 2x2 |
| Max Data Rate | 1774 Mbps |
| Recommended Max Active Devices | 75 |
Ports & Power
| Uplink | 1 x 2.5 Gigabit Ethernet |
| Downlink | 4 x 1 Gigabit Ethernet |
| Power | PoE in: 802.3at/802.3bt; PoE out: 2 x 15 W (802.3af) |
Physical
| Dimensions | 86 mm (W) x 150 mm (D) x 47 mm (H) |
| Weight | 360 g |
| Deployment | Indoor desk or wall |
Management
| Options | HPE Networking Instant On mobile app or Instant On web portal |
Figures are taken from HPE's published AP22D product page and QuickSpecs. For anything not listed, refer to the HPE documents linked under Datasheet & Downloads.
Compatibility & Software Support
What It Is Suited To
Hotel rooms, reception desks, medical and home offices where a single cable drop must serve Wi-Fi plus wired devices such as IP phones, printers or PCs.
Management Software
Set up and manage with the HPE Networking Instant On mobile app (iOS and Android) or the Instant On web portal — the same platform used for Instant On switches and Secure Gateways, so wired and wireless can be run from one place.
Client Compatibility
Wi-Fi 6 (802.11ax) clients, with backward compatibility for 802.11b/g/n/ac devices; wired devices on the four Gigabit ports.
Package Contents & Instant On Access Point Ordering Information
In the Box
Five HPE Networking Instant On AP22D access points. Power adapters are not listed as included. HPE's QuickSpecs do not list the full carton contents, so confirm mounting hardware with us if it matters.
HPE Networking Instant On Access Points — Ordering Information
| Instant On AP22 Indoor | Dual-band 2x2 Wi-Fi 6, ceiling/wall | R4W02A |
| Instant On AP22 Bundle with PSU | AP22 supplied with power adapter | R6M51A |
| Instant On AP22D Desk/Wall | Dual-band 2x2 Wi-Fi 6, 2.5G uplink + 4 x 1G ports | S1U76A |
| Instant On AP22D Bundle with PSU | AP22D supplied with power adapter | S0J34A |
| Instant On AP22D 5-Pack (this listing) | Five AP22D access points | S1U81A |
| Instant On AP25 Indoor | Dual-band 4x4 Wi-Fi 6, 2.5G uplink | R9B28A |
| Instant On AP25 Bundle with PSU | AP25 supplied with power adapter | R9B34A |
| Instant On AP32 Indoor | Tri-band 2x2 Wi-Fi 6E, 2.5G uplink | S1T23A |
| Instant On AP32 Bundle with PSU | AP32 supplied with power adapter | S1T29A |
| Instant On AP32 5-Pack | Five AP32 access points | S1T32A |
| Instant On AP27 Outdoor | Dual-band 2x2 Wi-Fi 6, IP67 | S1T37A |
| Instant On AP27 Outdoor Bundle with PSU | AP27 supplied with PoE injector and cord | S1T43A |
Power & Mounting Accessories
HPE lists optional Instant On power accessories for these access points, including the R9M79A 12V/18W Power Adaptor (RW), the R8W31A 802.3af 15.4W PoE Midspan Injector and the R9M77A 30W 802.3at PoE Midspan Injector. Ask us to confirm the right option for your model and installation.
Datasheet & Downloads
| HPE QuickSpecs | HPE Networking Instant On Wi-Fi 6 Access Points QuickSpecs |
| HPE product page | HPE Networking Instant On Access Point AP22D |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting S1U81A.
Frequently Asked Questions — HPE Instant On AP22D S1U81A
What ports does the AP22D have?
One 2.5 Gigabit Ethernet uplink and four 1 Gigabit Ethernet downlink ports, two of which provide 15 W 802.3af PoE out.
How is it powered?
By 802.3at or 802.3bt PoE from an upstream switch or injector.
Can it be wall mounted?
Yes. HPE describes the AP22D as a desk/wall access point.
How many access points are included?
Five AP22D access points.
What warranty do I get?
HPE's two-year warranty with 24/7 phone and chat support, supplied by SourceIT with local support and a GST invoice.
