APC Smart-UPS SRT 3000VA 230V
PRODUCT DESCRIPTION
APC Smart-UPS SRT 3000VA 230V (SRT3000XLI) - 2 Years Local Warranty
Double-Conversion On-Line Power Protection for Singapore's 230V Mains
The APC Smart-UPS SRT 3 kVA (SRT3000XLI) is an on-line, double-conversion UPS: incoming mains is rectified to DC and regenerated as a clean sine wave output, so the load is fed from the inverter continuously rather than being switched over when the supply fails. On Singapore's 230V / 50Hz supply that matters most during the afternoon storm season, when PUB grid dips, brownouts and momentary interruptions are common enough to reset a server or corrupt a database write. Schneider specifies the SRT3000XLI to accept an input range of 100-275 V adjustable (half load) at 40-70Hz auto-sensing, so it rides through sag and swell without drawing on the battery.
3,000 VA / 2,700 W of Sine Wave Output on (8) C13 and (2) C19 Outlets
Schneider rates the SRT3000XLI at 3,000 VA / 2,700 W with a nominal 230V AC single-phase output at 50/60Hz (±3Hz, synchronised to mains) and a sine wave output waveform. Outlets are (8) IEC 60320 C13 and (2) IEC 60320 C19, so it will take a mixed load of rack servers, switches, NAS and comms equipment; the C19 outlets suit higher-draw devices such as blade chassis and larger storage arrays. Size on watts, not VA: total the real power draw of everything you intend to protect and keep it comfortably under 2,700 W.
Runtime and Extended Runtime with SRT Battery Packs
Schneider's published runtime for the SRT3000XLI on its internal battery is 11.8 minutes at half load (1,350 W) and 4.0 minutes at full load (2,700 W) — enough to ride out a short outage or to shut a rack down cleanly. Where you need longer, the SRT3000XLI accepts external battery packs: the SRT96BP matches this unit's 96V battery bus, the UPS will recognise as many as ten packs, and the internal cartridge is the APCRBC152. Battery service life in a Singapore comms cabinet depends heavily on ambient temperature, so keep the room cool and dry; Schneider rates the unit for 0-40°C operation at 0-95% non-condensing humidity.

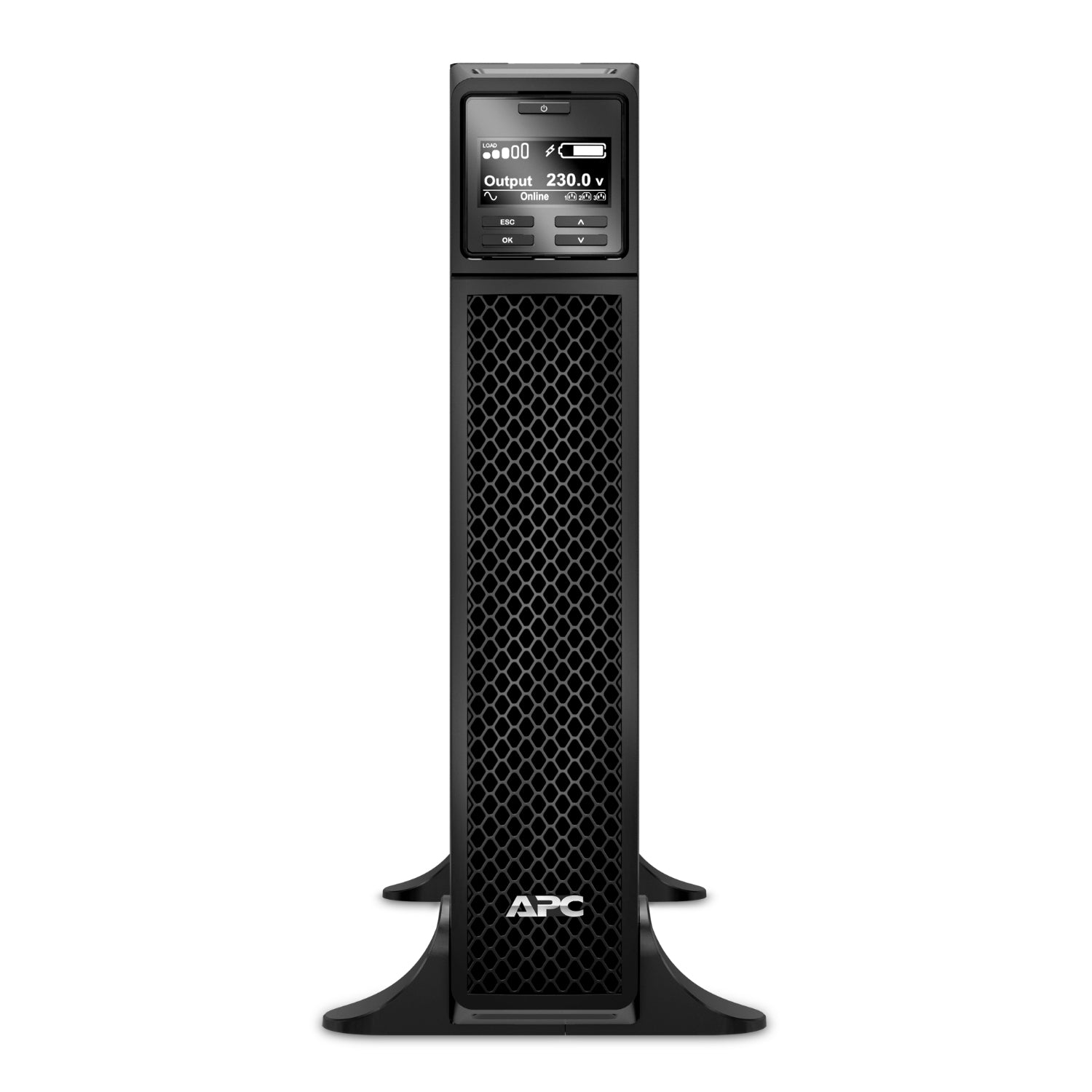

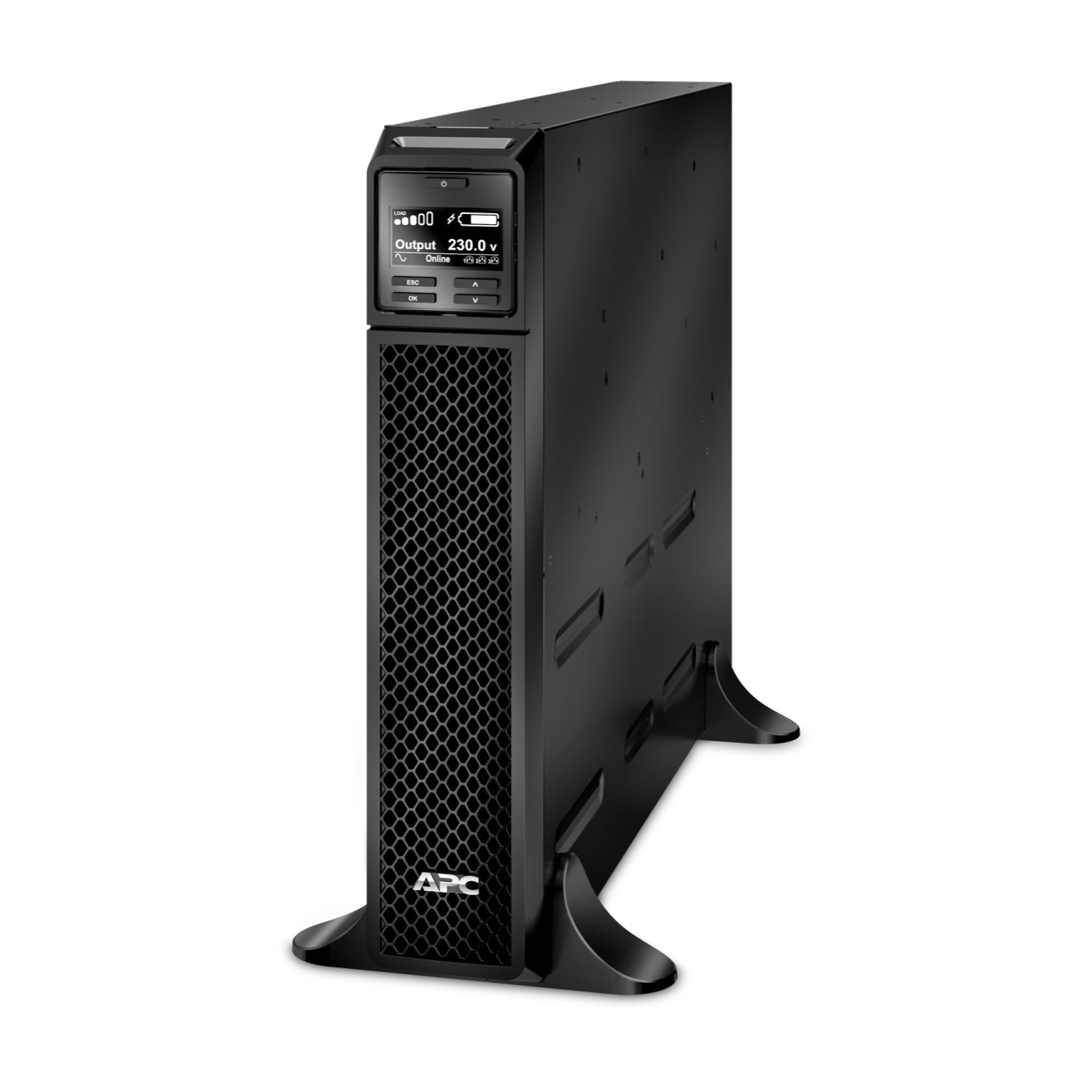

Tower Form Factor, Rack Convertible
The SRT3000XLI ships as a tower measuring 432 mm (H) x 85 mm (W) x 635 mm (D) and weighing 31.3 kg, sized for an office equipment room, a comms cupboard or under a desk where there is no cabinet. The chassis is the same convertible design used by the rackmount RMXLI variant, so it can be re-deployed into a 19-inch rack later — note that this SKU is supplied without a rail kit (the rail kit is a separate order), whereas the matching rackmount model ships with rails included.
Management, Monitoring and Local Singapore Supply
Serial (RJ45) and USB (Type A) interface ports are built in, together with an available SmartSlot for an APC Network Management Card 3 (AP9640 or AP9641) where you need SNMP, web access or EcoStruxure IT monitoring, and an emergency power off (EPO) connection. A multi-function LCD console gives status and configuration at the unit. Audible noise is rated at 55 dBA. SourceIT supplies the SRT3000XLI from Singapore stock with a GST invoice and local warranty support — no overseas RMA, no import paperwork.
APC SRT3000XLI Datasheet — Technical Specifications
General
| Part Number (SKU) | SRT3000XLI |
| Manufacturer Product Name | APC Smart-UPS On-Line, 3kVA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit |
| Brand | APC by Schneider Electric |
| UPS Type / Topology | On-Line, double conversion |
| Form Factor | Tower |
| GTIN / UPC | 731304297295 |
Output
| Output Power Capacity | 3,000 VA / 2,700 W |
| Nominal Output Voltage | 230 V AC, 1 phase |
| Output Frequency | 50/60 Hz ±3 Hz, synchronised to mains |
| Output Waveform | Sine wave |
| Output Connections | (8) IEC 60320 C13 and (2) IEC 60320 C19 |
Input
| Nominal Input Voltage | 230 V AC, 1 phase |
| Input Voltage Range | 100-275 V adjustable (half load) |
| Input Frequency | 40-70 Hz, auto-sensing |
| Input Connection | IEC 60320 C20, BS 1363 (British) or CEE 7/7 (Schuko) |
Batteries & Runtime
| Battery Type | Sealed, maintenance-free, valve-regulated lead-acid (VRLA) |
| Battery Voltage | 96 V DC |
| Replacement Battery Cartridge | APCRBC152 |
| Typical Recharge Time | 3 hours |
| Typical Runtime at Half Load | 11.8 minutes (1,350 W) |
| Typical Runtime at Full Load | 4.0 minutes (2,700 W) |
| Compatible External Battery Packs | SRT96BP (tower) / SRT96RMBP (rackmount), up to 10 packs |
Communications & Management
| Interface Ports | Serial (RJ45), USB (Type A) |
| SmartSlot | Yes — accepts APC Network Management Card 3 (AP9640 / AP9641) and other SmartSlot accessories |
| Network Management Card | Not included — SmartSlot is supplied empty |
| Emergency Power Off (EPO) | Yes (NO/NC connections) |
| Control Panel | Multi-function LCD status and control console |
Physical & Environmental
| Dimensions (H x W x D) | 432 mm (H) x 85 mm (W) x 635 mm (D) |
| Net Weight | 31.3 kg |
| Rail Kit | Not included — order separately |
| Acoustic Level | 55 dBA |
| Operating Temperature | 0 to 40 °C |
| Operating Relative Humidity | 0 to 95%, non-condensing |
| Operating Altitude | 0 to 3,000 m (0 to 10,000 ft) |
| Standards & Marks | CE, EAC, RCM, VDE, UK PSTI, EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2018 |
| Manufacturer Warranty | 3 years UPS electronics / 2 years battery (APC by Schneider Electric) |
| Local Warranty (Singapore) | 2 years, supplied and supported by SourceIT Pte Ltd |
Compatibility & Runtime
What you can plug in. The SRT3000XLI provides (8) IEC 60320 C13 and (2) IEC 60320 C19. All outlets are battery-backed. Total the real power draw (watts) of the equipment you intend to protect and keep it below the 2,700 W rating — runtime falls sharply as load rises, as the figures below show.
| Internal battery, half load (1,350 W) | 11.8 minutes |
| Internal battery, full load (2,700 W) | 4.0 minutes |
Runtime depends on load. These are Schneider's published estimates for a healthy battery at 25°C; real runtime varies with load, battery age and ambient temperature, which in an unconditioned Singapore comms cabinet can shorten battery life considerably.
Extended runtime. Connect SRT96BP (tower) or SRT96RMBP (rackmount) external battery packs on the 96V battery bus. The UPS will recognise as many as ten packs. Recharge time increases with each pack added.
Rack fit. Supplied as a tower without a rail kit. The chassis is rack-convertible in 2U, but the rails are a separate order — if you know it is going into a cabinet, the matching rackmount model ships with rails included.
Input and circuit. The SRT3000XLI input is IEC 60320 C20, BS 1363 (British) or CEE 7/7 (Schuko). At 2,700 W a dedicated 13A or 16A supply is the sensible provision; confirm the circuit with your electrician before installation.
Network management. The SmartSlot is supplied empty. Fit an AP9640 or AP9641 Network Management Card 3 for SNMP, HTTPS and EcoStruxure IT monitoring; the AP9641 adds environmental monitoring inputs for the AP9335TH sensor. Serial and USB are built in for direct PowerChute connection to a single host.
Package Contents & Smart-UPS SRT Ordering Information
In the box: UPS unit, battery cable/connector hardware, user documentation and warranty card. Exact contents are listed in the APC user guide linked in the Downloads section below.
Smart-UPS SRT 1-3 kVA range at SourceIT
| SRT1000XLI | 1,000 VA / 1,000 W · Tower · no rail kit |
| SRT1500XLI | 1,500 VA / 1,500 W · Tower · no rail kit |
| SRT2200XLI | 2,200 VA / 1,980 W · Tower · no rail kit |
| SRT3000XLI (this listing) | 3,000 VA / 2,700 W · Tower · no rail kit |
| SRT1000RMXLI | 1,000 VA / 1,000 W · Rackmount 2U · rail kit included |
| SRT1500RMXLI | 1,500 VA / 1,500 W · Rackmount 2U · rail kit included |
| SRT2200RMXLI | 2,200 VA / 1,980 W · Rackmount 2U · rail kit included |
| SRT3000RMXLI | 3,000 VA / 2,700 W · Rackmount 2U · rail kit included |
Matching external battery packs
| SRT96BP | 96 V, SRT 3 kVA · Tower |
| SRT96RMBP | 96 V, SRT 3 kVA · Rackmount 2U |
Replacement battery cartridge
| APCRBC152 | Internal replacement battery cartridge for the SRT3000XLI |
Network management and SmartSlot accessories
| AP9640 | UPS Network Management Card 3 |
| AP9641 | UPS Network Management Card 3 with Environmental Monitoring |
| AP9613 | Dry Contact I/O SmartSlot Card |
| AP9335TH | Temperature & Humidity Sensor |
Datasheet & Downloads
Schneider Electric product page — SRT3000XLI
APC Smart-UPS On-Line SRT2200/SRT3000 Tower & Rack-Mount 2U installation guide (PDF)
APC Smart-UPS On-Line SRT user guide / operation manual (PDF)
APC Smart-UPS On-Line SRT 1 kVA - 10 kVA 230V brochure (PDF)
Links open on Schneider Electric's official document servers.
Frequently Asked Questions — APC SRT3000XLI
What is the difference between the 3,000 VA and 2,700 W rating, and how do I size the SRT3000XLI?
VA is apparent power and W is real power; equipment nameplates and PSU ratings are quoted in watts, and watts is the figure that limits you. Add up the real draw of everything you want on battery and keep the total below 2,700 W. Sizing to about 70-80% of that leaves headroom for inrush and for future additions, and gives noticeably longer runtime.
How long will the SRT3000XLI run on battery?
Schneider publishes 11.8 minutes at half load (1,350 W) and 4.0 minutes at full load (2,700 W) on the internal battery. Runtime is not linear with load — halving the load more than doubles the runtime. For longer autonomy, add SRT96BP or SRT96RMBP external battery packs; up to ten can be recognised by the UPS.
Does the SRT3000XLI produce a sine wave output, and will it work with an active-PFC power supply?
Schneider's datasheet for the SRT3000XLI states a sine wave output waveform, and the unit is an on-line double-conversion design, so the load is fed from the inverter continuously. That is the output type active-PFC server and workstation power supplies expect — unlike the step-approximated output of many entry-level line-interactive and standby UPS units, which some active-PFC supplies reject.
What do the XLI and RMXLI suffixes mean?
They are genuinely different builds, not packaging variants. XLI is the tower orientation supplied without a rail kit; RMXLI is the rackmount 2U build supplied with the rail kit included. Both are 230V international models with extended-runtime capability. Schneider also produces XLT, XLW and -NC (network card) variants of the SRT family that SourceIT does not stock in this band — check the part number carefully against your tender.
Which replacement battery does the SRT3000XLI take, and can I change it myself?
The SRT3000XLI uses the APCRBC152 replacement battery cartridge. APC designs the SRT battery modules to be user-replaceable, and the front bezel comes off without tools. Plan on replacement every three to five years; heat is the main determinant, so a cabinet that runs hot will shorten cartridge life.
Can the SRT3000XLI be rack mounted?
The chassis is the same convertible design as the rackmount variant and fits a 2U opening, but this SKU is supplied without a rail kit — you would need to order rails separately. If the unit is destined for a cabinet, the SRT3000RMXLI is the better order: same electrical specification, rails in the box.
Can I monitor the SRT3000XLI over the network?
Not out of the box — the SmartSlot ships empty. Fit an AP9640 or AP9641 Network Management Card 3 for SNMP, HTTPS, email alerting and EcoStruxure IT integration. For a single directly-attached host, the built-in USB or serial port with APC PowerChute is sufficient and costs nothing extra.
How does the SRT3000XLI compare with the SRT2200XLI?
Both are on-line double-conversion SRT units on the same platform. The SRT3000XLI is rated 3,000 VA / 2,700 W and the SRT2200XLI is rated 2,200 VA / 1,980 W. They share the same outlet configuration. If your load is close to the boundary, take the larger unit — runtime and battery life both improve when the UPS is not run near its ceiling. See SRT2200XLI.
Is the SRT3000XLI covered by warranty in Singapore?
Yes. Every APC SRT3000XLI sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SRT3000XLI with a 3 years UPS electronics / 2 years battery manufacturer warranty.
