APC Smart-UPS SRT 96V 3kVA RM Battery Pack

General

Battery Specifications

Physical & Environmental

Which UPS models does the SRT96RMBP fit?

Schneider's installation guide 990-5300C and compatibility FAQ FA349747 list the SRT96RMBP against the following Smart-UPS On-Line families, which share the 96 V DC bus, the brown battery connector and the APCRBC152 internal cartridge:

Schneider documents the compatibility as a wildcard family (the “x” covers the regional build suffixes) rather than as an exhaustive list of individual part numbers, so if your UPS part number is not one of the two above, send it to SourceIT and we will confirm against Schneider's table rather than guess.

Keyed connectors — packs are not interchangeable. Schneider states in FAQ FA349747 that “each external battery pack has a keyed mating connector that is only compatible with its corresponding UPS”. A 96 V pack will not physically connect to a 192 V UPS, and APC does not support third-party packs. Order strictly by the compatibility list above.

How many packs can I connect? Schneider states that the UPS will recognise as many as ten external battery packs connected to it. Recharge time increases with each pack added. Ten packs is 20U of rack space and roughly 400 kg before you count the UPS, so in practice cabinet capacity usually limits the design before the electronics do.

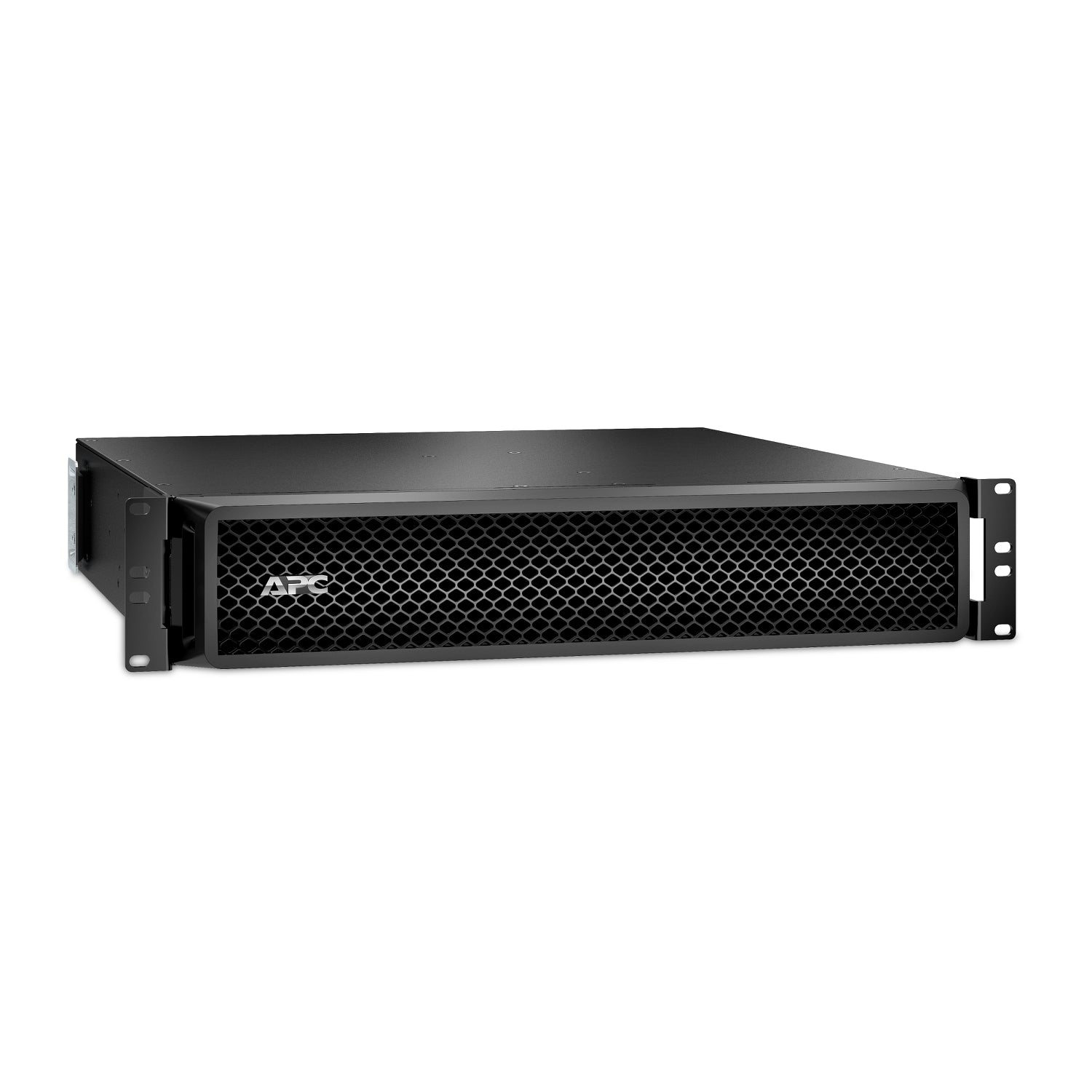

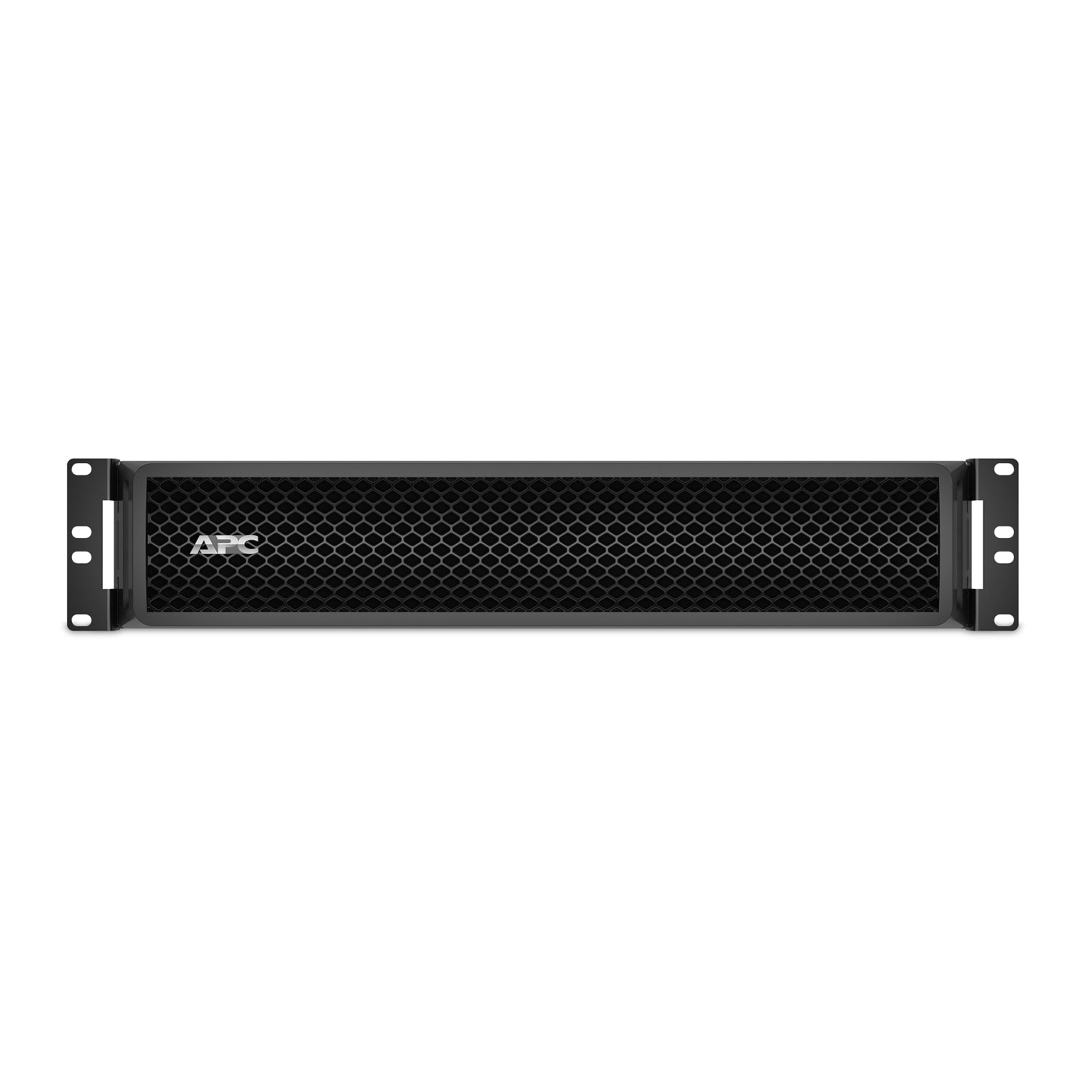

Rack fit. 2U, 85 mm (H) x 432 mm (W) x 594 mm (D), with the rail kit, a pair of rack-mount brackets, six flat head screws and four ornamental screws included. Mount it low in the cabinet, check the rack's static load rating if you are stacking several, and allow for cable bend radius behind the unit. The tower equivalent is the SRT96BP, which ships without rails.

Runtime. Runtime is not linear — halving the load more than doubles the time on battery. Schneider does not publish a runtime table for the SRT96RMBP that we are able to cite, so rather than quote a figure we cannot source, ask SourceIT for a runtime calculation against your measured load and pack count.

In the box (Schneider package contents): the battery pack, rail kit with instructions and hardware, one pair of rack-mount brackets, six flat head screws, four ornamental screws, front bezel, ground cable with two pan head screws, two tie brackets with four flat head screws, one pan head screw for the battery cable connector, user manual and warranty card.

Smart-UPS SRT external battery pack range at SourceIT

The 96 V packs at SourceIT

Matching UPS models and replacement cartridge

Schneider Electric product page — SRT96RMBP

Installation Guide — Smart-UPS On-Line SRT External Battery Pack SRT96BP / SRT96RMBP / SRT72BP / SRT72RMBP (Schneider document 990-5300C)

Schneider FAQ FA349747 — which external battery pack (XLBP) and RBC is compatible with your Smart-UPS On-Line (SRT) model

Links open on Schneider Electric’s official product and document servers.

Which UPS models does the SRT96RMBP fit?
Schneider lists it against the SRT3000XLx and SRT3000RMXLx families — the Smart-UPS SRT 3 kVA on-line range, which shares the 96 V DC bus, the brown battery connector and the APCRBC152 internal cartridge. At SourceIT that means the SRT3000XLI and the SRT3000RMXLI. If your part number is not one of those, send it to us and we will check it against Schneider's compatibility table rather than guess.

What is the difference between the SRT96RMBP and the SRT96BP?
They are the same 96 V battery pack in two different builds. The SRT96RMBP is the rackmount version: 2U, supplied with the rail kit, rack-mount brackets and screws. The SRT96BP is the stand-alone tower version and ships without rails. Order by part number rather than by voltage.

Can I use an SRT96RMBP on a 5 kVA or 6 kVA SRT?
No. Those units run a 192 V DC bus and use the SRT192BP or SRT192RMBP packs. Schneider is explicit that each external battery pack has a keyed mating connector compatible only with its corresponding UPS, so a 96 V pack will not physically connect.

How many SRT96RMBP packs can I connect to one UPS?
Schneider states the UPS will recognise as many as ten external battery packs. Bear in mind what that means physically: ten packs is 20U and roughly 400 kg before you count the UPS, so cabinet space and floor loading usually limit the design before the electronics do. Recharge time also increases with each pack added.

How much runtime will one pack add?
That depends entirely on the load, and runtime is not linear — halving the load more than doubles the time on battery. Schneider does not publish a runtime table for this pack that we can cite, so rather than quote a figure we cannot source, ask SourceIT for a calculation against your measured load and the number of packs you are considering.

Can I replace the batteries inside the pack myself?
Yes. The pack has swappable battery modules with user-replaceable batteries, and the replacement cartridge is the APCRBC152. Typical service life is three to five years and Schneider recommends replacement at least every five years. Heat is the main determinant, so a cabinet that runs warm will push you towards the shorter end.

How much rack space does it need, and is the rail kit included?
2U, and yes — the rail kit with instructions and hardware, a pair of rack-mount brackets, six flat head screws and four ornamental screws are all in the box. The chassis is 85 mm (H) x 432 mm (W) x 594 mm (D). Mount it low in the cabinet and check the static load rating if you are stacking more than one.

Is the SRT96RMBP covered by warranty in Singapore?
Yes. Every APC SRT96RMBP sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SRT96RMBP with a 2-year manufacturer warranty.
