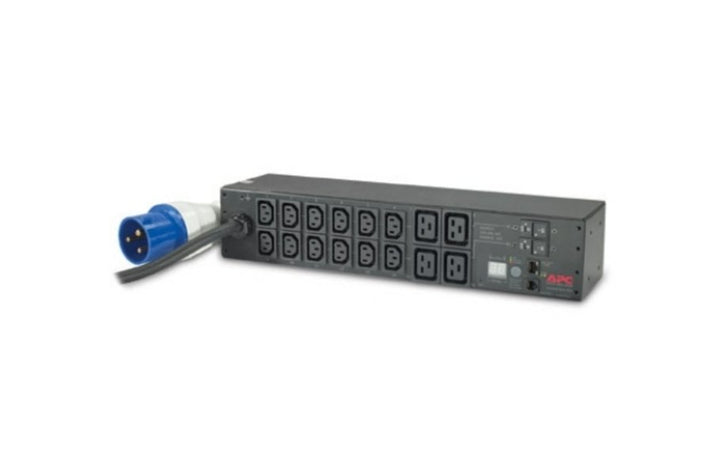

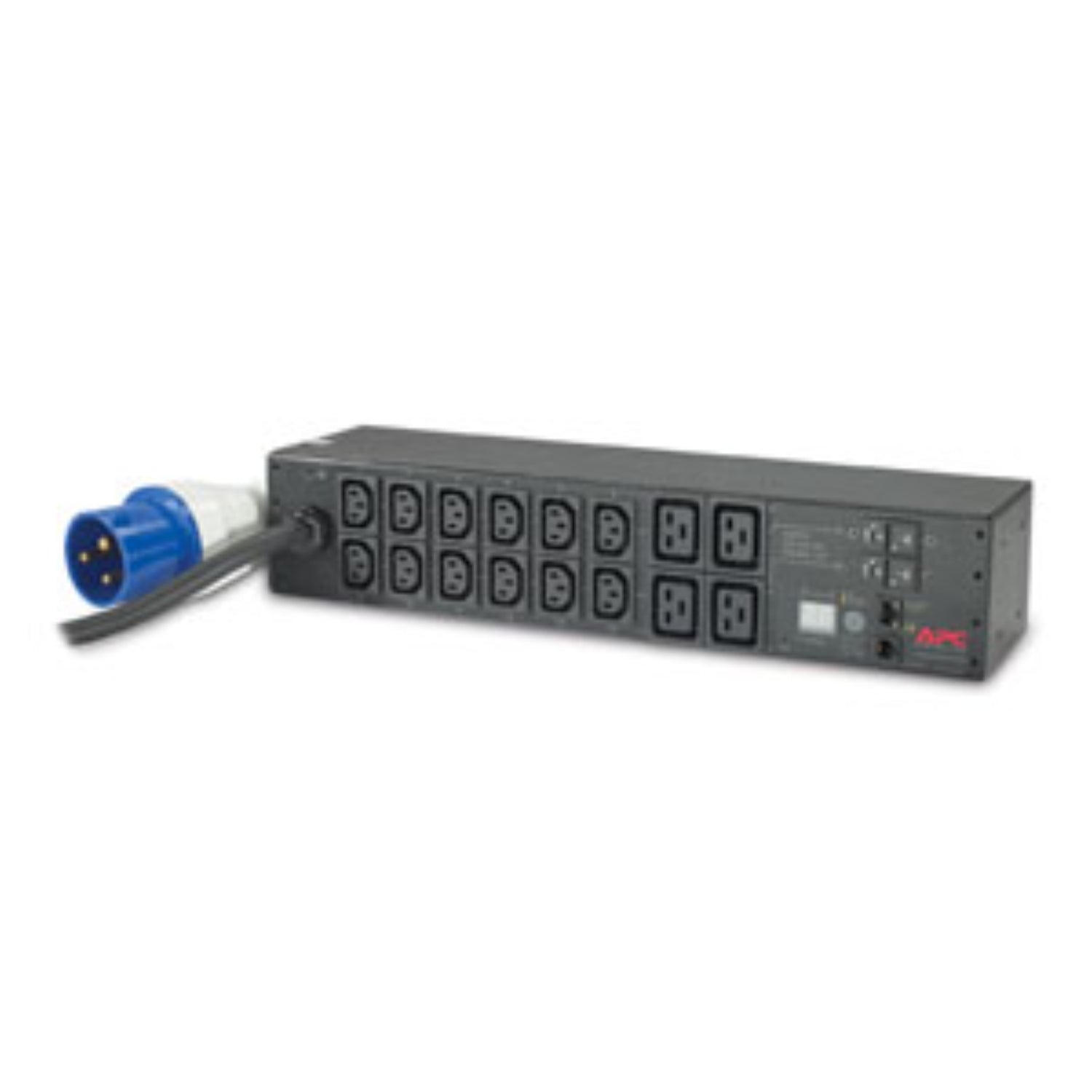

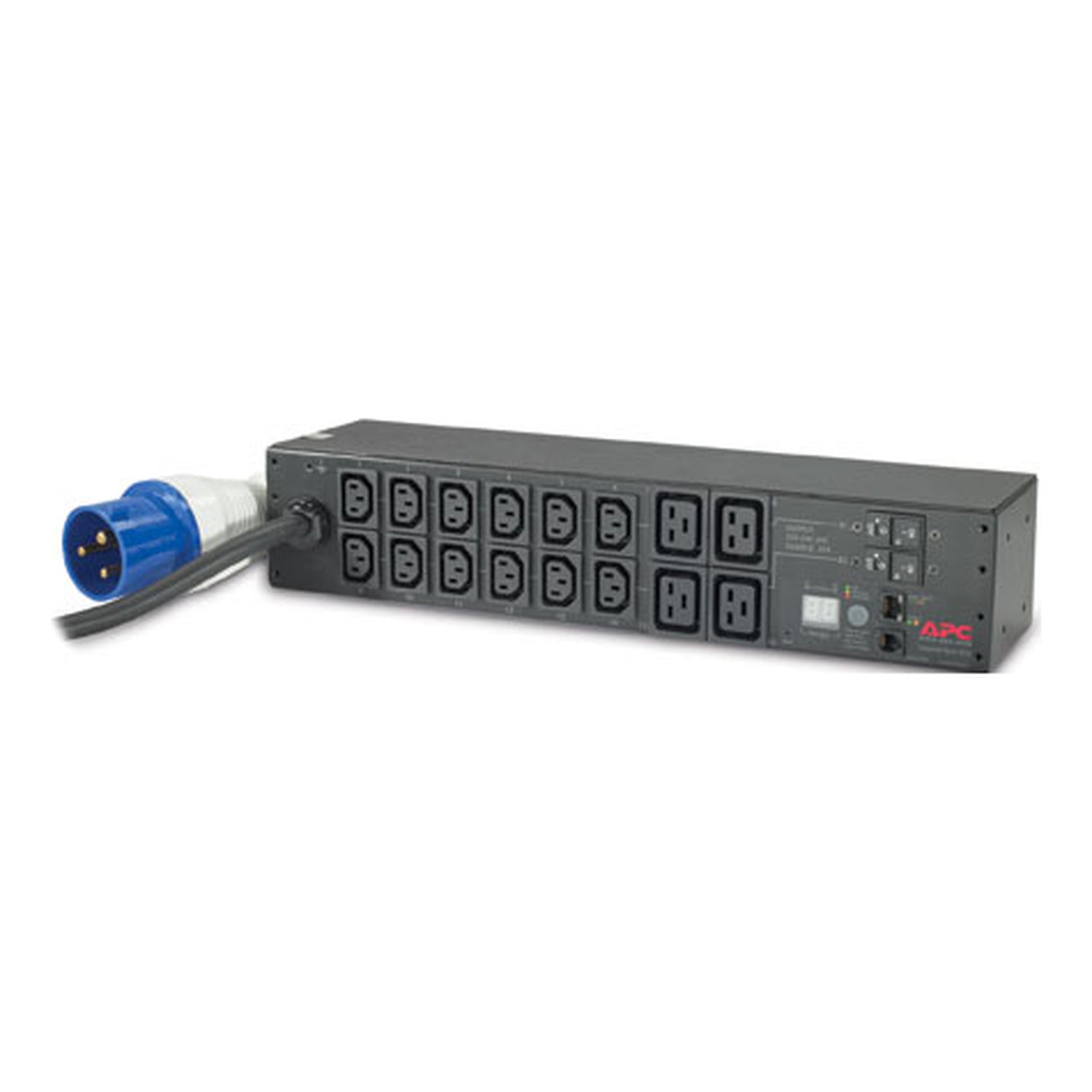

APC Rack PDU, Metered, 2U, 32A, 230V, (12) C13 & (4) C19

APC Rack PDU, Metered, 2U, 32A, 230V, (12) C13 & (4) C19 (AP7822B) - 1 Years Local Warranty

Reliable Metered Power Distribution

The APC Rack PDU, Metered, 2U (AP7822B) delivers dependable power distribution for data centers and network closets. Rated at 32A and 230V for a total capacity of 7.36 kW, it cleanly supplies power to servers and networking equipment while helping ensure efficient, well-balanced operation.

Real-Time Metering and Monitoring

Built-in digital metering provides real-time visibility into amps, volts, and kilowatts directly on the unit's display. By tracking power usage locally, you can prevent overloads, balance loads across circuits, and safeguard the reliability of critical equipment.

Flexible Outlets for High-Power Loads

With 12 C13 and 4 C19 outlets fed from an IEC C20 input, the AP7822B offers versatile connectivity for a wide range of devices. Its 32A rating comfortably supports high-power servers and networking gear, making it ideal for high-density rack environments.

Compact 2U Design

The slim 2U form factor fits easily into standard server racks, optimizing space while delivering high power capacity. Passive cooling means no fans to maintain, and basic surge protection helps shield connected equipment, keeping your installation clean, quiet, and dependable.

Technical Specifications

• Type: Metered Rackmount Power Distribution Unit (PDU)
• Form Factor: 2U, rackmount
• Input Voltage: 230V
• Current Rating: 32A
• Outlets: 12 x C13 outlets; 4 x C19 outlets
• Total Power Capacity: 7.36 kW
• Input Plug: IEC C20
• Dimensions: Length 48.5 cm (19.1 in); Width 4.4 cm (1.7 in); Height 8.9 cm (3.5 in)
• Weight: 3.5 kg (7.7 lbs)
• Cooling: Passive cooling design (no fans)
• Mounting: 2U, rackmount
• Surge Protection: Basic surge protection
• Metering: Built-in digital metering for real-time power monitoring (amps, volts, and kilowatts)
• Features: Provides metered power distribution with detailed power consumption metrics; 12 C13 and 4 C19 outlets for flexible device connection; supports 32A current, suitable for high-power devices; designed for efficient power distribution in high-density racks; digital display for monitoring power usage
• Certifications: UL, CE, RoHS
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 0% to 95% non-condensing
• Environmental Considerations: Recyclable; follow local disposal regulations

Ideal Use Case: Ideal for high-density data center racks needing metered 32A power distribution with local power monitoring and a mix of C13 and C19 outlets.

GTIN/UPC: 731304274924
