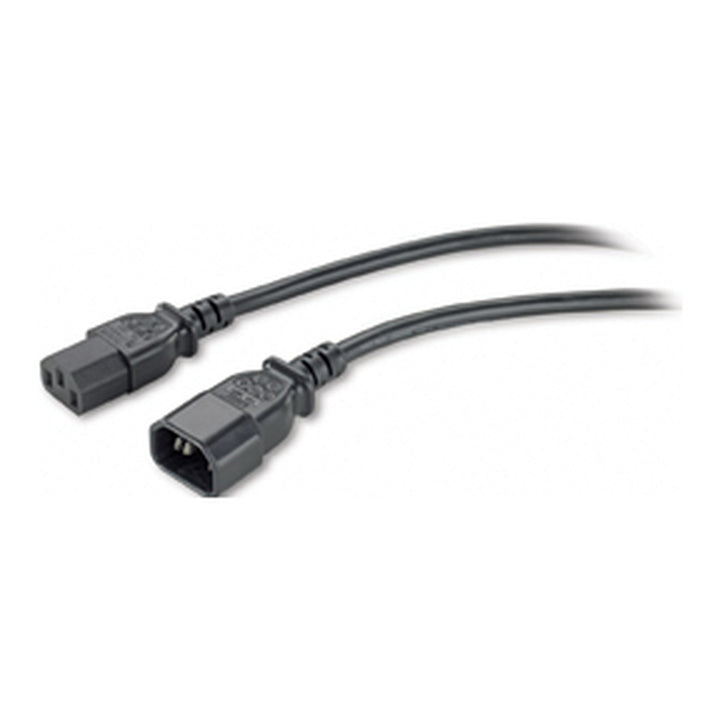

APC NetShelter Power Cord IEC C13 to C14 10A 250V 2.5m Black
PRODUCT DESCRIPTION
APC NetShelter Power Cord, IEC C13 to C14, 10A 250V, 2.5 m (AP9870) - 2 Years Local Warranty
The Standard Rack Equipment Cord, at a Useful Length
The APC NetShelter Power Cord AP9870 is a 2.5 m IEC 60320 C13 to C14 lead: a C14 plug on one end for a PDU, UPS or Rack ATS outlet, and a C13 connector on the other for the inlet on a server, switch, storage shelf or appliance. It is the cord that most rack equipment ships without, or ships with in a length that will not reach the PDU.
Rated 10 A, 250 V
Schneider prints the AP9870 at 10 A and 250 V AC, the full IEC 60320 C13/C14 coupler rating. That covers any device with a C14 inlet, since the inlet itself is limited to 10 A. On a 230 V Singapore feed that is up to 2,300 VA per cord - far more than a single 1U server or switch draws, but worth remembering if you are chaining a cord to a small outlet strip.
2.5 m: Bottom of Rack to Top of Rack, Tidily
A 42U rack is roughly 1.9 m of usable height. A 1U PDU or UPS at the bottom feeding a switch at the top needs more than the 1.8 m cords that come in most equipment boxes once you route the cable down the side rail and along the cable tray. 2.5 m does that with slack for a service loop, without being so long that the excess needs coiling.
Made for NetShelter Racks, Supplied Locally in Singapore
The AP9870 is part of APC's NetShelter power cord range, listed by Schneider for rack PDU and UPS connections. SourceIT supplies it with a GST invoice and local Singapore warranty support - a small item, but one that is easier to get right on the same order as the PDU than to chase later.
APC AP9870 Datasheet — Technical Specifications
General
| Part Number (SKU) | AP9870 |
| Schneider Electric Product Name | Power Cord, C13 to C14, 2.5m |
| Range | APC NetShelter Power Cords |
| Product Type | Power cord |
| Quantity per Pack | 1 |
| Warranty | 2-Year Manufacturer Warranty (APC by Schneider Electric) |
| Local Warranty (Singapore) | Yes - supplied and supported locally by SourceIT |
Connectors & Electrical
| Plug End | IEC 60320 C14 (3-pin male) |
| Connector End | IEC 60320 C13 (3-pin female) |
| Connector Standard | IEC 60320 |
| Rated Current | 10 A |
| Maximum Line Current | 10 A |
| Voltage Rating | 250 V AC |
| Cord Length | 2.5 m |
| Colour | Black |
| Wire Gauge | Not published by Schneider Electric for this part |
Physical & Environmental
| Net Weight | 0.23 kg |
| Packaged Dimensions (H x W x D) | 38 x 76 x 203 mm |
| Operating Temperature | 0 to 45 °C |
| Standards (as printed) | VDE, CSA; EU RoHS compliant; REACh - free of substances of very high concern above threshold |
Compatibility & Fit
Where it goes. C14 plug into any IEC C13 outlet - on a rack PDU, a UPS, a Rack ATS or a service bypass PDU - and C13 connector into the C14 inlet on the equipment. That is the standard connection for servers, switches, firewalls, storage controllers, KVMs and most rack appliances.
APC outlets it plugs into, from the SourceIT catalogue. Rack PDUs: AP7921B switched 1U PDU (8 C13, C20 cord), AP7552 zero-U basic PDU (20 C13, 4 C19, C20 inlet), AP8853 metered zero-U PDU (36 C13, 6 C19), AP9565 basic 1U PDU (12 C13), AP9559 basic 1U PDU. Rack ATS: AP4421A Rack ATS (C14 in, 12 C13 out) and AP4423A Rack ATS (C20 in, 8 C13 and 1 C19 out). UPS: Smart-UPS SMT 1500VA rackmount, Smart-UPS SRT 3000VA (8 C13, 2 C19 outlets) and Easy UPS On-Line SRV 2000VA rackmount. Bypass: SBP3000RMI service bypass PDU (6 C13, 1 C19).
Current and length planning. 10 A per cord. One cord per device is the norm; do not use it to feed an outlet strip that could draw more than 10 A. At 2.5 m it reaches from a bottom-of-rack PDU or UPS to the top of a 42U cabinet with slack for routing; for short in-rack runs from a zero-U PDU beside the equipment, the 0.6 m AP9890 five-pack is tidier.
Not a wall lead. There is no mains plug on this cord. It is an IEC-to-IEC equipment cord and will not connect to a BS 1363 socket.
Locking option. If a cord being knocked out of the PDU during maintenance is a risk you want to remove, the AP8704S-WW locking C13 to C14 cord kit, 6 x 1.2 m uses the same C13/C14 connection with a locking C13 end.
IEC Connector Guide
Rack power cords are named by the IEC 60320 coupler on each end. The socket side of a coupler is the odd number and the pin side is the even number, so a C14 plug goes into a C13 outlet and a C19 connector goes onto a C20 inlet.
| Connector | Found on | Mates with | Rating |
| C13 (socket) | Cord end that goes into equipment; PDU, UPS and ATS outlets | C14 | 10 A |
| C14 (pins) | Cord plug; inlet on servers, switches, 10 A PDUs and UPS units | C13 | 10 A |
| C19 (socket) | Cord end for high-power equipment; outlets on larger UPS, ATS and PDUs | C20 | 16 A (IEC) |
| C20 (pins) | Cord plug; inlet on 16 A PDUs, Rack ATS and high-power servers | C19 | 16 A (IEC) |
| IEC 60309 16 A 2P+E (blue commando) | Wall and busway sockets, UPS and bypass outlets, captive PDU and ATS input cords | IEC 60309 16 A socket | 16 A |
Not one of these is a BS 1363 (Type G) wall plug. In a Singapore rack the mains connection is normally made once, at the UPS or PDU input, and everything downstream is IEC to IEC.
Package Contents & APC NetShelter Power Cord Ordering Information
What's in the Box
- 1 x APC NetShelter Power Cord, IEC C13 to C14, 2.5 m (AP9870)
APC NetShelter Power Cords — Ordering Information
These five NetShelter cords cover the common rack connections. Each is a separate listing; the one you are reading is in bold.
| Part Number | Connectors | Rating | Length | Typical use |
| AP9870 (this listing) | IEC C13 to C14 | 10 A, 250 V | 2.5 m | Equipment cord: PDU, UPS or ATS C13 outlet to a C14 inlet on a server or switch |
| AP9876 | IEC C19 to IEC 60309 16 A plug | 16 A | 2.5 m | Input cord: 16 A commando socket to a C20-inlet PDU, ATS or UPS |
| AP9877 | IEC C19 to C20 | 16 A (IEC 60320) | 2.0 m | Jumper: UPS or ATS C19 outlet to a C20-inlet PDU, ATS or high-power server |
| AP9878 | IEC C19 to C14 | 10 A | 2.0 m | Adapter cord: C13 outlet to a C20-inlet device at 10 A |
| AP9890 | IEC C13 to C14, 5 cords | 10 A (IEC 60320 coupler rating) | 0.6 m | Short equipment cords for tidy in-rack runs from a zero-U PDU |
Locking Alternative
| AP8704S-WW | AP8704S-WW locking C13 to C14 cord kit, 6 x 1.2 m - locking C13 connectors that cannot be nudged out of a PDU outlet |
Datasheet & Downloads
Official Schneider Electric documentation for the APC AP9870. Links open in a new tab.
| Schneider Electric product page | APC AP9870 Power Cord, C13 to C14, 2.5 m on se.com — Singapore site |
Schneider's own datasheet and user manual download links redirect to a document host that has repeatedly served the wrong model's file, so we do not publish those links here rather than risk sending you the wrong specification. Email sales@sourceit.com.sg quoting AP9870 and we will send you the current PDF datasheet and user guide directly.
Frequently Asked Questions — APC AP9870
What equipment does the AP9870 connect?
Anything with an IEC C14 inlet - which is almost every rack-mount server, switch, router, firewall and storage unit - to a C13 outlet on a PDU, UPS, Rack ATS or bypass switch. It is the same connection as the cord that came in the equipment box, at a length that actually reaches the PDU.
How much current can it carry?
Schneider rates it at 10 A and 250 V AC, the IEC 60320 C13/C14 coupler limit. A C14 inlet on a device cannot draw more than that, so one cord per device is always within rating. Do not use it to feed a multi-way strip that could exceed 10 A in total.
Why 2.5 m rather than the usual 1.8 m?
Because equipment-box cords are sized for a desk, not a rack. From a 1U PDU or UPS in the bottom of a 42U cabinet, 2.5 m reaches a device at the top with enough slack to route neatly down the rail and through the cable management fingers. For equipment right beside a zero-U PDU, the 0.6 m AP9890 cords are the neater choice.
Is it the same as the AP9890 kit?
Same connectors, different length and quantity. The AP9870 is one 2.5 m cord; the AP9890 is a pack of five 0.6 m cords for short in-rack runs. Buy the 2.5 m for reach and the 0.6 m pack for tidiness.
Does it lock into the PDU?
No, it is a standard non-locking C13. For a locking version of the same connection see the AP8704S-WW locking C13 to C14 cord kit, 6 x 1.2 m, which is stocked by SourceIT.
Can I use it on a Rack ATS?
Yes, on the output side. The AP4421A Rack ATS (C14 in, 12 C13 out) and AP4423A Rack ATS (C20 in, 8 C13 and 1 C19 out) have C13 outlets, and this cord takes power from those outlets to the equipment. It is not an ATS input cord - the ATS inputs are C14 or C20 inlets or captive commando plugs depending on the model.
Will this plug into a Singapore wall socket?
No. The AP9870 has an IEC C14 plug and an IEC C13 connector. Singapore wall sockets are BS 1363 (Type G), and none of the connectors on this cord are BS 1363. The normal Singapore arrangement is an IEC-fed rack PDU or a UPS with IEC outlets, with cords like this one running from those outlets to the equipment. If you need a BS 1363 to IEC lead for a UPS or PDU input, ask us separately.
Does it come with a Singapore warranty?
Yes. Every APC AP9870 sold by SourceIT comes with local Singapore warranty and a GST invoice; APC by Schneider Electric backs its NetShelter power cords with a 2-year manufacturer warranty.
