Yealink SIP-T44U Feature-rich SIP Phone
PRODUCT DESCRIPTION
Yealink SIP-T44U Feature-rich SIP Phone (1301214) - 2 Years Local Warranty

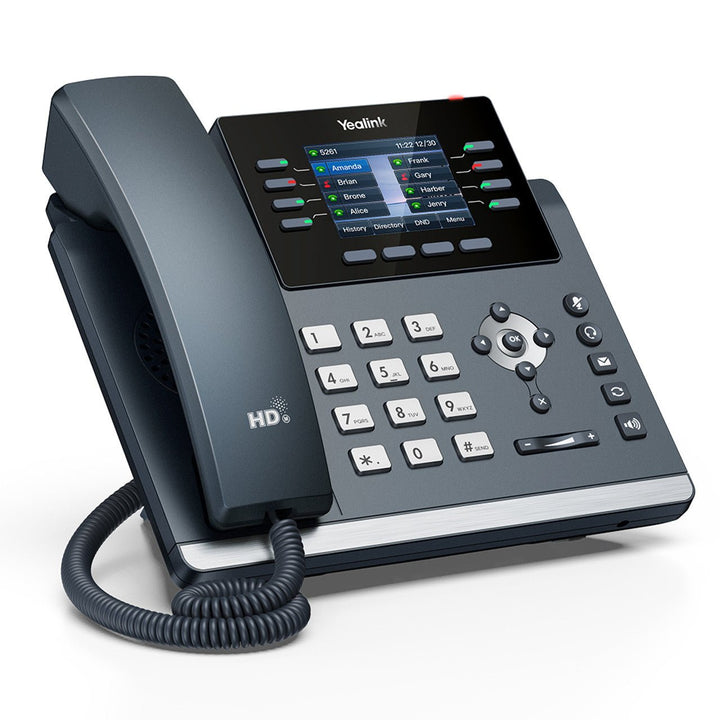

Yealink SIP-T44U Feature-Rich Business IP Phone
The Yealink SIP-T44U is a 12-line SIP desk phone with a 2.8-inch 320x240 backlit colour display, bringing colour-screen convenience to everyday business calling. Yealink Optima HD Voice with a full-duplex AEC speakerphone, Acoustic Shield, Smart Noise Filtering and a hall-switch handset hook keep calls clear and operation quiet.
Three Pages of Programmable Keys
Eight LED line keys programmable to 21 paperless DSS keys across 3 pages keep contacts and features one press away, and up to three EXP43 colour-screen expansion modules add up to 180 buttons for reception and attendant roles. Dual-port Gigabit Ethernet with IEEE 802.3af PoE (Class 3) keeps deployment to one cable.
Expandable via Dual USB
Two USB 2.0 ports support USB headsets, USB call recording, the EHS40 wireless-headset adapter, Wi-Fi via WF40/WF50 and Bluetooth headsets via BT40/BT41/BT51 dongles — the flexibility Singapore SMEs need as desks evolve.
Yealink SIP-T44U Datasheet — Technical Specifications
General
| Model | Yealink SIP-T44U |
| Part Number | 1301214 |
| Product Type | 12-line colour-screen SIP desk phone |
| Warranty | 2 Years Local Warranty (Singapore) |
Display & Keys
| Display | 2.8" colour LCD, 320 x 240 pixels, with backlight |
| SIP accounts | Up to 12 |
| Line keys | 8 line keys with LED |
| Programmable keys | Up to 21 paperless DSS keys (3-page view); paperless label design |
Audio
| HD voice | Yealink Optima HD Voice — HD handset, HD speaker; Acoustic Shield; Smart Noise Filtering |
| Speakerphone | Full-duplex hands-free speakerphone with AEC |
| Handset | Hearing aid compatible (HAC); hall-switch hookswitch |
| Wideband codecs | AMR-WB (optional), G.722 |
| Narrowband codecs | AMR-NB (optional), G.711 (A/µ), G.723.1, G.729/A/B/AB, G.726, iLBC |
| Headset | RJ9 (4P4C) port; EHS40 wireless headset adapter support; USB headsets |
Connectivity
| Ethernet | Dual-port Gigabit Ethernet (2 x RJ45) |
| PoE | IEEE 802.3af, Class 3 |
| Wireless | Not built-in — Wi-Fi via WF40/WF50 dongle; Bluetooth headsets via BT40/BT41/BT51 dongle |
| USB | 2 x USB 2.0 — USB headset, USB call recording, EXP43, EHS40, Wi-Fi/Bluetooth dongles |
| Expansion module | EXP43 — up to 3 modules, up to 180 additional buttons |
| Security & network | VLAN (802.1p/Q), QoS (Layer 3 ToS DSCP), OpenVPN, IEEE 802.1X, IPv6 |
Power
| Power adapter | AC 100–240 V input, DC 5 V / 1.2 A output (optional) |
| Consumption | PSU: 1.7–4.1 W; PoE: 2.0–4.9 W |
Design & Features
| Dimensions (W x D x H x T) | 224.9 x 206.2 x 174.9 x 52 mm |
| Mounting | Desk stand with 2 adjustable angles; wall mountable (bracket optional) |
| Operating conditions | -10 to +45 °C; 5–90% humidity (non-condensing) |
| Phonebook | Local phonebook up to 1000 entries; XML/LDAP remote phonebook |
| Provisioning | Auto-provisioning (FTP/TFTP/HTTP/HTTPS), TR-069; Broadsoft device management |
Compatibility & Software Support
The SIP-T44U is an open-SIP business IP phone running Yealink’s unified T4U firmware. It registers with SIP-compatible IP-PBX and hosted voice platforms (Broadsoft device management is supported per the datasheet) — check compatibility with your PBX or hosted-voice provider, or ask the SourceIT team for advice on platforms commonly deployed in Singapore.
- Mass deployment: auto-provisioning via FTP / TFTP / HTTP / HTTPS, TR-069, zero-touch provisioning, dual firmware images
- Security: OpenVPN, L2TP VPN, IEEE 802.1X, SRTP
- Networking: dual-port Gigabit Ethernet, VLAN (802.1p/Q), Layer 3 ToS DSCP QoS, IPv6
- USB expandability: BT41 Bluetooth dongle, WF50 dual-band Wi-Fi dongle (also WF40), USB wired headsets and USB call recording to a flash drive, plus EXP43 expansion modules
- Headsets: RJ9 port plus EHS40 wireless headset adapter support
Package Contents & T4 Series Ordering Information
In the box:
- IP phone
- Handset with handset cord
- Ethernet cable (2 m CAT5E UTP)
- Stand
- Quick Start Guide
- Power adapter optional (Yealink PSU available separately) — PoE powered by default
- Wall mount bracket optional
The SIP-T44U sits in Yealink’s T4 series. All T4-series models below are available from SourceIT:
| Model | Part No. — Key difference |
| Yealink SIP-T42U | 1301201 — 12 lines, 2.7" LCD, 15 DSS keys |
| Yealink SIP-T43U | 1301202 — 12 lines, 3.7" LCD, 21 DSS keys, EXP43 support |
| Yealink SIP-T44U | 1301214 — 12 lines, 2.8" colour LCD, 21 DSS keys, EXP43 support |
| Yealink SIP-T44W | 1301213 — 12 lines, 2.8" colour LCD, built-in Wi-Fi + Bluetooth 4.2 |
| Yealink SIP-T46U | 1301203 — 16 accounts, 4.3" colour LCD, 27 DSS keys, EXP43 support |
| Yealink SIP-T48U | 1301204 — 16 accounts, 7" touch screen, 29 one-touch DSS keys |
Datasheet & Downloads
Frequently Asked Questions — Yealink SIP-T44U
What is the difference between the Yealink T44U and T44W?
The T44W adds built-in dual-band Wi-Fi and Bluetooth 4.2; the T44U is wired-only but can gain Wi-Fi/Bluetooth via WF40/WF50 and BT40/BT41/BT51 USB dongles. Everything else — screen, keys, audio — is the same.
T44U or T43U — which should I choose?
The T44U has a 2.8" colour display; the T43U has a larger 3.7" greyscale display. Key counts match (21 DSS keys, EXP43 support), so it comes down to colour versus screen size.
Does the T44U support expansion modules?
Yes — up to three EXP43 colour-screen expansion modules for up to 180 additional buttons.
Does the T44U come with a power adapter?
The adapter is optional — it is designed for IEEE 802.3af PoE (Class 3, 2.0–4.9 W). For non-PoE desks, add the optional Yealink 5 V / 1.2 A PSU.
Which headsets work with the T44U?
RJ9 headsets (Yealink YHS34/YHS36), USB headsets such as the UH34, and wireless headsets via the EHS40 adapter.
Does the SIP-T44U come with a warranty in Singapore?
Yes. Every SIP-T44U sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
