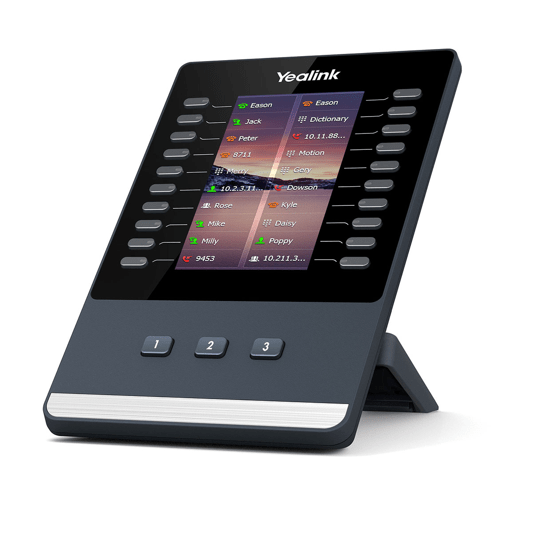

Yealink EXP43 Color Expansion Module
PRODUCT DESCRIPTION
Yealink EXP43 Color Expansion Module (EXP43) - 2 Years Local Warranty
4.3-Inch Color Screen with 60 DSS Keys
The Yealink EXP43 pairs a 4.3-inch 272 x 480-pixel backlit color display with 20 physical keys, each fitted with a dual-color LED. Three page views switch instantly via 3 independent illuminated control keys, giving you up to 60 programmable keys per module for lines, speed dials and busy-lamp-field (BLF) monitoring — every key clearly labelled on screen, with status visible at a glance.
Built for Yealink T43U, T46U and T48U IP Phones
The EXP43 is designed for the Yealink T4U series and applies to the SIP-T43U, SIP-T46U and SIP-T48U. It connects over a USB 2.0 port for data in and out and sits neatly beside the phone on a stand with 2 adjustable angles, matching the handset's desk profile for a clean, professional setup.
Daisy-Chain Up to Three Modules — 180 Extra Keys
Up to three EXP43 modules can be attached to a single T43U/T46U/T48U, scaling to as many as 180 additional keys. A single module draws power from the phone; when two or three modules are connected, an external 5V/2A power adapter is used. Maximum power consumption is just 1.5 W.
Reception-Desk Ready for Singapore Offices
For receptionists, operators and executive assistants in Singapore businesses handling high call volumes, the EXP43 turns a T4U desk phone into a compact attendant console. SourceIT supplies the EXP43 from local stock with a GST invoice and 2 years local warranty support.
Yealink EXP43 Datasheet — Technical Specifications
General
| Part Number | EXP43 (1300036) |
| Product Type | Color-screen expansion module for Yealink T4U-series IP phones |
| Warranty | 2 Years Local Warranty (Singapore) |
Display
| Screen | 4.3" 272 x 480-pixel color display with backlight |
| Color Depth | 16-bit color |
| Page Views | 3 page views |
Keys
| Physical Keys | 20 physical keys, each with a dual-color LED |
| Additional Keys | 40 additional keys through page switch (up to 60 keys per module) |
| Control Keys | 3 independent control keys with illuminated LED |
Connectivity & Compatibility
| Connection | USB port (2.0 compliant) for data in and out |
| Compatible Phones | Yealink T43U / T46U / T48U |
| Daisy-Chain | Up to 3 EXP43 modules per phone (up to 180 additional keys) |
Power
| Max Power Consumption | 1.5 W (PSU) |
| Power Adapter | External 5V/2A adapter used when 2-3 modules are connected |
Physical & Environment
| Dimensions (W x D x H x T) | 196.5 mm x 124.0 mm x 137.5 mm x 42.6 mm |
| Stand | Stand with 2 adjustable angles |
| Operating Temperature | 0 ~ 40°C (+32 ~ 104°F) |
| Operating Humidity | 10 ~ 95% |
Compatibility & Software Support
Per the official Yealink datasheet, the EXP43 applies to the Yealink T43U, T46U and T48U IP phones. All three are stocked by SourceIT in Singapore:
The module connects to the host phone via USB (2.0 compliant) and is configured through the phone — keys can be assigned to lines, speed dials and BLF monitoring. Up to three EXP43 modules can be attached to one phone; use an external 5V/2A adapter when running two or three modules.
Using a Yealink T5-series phone instead? You will need the Yealink EXP50 Color-screen Expansion Module — the EXP43 is for the T4U series only.
Package Contents & EXP Series Ordering Information
In the Box
- Yealink EXP43 expansion module
- Stand
- Connecting sheet
- USB cable
- Screwdriver and screws
- Quick Start Guide
Yealink Expansion Modules at SourceIT
| EXP43 (1300036) | Color expansion module for T43U / T46U / T48U — this product |
| EXP50 (1300033) | Color-screen expansion module for Yealink T5-series phones |
Datasheet & Downloads
Frequently Asked Questions — Yealink EXP43
Which Yealink phones work with the EXP43?
The EXP43 applies to the Yealink T4U series: SIP-T43U, SIP-T46U and SIP-T48U.
EXP43 vs EXP50 — which expansion module do I need?
Both share the same 4.3" 272 x 480 color screen and 20-key, 3-page layout. The difference is the host phone: the EXP43 fits the T4U series (T43U/T46U/T48U), while the EXP50 fits Yealink T5-series phones such as the T53/T53W/T54W/T57W. Match the module to your phone series.
How many keys does the EXP43 add?
Each module offers 20 physical keys across 3 page views — up to 60 programmable keys. Daisy-chain up to three modules on one phone for as many as 180 additional keys.
Does the EXP43 need its own power supply?
A single EXP43 is powered by the host phone over the USB connection. When two or three modules are daisy-chained, an external 5V/2A power adapter is used. Maximum power consumption is 1.5 W.
How does the EXP43 connect to the phone?
Via a USB 2.0 compliant port for data in and out, using the supplied USB cable and connecting sheet. The included stand offers 2 adjustable angles to match your phone.
Does the EXP43 come with local warranty in Singapore?
Yes. Every EXP43 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
