Yealink T43U IP Desktop Phone
PRODUCT DESCRIPTION
Yealink T43U IP Desktop Phone (1301202) - 2 Years Local Warranty

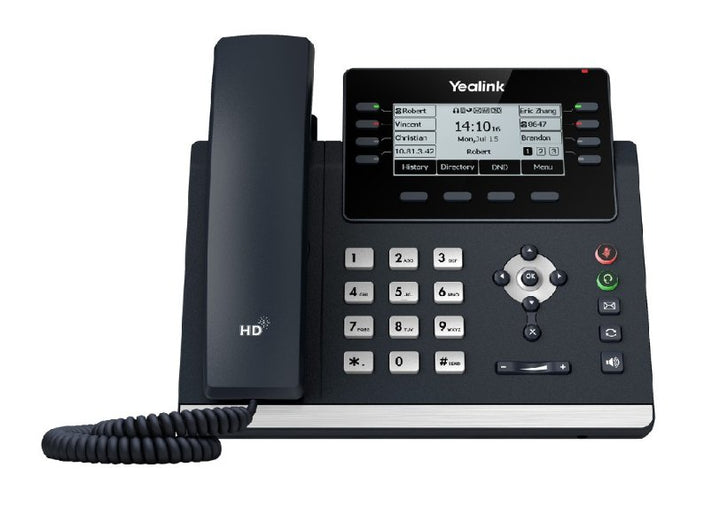

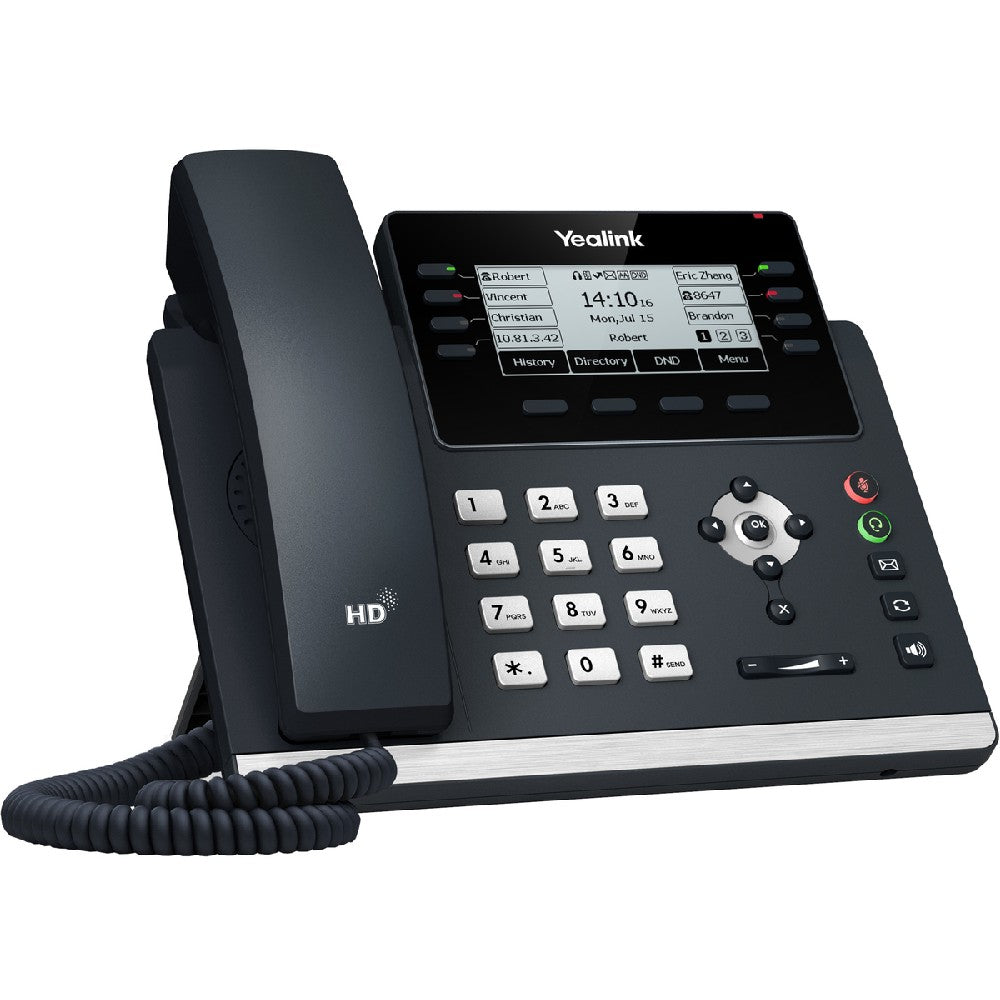

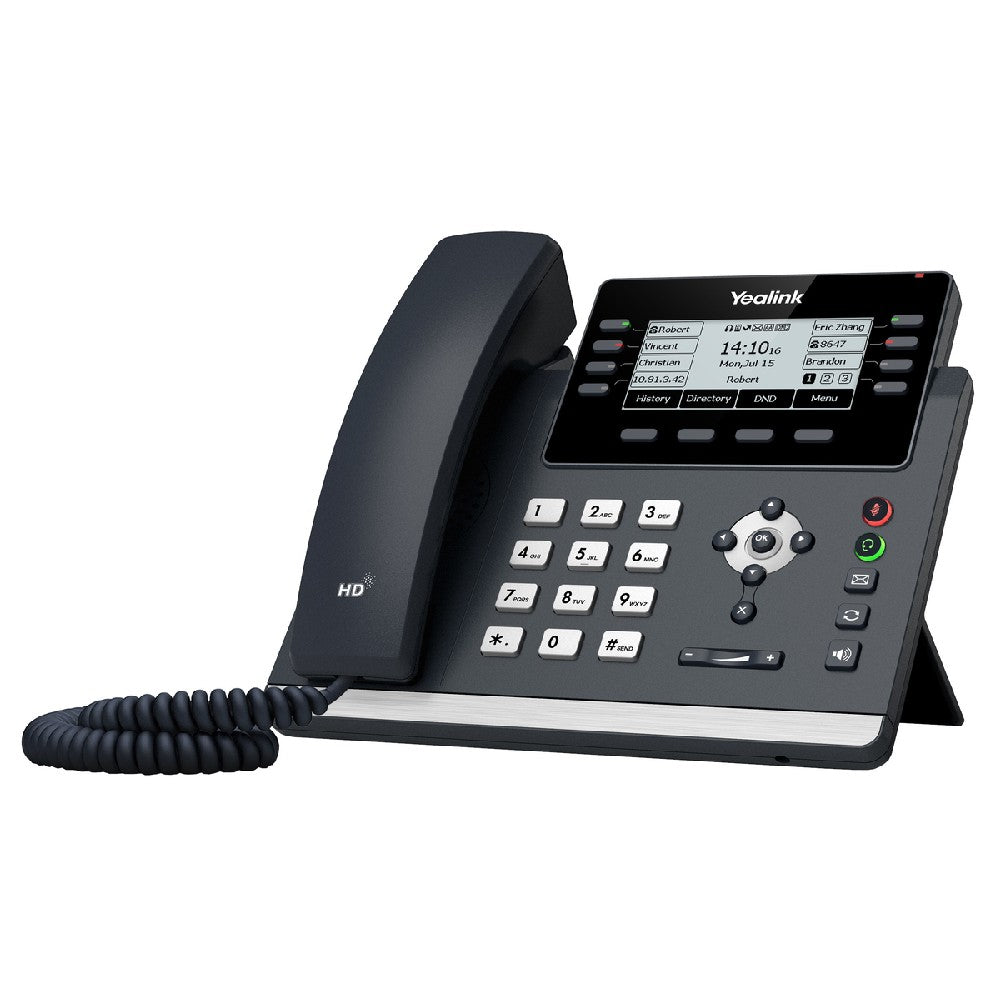

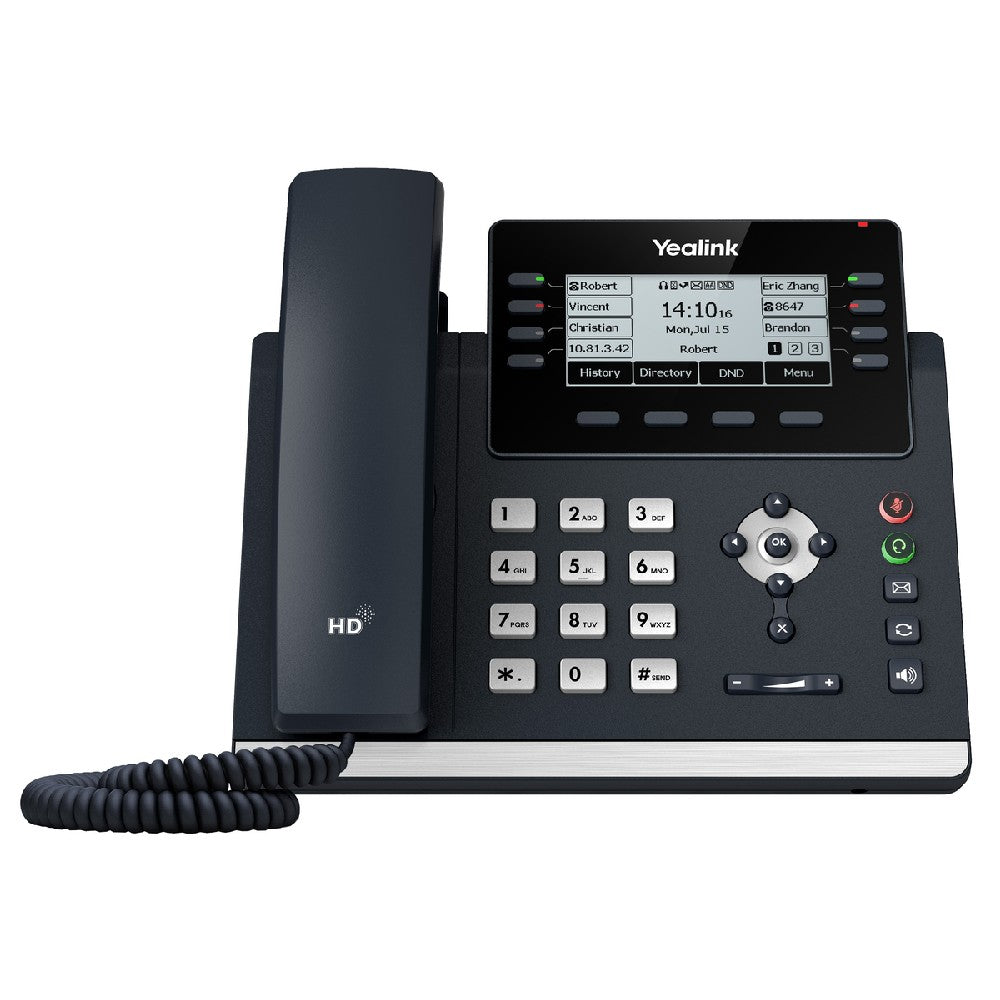

Yealink SIP-T43U Feature-Rich Business IP Phone
The Yealink SIP-T43U is a 12-line SIP desk phone with a large 3.7-inch 360x160 backlit screen for busy professionals. Yealink Optima HD Voice with a full-duplex AEC speakerphone, Smart Noise Filtering, Acoustic Shield and a hearing-aid-compatible handset keep every call clear, while dual USB 2.0 ports add Bluetooth (BT40/BT41/BT52), Wi-Fi (WF40/WF50), USB headsets or USB call recording.
Built for Heavy Call Handling
Eight LED line keys programmable to 21 paperless DSS keys across 3 pages keep contacts one press away, and up to three EXP43 colour-screen expansion modules add up to 180 buttons for reception and attendant roles. Dual-port Gigabit Ethernet with IEEE 802.3af PoE keeps deployment to one cable.
Fleet-Friendly by Design
Unified T4U firmware, dual firmware images, zero-touch provisioning, TR-069 and auto-provisioning via FTP/TFTP/HTTP/HTTPS make the T43U simple to roll out and manage across Singapore offices.
Yealink SIP-T43U Datasheet — Technical Specifications
General
| Model | Yealink SIP-T43U |
| Part Number | 1301202 |
| Product Type | 12-line SIP desk phone |
| Warranty | 2 Years Local Warranty (Singapore) |
Display & Keys
| Display | 3.7" graphical LCD, 360 x 160 pixels, with backlight |
| SIP accounts | Up to 12 |
| Line keys | 8 line keys with LED |
| Programmable keys | Up to 21 paperless DSS keys (3-page view); paperless label design |
Audio
| HD voice | Yealink Optima HD Voice — HD handset, HD speaker; Smart Noise Filtering; Acoustic Shield |
| Speakerphone | Full-duplex hands-free speakerphone with AEC |
| Handset | Hearing aid compatible (HAC) |
| Wideband codecs | AMR-WB (optional), G.722 |
| Narrowband codecs | AMR-NB (optional), G.711 (A/µ), G.723.1, G.729/A/B/AB, G.726, iLBC |
| Headset | RJ9 (4P4C) port; EHS40 wireless headset adapter support; USB headsets |
Connectivity
| Ethernet | Dual-port Gigabit Ethernet (2 x RJ45) |
| PoE | IEEE 802.3af, Class 2 |
| USB | 2 x USB 2.0 — Bluetooth dongle (BT40/BT41/BT52), Wi-Fi dongle (WF40/WF50), USB headset, USB call recording |
| Expansion module | EXP43 — up to 3 modules, up to 180 additional buttons |
| Security & network | VLAN (802.1p/Q), QoS (Layer 3 ToS DSCP), OpenVPN, L2TP VPN, IEEE 802.1X, IPv6 |
Power
| Power adapter | AC 100–240 V input, DC 5 V / 1.2 A output (optional) |
| Consumption | PSU: 0.9–2.2 W; PoE: 1.5–3.2 W |
Design & Features
| Dimensions (W x D x H x T) | 224.9 x 206.2 x 174.9 x 52 mm |
| Mounting | Desk stand with 2 adjustable angles; wall mountable (bracket optional) |
| Phonebook | Local phonebook up to 1000 entries |
| Provisioning | Auto-provisioning (FTP/TFTP/HTTP/HTTPS), TR-069, zero-touch; unified T4U firmware, dual images |
Compatibility & Software Support
The SIP-T43U is an open-SIP business IP phone running Yealink’s unified T4U firmware. It registers with SIP-compatible IP-PBX and hosted voice platforms (Broadsoft device management is supported per the datasheet) — check compatibility with your PBX or hosted-voice provider, or ask the SourceIT team for advice on platforms commonly deployed in Singapore.
- Mass deployment: auto-provisioning via FTP / TFTP / HTTP / HTTPS, TR-069, zero-touch provisioning, dual firmware images
- Security: OpenVPN, L2TP VPN, IEEE 802.1X, SRTP
- Networking: dual-port Gigabit Ethernet, VLAN (802.1p/Q), Layer 3 ToS DSCP QoS, IPv6
- USB expandability: BT41 Bluetooth dongle, WF50 dual-band Wi-Fi dongle (also WF40), USB wired headsets and USB call recording to a flash drive, plus EXP43 expansion modules
- Headsets: RJ9 port plus EHS40 wireless headset adapter support
Package Contents & T4U Series Ordering Information
In the box:
- IP phone
- Handset with handset cord
- Ethernet cable (2 m CAT5E UTP)
- Stand
- Quick Start Guide
- Power adapter optional (Yealink PSU available separately) — PoE powered by default
- Wall mount bracket optional
The SIP-T43U sits in Yealink’s T4U series. All T4-series models below are available from SourceIT:
| Model | Part No. — Key difference |
| Yealink SIP-T42U | 1301201 — 12 lines, 2.7" LCD, 15 DSS keys |
| Yealink SIP-T43U | 1301202 — 12 lines, 3.7" LCD, 21 DSS keys, EXP43 support |
| Yealink SIP-T44U | 1301214 — 12 lines, 2.8" colour LCD, 21 DSS keys, EXP43 support |
| Yealink SIP-T44W | 1301213 — 12 lines, 2.8" colour LCD, built-in Wi-Fi + Bluetooth 4.2 |
| Yealink SIP-T46U | 1301203 — 16 accounts, 4.3" colour LCD, 27 DSS keys, EXP43 support |
| Yealink SIP-T48U | 1301204 — 16 accounts, 7" touch screen, 29 one-touch DSS keys |
Datasheet & Downloads
Frequently Asked Questions — Yealink SIP-T43U
What is the difference between the Yealink T43U and T46U?
The T46U steps up to a 4.3" colour display, 16 SIP accounts and 27 DSS keys; the T43U keeps costs down with a 3.7" greyscale display, 12 accounts and 21 DSS keys. Both support EXP43 modules and dual USB ports.
Can the T43U be used as a receptionist phone?

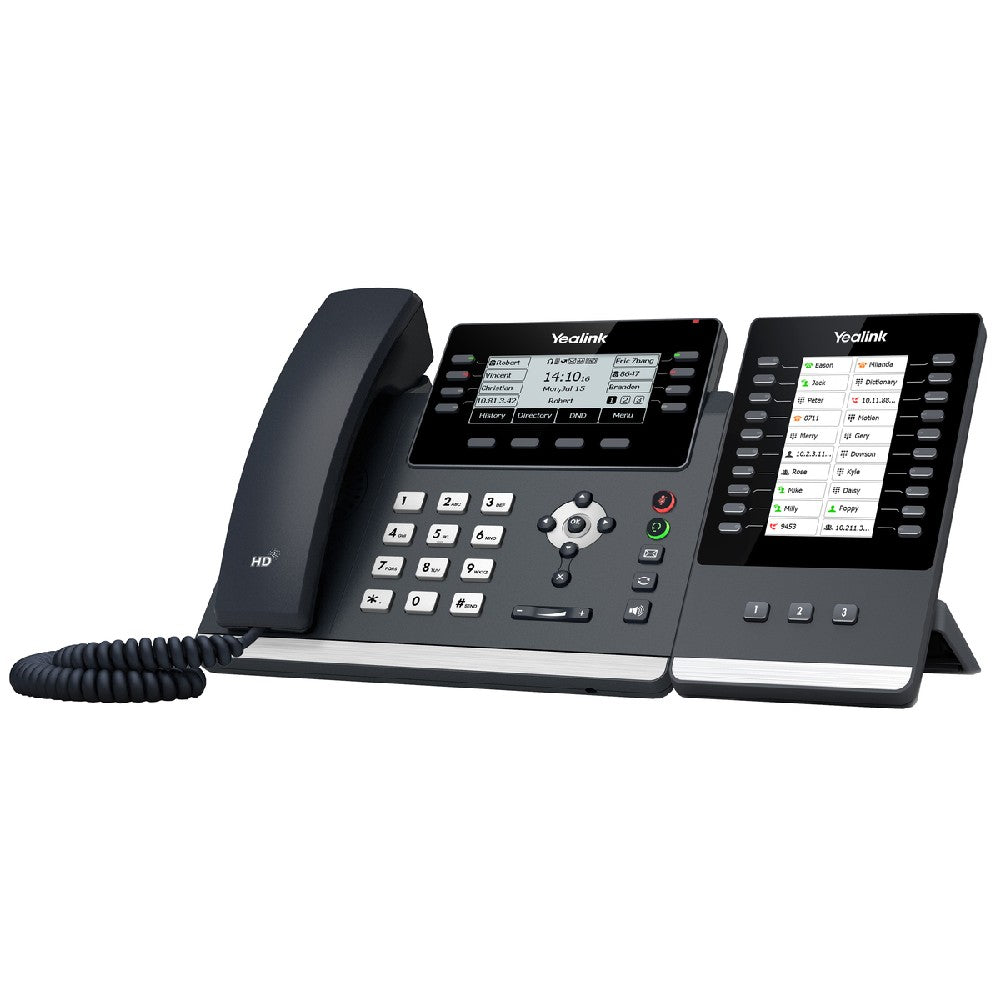

Yes — add up to three EXP43 colour-screen expansion modules for up to 180 extra buttons for BLF, speed dial and call handling.
Can I add Bluetooth or Wi-Fi to the T43U?
Yes — plug a BT41 Bluetooth dongle or WF50 Wi-Fi dongle (or WF40) into either USB 2.0 port.
Does the T43U come with a power adapter?
The adapter is optional — it is designed for IEEE 802.3af PoE (Class 2, 1.5–3.2 W). For non-PoE desks, add the Yealink PSU.
Which headsets work with the T43U?
RJ9 headsets (Yealink YHS34/YHS36), USB headsets such as the UH34, and wireless headsets via the EHS40 adapter.
Does the SIP-T43U come with a warranty in Singapore?
Yes. Every SIP-T43U sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
