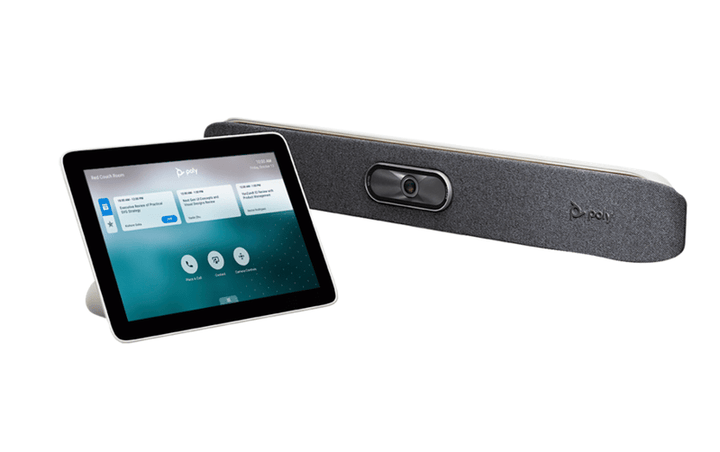

Poly Studio X30 All-In-One Video Bar with TC8 Controller
PRODUCT DESCRIPTION
Poly Studio X30 All-In-One Video Bar with TC8 Controller (No Radio or Power Cord, TAA) — 842V8AA - Local Warranty
4K Ultra HD Video with a 121° Field of View for Huddle Rooms
The Poly Studio X30 puts the camera, speaker, microphones and the video application itself into a single 441 mm bar, so a huddle room needs nothing more than a display, a network drop and power — no room PC, no separate codec, no gateway box under the table. The camera captures 2160p 4K Ultra HD across a 121° diagonal / 110° horizontal field of view, which is wide enough to cover the whole of a typical Singapore huddle room from a single wall-mounted position. HP rates it for rooms of roughly 15 ft x 10 ft and up to six participants.
Poly DirectorAI Framing Keeps Every Face in Shot
Poly DirectorAI handles the camera work so nobody has to. It offers people framing, group framing and speaker framing, and the DirectorAI perimeter lets you tell the camera which part of the room to pay attention to — useful when the bar faces a glass partition or an open corridor. Presenter Mode keeps a standing presenter framed as they move. A 5x digital zoom lets you push in further; note that this is a digital zoom, not an optical one, and there is no motorised pan or tilt on this model.
A Touch Controller on the Table
This kit adds the Poly TC8, an 8-inch capacitive touch controller that gives the room a dedicated in-room control surface: join the next meeting with one tap, dial out, share content, adjust volume and camera without anyone hunting for a remote. It pairs with the bar over the network and takes power from PoE, so a single Cat5e run to the table is the only cabling it needs.
NoiseBlockAI and Acoustic Fence for Open-Plan Offices
Four MEMS microphones in a beamforming array pick up the table out to 4.57 m. Poly NoiseBlockAI suppresses the keyboard clatter, packet rustle and air-con hum that otherwise leak into a call, while Poly Acoustic Fence draws a boundary around the room so conversations happening just outside the door stay outside the call — a practical difference in the open-plan floorplates most Singapore offices work in.
Teams, Zoom, Google Meet — or Just Your Own Laptop
HP certifies the Studio X30 for Microsoft Teams and Zoom and states it is certified to work with Google Meet, and the bar runs those applications natively on the device. Poly Video App mode reaches every other cloud provider, and standards-based H.323 and SIP calling is supported for organisations still running their own infrastructure. When a visitor needs to host from their own laptop, USB Device Mode turns the whole bar into a USB camera and speakerphone.
Poly Studio X30 Datasheet — Technical Specifications
Every specification below is taken from HP and Poly's own published documentation for the Studio X30 — the official product specification sheet, the HP Poly product page and the Poly datasheet. Where HP does not publish a figure we have left it out rather than estimate it.
Poly Studio X30 Video Bar
General
| Product type | All-in-one video bar — camera, speaker, microphones and video application in one device, no room PC required |
| Recommended room size | 15 ft x 10 ft (4.6 m x 3.0 m); HP states up to six participants |
| Displays supported | Single display |
| Management | Poly Lens cloud device management |
| Operating conditions | 0 °C to 40 °C, 15–80% relative humidity |
| Warranty | Local Warranty (Singapore) |
| Part number | 842V8AA |
Camera
| Capture resolution | 2160p 4K Ultra HD (3840 x 2160) |
| Frame rate | 5–60 fps; up to 4K resolution at 15 fps in call |
| Lens | Single lens |
| Zoom | 5x digital zoom — HP and Poly state digital zoom only; there is no optical zoom on this model |
| Field of view | 121° diagonal (DFOV), 110° horizontal (HFOV) |
| Auto-framing | Poly DirectorAI — people framing, group framing, speaker framing, DirectorAI perimeter; Presenter Mode |
| Video standards | H.264, H.265, H.239 |
| Privacy | Attachable privacy cover |
Audio
| Speaker | Single speaker, 3 W RMS / 5 W maximum |
| Speaker sensitivity | 80 dB (1 W / 1 m) |
| Microphones | Four MEMS microphones in a beamforming array |
| Microphone pickup range | Up to 4.57 m (15 ft) |
| Audio bandwidth | 22 kHz with Polycom Siren 22; down to 3.4 kHz with G.711, G.728, G.729A |
| Audio processing | Poly NoiseBlockAI, Poly Acoustic Fence |
Connectivity
| HDMI input | 1 x HDMI-in 1.4 (video) |
| HDMI output | 1 x HDMI-out 1.4 (video) |
| HDMI input resolutions | 3840 x 2160, 1920 x 1080p, 1680 x 1050, 1600 x 1200, 1280 x 1024, 1280 x 768, 1280 x 720p, 1024 x 768, 800 x 600 |
| USB | 1 x USB Type-C (5 Gbps); 1 x USB Type-A (5 Gbps) |
| Ethernet | 1 x 10/100/1G, Auto-MDIX |
| Network | IPv4 and IPv6; H.323 and/or SIP up to 6 Mbps |
| Wi-Fi | 802.11a/b/g/n/ac (MIMO) |
| Bluetooth | 5.0 |
| Wireless content sharing | Apple AirPlay, Miracast, plus wired HDMI input |
Design & Power
| Dimensions | 441.8 mm (W) x 62.5 mm (H) x 61.6 mm (D) |
| Weight | 730 g |
| Mounting | Monitor clamp included; VESA and wall mount kit, inverted mount kit and table stand sold separately |
| Power | External auto-sensing power supply; 37 VA at 120 V / 60 Hz and at 230 V / 50–60 Hz |
| Heat dissipation | 65 BTU/h |
| Control options | Poly TC8 or TC10 touch controller, Poly Bluetooth remote control, Poly Trio |
Poly TC8 Touch Controller (included in this kit)
| Display | 8 in (20.3 cm) diagonal IPS LCD with LED backlight |
| Resolution | WXGA 1280 x 800, 16:10 |
| Touch | Capacitive touch sensor, multi-touch |
| Viewing angle | 75° up / down / left / right |
| Network | 1 x RJ-45 LAN; pairs with the video bar over the network |
| Diagnostics port | Micro-B USB 2.0 (diagnostics only) |
| Power | Power over Ethernet, IEEE 802.3af Class 3 — one cable for power and data |
| Dimensions | 205 mm (W) x 123 mm (H) x 79 mm (D) |
| Weight | 812 g |
| Stand | Built-in stand, 60° positioning angle |
| Security | Kensington lock slot |
| Operating temperature | 0 °C to 40 °C |
| Certifications | Certified for Zoom and Microsoft Teams |
| Part number | 2200-30760-001 / 875J0AA |
Compatibility & Software Support
Platforms and certifications
HP states the Studio X30 is Certified for Microsoft Teams, Certified for Zoom and Certified to work with Google Meet.
Poly Video App mode reaches all cloud service providers, and the bar runs native third-party room applications including Zoom, Microsoft Teams, BlueJeans, Dialpad, GoToRoom, RingCentral and StarLeaf.
Use it with a laptop or room PC
USB Device Mode is supported — connect the bar to a laptop or room PC over USB and use it as a camera, speakerphone and microphone for any application, including Webex, GoTo and in-house software.
Standards-based calling
Standards-based H.323 and SIP calling up to 6 Mbps in Poly Video mode.
Management software
The Studio X30 is managed through Poly Lens, HP's cloud device-management service. From one console your IT team can see room device health, push firmware, apply configuration profiles and pull usage insights across every Poly device in the estate — which is the usual reason Singapore IT departments standardise on Poly rather than mixing consumer hardware across meeting rooms.
Touch control
This kit ships with the Poly TC8, an 8-inch capacitive touch controller that pairs with the bar over the network and draws power from PoE (IEEE 802.3af Class 3), so a single Cat5e run to the table is all the cabling it needs. Poly documents TC8 support for the G7500, Studio G62 and Studio X30, X50, X52 and X70. The TC8 is a room controller only — it does not run as a standalone scheduling panel.
Package Contents & Poly Studio X Series Ordering Information
In the box
- Poly Studio X30 video bar
- Ethernet cable
- HDMI cable
- Monitor clamp
- Privacy cover
- Poly TC8 Touch Controller
- RJ-45 (LAN) cable
- Quick start guide
- Warranty card
- Note: HP lists this SKU without a power cord
TAA variant. HP lists this part number as a No Radio or Power Cord, TAA configuration. It is built for procurement programmes that require Trade Agreements Act compliance: it ships without the wireless radio and without a power cord in the box. If you need Wi-Fi, Bluetooth or a supplied power cord, order the standard part number instead and talk to us first — we will confirm which build suits your tender before you commit.
Poly Studio X Series ordering information
Touch controllers and room scheduling panels
| Model / Variant | Part Number |
| Poly Studio TC8 Video Conferencing Controller | 2200-30760-001 / 875J0AA |
| Poly TC10 Touch Controller / Room Scheduler (black) | 875K5AA |
| Poly TC10 Touch Controller / Room Scheduler (white) | 875J5AA |
| Poly GC8 Touch Controller for Poly Room Kits | 2200-30780-001 / 875J6AA |
Mounts and expansion accessories for the Studio X30
| Model / Variant | Part Number |
| Poly Studio X30 VESA and Wall Mount | 2215-86512-001 / 875L6AA |
| Poly Studio X30 Table Stand | 2215-86513-001 / 875L5AA |
| Poly Studio X30 Inverted VESA and Wall Mount | 2215-86719-001 / 875L7AA |
Prices, stock and lead times for any of the above are available from the SourceIT sales team.
Datasheet & Downloads
All documents below are published by HP and Poly. Links open in a new tab.
- HP Poly Studio X30 Product Page — official HP product page with the full feature and certification list
- HP Product Specifications — Poly Studio X30 (83Z45AA) — official HP specification sheet
- HP Poly All-In-One Video Bar Line-Up (Singapore) — current HP Singapore comparison of the Studio X range
- Poly Support (Singapore) — firmware, admin guides and release notes for Poly Video OS
Frequently Asked Questions — Poly Studio X30
What does No Radio or Power Cord, TAA mean?
HP lists this part number as a Trade Agreements Act compliant build of the Studio X30. It is the same video bar, supplied without the wireless radio and without a power cord in the box, for government and defence procurement programmes that require TAA compliance. If your tender does not call for TAA, order the standard Studio X30 (83Z45AA) instead.
Does this mean no Wi-Fi and no Bluetooth?
That is what the HP SKU description states — this build ships without the wireless radio, so plan on a wired Ethernet connection and a wired or Bluetooth-free control method. Please confirm the exact radio configuration with us before you order if wireless matters to your deployment; we will check the current build against HP before we ship.
Which room size does the Poly Studio X30 suit?
HP rates the Studio X30 for huddle and small meeting rooms of roughly 15 ft x 10 ft (4.6 m x 3.0 m) and up to six participants, with microphone pickup to 4.57 m. For larger rooms see the Studio X52 and Studio X72.
Do I need a room PC, a codec or a separate licence?
No room PC and no codec — the video application runs on the bar. You will still need the meeting platform licence your organisation uses (Microsoft Teams Rooms, Zoom Rooms, or your own H.323/SIP infrastructure).
Is a power cord included?
No — HP lists this SKU without a power cord. Tell us which cord type your site uses and we will quote the correct one with the order.
What is in this kit?
The TAA build of the Poly Studio X30 video bar together with the Poly TC8 8-inch touch controller. The TC8 runs on PoE (IEEE 802.3af Class 3) and pairs with the bar over the network. The bar itself is supplied without the wireless radio and without a power cord, as HP specifies for this SKU. The standard non-TAA equivalent is the Studio X30 with TC8.
Does the Poly Studio X30 come with a Singapore warranty and GST invoice?
Yes. Every Poly Studio X30 sold by SourceIT comes with local Singapore warranty and a GST invoice.
