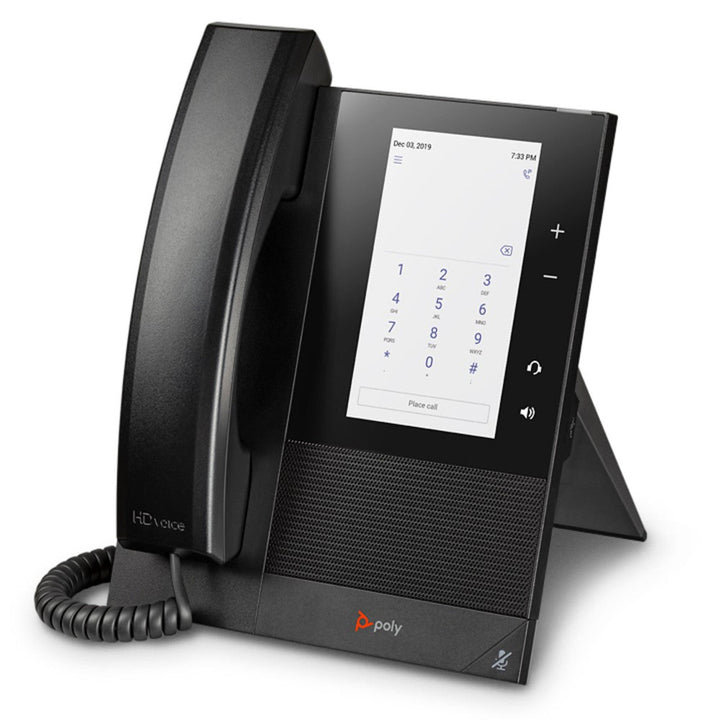

Poly CCX 400 Desktop Business Media IP Phone Open SIP
PRODUCT DESCRIPTION
Poly CCX 400 Desktop Business Media IP Phone Open SIP (849A1AA) - Local Warranty
Poly CCX 400 Open SIP Business Media Phone
The Poly CCX 400 Open SIP is a standards-based SIP desk phone with a 5-inch 720 x 1280 colour touchscreen, support for up to 24 SIP registrations, Poly HD Voice audio and single-cable 802.3af PoE. It registers against the hosted and on-premise platforms Singapore businesses actually run — cloud PBX, SIP trunking services and on-site IP-PBX — without locking you to one vendor's ecosystem.
Open SIP with 24 Line Registrations
HP specifies up to 24 lines (SIP registrations) on the Open SIP edition, which is enough headroom for reception consoles, shared department lines and multi-tenant setups on the same handset. Provisioning follows standard Poly UC methods, so the phone drops into an existing Poly estate.
Poly HD Voice with Acoustic Fence and NoiseBlock AI
Poly HD Voice and Poly Acoustic Clarity deliver full-duplex conversation with echo cancellation and noise suppression. Poly Acoustic Fence keeps surrounding voices out of handset and wired-headset calls, while Poly NoiseBlock AI cleans up the speakerphone. Codecs span G.711, G.722 (HD Voice), G.722.1, G.729AB, iLBC and OPUS, and the phone is hearing-aid compatible.
Gigabit Switch, USB-A, RJ-9 and EHS
A two-port gigabit Ethernet switch shares one desk drop between the phone and the PC. A USB 2.0 Type-A port, a dedicated RJ-9 headset port and an EHS adapter port cover wired peripherals, and built-in auto-sensing IEEE 802.3af PoE at 13 W maximum removes the desk power brick.
Ideal For SIP and Hosted PBX Deployments
The CCX 400 Open SIP suits Singapore offices on a hosted or on-premise SIP platform that want a touchscreen business media phone with premium Poly audio and platform freedom.
Poly CCX 400 Datasheet — Technical Specifications
General
| Model | Poly CCX 400 Business Media Phone |
| Part Number | 849A1AA |
| Manufacturer | Poly (HP) |
| Device type | Business media desk phone, Open SIP edition |
| Display | 5-inch colour LCD, 720 x 1280 pixel (9:16 aspect ratio) |
| Touchscreen | Gesture-based, multitouch-capable capacitive touchscreen |
| Lines / registrations | Up to 24 lines (SIP registrations) |
| Operating system | Android 9 |
| Operating temperature | 0 to 40 °C (32 to 104 °F) |
| Warranty | Local Warranty (Singapore) |
Audio
| Voice quality | Poly HD Voice technology |
| Audio processing | Poly Acoustic Clarity technology — full-duplex conversation, acoustic echo cancellation and background noise suppression |
| Acoustic Fence | Poly Acoustic Fence (handset and wired headset) |
| NoiseBlock AI | Poly NoiseBlock AI (speakerphone) |
| Audio codecs | G.711 (A-law and μ-law), G.722 (HD Voice), G.722.1, G.729AB, iLBC, OPUS |
| Hearing aid compatibility | Yes |
Connectivity
| Ethernet | 2 x RJ-45 (10/100/1000BASE-TX) two-port gigabit switch across LAN and PC ports |
| USB | 1 x USB 2.0 Type-A |
| Headset port | Dedicated RJ-9 headset port plus EHS adapter port |
| Wireless | Not listed on the HP datasheet for this model — no integrated Bluetooth or Wi-Fi |
| Platform | Open SIP — standards-based SIP platforms |
Design & Power
| Power | Built-in auto-sensing IEEE 802.3af Power over Ethernet, 13 W (maximum) |
| External power | Optional external power adapter (sold separately) |
| Dimensions | 18.1 x 21.5 x 5.0 cm (7.1 x 8.5 x 2.0 in) |
| Weight | Approximately 1.0 kg (2.23 lb) |
| Mounting | Desk stand included; wall mount kit sold separately |
| Colour | Black |
Compatibility & Software Support
Platform and certification
This is the Open SIP edition, built on standards-based SIP so it registers against a broad range of hosted and on-premise platforms — the usual Singapore mix of SIP trunking providers, cloud PBX services and on-site IP-PBX systems. Provisioning follows the standard Poly UC methods (DHCP option, provisioning server URL and configuration files), so it drops into an existing Poly UC estate without a separate management stack.
Headsets and peripherals
Wired headsets connect through the dedicated RJ-9 port, with an EHS adapter port for supported electronic hook switch headsets. One USB 2.0 Type-A port is available. HP's CCX 400 datasheet does not list integrated Bluetooth or Wi-Fi — the CCX 500 Open SIP adds Bluetooth 4.2 and the CCX 505 Open SIP adds Bluetooth plus integrated Wi-Fi.
Operating system and software
HP lists this model as running Android 9. Firmware and configuration updates are delivered through your provisioning server or through Poly Lens.
Poly Lens device management
The Poly CCX 350, 400, 500, 505, 600 and 700 are all listed as supported devices in Poly Lens, HP's cloud device-management service. Lens gives IT a single place to see deployed phones, push firmware and configuration, and monitor device health across the fleet — useful for Singapore offices standardising on one desk phone across several sites.
Package Contents & CCX Series Ordering Information
In the box
- Poly CCX console
- Handset with handset cord
- Desk stand
- CAT-5E network (LAN) cable
- Setup sheet
Poly CCX series ordering information
| Poly CCX 350 — Microsoft Teams | 848Z7AA — 2.8" colour LCD |
| Poly CCX 400 — Microsoft Teams | 848Z8AA — 5" touchscreen |
| Poly CCX 400 — Open SIP (this listing) | 849A1AA — 5" touchscreen |
| Poly CCX 500 — Microsoft Teams | 2200-49720-019 / 82Z76AA — 5" touchscreen + Bluetooth |
| Poly CCX 500 — Open SIP | 2200-49710-025 — 5" touchscreen + Bluetooth |
| Poly CCX 505 — Microsoft Teams, PoE | 82Z79AA — 5" touchscreen + Bluetooth + Wi-Fi |
| Poly CCX 505 — Open SIP, PoE | 82Z82AA — 5" touchscreen + Bluetooth + Wi-Fi |
| Poly CCX 600 — Microsoft Teams (HP SKU) | 82Z84AA — 7" touchscreen + Bluetooth + Wi-Fi |
| Poly CCX 600 — Microsoft Teams (Polycom SKU) | 2200-49770-019 — 7" touchscreen + Bluetooth + Wi-Fi |
| Poly CCX 600 — Open SIP, PoE (HP SKU) | 82Z85AA — 7" touchscreen + Bluetooth + Wi-Fi |
| Poly CCX 600 — Open SIP (Polycom SKU) | 2200-49780-025 — 7" touchscreen + Bluetooth + Wi-Fi |
| Poly CCX 700 — Open SIP | 2200-49750-025 / 82Z83AA — 7" touchscreen + integrated camera |
| Poly CCX 700 — Open SIP (Polycom SKU) | 2200-49740-025 — 7" touchscreen + integrated camera |
Part numbers shown are the SKUs carried on this store. Poly desk phones ship under a dual part number scheme — a legacy Polycom number (for example 2200-49720-019) and an HP SKU (for example 82Z76AA); where a listing carries both, both are printed above.
Datasheet & Downloads
Official HP Poly product and datasheet resources for this model:
- HP Poly Desk Phones — official HP Singapore product page
- Poly CCX 400 Business Media Phone — HP datasheet (PDF)
Need the PDF datasheet, a firmware note or a written quotation on SourceIT letterhead? Email our Singapore sales desk and we will send it across.
Frequently Asked Questions — Poly CCX 400
How many lines does the CCX 400 Open SIP support?
HP specifies up to 24 lines (SIP registrations) on the Open SIP edition.
What is the difference between this and the Microsoft Teams version?
The hardware is the same. This is the Open SIP edition for standards-based SIP platforms; the CCX 400 Microsoft Teams edition (848Z8AA) runs the native Teams interface and needs a Teams Phone licence.
Does the CCX 400 Open SIP have Bluetooth or Wi-Fi?
No. HP's datasheet does not list integrated Bluetooth or Wi-Fi for the CCX 400. For Bluetooth choose the CCX 500 Open SIP; for Bluetooth plus Wi-Fi choose the CCX 505 Open SIP.
Will it work with my existing PBX or SIP trunk provider?
The phone is standards-based Open SIP, so it registers to most hosted and on-premise SIP platforms. Send us the platform name and we will confirm the provisioning method and any firmware requirement before you order.
Do I need a power adapter?
Not with PoE. Built-in auto-sensing IEEE 802.3af PoE at 13 W maximum powers the phone from a standard PoE switch or injector; an external adapter is available separately.
Can the phone share a network point with the PC?
Yes — a two-port gigabit Ethernet switch runs 10/100/1000BASE-TX across the LAN and PC ports.
Does this phone come with a Singapore warranty?
Yes. Every Poly CCX 400 sold by SourceIT comes with local Singapore warranty and a GST invoice.
