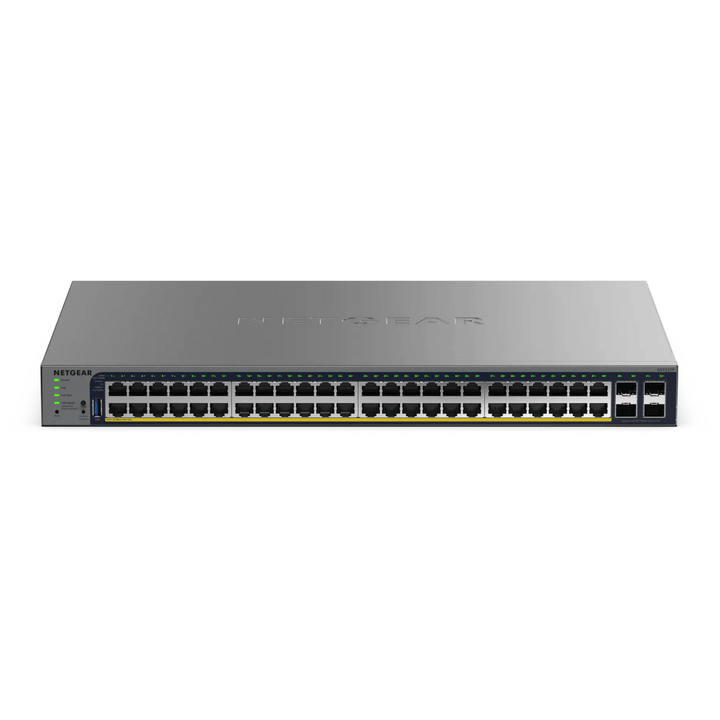

NETGEAR GS752TP 48-Port Gigabit PoE+ Smart Cloud Managed Switch with 4 SFP (380W)
PRODUCT DESCRIPTION
NETGEAR GS752TP 48-Port Gigabit Ethernet PoE+ Smart Switch with 4 SFP Ports and Remote/Cloud Management (380W) (GS752TP-300UKS) - Limited Lifetime Local Warranty
48 PoE+ Ports with a 380W Budget
The NETGEAR GS752TP (GS752TPv3) is a 48-port Gigabit Ethernet smart switch designed for converged networks. All 48 copper ports are IEEE 802.3at PoE+ and share a 380W PoE budget to power VoIP phones, IP cameras and wireless access points, with per-port PoE controls and PoE scheduling.
4 Dedicated SFP Fibre Uplinks
Four dedicated 1000BASE-X SFP ports provide Gigabit fibre uplinks. NETGEAR rates the switch at 104 Gbps line-rate switching capacity and a 77.38 Mpps forwarding rate, with a 16K MAC address table and 1.5 MB packet buffer.
Local Web Management or Optional Insight Cloud Management
Manage the switch locally through the web browser GUI or Lite CLI, or remotely through the NETGEAR Insight mobile app or Insight Cloud Portal. A USB port handles configuration backup/upload and firmware updates.
Smart Layer 2+ Features
256 VLANs, IPv4/IPv6 static routing (32 routes each), LACP link aggregation (16 LAGs, up to 8 members), 100 shared ACLs, DiffServ QoS, IGMP snooping with 512 multicast groups, and dual firmware images.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE device list and uplink needs and we will size it for you.
NETGEAR GS752TP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS752TP 48-Port Gigabit Ethernet PoE+ Smart Switch with 4 SFP Ports and Remote/Cloud Management (380W) |
| Part Number | GS752TP-300UKS |
| Hardware Version | GS752TPv3 |
| Series | NETGEAR Smart Cloud Switches (Insight Managed) |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 48 x 10/100/1000BASE-T RJ-45 |
| PoE Ports | 48 x PoE+ (IEEE 802.3at) |
| PoE Budget | 380 W |
| Fibre Ports | 4 x dedicated 1000BASE-X SFP |
| USB | 1 x USB (configuration upload/backup and firmware updates) |
Performance
| Switching Capacity | 104 Gbps (line-rate) |
| Forwarding Rate | 77.38 Mpps (64-byte packets) |
| Latency | 3.861 µs (1G copper, 64-byte packets) |
| MAC Address Table | 16K |
| Packet Buffer | 1.5 MB |
| Jumbo Frames | Up to 10K bytes |
| CPU / Memory | 800 MHz ARM A55 single core; 512 MB DDR RAM; 64 MB flash |
Software Features
| VLANs | 256 (802.1Q) |
| Layer 3 Lite | IPv4 / IPv6 static routing (32 IPv4 + 32 IPv6 static routes); 512 ARP entries |
| Link Aggregation | LACP, 16 LAGs with up to 8 members each |
| ACLs | 100 shared for MAC, IP and IPv6 (ingress) |
| Multicast | 512 multicast groups |
| Management | Web GUI, Lite CLI (serial/Telnet/SSH), NETGEAR Insight mobile app or Insight Cloud Portal, SNMP v1/v2c/v3, RMON groups 1, 2, 3, 9 |
Power & Environmental
| Power Consumption | 431 W max (all ports, full PoE, line-rate); 45 W without PoE; 23 W idle |
| Heat Dissipation | 1,474.02 BTU/hr |
| Cooling | 2 internal fixed fans |
| Acoustic Noise | 36.60 dBA @ 25 °C |
| MTBF | 1,410,340 hours @ 25 °C |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 90% max RH, non-condensing |
| Storage Temperature | –20 to 70 °C |
Physical
| Dimensions (W x D x H) | 440 x 310 x 43.2 mm |
| Weight | 4.93 kg |
| Mounting | 19-inch rack (rack-mount kit included) or tabletop with rubber footpads |
Certifications
| EMC | CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA |
| Safety | CB, CE, CSA, RCM, KC, BSMI |
Compatibility & Software Support
Management
Local management through NETGEAR's web browser-based GUI and a Lite CLI via serial, Telnet or SSH. Optional remote/cloud management with the NETGEAR Insight mobile app or the Insight Cloud Portal. Monitoring via SNMP v1/v2c/v3 and RMON.
Compatible NETGEAR SFP Modules
NETGEAR lists the following optional modules for the four 1G SFP ports:
| 1G SFP fibre | AGM731F 1000BASE-SX (multimode); AGM732F 1000BASE-LX (single mode) |
| 1G SFP copper | AGM734 1000BASE-T RJ-45 SFP |
Typical Use
Converged SMB networks powering up to 48 PoE+ phones, access points or cameras within a 380W budget, with 4 SFP ports for Gigabit fibre uplinks. For a 760W budget see the GS752TPP; for 24 ports see the GS728TP (190W) or GS728TPP (380W).
Package Contents & GS728TP / GS752TP Smart Cloud PoE+ Switch Ordering Information
In the Box
GS752TP switch, detachable power cord (varies by region), rubber footpads for tabletop installation, rack-mount kit, installation guide.
NETGEAR GS728TP / GS752TP Smart Cloud PoE+ Switch Models (v3)
| Model | Ports / PoE Budget | Part No. |
| GS728TP | 24 x GE PoE+ + 4 x SFP, 190 W | GS728TP-300UKS |
| GS728TPP | 24 x GE PoE+ + 4 x SFP, 380 W | GS728TPP-300UKS |
| GS752TP (this listing) | 48 x GE PoE+ + 4 x SFP, 380 W | GS752TP-300UKS |
| GS752TPP | 48 x GE PoE+ + 4 x SFP, 760 W | GS752TPP-300UKS |
Other models are available to order — email sales@sourceit.com.sg for a quote.
Datasheet & Downloads
| NETGEAR datasheet | GS728TPv3 / GS728TPPv3 / GS752TPv3 / GS752TPPv3 Datasheet (PDF) |
| Installation guide | GS752TPv3 / GS752TPPv3 Installation Guide (PDF) |
| User manual | 24-Port and 48-Port Gigabit PoE+ Smart Switches User Manual (PDF) |
| NETGEAR product page | GS752TPv3 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS752TP-300UKS.
Frequently Asked Questions — NETGEAR GS752TP
How much PoE power does the GS752TP provide?
380W total, with PoE+ (802.3at) on all 48 copper ports.
Does it have fibre uplinks?
Yes, 4 dedicated 1G SFP ports (SFP modules sold separately).
Can it be managed from the cloud?
Yes, optionally. It can be managed locally via the web GUI or Lite CLI, or remotely through the NETGEAR Insight mobile app or Insight Cloud Portal.
How does it differ from the GS752TPP?
Same 48 PoE+ ports and 4 SFP ports; the GS752TP has a 380W PoE budget versus 760W on the GS752TPP, with lower maximum power draw (431 W vs 861 W), two fans instead of three and lower fan noise (36.60 dBA vs 39.30 dBA).
Is it fanless?
No, it has two internal fans; NETGEAR rates acoustic noise at 36.60 dBA at 25 °C.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
