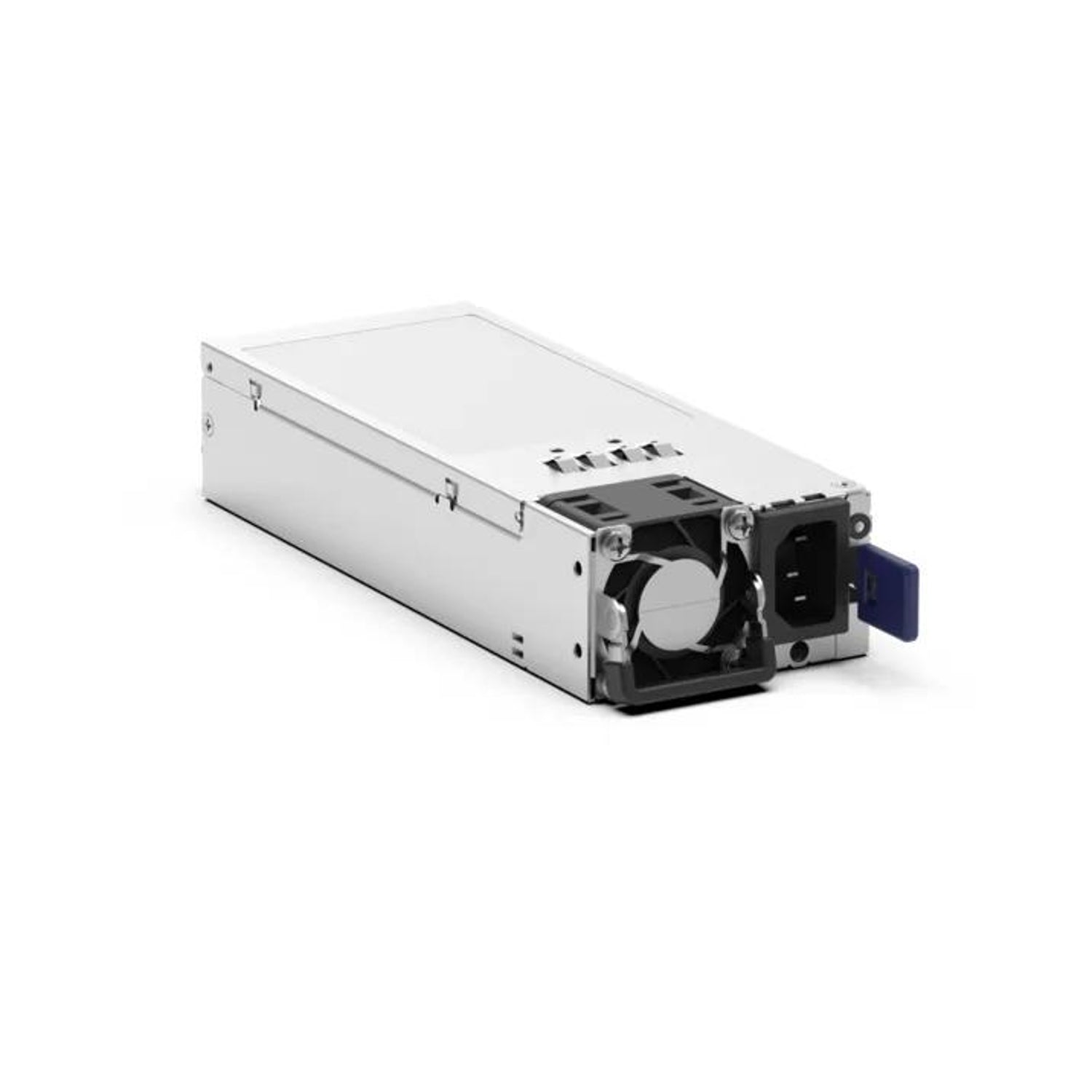

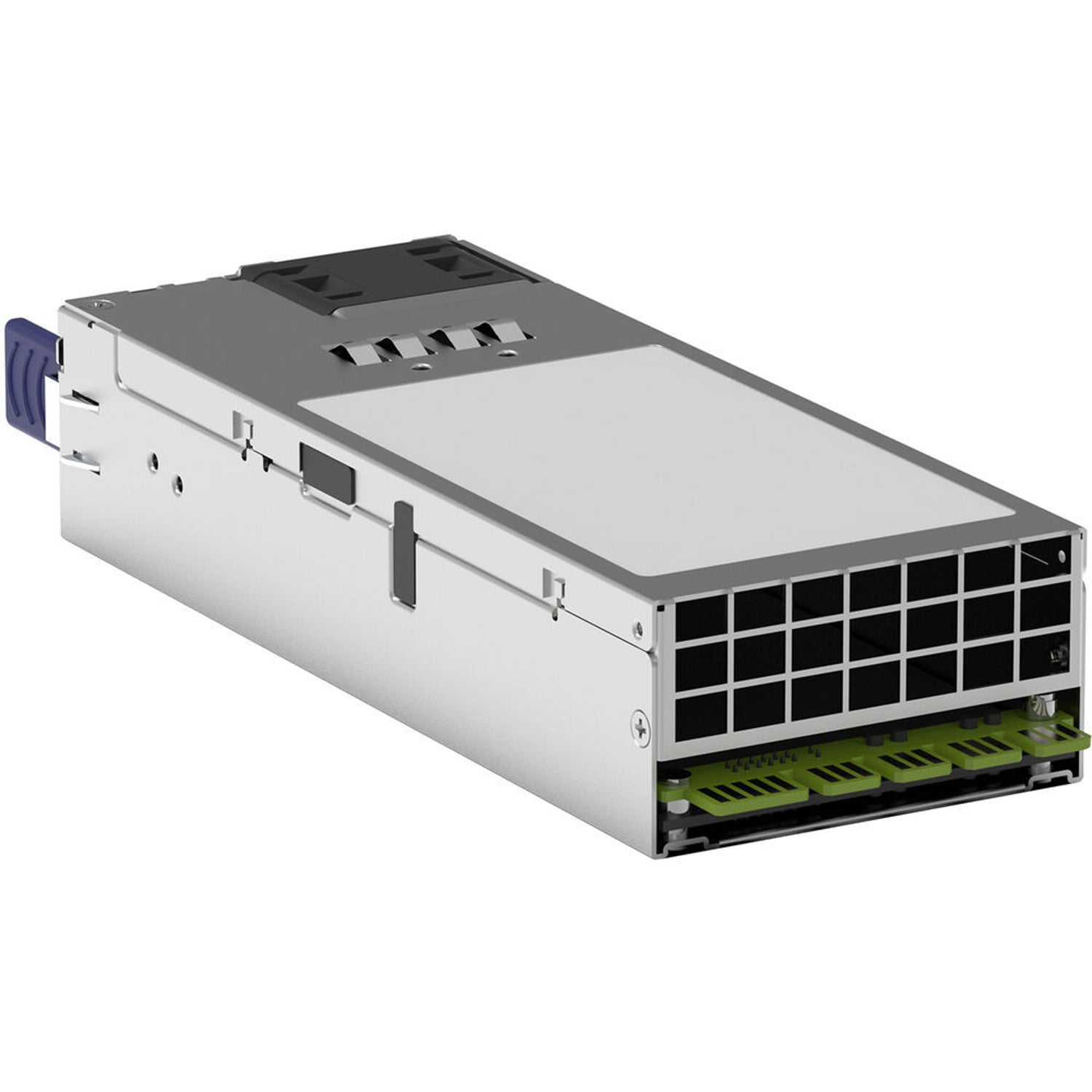

NETGEAR APS2000Wv2 2000W Modular Power Supply Unit for M4350 Switches
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR APS2000Wv2 2000W Modular Power Supply Unit for M4350 Switches (APS2000W-200NES) - 2 Years Local Warranty
Maximum Auxiliary Power for the Higher-End M4350 Models
The NETGEAR APS2000Wv2 is a 2000W auxiliary power supply (APS) for NETGEAR M4350 fully managed switches such as the M4350-36X4V, M4350-24X8F8V, M4350-32F8V, M4350-16V4C and M4350-40X4C. It takes 110–240V AC input through a C14 connector and delivers up to 2,000W output at 220V AC (up to 1,000W at 110V AC).
Hot-Pluggable in Multi-PSU Switches
NETGEAR states that in models with more than one APS the power supplies are hot-pluggable, so a unit can be replaced without powering down the switch.
Choose the Right Version
M4350 power supplies come in versions for different switch groups. The APS2000Wv2 is part of the group APS600Wv3 (APS600W-300NES), APS1200Wv2 and APS2000Wv2. The APS350W, APS600Wv2, APS920W and APS2000W (v1, APS2000W-100NES) serve the other M4350 models — check the Compatibility section before ordering.
Not sure which PSU your switch needs? Email sales@sourceit.com.sg with your switch model and SKU and we will confirm it for you.
NETGEAR APS2000Wv2 Datasheet — Technical Specifications
General
| Product Name | NETGEAR APS2000Wv2 2000W Modular Power Supply Unit |
| Part Number | APS2000W-200NES |
| Local Warranty (Singapore) | 2 years, supplied by SourceIT with a GST invoice |
Electrical
| AC input | 100–120VAC, 12A / 200–240VAC, 10A, 50–60 Hz |
| DC output | +54.5VDC, 18.69A @ 90–132VAC; +54.5VDC, 33.64A @ 180–198VAC; +54.5VDC, 37.38A @ 198–264VAC |
| Output power (per netgear.com) | Up to 1,000W at 110V AC; up to 2,000W at 220V AC |
| AC connector (per netgear.com) | C14 |
Physical
| Form factor | Modular, slide-in auxiliary power supply (APS) |
| Hot-swap | Supported in models with more than one APS |
| Dimensions (per installation guide) | 40 x 73.5 x 185 mm (1.6 x 2.9 x 7.3 in) |
| Weight (per netgear.com) | 0.938 kg |
Environmental
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Operating humidity | 5% to 85% relative humidity |
| MTBF | Minimum 250,000 hours at continuous operation |
LED Indicators
| Solid green | DC output is present and voltage is good |
| Off | Loss of AC power |
| Blinking green | AC power is present but DC output is standby only |
| Blinking amber | Abnormal warning (temperature, current, fan or power) |
| Solid amber | Power supply failure, imminent shutdown |
Compatibility & Software Support
Compatible NETGEAR switches
Per the NETGEAR installation guide (December 2025): M4350-24X8F8V (XSM4340V), M4350-36X4V (XSM4340CV), M4350-32F8V (XSM4340FV), M4350-16V4C (VSM4320C), M4350-40X4C (XSM4344C), M4350-24M4X4V (MSM4332), M4350-24F4X (MSM4328F), M4350-40F4C (XSM4344FC). The netgear.com product page lists the first five of these.
Not for these models
The APS2000Wv2 is not listed for M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V. Those models use the APS350W, APS600Wv2, APS920W or APS2000W (v1).
PoE budget
The PoE budget available depends on the switch model and its power supply combination. See the PoE power tables in the NETGEAR M4350 Series Datasheet (see Datasheet & Downloads).
Package Contents & M4350 Power Supply Ordering Information
In the Box
Auxiliary power supply, power cord (varies by region) and product flyer.
NETGEAR M4350 Auxiliary Power Supplies
| PSU | Used in (M4350) |
| APS350W (APS350W-100NES) | M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V |
| APS600Wv2 (APS600W-200NES) | M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V |
| APS920W (APS920W-100NES) | M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V |
| APS2000W (v1) (APS2000W-100NES) | M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V |
| APS600Wv3 (APS600W-300NES) | M4350-24X8F8V, M4350-36X4V, M4350-32F8V, M4350-16V4C, M4350-40X4C, M4350-24M4X4V, M4350-24F4X, M4350-40F4C |
| APS1200Wv2 (APS1200W-200NES) | M4350-24X8F8V, M4350-36X4V, M4350-32F8V, M4350-16V4C, M4350-40X4C, M4350-24M4X4V, M4350-24F4X, M4350-40F4C |
| APS2000Wv2 (APS2000W-200NES) (this listing) | M4350-24X8F8V, M4350-36X4V, M4350-32F8V, M4350-16V4C, M4350-40X4C, M4350-24M4X4V, M4350-24F4X, M4350-40F4C |
Datasheet & Downloads
| Installation guide | NETGEAR Auxiliary Power Supplies APS600Wv3 / APS1200Wv2 / APS2000Wv2 Installation Guide (PDF) |
| M4350 datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| NETGEAR product page | APS2000Wv2 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting APS2000W-200NES.
Frequently Asked Questions — NETGEAR APS2000Wv2
Which switches use the APS2000Wv2?
M4350-24X8F8V, M4350-36X4V, M4350-32F8V, M4350-16V4C, M4350-40X4C, M4350-24M4X4V, M4350-24F4X, M4350-40F4C.
Can I replace it while the switch is running?
Yes, in switches running on more than one APS — NETGEAR states the power supplies are hot-pluggable. Follow the NETGEAR installation guide.
How much power does it deliver on 110V?
NETGEAR rates the APS2000Wv2 at up to 1,000W on 110V AC and up to 2,000W on 220V AC, which is the standard supply in Singapore.
What is the difference between APS2000Wv2 and the other versions?
NETGEAR splits M4350 power supplies into two groups. APS350W, APS600Wv2, APS920W and APS2000W (v1) fit the M4350-24G4XF, 48G4XF, 44M4X4V, 24X4V and 24F4V. APS600Wv3, APS1200Wv2 and APS2000Wv2 fit the M4350-36X4V, 24X8F8V, 32F8V, 16V4C, 40X4C, 24M4X4V, 24F4X and 40F4C (per the APS600Wv3/APS1200Wv2/APS2000Wv2 installation guide).
Is a power cord included?
Yes. Per the NETGEAR installation guide, a power cord (varies by region) is included.
What warranty do I get?
2 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
