Logitech Group ConferenceCam Room Bundles
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Logitech GROUP ConferenceCam (960-001054) - 2 Years Local Warranty
Full HD Conference Camera and Speakerphone for Rooms of 14 to 20 People

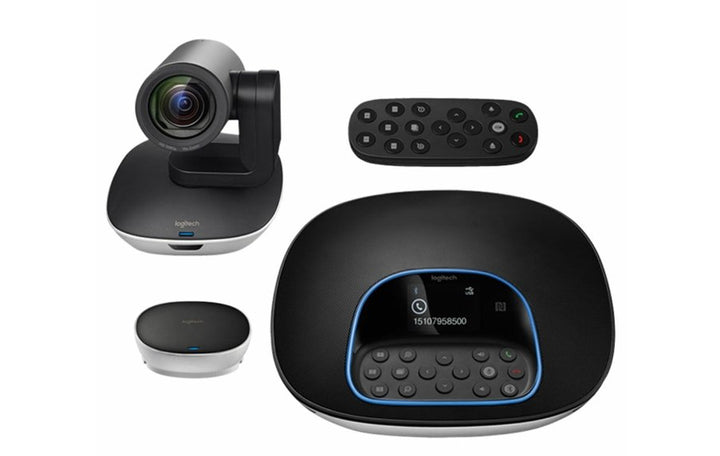

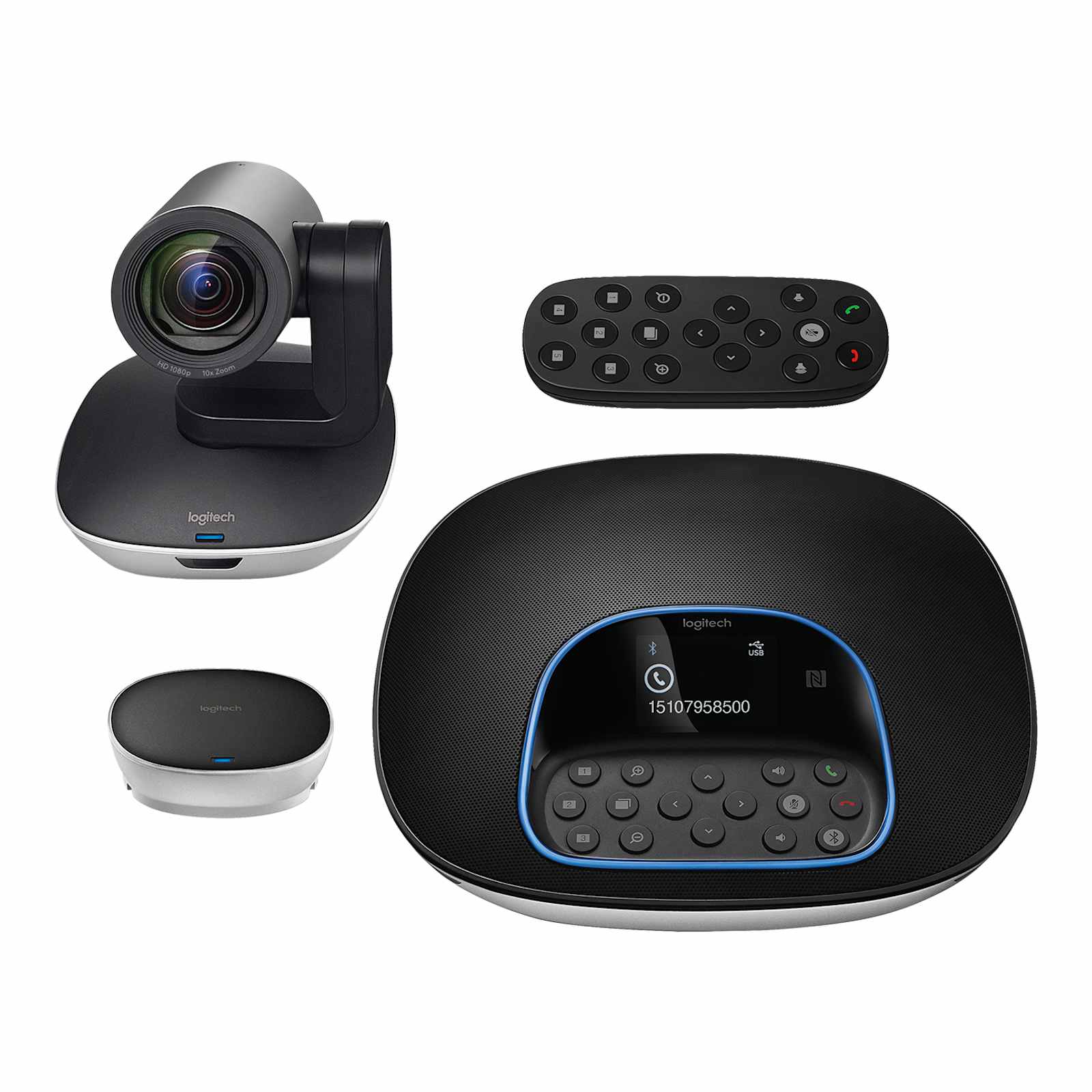

Logitech GROUP is a two-piece USB conferencing system — a motorised PTZ camera and a 360° full-duplex speakerphone joined by a powered hub — designed by Logitech for mid-to-large meeting rooms seating 14 to 20 people. The camera goes at the display, the speakerphone goes on the table, and a single USB 2.0 cable runs to the room computer. It remains one of the most cost-effective ways to bring a Singapore boardroom onto video without committing to a full room-appliance deployment.

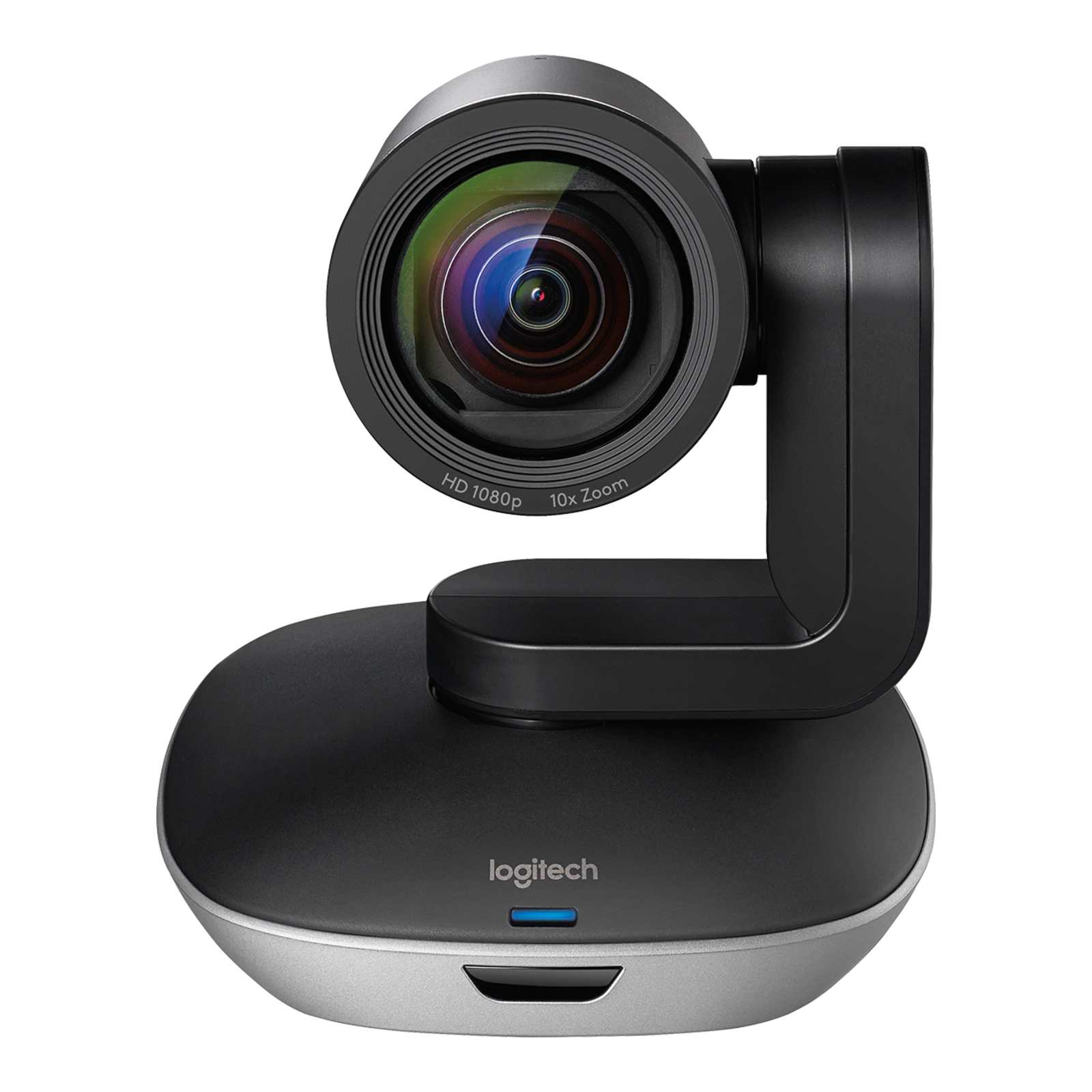

10x HD Zoom PTZ Camera with Motorised Pan and Tilt
A 3 MP sensor delivers Full HD 1080p at 30 fps with H.264 UVC 1.5 and Scalable Video Coding, so the camera does the compression work rather than the PC. Zoom is 10x HD — 5x optical plus 2x digital. The field of view is 90° diagonal at the wide end and 22° at the tele end, pan and tilt are genuinely motorised, five camera presets are stored, and far-end camera control is supported on platforms that allow it.

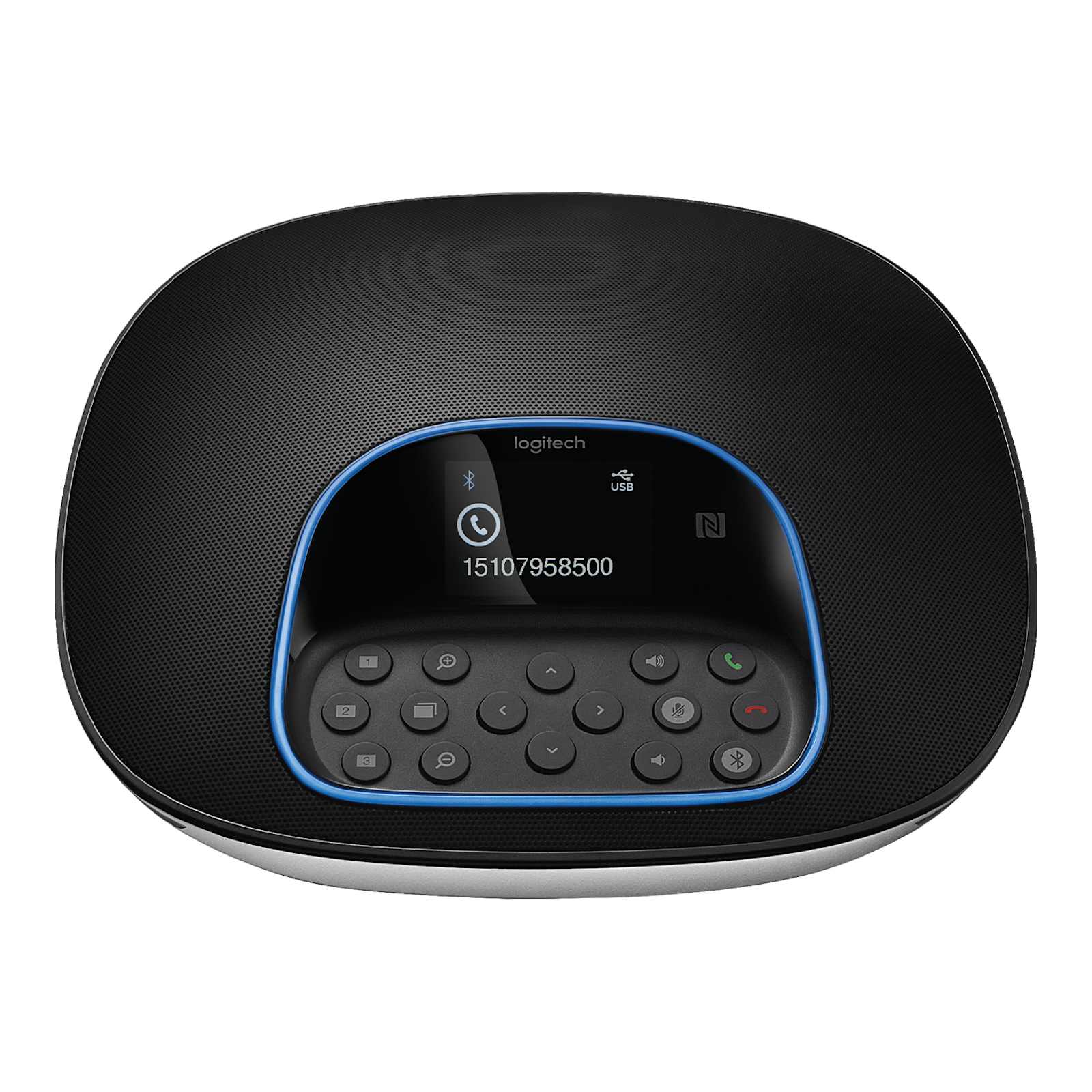

360° Speakerphone with Four Beamforming Microphones and 6 m Pickup
The speakerphone carries four omnidirectional, noise-cancelling beamforming microphones covering a 6 m (20 ft) conversation diameter, with acoustic echo cancellation and noise reduction. Microphone response runs 100 Hz to 11 kHz and the speaker reaches 91 dB SPL maximum across 120 Hz to 14 kHz. Add the optional GROUP Expansion Mics and the coverage extends to 8.5 m (28 ft), which Logitech rates for up to 20 people in one large room. A 2.4-inch LCD on the speakerphone shows call status and camera control.
Bluetooth and NFC Pairing, 5 m Component Cables, Wall or Table Mount
Beyond USB, GROUP pairs over Bluetooth 4.0 with NFC one-touch pairing at up to 10 m, so a phone can use the speakerphone for audio-only calls. Two 5 m Mini-DIN-6 cables connect the camera and speakerphone to the powered hub, with optional 10 m and 15 m extension cables available if the room is larger. A dual-purpose bracket handles either wall mounting or tabletop elevation, and Velcro is supplied for cable and hub management.
Logitech GROUP Datasheet — Technical Specifications
General
| Product | Logitech GROUP ConferenceCam system — camera, speakerphone, hub and remote |
| Recommended room size | Mid-to-large meeting rooms, 14 to 20 people |
| Conversation range | 6 m (20 ft) diameter; 8.5 m (28 ft) with optional expansion mics |
| Part number | 960-001054 |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Sensor | 3 MP, up to 1080p |
| Video | Full HD 1080p at 30 fps; H.264 UVC 1.5 with Scalable Video Coding |
| Zoom | 10x HD zoom — 5x optical plus 2x digital |
| Field of view | 90° diagonal at wide, 22° at tele; 82.1° horizontal, 52.2° vertical |
| Pan and tilt | Motorised. Pan ±90° and tilt +35° / −45°; 260° pan and 130° tilt total sweep. |
| Camera presets | 5 presets (3 on the speakerphone and 5 on the remote) |
| Far-end camera control | Supported on compatible platforms |
| Focus | Autofocus, premium Logitech glass lens |
Audio
| Speaker | 1 built-in mono driver, 51 x 51 x 31.8 mm; full-duplex, 360° coverage |
| Speaker response | 120 Hz – 14 kHz; sensitivity 83 dB SPL; maximum output 91 dB SPL |
| Microphones | 4 omnidirectional, beamforming, noise-cancelling microphones |
| Microphone response | 100 Hz – 11 kHz; sensitivity −28 dB ±3 dB; distortion under 5% from 200 Hz |
| Pickup range | 6 m (20 ft) diameter; 8.5 m (28 ft) with expansion mics |
| Audio processing | Acoustic echo cancellation and noise reduction |
| Display | 2.4-inch TFT LCD on the speakerphone |
| Expansion mics (989-000171) | Sold as a pair; mono wideband omnidirectional noise-cancelling; 100 Hz – 20 kHz; sensitivity −24 dB; 2.4 m (8 ft) cable each |
Connectivity
| USB | USB 2.0 high-speed, plug-and-play |
| Bluetooth | Bluetooth 4.0 with HFP 1.6, A2DP 1.2 and AVRCP 1.4; range 10 m (33 ft) |
| NFC | NFC one-touch pairing supported |
| Hub to camera / speakerphone | Two 5 m (16.4 ft) Mini-DIN-6 cables |
| Hub to PC | USB cable. Logitech’s spec pages state 2 m (6.6 ft); the datasheet states 3 m (9.8 ft). |
| Extension cables | 939-001487 = 10 m Mini-DIN-6; 939-001490 = 15 m Mini-DIN-6 with in-line repeater, plenum rated, usable to camera or speakerphone |
| Power cable | 3 m (9.8 ft) |
Design & Power
| Camera | 130 x 170 x 138 mm, 585 g |
| Speakerphone | 240 x 65 x 240 mm, 1,223 g |
| Hub | 94 x 34 x 74 mm, 83 g |

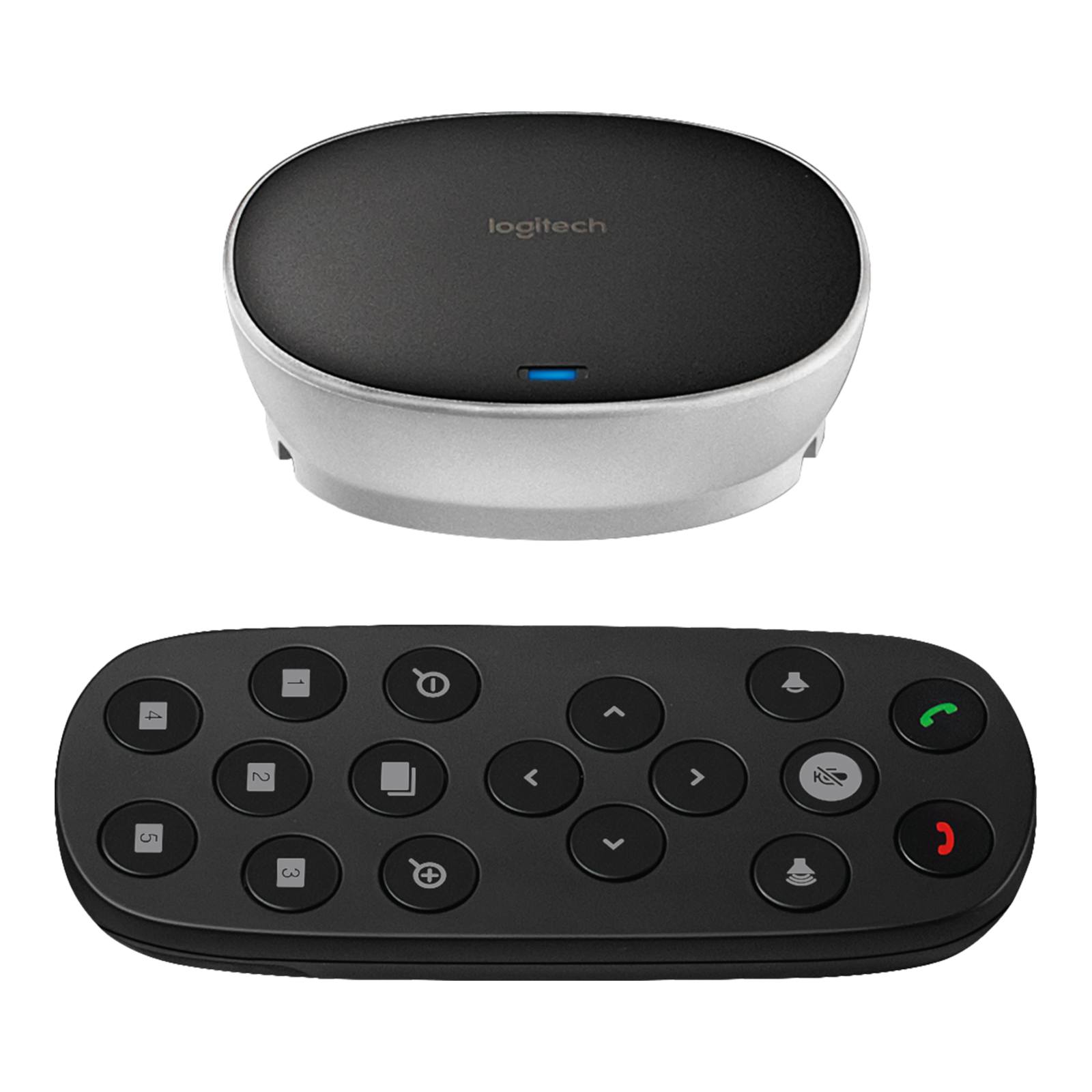

| Remote | 50 x 120 x 12 mm, 51 g; infrared, 8.5 m (28 ft) range, CR2032 included |
| Mount | Dual-purpose wall-mount / tabletop-elevation bracket, 210 x 120 x 99 mm, 255 g |
| Expansion mic | 83 x 83 x 21 mm, 230 g each |
| Retail package | 500 x 152 x 310 mm, 4.1 kg |
| Power | AC adapter with regional plugs, 3 m cable; the hub is powered |
Compatibility & Software Support
GROUP is a USB 2.0 UVC device and works as a standard camera and audio device on Windows and macOS room computers, with no drivers required.
| Microsoft Teams | Certified |
| Skype for Business | Certified |
| Zoom | Zoom Certified |
| Fuze | Fuze Certified |
| Cisco Jabber and WebEx | Certified client applications |
| Other platforms | Compatible with BlueJeans, BroadSoft, GoToMeeting and Vidyo |
| Bluetooth audio | Pairs with phones and tablets for audio-only calls; NFC one-touch pairing |
GROUP is certified for Microsoft Teams and Zoom as a USB device. It is not a Microsoft Teams Rooms or Zoom Rooms appliance and it does not run Logitech CollabOS or appear in the CollabOS certification matrix. For a dedicated appliance room, look at Rally Bar or a RoomMate based system instead.
Package Contents & GROUP Series Ordering Information
In the box
Camera, speakerphone, two 5 m (16.4 ft) cables connecting the speakerphone and camera to the hub, one cable between the hub and PC, Velcro for cable management, Velcro to secure the hub to the table, powered hub, power adapter with regional plugs, mount, quick start guide and warranty card.
GROUP series and legacy conference camera ordering information
| Logitech GROUP ConferenceCam — 960-001054 (this listing) | View listing |
| Logitech GROUP Expansion Mics — 989-000171 | View listing |
| Logitech GROUP Extension Cable 10 M — 939-001487 | View listing |
| Logitech GROUP Extension Cable 15 M — 939-001490 | View listing |
| Logitech PTZ Pro 2 — 960-001184 | View listing |
| Logitech BCC950 ConferenceCam — 960-000939 | View listing |
| Logitech ConferenceCam Connect — 960-001035 | View listing |
What part number 960-001054 covers
960-001054 is the base GROUP system — camera, speakerphone, hub, remote and mount. The GROUP Expansion Mics (989-000171) are sold separately and are not included at this part number; 960-001060 is the factory bundle that includes them. If you need the expansion mics, add them to your order.
Regional part numbers
Logitech’s EMEA datasheets list the same product as 960-001057 (EAN 5099206062528). 960-001054 is the part number shown on Logitech’s Singapore product page and is correct for this market. The hardware is identical; only the regional SKU and power plugs differ.
Datasheet & Downloads
- Logitech GROUP official datasheet (PDF)
- Logitech GROUP specifications on the Logitech spec hub
- Logitech GROUP product support hub
- Logitech GROUP 10 M extended cable datasheet (PDF)
- Logitech GROUP 15 M extended cable datasheet (PDF)
- Logitech GROUP Expansion Mics product page
- Logitech GROUP product page (Singapore)
Frequently Asked Questions — Logitech GROUP
Does this part number include the GROUP Expansion Mics?
No. 960-001054 is the base GROUP system: camera, speakerphone, powered hub, remote and mount. The GROUP Expansion Mics (989-000171) are a separate item, sold as a pair. The factory bundle part number 960-001060 includes them.
What room size does GROUP suit?
Logitech rates it for mid-to-large meeting rooms of 14 to 20 people, with a 6 m conversation diameter around the speakerphone. Adding the expansion mics extends pickup to 8.5 m, which Logitech rates for up to 20 people in one large room. For a room much larger than that, a modular Rally Plus system with multiple mic pods is the better fit.
Is the 10x zoom optical?
Half of it. The 10x HD zoom is 5x optical plus 2x digital. Pan and tilt, however, are genuinely motorised.
Do I need a room PC or a Teams Rooms licence?
GROUP is a USB peripheral, so it needs a host computer — a laptop for ad-hoc use, or a dedicated room PC for a permanently signed-in room. It is not an appliance and runs no room software of its own. Microsoft Teams Rooms and Zoom Rooms licences, if you want them, are bought from Microsoft or Zoom. For a PC-free room, look at Rally Bar or RoomMate with Tap IP.
How do I cover a room bigger than the supplied 5 m cables allow?
Logitech makes two extension cables: the 10 M cable (939-001487) and the 15 M cable (939-001490), the latter with an in-line repeater and plenum rating. Either can be used to the camera or the speakerphone.
How does GROUP compare with MeetUp or Rally Bar?
GROUP separates the camera and the speakerphone, which is its advantage in a long room — the microphones sit on the table rather than at the display. MeetUp is a single all-in-one bar for smaller rooms with a much simpler install, and Rally Bar adds 4K, built-in compute and appliance-mode operation with no room PC. GROUP is 1080p and USB-only, and its main strength is table-mic placement.
Has GROUP been discontinued?
Logitech has published no end-of-sale or end-of-life notice for GROUP, and it is not listed on Logitech’s end-of-sale page.
Does the Logitech GROUP come with a Singapore warranty?
Yes. Every Logitech GROUP sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
