Cisco Webex Room Bar Pro First Light with Room Navigator for Table
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

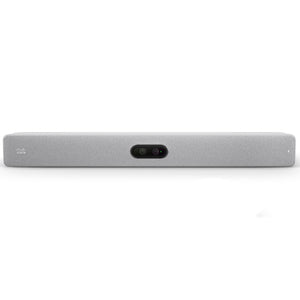

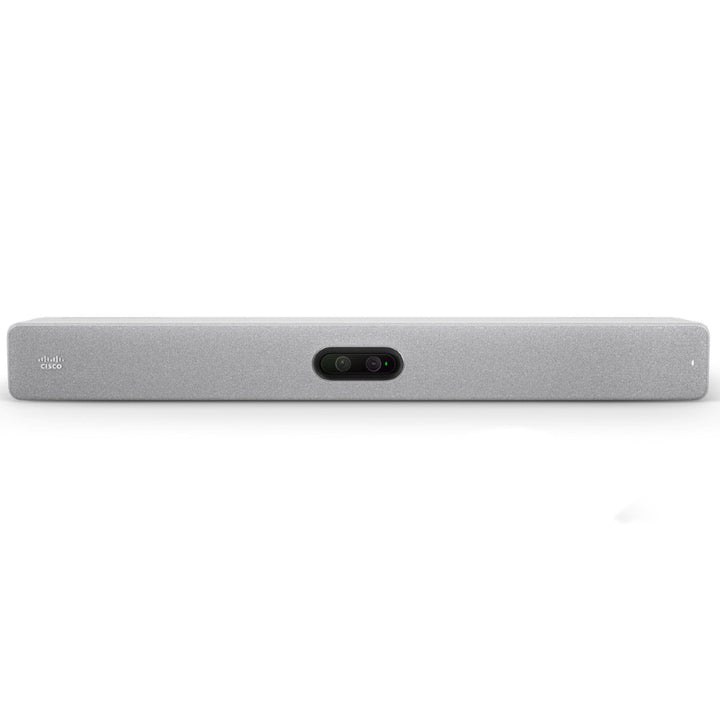

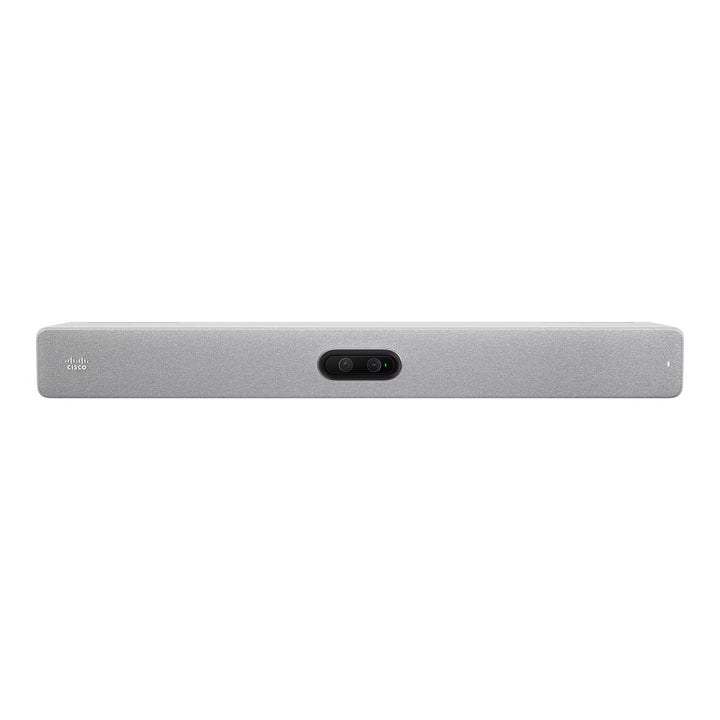

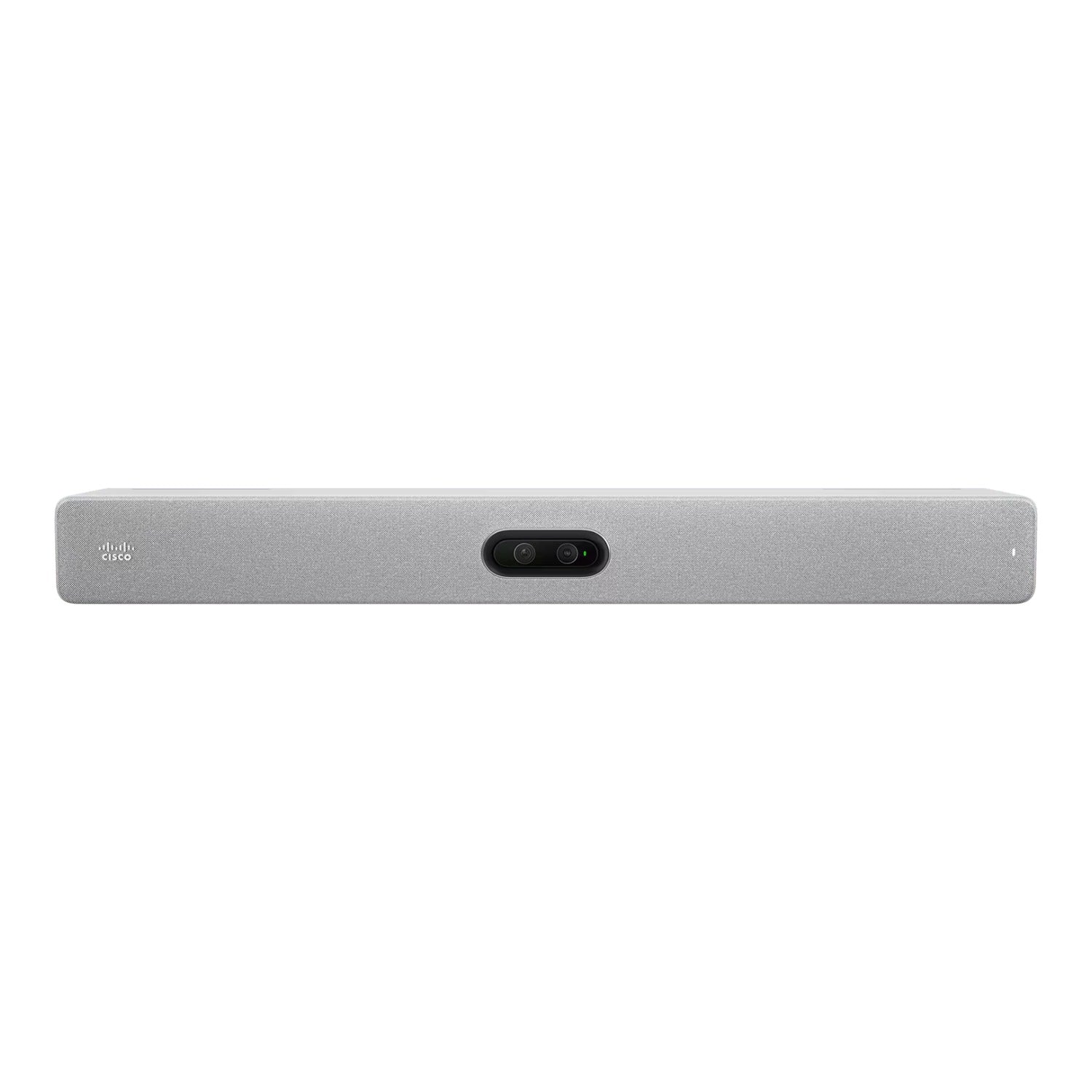

Cisco Room Bar Pro First Light with Room Navigator for Table (CS-BARPRO-K9) — 1 Year Local Warranty
AI-powered video bar for small and medium rooms

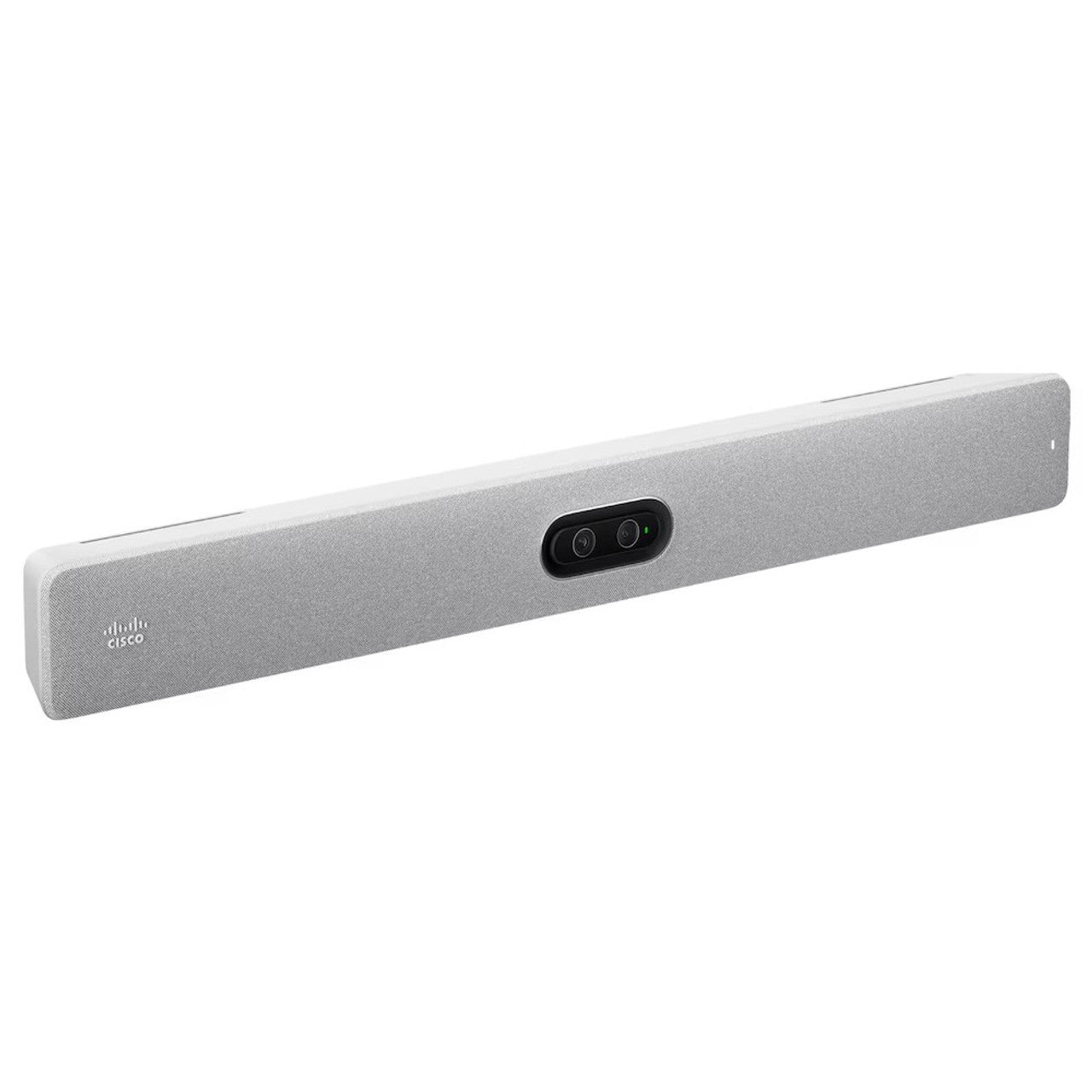

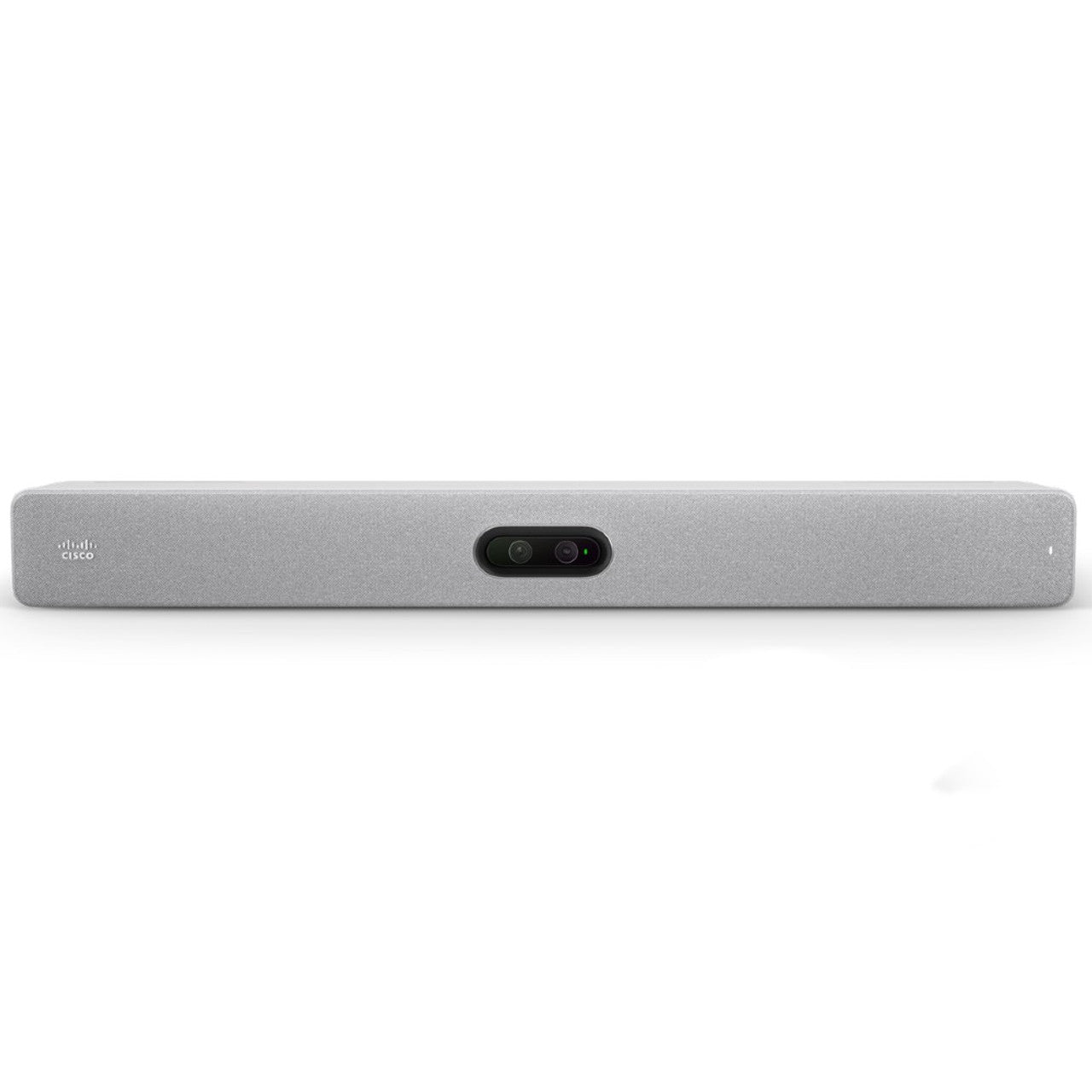

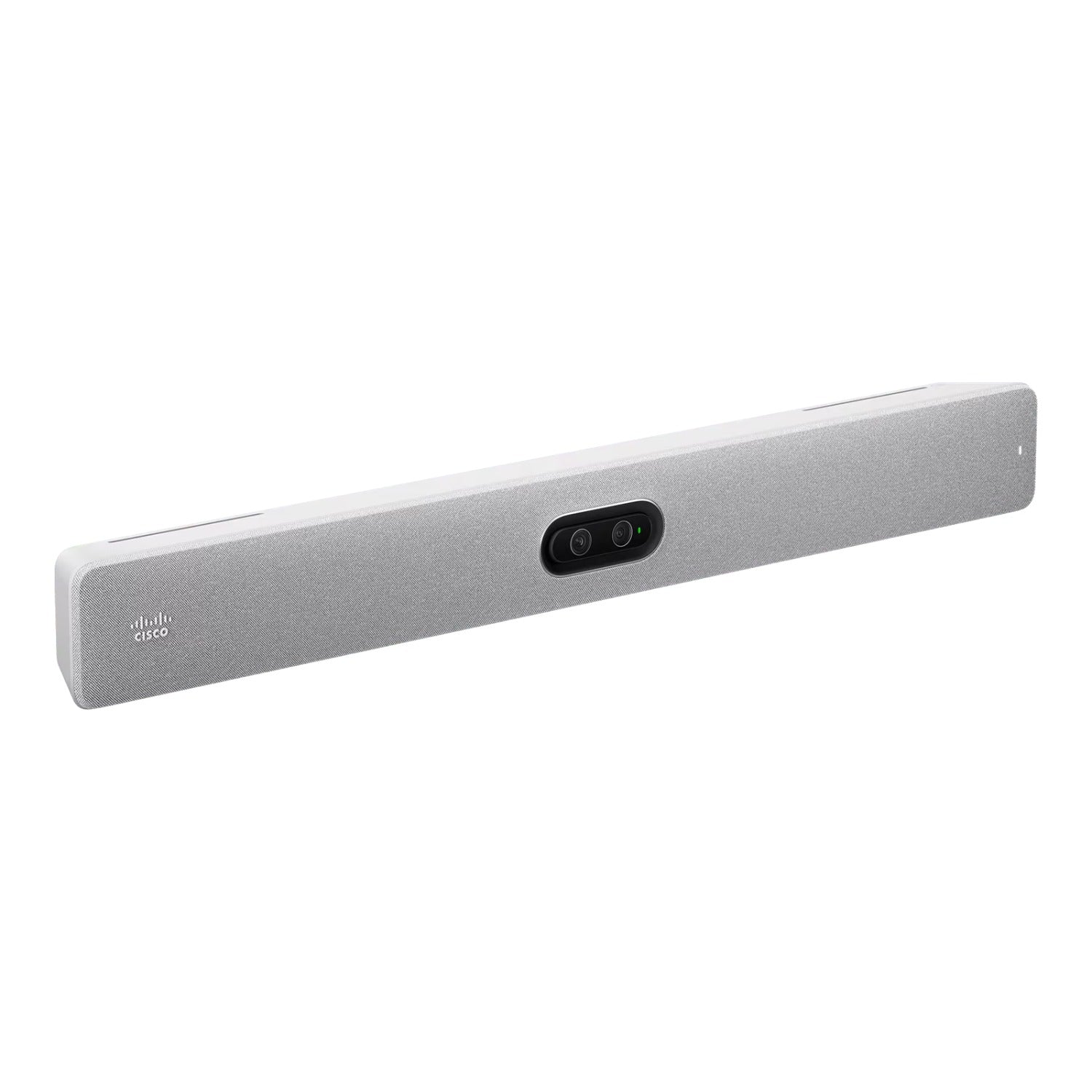

The Cisco Room Bar Pro (CS-BARPRO-K9) is a 96 cm all-in-one video bar with a dual-lens camera system, a 16-element microphone array, a 3-channel speaker system and a built-in power supply. Cisco positions it for small and medium workspaces. This part number is the First Light finish, bundled with a table-stand Room Navigator, mounting kit and cables.
96 MP dual-lens camera system
Two 48 MP sensors (96 MP in total) sit behind a 112° wide-angle lens and a 70° tele-lens, with motorised tilt from -2° to 20°. Group view, speaker view and Frames mode are automatic. Cisco quotes speaker-view reach of up to 4 m for a single-person frame and 7 m for a two-person frame, extended to 5.5 m and 8 m with the AI virtual lens.
16-element microphone array and directional sound
The beamforming microphone array is optimised for people within 4 m of the bar, with AI-powered noise removal, de-reverberation and echo cancellation. Three full-range drivers and a mechanically balanced dual woofer cover 70 Hz to 22 kHz at up to 97 dB SPL, with directional audio that places far-end voices on screen.

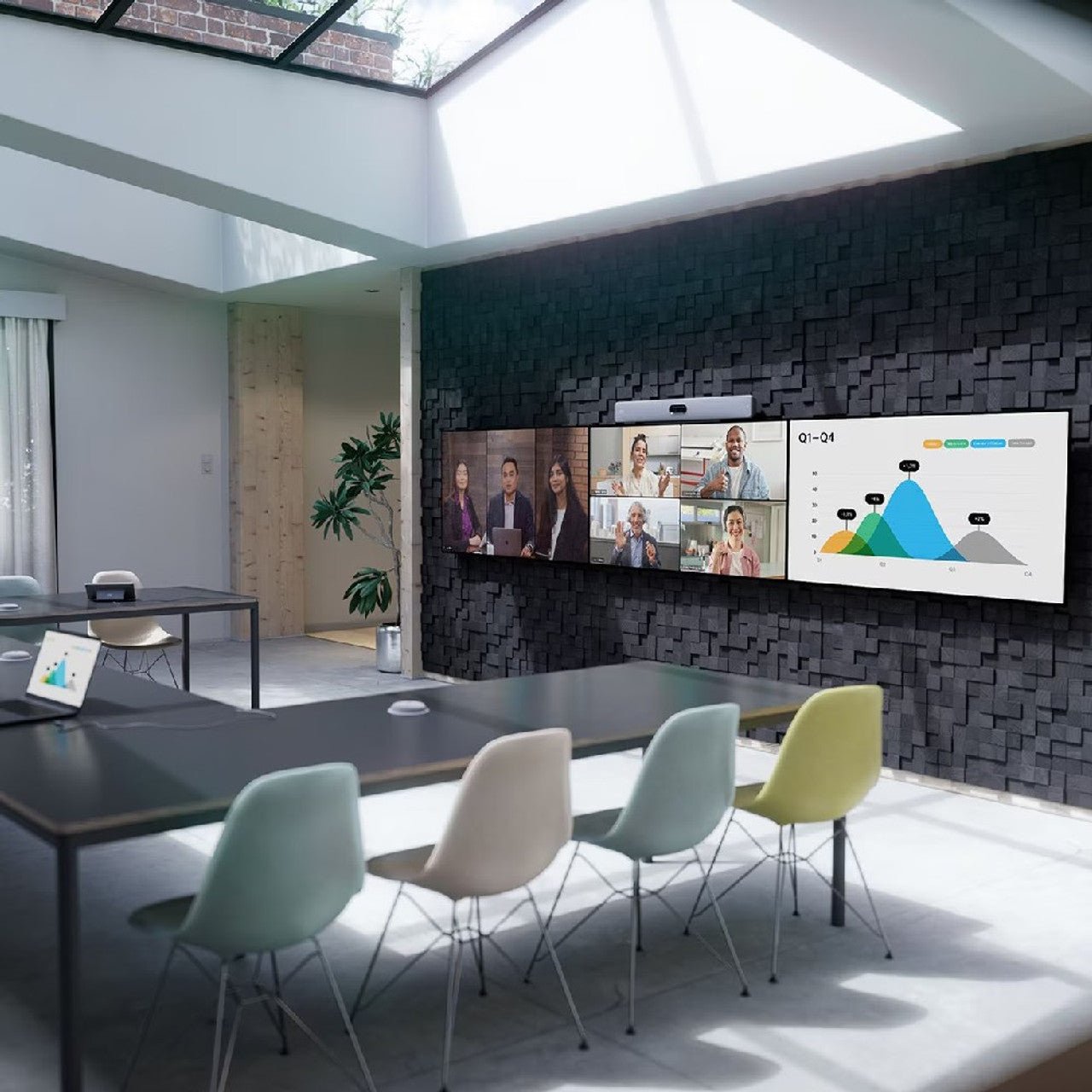

Three screens, touch displays and dual content
Three HDMI outputs (up to 3840 × 2160 at 60 fps) drive up to three screens for video and content. An interactive touch display connected over HDMI and USB enables whiteboarding and annotation, and HDMI and USB-C inputs allow two local content sources. Wireless sharing covers the Webex app, Miracast and Apple AirPlay.
Room expansion over PoE
Beyond the Room Navigator port, two PoE (802.3af) ports connect up to eight Cisco IP microphones such as the Ceiling Microphone Pro, or third-party AES67 microphones with the AV Integrator licence. Adding a Cisco PTZ 4K Camera enables presenter tracking.
Webex, Microsoft Teams Rooms and BYOD
On RoomOS the Room Bar Pro joins Webex natively and Microsoft Teams, Zoom and Google Meet through interoperability. It can alternatively run Microsoft Teams Rooms on Android. A single USB-C cable lets a laptop share content and use the bar's camera, microphones and speakers.
Cisco Room Bar Pro Datasheet — Technical Specifications
Camera
| Camera system | 96 MP total: 2x 48 MP, 1/1.3-inch Quad Bayer sensors, 30 fps |
| Wide-angle lens | 112° horizontal, 94° vertical field of view, f/2.8 fixed aperture |
| Tele-lens | 70° horizontal, 55° vertical field of view, f/1.85 fixed aperture |
| Zoom | 5x digital (10x with AI virtual lens enabled) |
| Tilt | Motorised, -2° to 20° |
| Framing | Group view, speaker view, Frames camera mode; Meeting Zones; auto brightness and white balance |
| Speaker view reach | Up to 4 m (single person) / 7 m (two-person frame); up to 5.5 m / 8 m with AI virtual lens |
Audio
| Microphones | 16-element beamforming array, 120 Hz – 16 kHz; optimised for people within 4 m |
| Speakers | 3-channel system: 3 full-range drivers plus mechanically balanced dual woofer; 70 Hz – 22 kHz; max 97 dB SPL |
| Audio processing | AI-powered noise removal, acoustic echo cancellation, automatic gain control, de-reverberation, full duplex, spatial audio, ultrasound |
| Audio codecs | G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
| Audio inputs | 1x HDMI, 2x analog line in, 1x USB-C, 2x USB-A, Bluetooth, 2x PoE for up to 8 Cisco IP microphones (or AES67 microphones with AV Integrator licence) |
| Audio outputs | 1x analog line out, 1x USB-C, 2x USB-A, Bluetooth |
Video & Content
| Video standards | H.263, H.264, H.265, AV1 |
| Main video | 1920 × 1080 at 30 fps (60 fps encode when a secondary camera is connected) |
| Presentation channel | Up to 3840 × 2160 at 15 fps; 1920 × 1080 at 60 fps |
| Video inputs | 1x HDMI and 1x USB-C, each up to 3840 × 2160 at 30 fps (including 1920 × 1080 at 60 fps) |
| Video outputs | 3x HDMI, up to 3840 × 2160 at 60 fps; up to three screens |
| Wireless sharing | Webex app, Miracast, Apple AirPlay; Microsoft Teams Cast on Microsoft Teams Rooms |
| USB passthrough | Camera, microphones and speakers over one USB-C cable (up to 3840 × 2160 at 30 fps; computer must support DisplayPort Alt Mode) |
| Multipoint | Embedded SIP/H.323 conferencing (up to 5-way) with the optional MultiSite licence |
Network & Connectivity

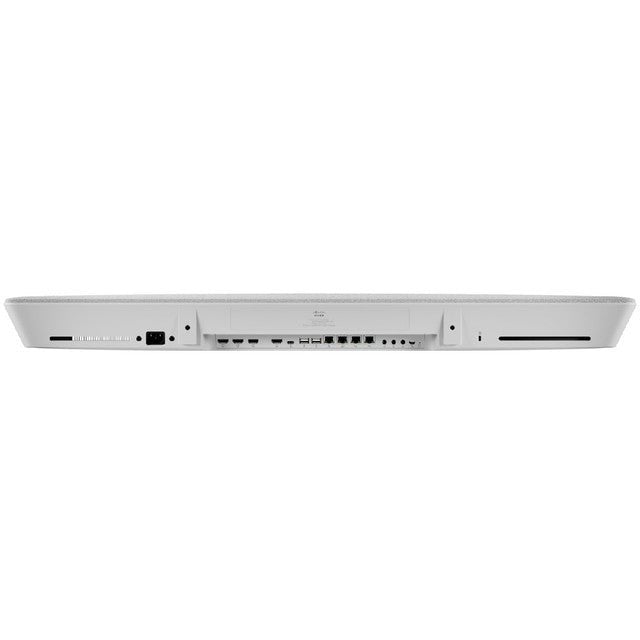

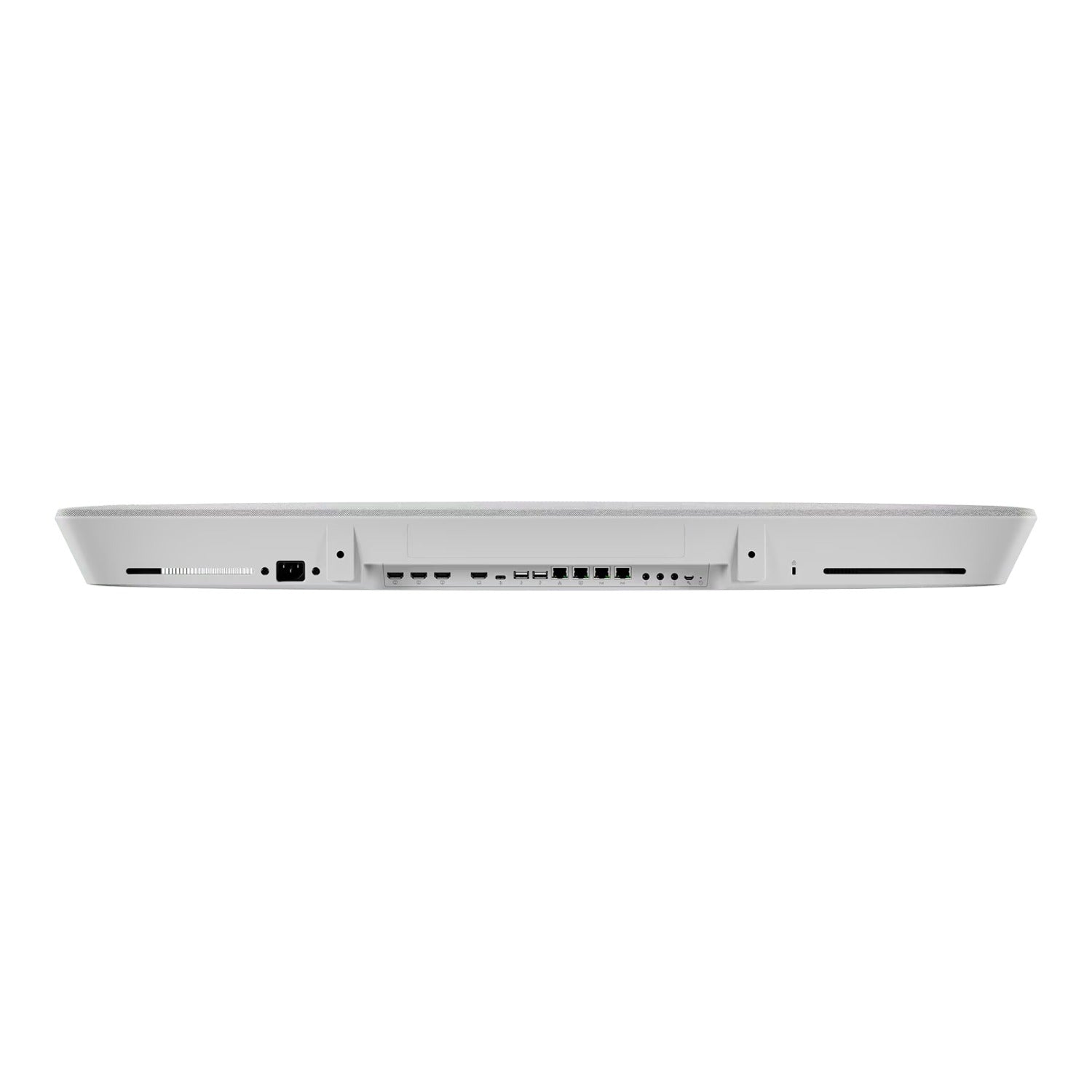

| Ethernet | 1x RJ-45 10/100/1000 LAN; 1x PoE (802.3af, 15.4 W) for Room Navigator; 2x PoE (802.3af, 15.4 W per port) for AV over IP |
| Wi-Fi | 802.11a/b/g/n/ac/ax, 2.4 / 5 / 6 GHz, 2x2 MIMO (Wi-Fi 6E) |
| Bluetooth | Bluetooth and Bluetooth Low Energy |
| Other ports | 2x USB 2.0 Type-A, 1x micro-USB service port, factory reset pinhole, Kensington slot |
| Protocols | H.323, SIP, Webex, WebRTC; Cisco Expressway, H.460.18 / H.460.19 firewall traversal |
| Security | HTTPS / SSH management, SRTP (AES-128-GCM / AES-256-GCM), WPA3 and WPA3-Enterprise, end-to-end encryption in Webex |
Power & Physical
| Power | Built-in power supply, 100–240 VAC, 50/60 Hz |
| Power consumption | Average 20 W; networked standby 12.7 W; standby 1 W |
| Dimensions (W × H × D) | 96 × 11 × 9 cm (37.8 × 4.3 × 3.5 in) |
| Weight | 4.47 kg (9.86 lb) |
| Mounting | Wall or display mount, above or below the screen; flip-able speaker grille |
| Operating environment | 0 °C to 35 °C, 10% to 90% relative humidity |
Compatibility & Software Support
Meeting platforms
RoomOS mode: native Webex meetings, plus Microsoft Teams (VIMT/CVI or WebRTC Direct Guest Join), Google Meet (WebRTC) and Zoom (SIP) interoperability, and standards-based SIP/H.323 calling. Microsoft Teams Rooms on Android mode: native Teams Rooms experience; when registered in Control Hub it can also join Webex meetings with One Button to Push.
Software
RoomOS 11.5.1.x or later for native Webex meetings and interoperability; on-premises deployments are supported from RoomOS 11.5.2.x.
Management & registration
Webex Control Hub for cloud management. On-premises registration to Cisco Unified CM 12.5(1) or later (with device pack), Cisco Expressway or TelePresence Management Suite 15.13.6 or later. Webex Edge for Devices links on-premises devices to the cloud.
Optional licences and peripherals
Remote Monitoring (L-KIT-RM), MultiSite (L-KIT-MS) and the AV Integrator licence (L-BARPRO-AV, required for third-party AES67 microphones) are ordered separately. Compatible peripherals listed by Cisco include the Table Microphone Pro, Ceiling Microphone Pro, Cisco Table Microphone, Room Navigator for Wall and the Cisco PTZ 4K Camera (presenter tracking requires connecting it over Ethernet and HDMI in).
Warranty
Sold by SourceIT as a Singapore unit with a 1-year local warranty. Cisco states a 1-year limited liability warranty for this product family in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Room Bar Pro Family Ordering Information
In the Box
Cisco lists the following components with the Room Bar Pro bundle:
- Cisco Room Bar Pro, First Light
- Cisco Room Navigator for Table, First Light
- Mounting kit for screen and wall
- Ethernet cable for network connection, 5 m
- HDMI cable for one display, 1.5 m
- Ethernet cable for the Room Navigator, 8 m
- Country-specific power cord
A camera privacy cover and extra display cables are listed by Cisco as optional items.
Cisco Room Bar Pro Family
| Model | Key difference |
| Cisco Room Bar Pro, First Light (CS-BARPRO-K9) (this listing) | With table-stand Room Navigator, mount and cables |
| Cisco Room Bar Pro, Carbon Black (CS-BARPRO-C-K9) | Carbon Black finish, same contents |
| Cisco Room Bar Pro, No Radio (CS-BARPRO-NR-K9) | No Wi-Fi or Bluetooth radio |
| Cisco Room Bar (CS-BAR-T-K9) | Smaller bar for huddle and small rooms: 12 MP camera, two HDMI outputs |
| Cisco Room Kit EQ (CS-KIT-EQ-K9) | Modular kit (Codec EQ + Quad Camera) for medium and large rooms |
Datasheet & Downloads
Frequently Asked Questions — Cisco Room Bar Pro
Does the Room Bar Pro have two 96 MP cameras?
No. The camera system totals 96 MP, made up of two 48 MP sensors: one behind a 112° wide-angle lens and one behind a 70° tele-lens.
How large a room can it cover?
Cisco positions the Room Bar Pro for small and medium workspaces. Its microphones are optimised for people within 4 m; Cisco recommends external microphones beyond that, which connect over the two PoE ports.
How many displays can I connect?
Up to three screens over HDMI, at up to 3840 × 2160 at 60 fps. An interactive touch display can be connected over HDMI and USB.
Does it run Microsoft Teams Rooms?
Yes. It can be deployed as a Microsoft Teams Rooms on Android device, or run RoomOS and join Teams meetings through interoperability.
Is the Room Navigator included?
Yes. CS-BARPRO-K9 includes a First Light Room Navigator for Table and its 8 m Ethernet cable.
